Wherever You Need It - The Presonus NSB 32.16 Networked Stage Box

The PreSonus® NSB 32.16 networked stage box lets you put your analog I/O for your StudioLive® Series III digital mixer wherever you need it. Equipped with 32 digitally controlled XMAX mic preamps, 32 balanced line-level inputs, 16 analog outputs, and 2 stereo AES3 digital outputs, the NSB 32.16 integrates seamlessly into StudioLive Series III digital mixers with a single Ethernet connection. Remote control input trims, phantom power, and more directly from your StudioLive Series III console or from UC Surface remote mixing software on your tablet or laptop.


  • 32x16 network stage box for StudioLive Series III console mixers
  • 32 locking digitally controlled XMAX mic/line inputs with gain compensation for shared streams
  • 16 XLR line outputs
  • 2 Stereo AES3 Digital Outputs
  • Easy configuration from StudioLive Series III console mixers and UC Surface
  • Built-in 2-port AVB switch with locking Ethernet connections for easy point-to-point and daisy-chain network configurations
  • Rugged all-metal stage box enclosure
  • Included multi-position rack ears
  • Compatible with stage pockets from Ace Backstage

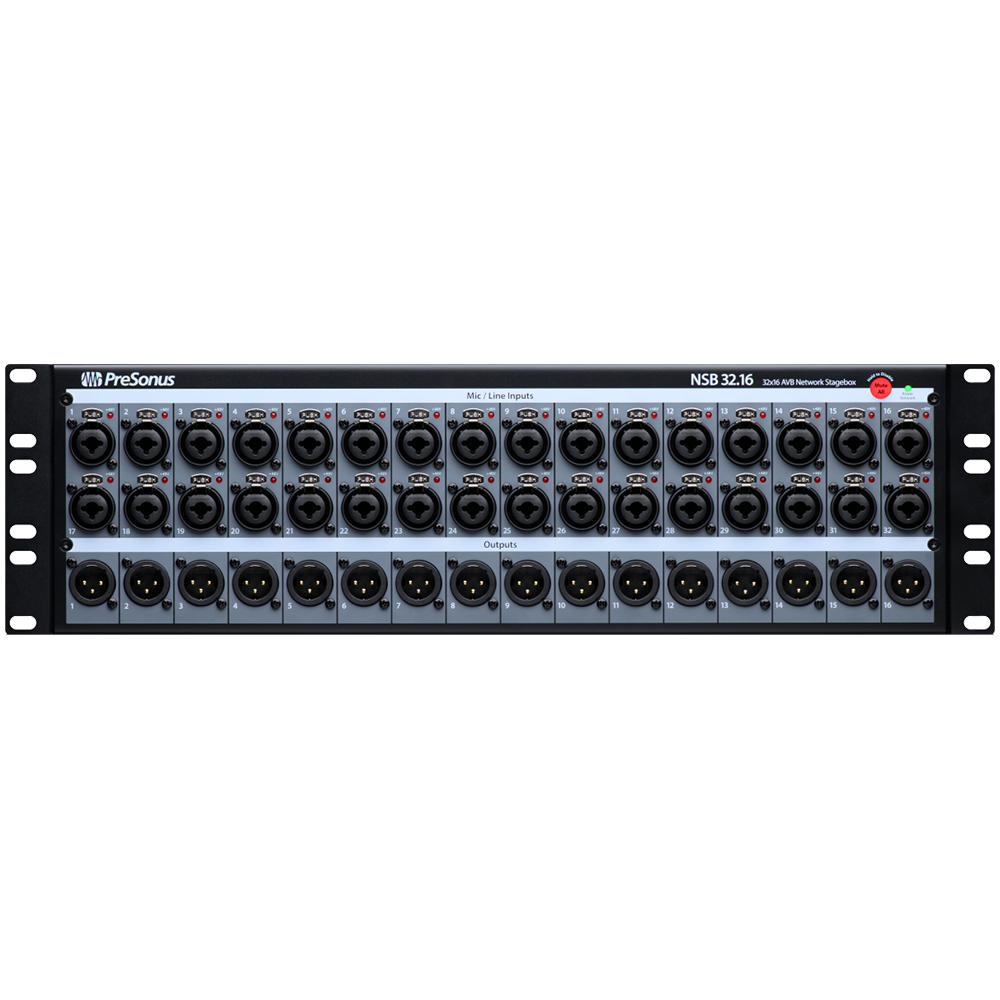

The NSB 32.16 networked stage box is loaded with 32 versatile locking combo jacks. Connect your microphones to the digitally controlled XMAX preamps or use the balanced ¼-inch TRS inputs to connect your line-level devices—the NSB 32.16 can handle it all. The inputs can be sent to any StudioLive Series III digital mixer on the network, and thanks to gain compensation, every mixer gets individual gain control without affecting the front-of-house mix.

PreSonus built the NSB 32.16 inside a rugged steel chassis designed to survive the rigors of the most demanding tours. The NSB 32.16 features adjustable rack ears, so you can choose between flush or recessed as well as front or rear I/O installation to fit your rack best. Thanks to the standard 3U 19-inch design, the NSB 32.16 is also compatible with most universal stage pockets for permanent installations.


SPECIFICATIONS

General

  • Series: NSB
  • Color: Black
  • Country of Origin: CN

Electronics

  • Voltage: 100-120V
  • Phantom Power: 48 VDC, Switchable Per Channel (±2 VDC)

Performance

  • Digital Audio Dynamic Range: 115 dB (A-Weighted, 48 kHz)

Inputs

  • Line Input Connection Type: 1/4" TRS, Balanced
  • Line Inputs Frequency Response: 20-20 kHz (±0.5 dBu at Unity Gain)
  • Line Inputs Impedance: 10 kΩ
  • Line Inputs Maximum Level: +18 dBu
  • Line Inputs Signal to Noise Ratio: 94 dB
  • Line Inputs Total Harmonic Distortion: <0.005%, +4 dBu, 20-20 kHz, Unity Gain, Unweighted
  • Microphone Input Connection Type: XLR Female, Balanced
  • Microphone Preamp Common Mode Rejection Ratio: 65 dB (1 kHz at Unity Gain)
  • Microphone Preamp Frequency Response: 20-20 kHz (±0.5 dBu at Unity Gain)
  • Microphone Preamp Gain Control Range: 0 dB to +60 dB
  • Microphone Preamp Input Impedance: 1 kΩ
  • Microphone Preamp Maximum Input Level: +12 dBu (Unity Gain)
  • Microphone Preamp Signal to Noise Ratio: 94 dB (Ref = +4 dB, 20 kHz BW, Unity Gain, A-Weighted)
  • Microphone Preamp Total Harmonic Distortion: <0.005%, +4 dBu, 20-20 kHz, Unity Gain, Unweighted

Hardware

  • Digital Audio Avb Audio Network Ports: Locking XLR Ethernet

Measurements

  • Dimensions: 7.50x10.00x22.40 IN
  • Shipping Weight: 12.50 LB
  • Product Depth: 5.25” (13.3cm)
  • Product Height: 5.25” (13.3cm)
  • Product Width: 19” (48.2cm) Rack Mount, 17.25” (43.8cm) Unit Body
  • Shipping Length: 22.40 IN
  • Shipping Height: 7.50 IN
  • Shipping Width: 10.00 IN

Miscellaneous

  • Power Cable: Locking IEC
  • Supported Sample Rates: 48 kHz, 44.1 kHz

Manufacturer: Presonus Audio
Model: NSB 32.16
SKU: I727115-N-10-WHXA
UPC: 673454009563
