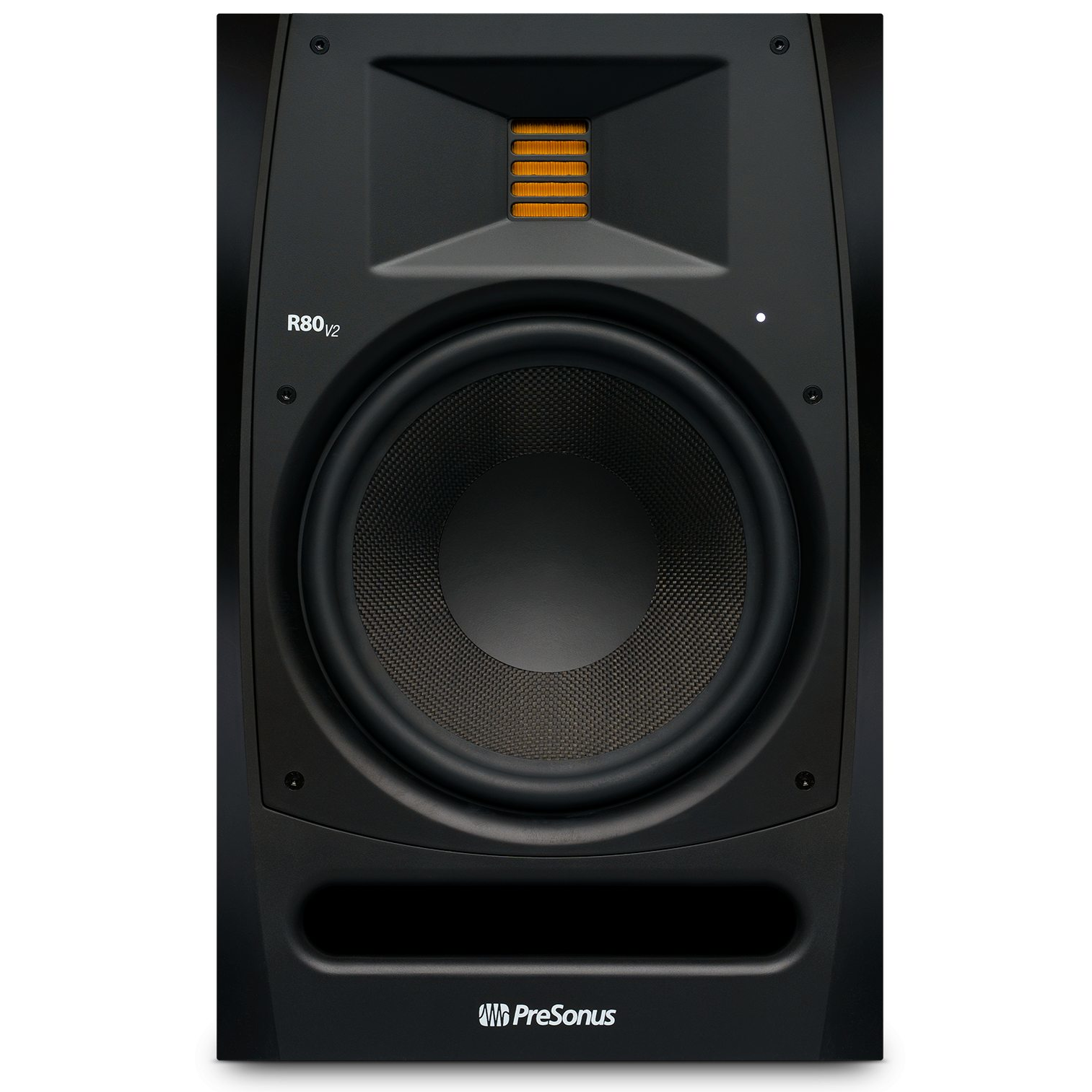

PreSonus R80 V2 8 Inch Powered Studio Monitor

Clarity is King - The PreSonus R65 V2 8 Inch Powered Studio Monitor

with the R80 V2s, you’ll hear every single detail in your music: the gentle breath in every exhale, the subtle finger noise in a nylon-string classical guitar; the nuanced overtones of brass and woodwinds; and exquisite reverb tails that decay gracefully into the void. Not only will your mixes sound their absolute best on R80 V2, but you’ll also be able to hear trouble spots in your tracks with surgical clarity. If you’re mixing or mastering high-resolution audio, the R80 V2 will ensure that you’ll hear every detail captured in your recordings.

Air and Transient Response

Driven by a dedicated 65 watt Class A/B amp, the R80 V2’s custom-designed 6.8-square-inch Air Motion Transformer (AMT) excels at accurate reproduction of the highest of high frequencies—those responsible for a sense of air, space, and dimensionality. And the AMT’s astonishingly thin (less than 0.01 mm) folded Kapton membrane allows the tweeter to move in the same instant as the voltage cycles that power it, providing nothing less than wave cycle-accurate transient reproduction.

Wide With Pride

The unique AMT design also allows the R80 V2 to handle 8 to 13 times the projection area of more traditional tweeter designs, while the R80 V2’s unique housing constrains this projection area to the horizontal axis. The result is a very wide sweet spot with focused vertical dispersion, —minimizing reflections off of your desk, ceiling, and floor that could otherwise introduce problematic phase and coherence issues. And because it’s less subject to room-anomaly interference, the R80 V2 studio monitor reacts predictably and sounds consistent, even if moved to different listening environments.

The Lowdown on the Down-Low

R80 V2’s woofer is eight inches of rigid, custom-woven composite that offers consistent dispersion across its frequency range for the flattest response we could design. A dedicated 75 watt Class A/B amplifier provides ample headroom and impressive distortion-free, non-fatiguing performance—even at higher volumes.

The New Versatility

Improving the respected R-series classics wasn’t easy, but we found a way: by giving you more control than was available on the original R80. The updated R80 V2 features analog acoustic tuning controls that will be familiar to users of our celebrated Eris® line—you get Low Cut, Mid Frequency, and High Frequency controls, as well as a three-way Acoustic Space switch that allow you to easily compensate for the sonic consequences of speaker placement against a wall or in a corner. We also added a new Class A/B amplifier to provide an even warmer and smoother overall frequency response.

Studio monitor connections

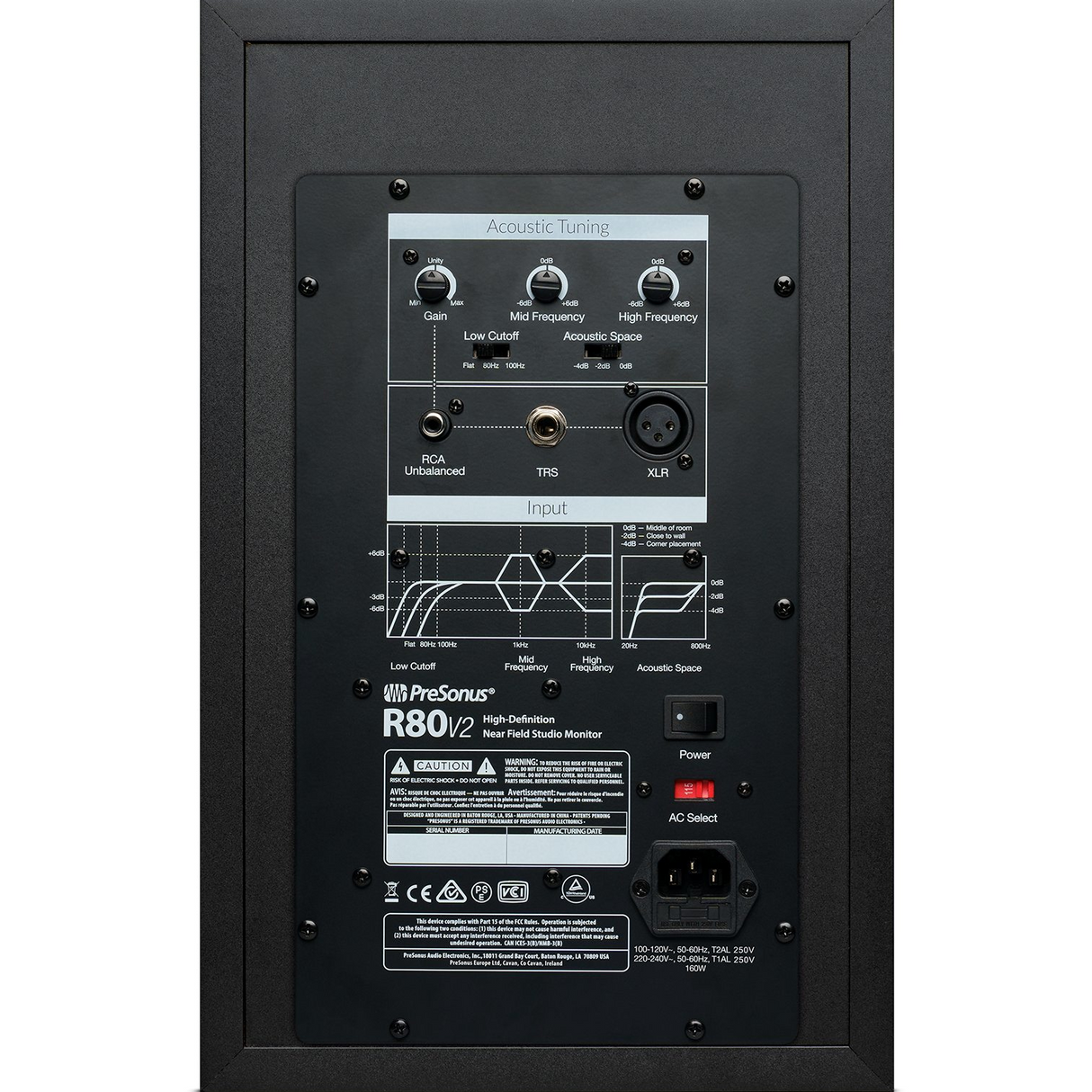

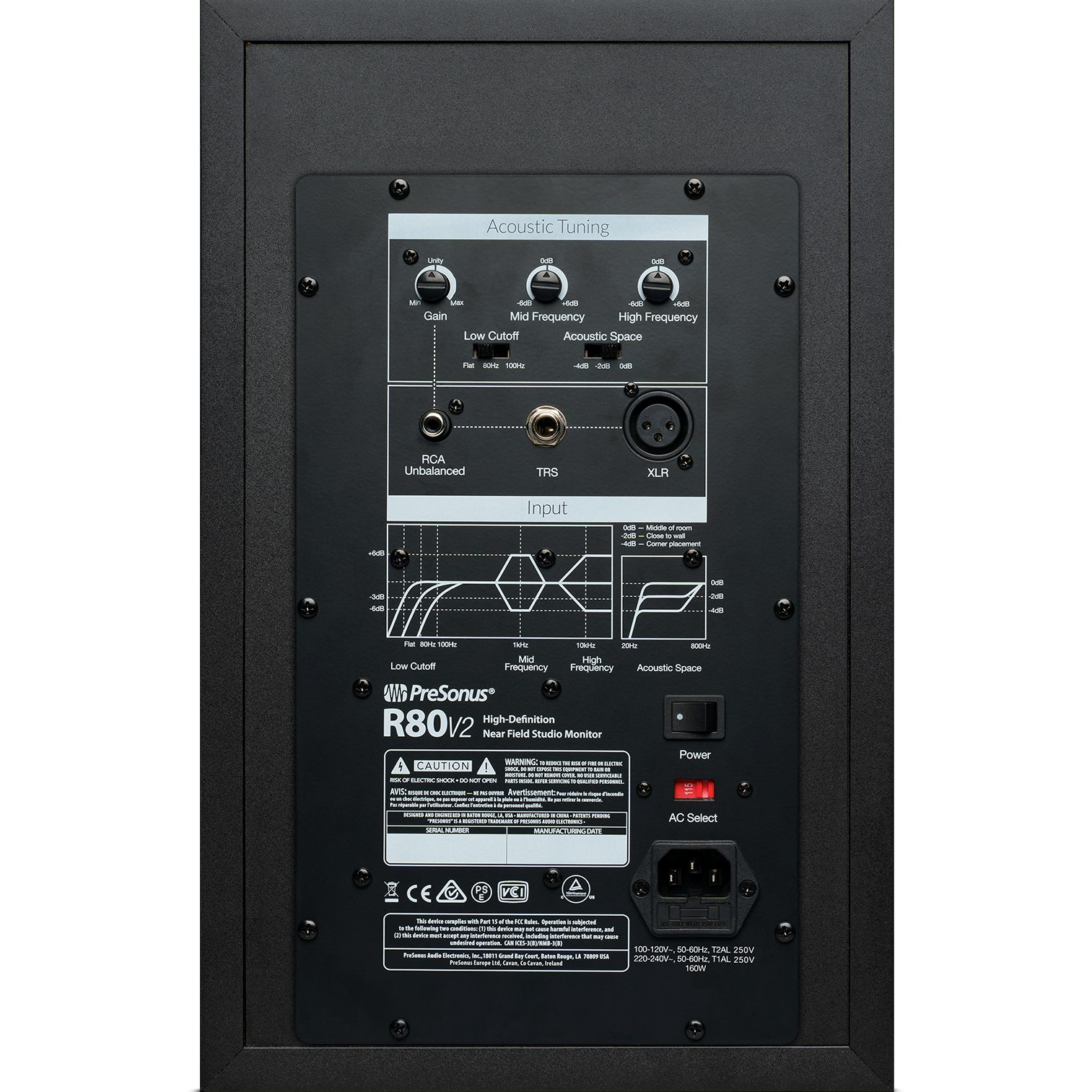

Of course, you also get classic PreSonus monitor connectivity, as R80 V2 provides balanced XLR, balanced ¼-inch TRS, and unbalanced RCA line-level inputs, so you can hook them up to an audio interface, mixer, monitor controller, or almost any other line-level source. If you’d like to add Bluetooth connectivity, check out the MicroStation BT.

Accuracy Defined

The R80 V2 studio monitor provides lifelike audio reproduction that will allow you to hear the room in your recordings. Its transparent sound and responsive transient reproduction makes it an ideal solution for anyone who is mixing high-resolution audio. The exact same AMT technology that provides the R80 V2’s natural-sounding, honest playback also ensures that potential trouble spots in your mixes won’t slip past your critical ear.

• 2-way active AMT tweeter design provides articulate high-frequency response, wide stereo imaging, and narrow vertical dispersion
• Custom-designed, 6.8-inch, AMT tweeter responds to the subtlest waveforms and the highest frequencies for audiophile-grade air and space
• 6.5-inch LF drivers provide transparent mid- and low-frequency reproduction for clean, punchy bass
• Biamped, 140 W RMS (LF = 75 W, HF = 65 W) Class A/B power amplifier with switching power supply
• Acoustic tuning controls (Low cut, Mid, High, Acoustic Space) compensate for room acoustics and placement
• Includes Studio Magic, a suite of over $1000 USD worth of music production software
• Balanced XLR and ¼-inch TRS plus unbalanced RCA inputs provide flexibility for seamless integration into any environment
• Toroidal power transformer eliminates noise and hum
• System protections include RF interference, output current limiting, over-temperature, turn-on/off transient, subsonic filter, external mains fuse
• Power: 100-120 V ~50/60 Hz or 220-240 V ~50/60 Hz

SPECIFICATIONS

Inputs

• 1-Balanced XLR
• 1-Balanced 1/4 inch TRS
• 1- Unbalanced RCA

Performance

• Frequency Response: 40 Hz – 22 kHz
• Crossover Frequency: 2.6 kHz
• LF Amplifier Power: 75 W Class AB
• HF Amplifier Power: 65W Class AB
• Peak SPL (at 1 meter): 107 dB
• LF Driver: 8 inch woven composite
• HF Driver Type: AMT
• Diaphragm: 6.8-inch squared (4,400 mm squared)
• Equiv. Diaphragm: 3 inch (75 mm)
• Input Impedance: 20 k ohms balanced, 10 k ohms unbalanced
• SNR (typical, A-weighted): Greater than 100 dB

User Controls

• Volume Range: A-type taper
• High-frequency Control: +/- 6 dB shelf at 10 kHz
• Mid-frequency Control: +/- 6 dB at 1 kHz
• Low Cut: Flat, 80 Hz, or 100 Hz
• Acoustic Space: Flat, -2 dB or -4 dB

Protection

• RF interference
• Output-current limiting
• Over-temperature
• Turn-on/off transient
• Subsonic filter
• External mains fuse

Power

• Factory Preprogrammed: 100-120V ～50/60 Hz or 220-240V ～50/60 Hz
• Standby Power: Less than 0.5 W

Cabinet

• Vinyl-laminated, medium-density fiberboard

Physical

• Width: 9.5 inch (241 mm)
• Depth: 12 inch (309 mm)
• Height: 15 inch (379 mm)
• Weight: 19.8 pounds (9 kg)
