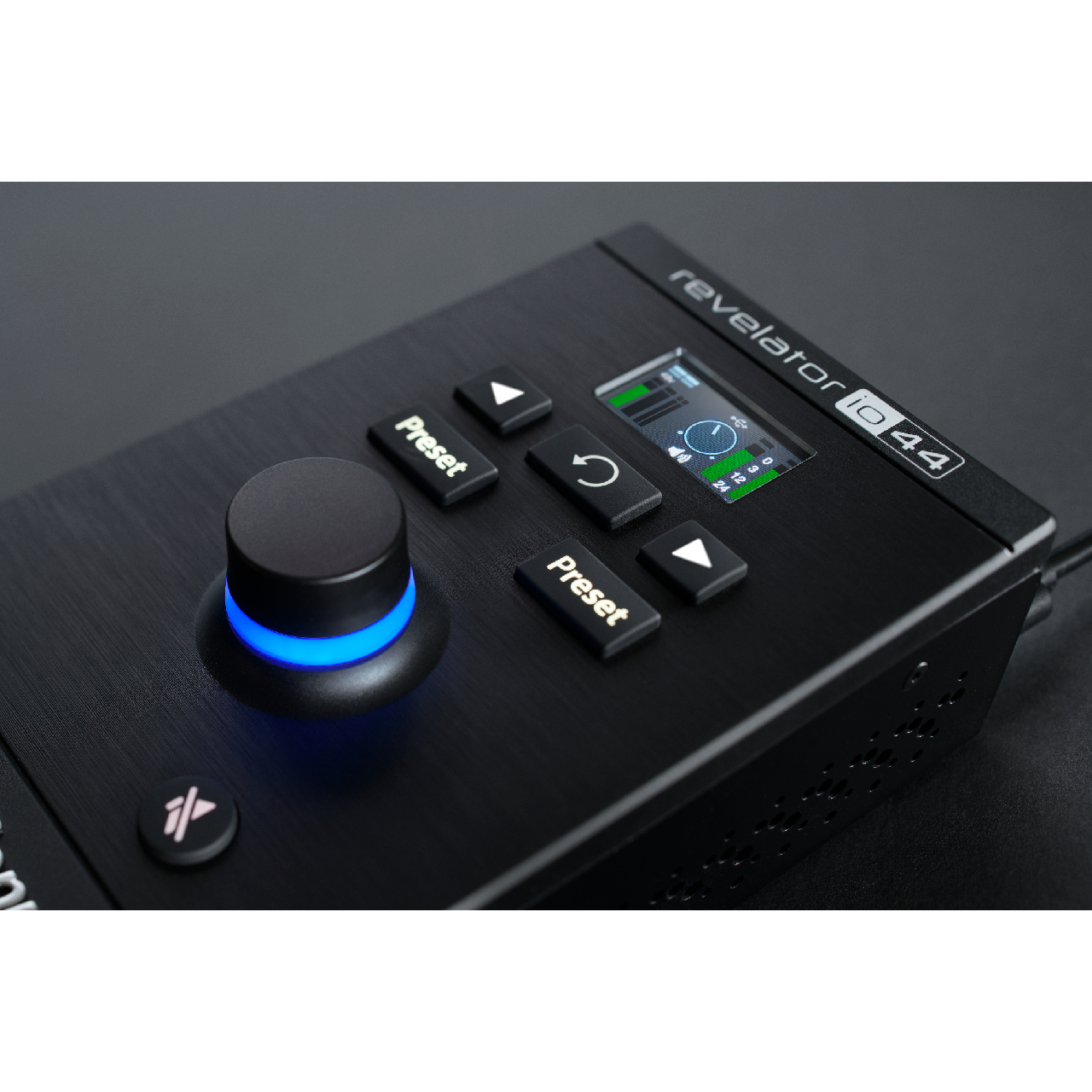

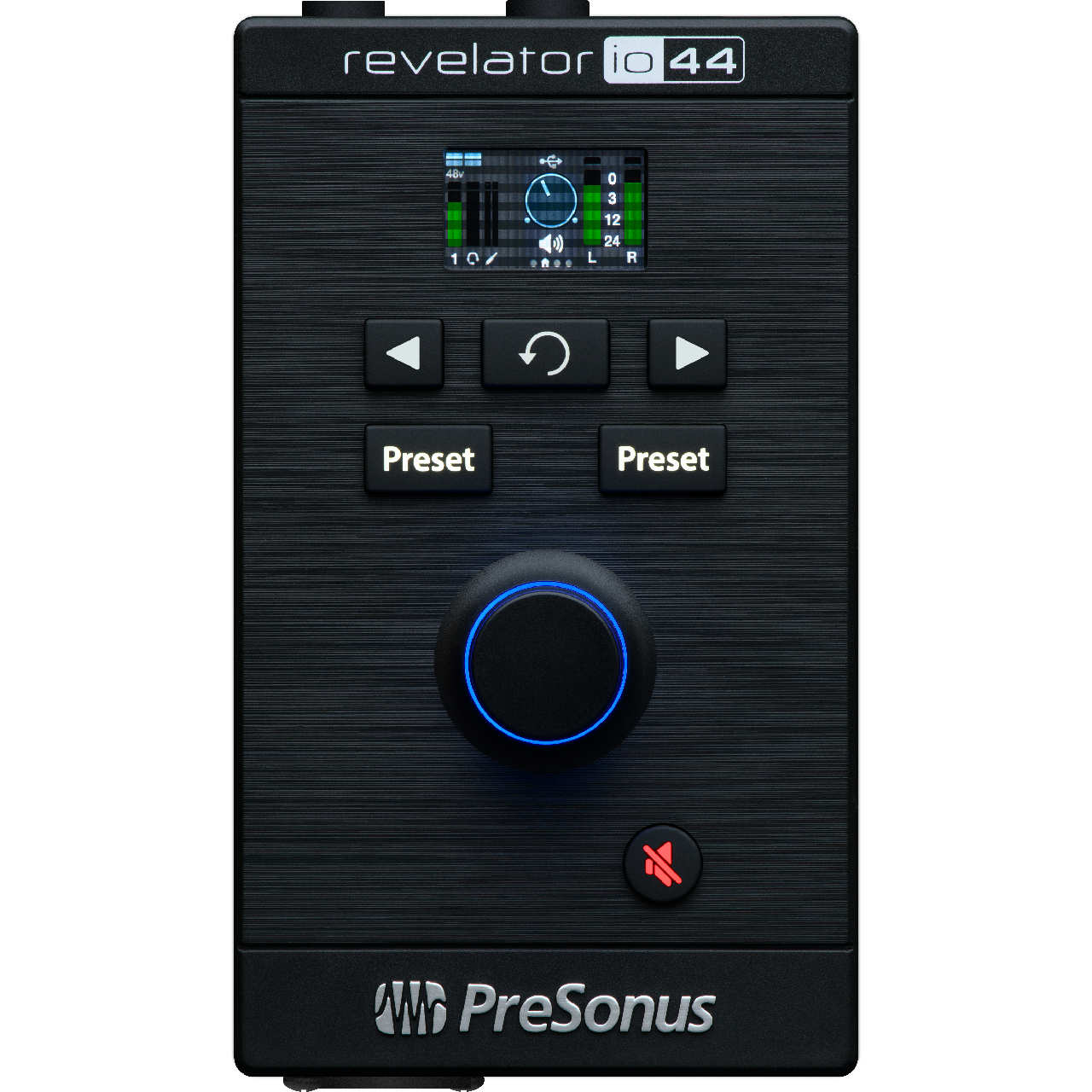

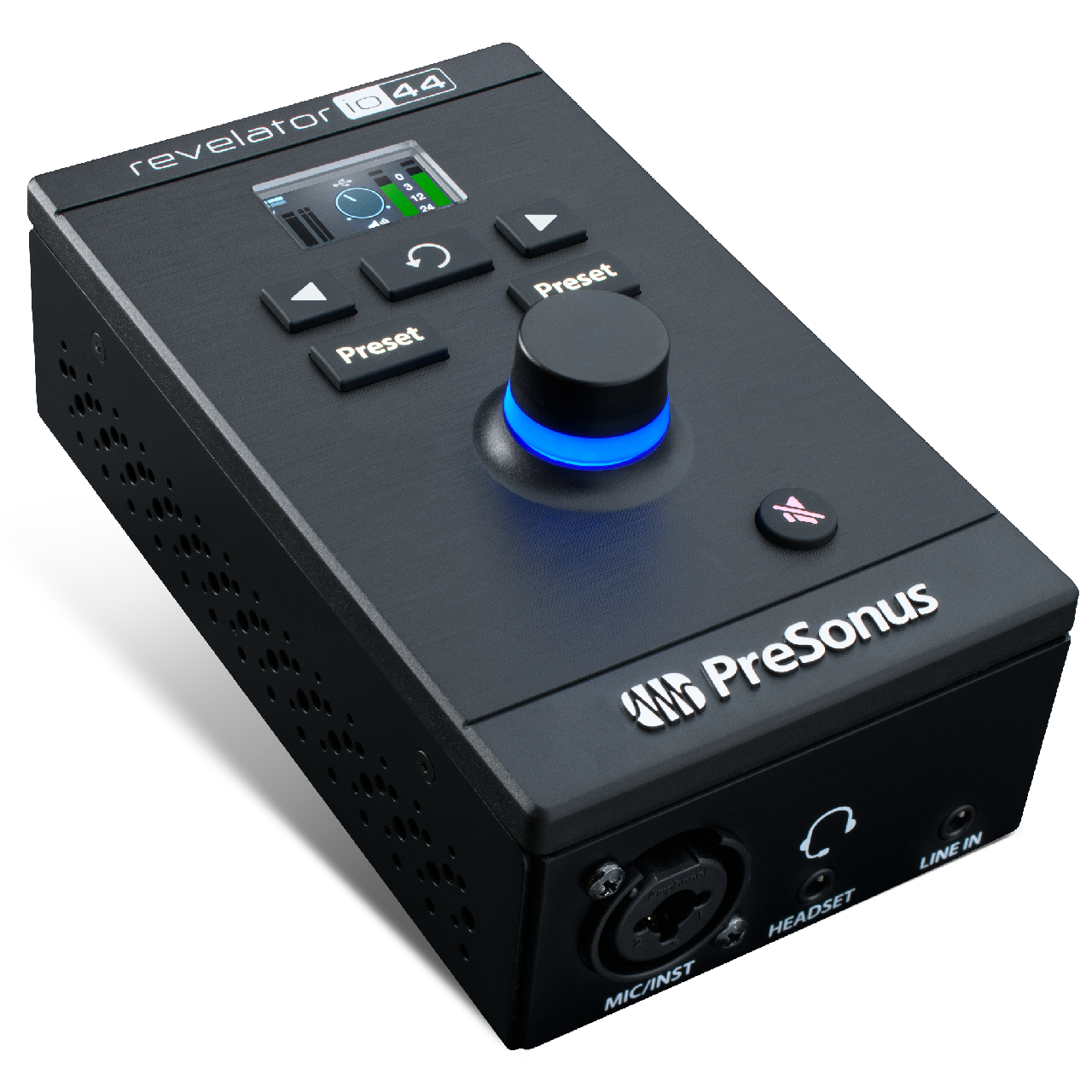

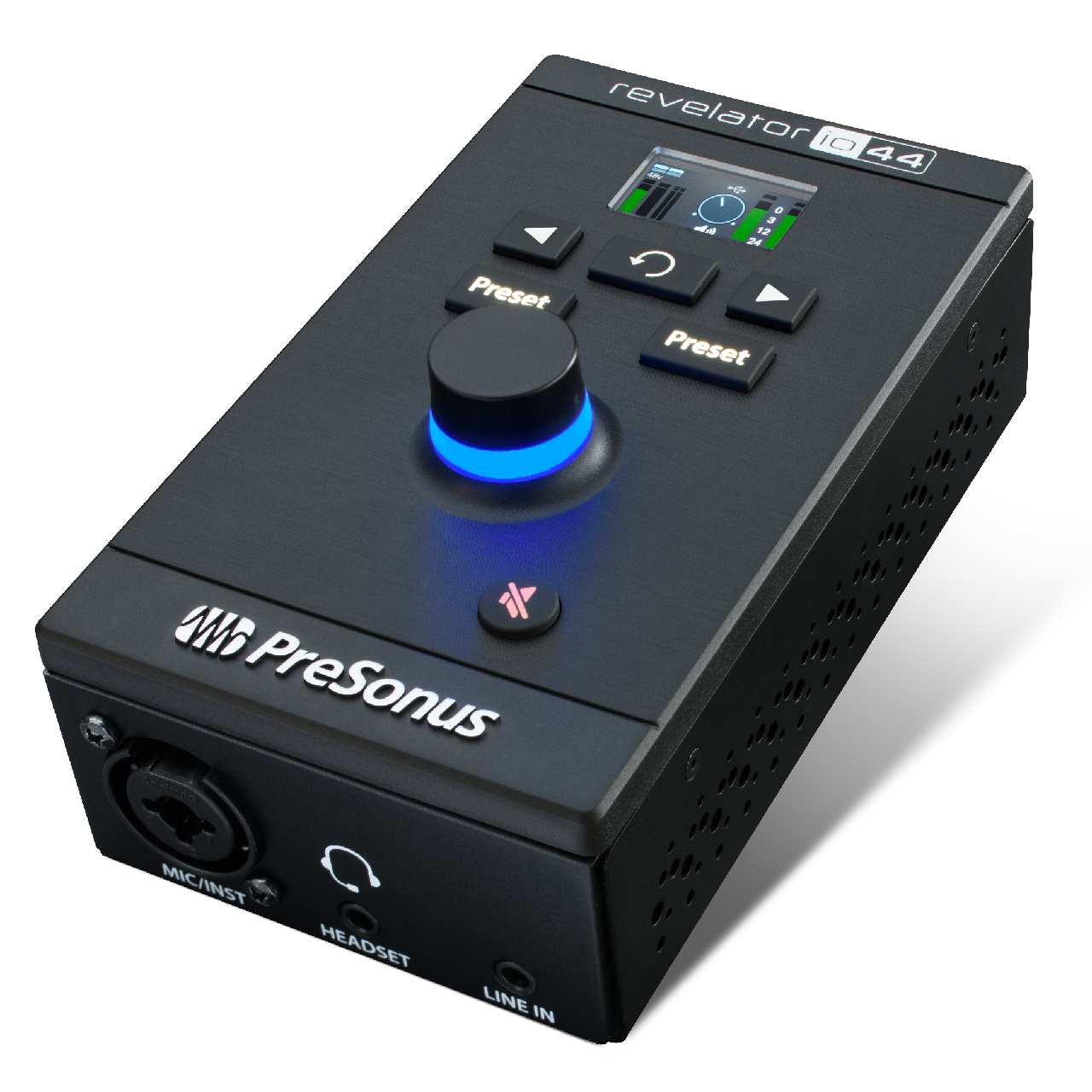

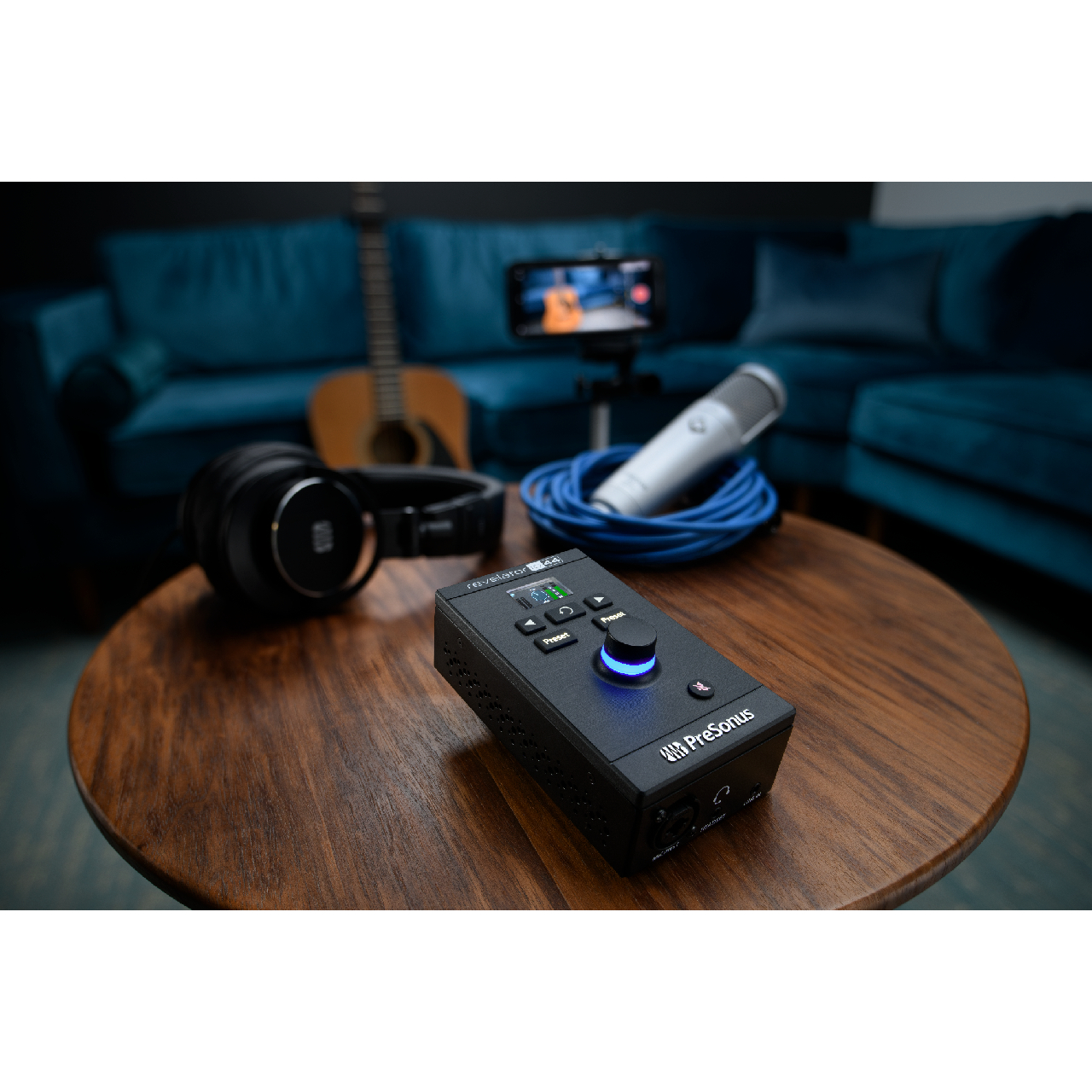

Pocket-Sized High-End Recording Studio - The PreSonus Revelator io44 USB Audio Interface

Create a high-end recording studio right at home — or anywhere else — with Revelator io44. Whether you want to connect a professional XLR microphone, a guitar, a DJ mixer, or your gaming headset, Revelator io44 has all the inputs and outputs you need to record… even a built-in mixer that lets you blend audio from multiple applications. Processing is available on every analog input, so you’ll sound smooth and polished in your performances and recordings.


  • Ultra-compact, mobile 4x2 USB streaming interface
  • Powerful onboard StudioLive processing lets you polish your sound (or completely transform it) with reverb, compression, EQ, and fantastic Voice FX - all without taxing your CPU
  • Integrated mixer lets you blend audio from up to three applications at once

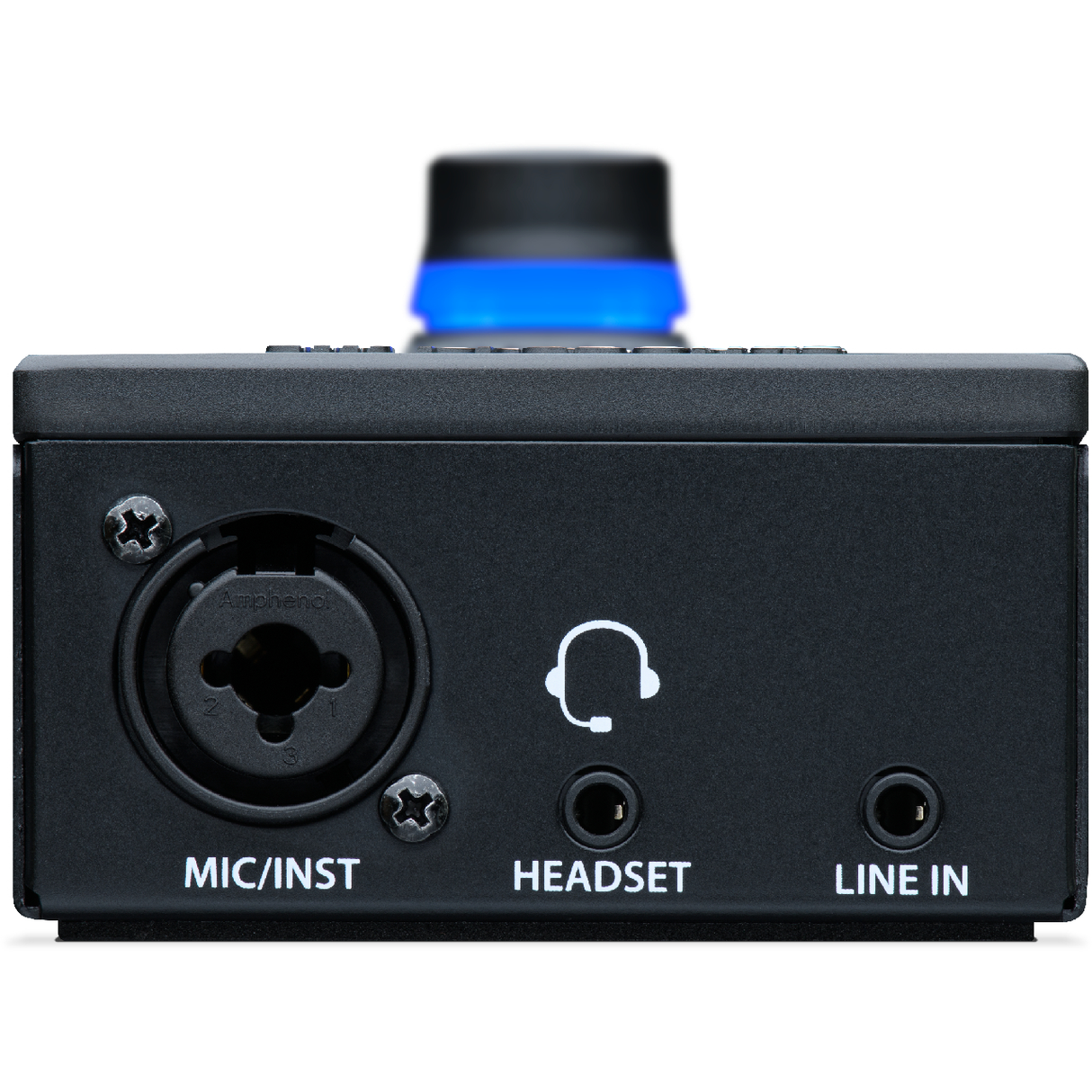

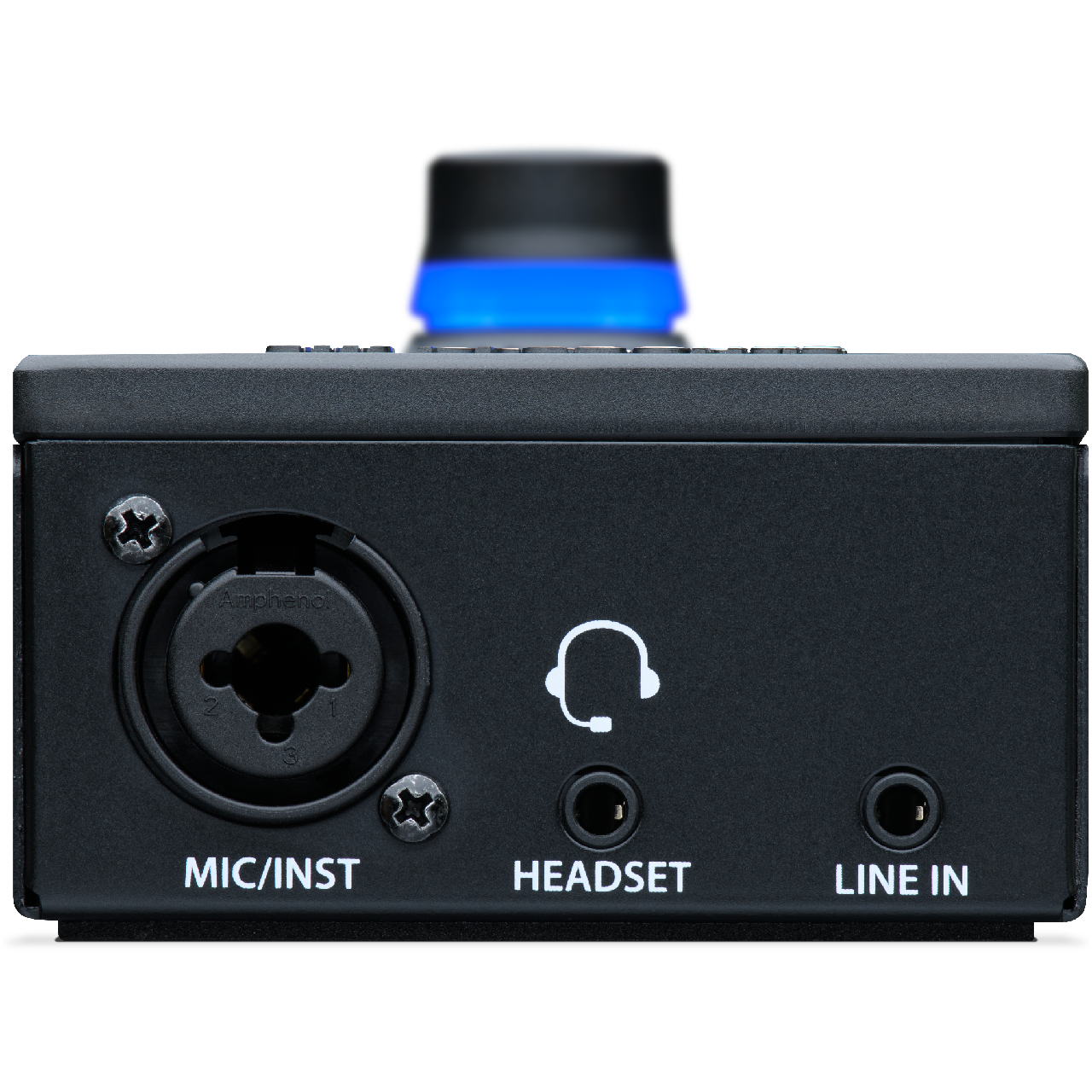

  • Connect nearly anything: mics, guitars, headsets, and stereo sources like DJ mixers
  • Professionally crafted Presets make you sound like a pro with a single click. You can also create your own custom presets to share, save, or produce on the go
  • Studio One Artist recording software and Studio Magic software bundle included


SPECIFICATIONS

Mi​crophone Preamp

  • Type: XLR female, balanced
  • Frequency Response (+0.1 dB/-0.3 dB, unity gain, unwtd): 20 Hz - 20 kHz
  • Input Impedance (Balanced): 1.4 kΩ
  • THD+N (1 kHz, -1 dBFS, min gain): 0.005% (1 kHz, -1 dBFS, min gain)
  • EIN (A-wtd, 150Ω, max gain): -128 dBu
  • Gain Control Range (± 1 dB): 60 dB
  • Max Input Level (±0.5 dBu, min gain): +10 dBu
  • Phantom Power (10 mA total): +48 VDC

Instrument Input

  • Type: 1/4-inch TS female, unbalanced
  • Frequency Response (+0.1dB/-0.3 dB, unity gain, unwtd): 20 Hz - 20 kHz
  • Input Impedance: 750 kΩ
  • Gain Range: 50 dB
  • Maximum Level: +10 dBu (min. gain)

Line Input (Stereo)

  • Type: 1/8-inch TRS female
  • Maximum Level (1 kHz, unity gain, z-balanced): +10 dBu
  • Frequency Response (+0.1dB/-0.3 dB, unity gain, unwtd): 20 Hz - 20 kHz
  • Gain Range: 40 dB

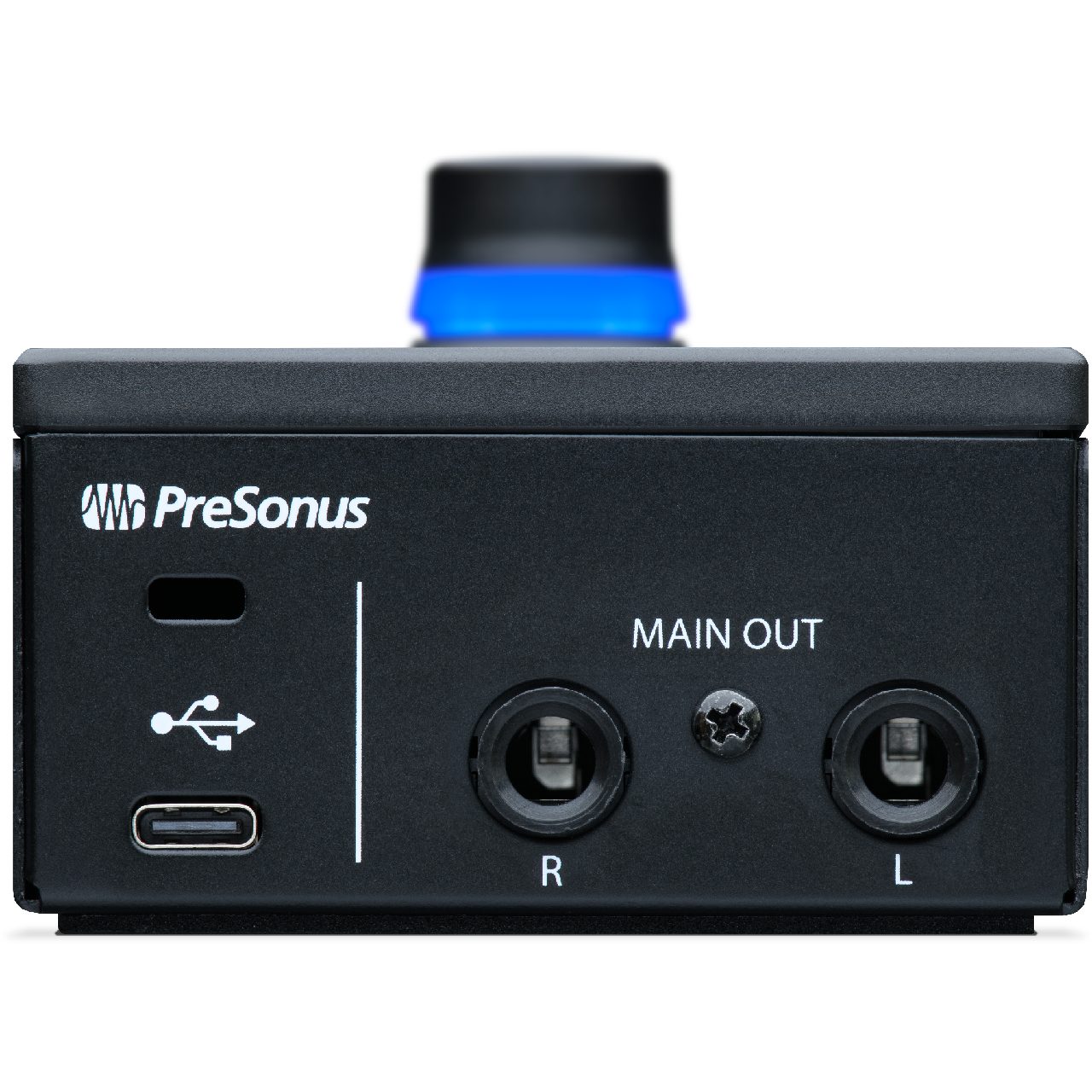

Main Outputs

  • Type: 1/4-inch TRS, Female
  • Frequency Response (+0.1dB/-0.5 dB, unity gain, unwtd): 20 Hz - 20 kHz
  • THD+N (1 kHz, 0 dBFS, loaded): 0.003%
  • Maximum Level: +10 dBu

Headphone Output

  • Type: 1/8-inch TRRS female
  • Maximum Power: 30mW/Channel @ 56 Ω
  • Frequency Response (+0.1dB/-0.3 dB, unity gain, unwtd): 20 Hz - 20 kHz
  • Impedance Working Range: 32 Ω to 300 Ω

Audio Interface

  • Type: USB-C Compatible USB 2.0
  • Sample Rates: 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz
  • Bit Depth: 24 bit
  • ADC Converter Range: 96 dB
  • DAC Converter Range: 96 dB

Physical

  • Height: 2.3-inch (58.4 mm)
  • Depth: 3-inch (77 mm)
  • Width: 5.35-inch (135.9 mm)
  • Weight: 0.78 lbs (0.35 kg)

Manufacturer: Presonus Audio
Model: REVELATOR IO44
SKU: I686593-N-11-WHXA
UPC: 673454009839
