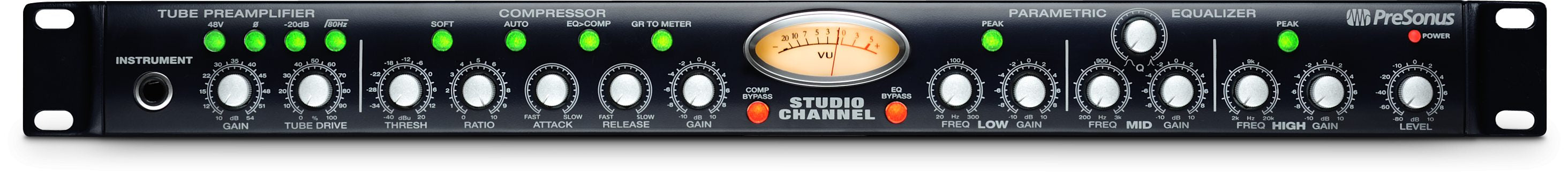

PreSonus Studio Channel 1-Channel Tube Channel Strip

Get A Wide Range Of Sounds From Transparent And Clear To Edgy And Overdriven With The PreSonus Studio Channel 1-Channel Tube Channel Strip

One of Presonus' newest signal processors, the versatile Studio Channel provides tube preamplification, dynamics processing, and EQ and takes the channel-strip concept in a bit different direction than does its older sibling, the Eureka.

The Studio Channel’s Class A tube preamplifier is based on our original BlueTube DP preamp and features a high-output 12AX7 tube that operates on voltages double that of other preamplifiers in its class. The result is lots of headroom and big tone. Gain and Tube Drive controls enable a wide range of sounds, from transparent and clear to edgy and overdriven.

Our VCA-based compressor is known for musicality and fast attack, with the ability to tame the fastest transients. From slap bass, to snare drum, to vocals, the Studio Channel’s compressor allows you to record blazing-hot signals with total dynamics control. Its convenient Auto Attack/Release feature provides preset attack and release curves. The backlit VU meter can display gain reduction or output gain.

The custom-designed amplifiers in the Studio Channel’s three-band EQ deliver sweet-sounding gain and cut for smooth highs; deep, solid lows; and clear midrange. The midrange band is fully parametric, with variable Q. The high- and low-frequency bands have Frequency and Gain controls, but fixed Q, and can be either shelving or peak bands. The EQ can be pre- or post-compressor, and you can bypass each stage independently.

With both XLR and ¼” line outputs, you can connect the Studio Channel to almost any recording interface, amp, or P.A. system.

• Gain control with +10 dB to +54 dB gain range
• Tube Drive control
• 48V phantom power switch
• 80 Hz high-pass filter
• -20 dB pad
• Polarity-reverse switch
• Attack, Release, Ratio, Threshold, and (makeup) Gain
• Auto Attack/Release switch
• Soft/Hard Knee switch
• Bypass switch
• Gain, Frequency, and Q controls (mid band)
• Gain and Frequency controls (low and high bands)
• Shelving/peak switches (low and high bands)
• Switchable pre-/post-compressor
• Bypass switch
• Gain Reduction to Meter switch (selects gain reduction or output gain)

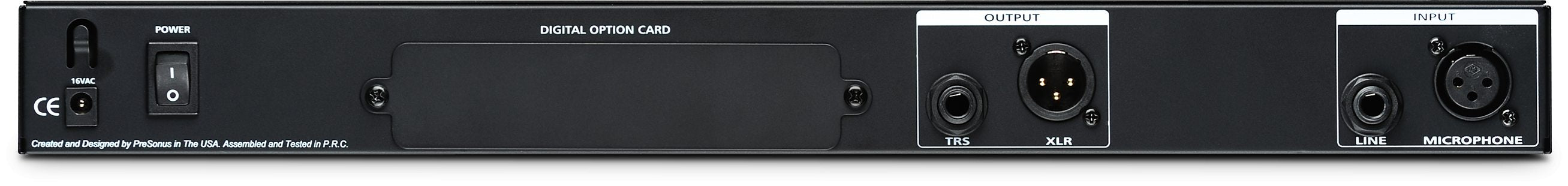

• 1 unbalanced ¼” instrument input (front panel)
• 1 balanced ¼” line input
• 1 balanced XLR mic input
• 1 balanced ¼” line output
• 1 balanced XLR line output
• 1U 19” rack-mountable, rugged steel chassis
• Sealed, detented, metal rotary controls
• External 16 VAC power supply

GENERAL

• Channels: 1
• Dynamic Range: >115 dB
• Frequency Response: 10 Hz to 50 kHz
• Internal Operating Level: 0 dBu = 0 dB

MICROPHONE PREAMP

• Gain: -6 dB to +66 dB (± 10 dB trim on line input)
• Noise Floor: -96 dBu
• EIN: -126 dB
• THD + Noise (0% Tube Drive): < 0.050%
• THD + Noise (100% Tube Drive): < 0.10%
• Microphone Input Connector: XLR
• Microphone Input Impedance: 1.3 kΩ
• Instrument Input Connector: ¼” TS
• Instrument Input Impedance: 1 MΩ
• Line Input Connector: ¼” TRS
• Line Input Impedance: 10 kΩ
• Phantom Power (switchable): +48V
• Pad (switchable): 0 dB / -20 dB
• Phase (switchable): 0°, 180°
• High-pass filter (switchable): -3 dB at 80 Hz

COMPRESSOR

• Threshold (variable): -40 dBu to +-2 dBu
• Ratio (variable): 1-10 (1:1 to 10:1)
• Attack (variable): 0.1 to 200 ms
• Release (variable): 0.05 ms to 3S
• Gain Makeup: -10 dB to +10 dB
• Metering: Analog VU (Gain Reduction / Output)

EQUALIZER

LF Band Controls:

• Frequency: Variable from 40 Hz to 500 kHz
• Gain: Variable between ±10 dB
• Q: 0.7 (on Peak setting)

MF Band Controls:

• Frequency: Variable from 200 Hz to 3 kHz
• Gain: Variable from -10 dB to +10 dB
• Q: Variable from 0.7 to 2.5

HF Band Controls:

• Frequency: Variable from 2 kHz to 20 kHz
• Gain: Variable between ±10 dB
• Q: 0.7 (on Peak setting)

MASTER

• Output Fader: -80 dB to +10 dB
• Output Connectors: XLR Balanced and ¼” TRS Balanced/Unbalanced
• Output Impedance: 51Ω
• Metering (Output level): Analog VU (-20 dBu to +6 dBu)
• Metering (Gain Reduction): Analog VU -20 dB to 0 dB
• Output Headroom: +22 dBu

POWER SUPPLY

• Type: Linear
• Input: 16 VAC / 1000 mA
• Power Requirements (Continuous): 16W
• Transformer: External (country specific)

PHYSICAL

• Dimensions: 1U rackmount
• Height: 1.75” (44.45 mm)
• Depth: 5.5” (139.7 mm)
• Width: 19” (482.6 mm)
• Weight: 5 lbs. (2.27 kg)
