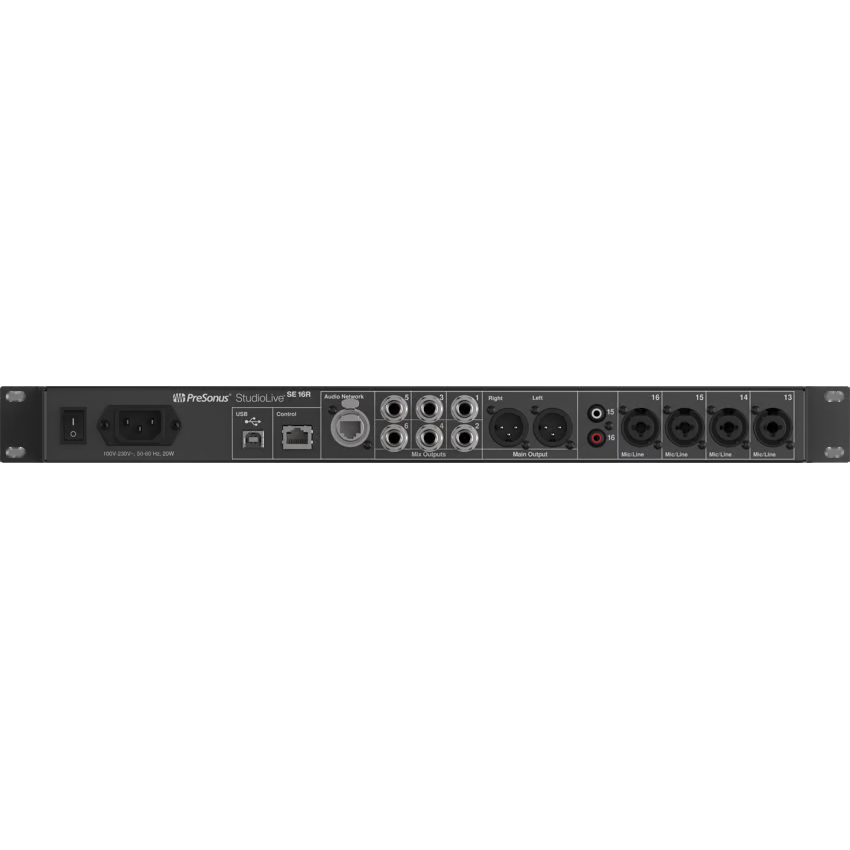

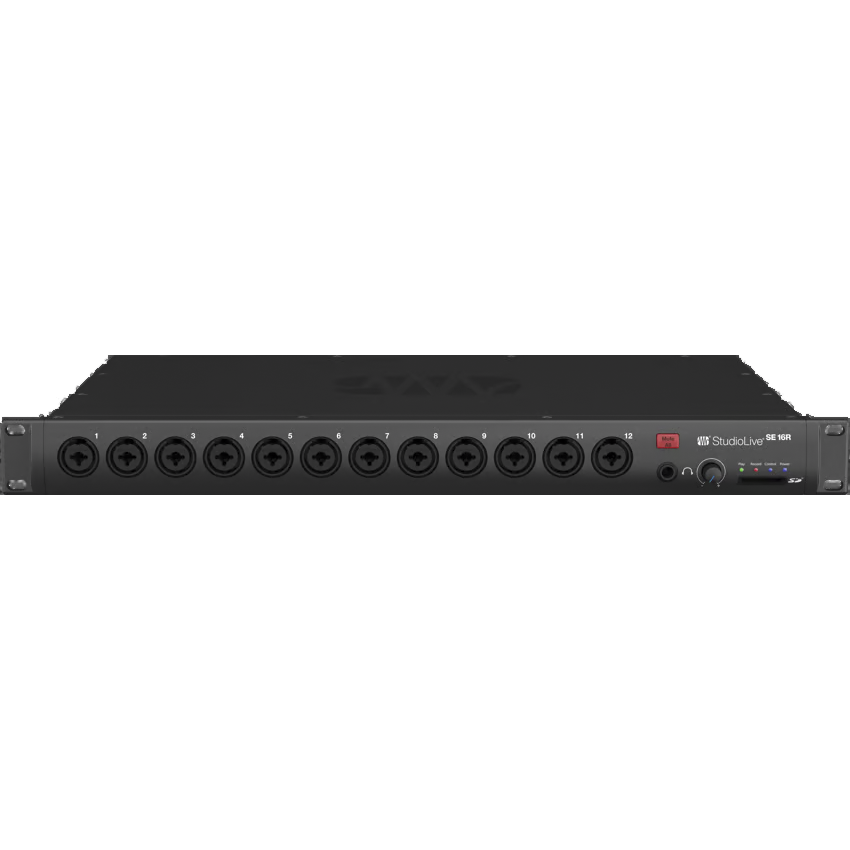

PreSonus StudioLive Series III SE 16R Digital Rack Mixer
MSRP: $119900
Couldn't load pickup availability
About Inventory Status
About Inventory Status
Questions? Call or text us at 301-946-8808.
♫ In stock: It is in stock and available to ship or pickup. Apparel must be shipped from another location and is not available for in-store pickup. We can usually ship or have these items available for pickup by the next business day if they don't require inspection, special handling, or setup. Our pickup location is 11151 Veirs Mill Rd. Silver Spring, MD 20902.
📆 Preorder: It is on the way to our warehouse. We can't predict when preorder items will arrive due to current supply chain issues. If you place an order for one of these items someone will contact you to estimate the delivery date.
❓ Out of stock: We don't currently have it available but you're not out of luck yet. We still may be able to get it. If you order one of these items we will contact you with an estimated fulfillment date. You have the option to cancel the order if you change your mind.
❔ Special order: The item is so special that it needs to be custom ordered for you. Some of these items are works of art and have to be made individually. Orders for special order items must be prepaid and we cannot accept cancellations or refunds.
█ Sold out: We don't think we can get this item because it was either discontinued by the manufacturer or was limited in quantity. If you want or need this item call or text us. Sometimes we can help you track down the item through other sources or help you find something similar.
About Item Conditions
About Item Conditions
Questions? Call or text us at 301-946-8808.
New: The item is brand new as received from the manufacturer with a full manufacturer warranty. Instruments such as guitars, snare drums, drum kits, brass and woodwind instruments may be opened for photography and quality control inspection and may not be in a factory sealed box.
Mint or Open Box: The item may have been opened and tested but has been repackaged. The original packaging may have superficial issues but the item itself and any originally included accessories are in perfect, like new condition.
Display Model: These items are so cool that we put them on display in our legendary shop. The condition is brand new as received from the manufacturer with manufacturer warranty. Rest assured, these items undergo a very careful inspection before shipping.
Demo: These items have been on our sales floor for demo purposes and will likely show signs of use. The original packaging may no longer be included, but you can be assured that you are receiving an awesome item and an awesome price.
Used: The item is used. These item may have varying degrees of wear. Please read the description for information about the condition of the item. Used items do not carry a warranty.
B or C Stock: Factory refurbished. These items were purchased from the manufacturer in a refurbished condition. They will show some cosmetic issues, but nothing that would impact performance. Being that these are sealed from the manufacturer, we generally do not open these to photograph the cosmetic issues. They are guaranteed to work and may have a limited warranty or you may purchase an extended warranty in some cases. Please see the listing description for item specific information.
Description
Description
Mix and Record with the PreSonus StudioLive SE 16R Digital Rack Mixer
Compact 18-channel digital rack mixer with XMAX-R recallable preamps, six FlexMixes, integrated USB and SD recording, and Milan-certified audio networking for live mixing, in-ear monitor rigs, recording, and livestreaming.
- 18-channel digital rack mixer with 16 XMAX-R recallable mic preamps
- 6 FlexMixes configurable as aux, subgroup, or matrix mixes
- 2 dedicated FX mixes with stereo returns
- Continuously bidirectional 18x18 USB 2.0 audio interface
- Onboard stereo SD recording
- Virtual Soundcheck with Capture software
- Milan-certified AVB networking for StudioLive Series III systems
- Per-channel source switching (Analog, USB, SD, AVB)
- Universal Control remote mixing and Offline Editor
- QMix-UC personal monitor mixing with Wheel of Me
- Standalone, monitor mixer, interface, or stagebox modes
- Perpetual license for Fender Studio Pro included
The StudioLive SE 16R packs large-format mixing power into a compact 1U rack unit. With 16 recallable XMAX-R mic preamps and FLEX DSP Fat Channel processing, every input and bus features studio-grade EQ and compression for polished, professional sound. Six FlexMixes, two dedicated FX mixes, and six DCAs give complete routing control.
Integrated 18x18 USB recording, onboard stereo SD capture, and Virtual Soundcheck with Capture software streamline recording and playback. Per-channel source switching between analog, USB, SD, and AVB makes hybrid setups effortless. And built-in Milan-certified audio networking allows plug-and-play operation with the complete line of StudioLive Series III products, while Universal Control and QMix-UC give wireless mixing freedom.
Compact, Tour-Ready Mixing
18 channels with full recallable preamps and DSP power in a 1U rack.
Flexible Routing
Configurable FlexMixes, FX buses, and DCAs make creating studio-quality mixes fast and easy.
Seamless Recording
Multitrack USB with Capture integration and Virtual soundcheck plus stereo SD recording onboard.
Wireless and Network Ready
Milan-certified AVB networking, Universal Control, and QMix-UC for total workflow freedom.
Fender Studio Pro Integration
Deep integration with Fender Studio Pro simplifies recording with direct preamp control and seamless switching between onboard and plug-in processing with Fat Channel XT.
SPECIFICATIONS
Electronics
- Headphone Jack: 1/4-inch TRS active stereo
- Phantom Power: +48 VDC, ±2 VDC
- Power Consumption: 35W continuous
- Voltage: 120V
- Voltage Requirements: 100-230 VAC, 50-60 Hz
General
- Color: Black
- Series: StudioLive
Hardware
- Digital Audio AVB Audio Network Ports: Locking XLR, Ethernet
- Digital Audio Network Control Port: RJ-45
- Digital Audio USB Recording Port: USB 2.0, Type-B
Inputs
- Line Input Connection Type: RCA female, unbalanced stereo pair
- Line Inputs Maximum Level: +12 dBu, ±0.5 dBu
- Microphone Input Connection Type: Combo locking XLR mic - 1/4-inch TRS line
- Microphone Preamp Common Mode Rejection Ratio: 65 dB, 1 kHz at unity gain
- Microphone Preamp Frequency Response: 20 Hz - 20 kHz, ±0.5 dBu at unity gain
- Microphone Preamp Gain Control Range: 0 dB to 60 dB, ±1 dB
- Microphone Preamp Input Impedance: 1 kΩ
- Microphone Preamp Maximum Input Level: +12 dBu, unity gain
- Microphone Preamp Signal to Noise Ratio: 94 dB, ref = +4 dB, 20 kHz BW, unity gain, A-weighted
- Microphone Preamp Total Harmonic Distortion: Less than 0.005%, +4 dBu, 20 Hz - 20 kHz, unity gain, unweighted
Measurements
- Media Storage Capacity: SD card 2 GB; SDHC card 32 GB
- Product Depth: 12 inches / 30.5 cm
- Product Height: 1.75 inches / 4.45 cm
- Product Weight: 8.6 lb / 3.9 kg
- Product Width: 19 inches / 48.3 cm
Miscellaneous
- Digital Audio Internal Processing: 32-bit, floating point
- Power Cable: IEC
- Recommended Ambient Operating Temperature: 0° to 40° Celsius / 32° to 104° Fahrenheit
- Recording File Format: Stereo WAV
- Supported Media Format: FAT16 formatted SD card, FAT32 formatted SDHC card
- Supported Sample Rates: 48 kHz, 44.1 kHz
Output
- Headphone Outputs Frequency Response: 20 Hz to 20 kHz, +/-0.5 dB
- Headphone Outputs Maximum Output: 100 mW/ch. @ 60Ω load
- Headphone Outputs Signal to Noise Ratio: 96 dB, 1 kHz, maximum gain, 20 Hz BW, unweighted
- Headphone Outputs Total Harmonic Distortion: 0.01%, 1 kHz, maximum gain, 20 Hz BW, unweighted
- Line Outputs Connection Type: 1/4-inch TRS, balanced
- Line Outputs Maximum Output Level: +18 dBu, ±0.5 dBu
- Line Outputs Output Impedance: 100 ohms
- XLR Outputs Maximum Output Level: +24 dBu, ±0.5 dBu
- XLR Outputs Output Impedance: 100 ohms
Performance
- Crosstalk Adjacent Channels: -87 dB, reference = +4 dBu, 20 Hz - 20 kHz, unweighted
- Digital Audio Bit Depth: 24
- Digital Audio Dynamic Range: ADC dynamic range 115 dB A-weighted at 48 kHz; DAC dynamic range 115 dB A-weighted at 48 kHz
- Digital Audio Reference Level for Zero dBFS: +18 dBu
- Digital Audio Total System Latency: 1.9 ms, local routing, analog in-analog out, all processing active
- SD Recorder Bit Depth: Recording 24 bit, playback 16 or 24 bit
- SD Recorder Sampling Rate: 44.1 or 48 kHz
Manufacturer: PreSonus Audio
Model: STUDIOLIVE SE 16R
SKU: I920830-N-0-WHXA
UPC: 673454014659
