Get Great Sound And Powerful Low-end With Uncompromising Quality - The PreSonus Temblor T8 Active Studio Subwoofer
To hear what’s really going on at the bottom of your mixes, you need a subwoofer that speaks the truth. The Temblor T8 let you take charge of the low-frequency foundation of your mix with a combination of quality components and design, plenty of inputs and outputs, and extensive user controls not normally available in this price range.
Customize Your System until It’s Just Right
The T8 and T10 provide more user controls than any other subwoofer in their class, enabling seamless integration into your listening environment.
Versatile I/O Works With Any Setup
No other subwoofer anywhere close to the Temblor’s price range offers a comparable selection of inputs and outputs.
SPECIFICATIONS
Main Components

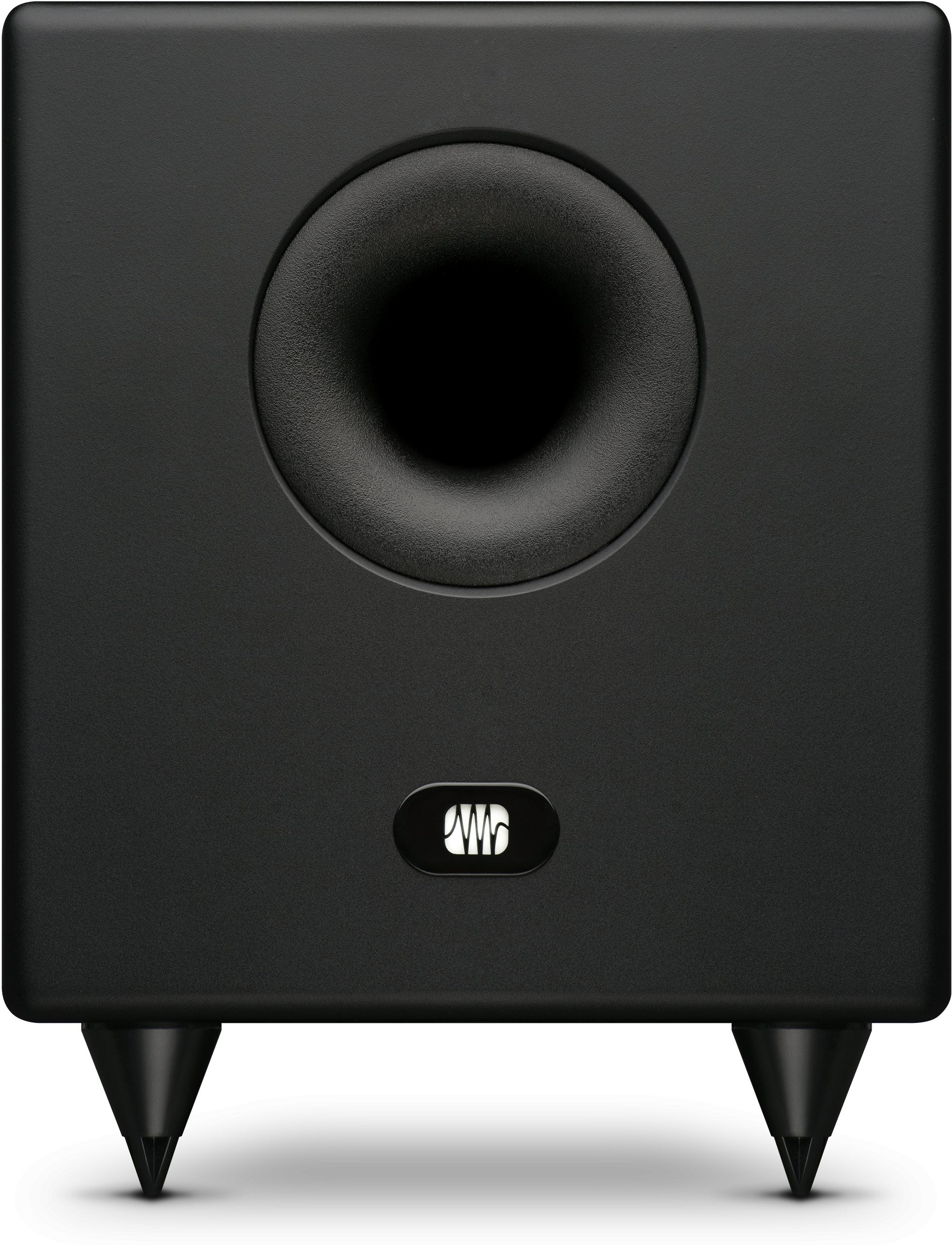

- 8-inch, downward-firing, glass-composite low-frequency transducer
- Round, front-firing, bass-reflex acoustic port
Controls And Filters
- Input gain control (-30 dB to +6 dB, continuously variable)
- Continuously variable lowpass filter (50 Hz to 130 Hz)
- Built-in crossover
- Switchable highpass filter removes frequency content below 80 Hz from the full-range signal sent from the Temblor outputs to the main monitors
- Polarity invert
Power And Safety
- 200 watt, Class AB amplification
- Internal damping and heat sink
- Integrated rubber feet for stable placement
Inputs And Outputs
- Left and right, balanced ¼” TRS and unbalanced RCA main inputs
- Left and right, balanced ¼” TRS and unbalanced RCA outputs
Inputs
- 2- Balanced ¼” TRS
- 2- Unbalanced RCA
Outputs
- 2- Balanced ¼” TRS (full range with 80 Hz HPF option)
- 2- Unbalanced RCA (full range with 80 Hz HPF option)
Performance
- Frequency Response: 30 Hz – 200 Hz
- Low Pass Filter Frequency: 50 – 130 Hz (variable)
- Signal-to-Noise Ratio: 98 dB (A weighted)
- THD 0.05% @ power 160W
- Amplifier Power: 200W peak, 100W RMS
- Power Consumption: 120W
- Amplifier Type: Class AB
- Peak SPL at 1m: 104 dB
- Woofer: 8” glass-composite, downward-firing
- Acoustic Port: Front-firing round bass reflex

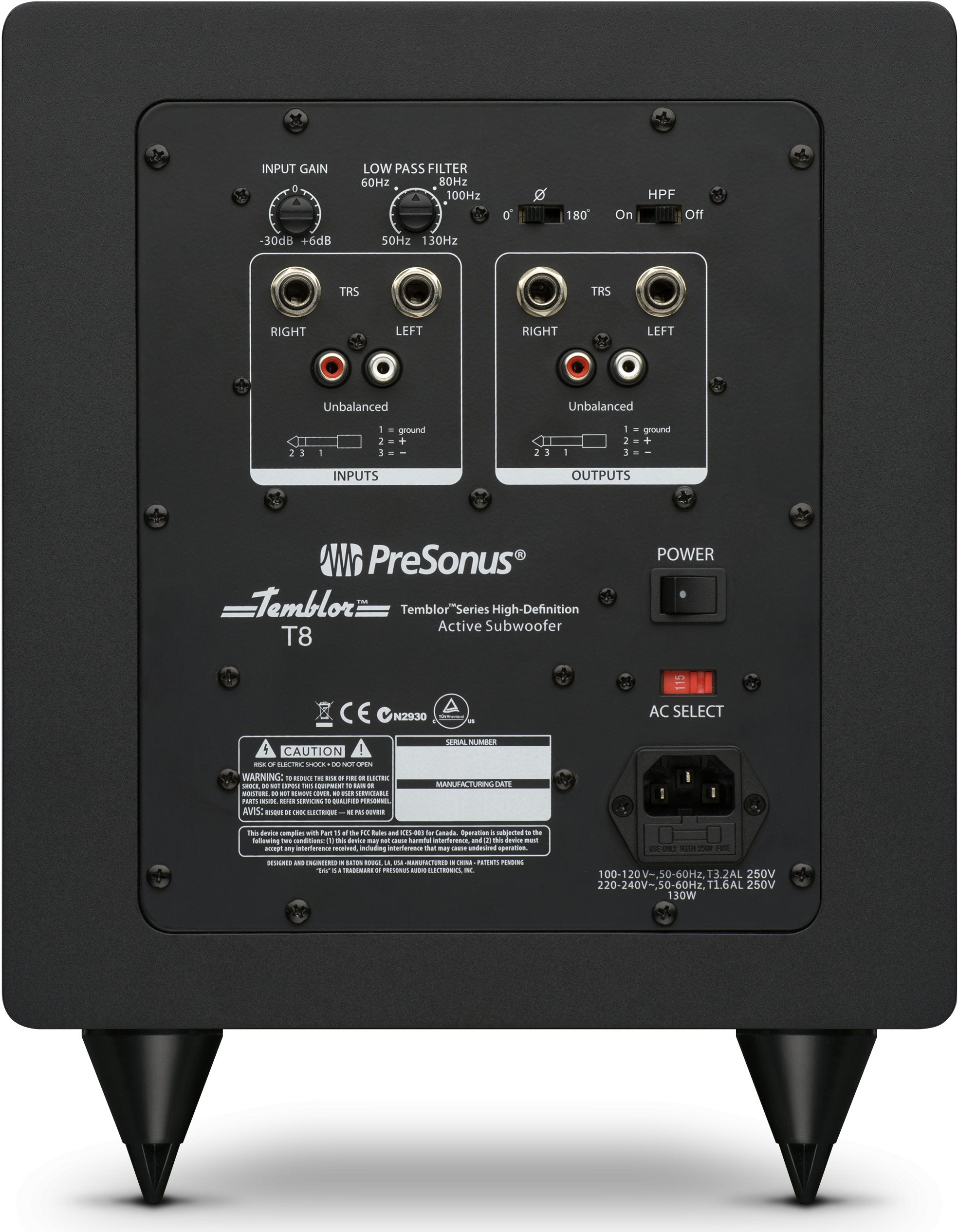

User Controls
- Input Gain Range: -30 to +6 dB
- Polarity Switch: 0° or 180°
- Low Pass Filter Control: 50 Hz to 130 Hz
- Ground Lift Switch: On/Off
- High Pass Filter Switch: On/Off
- Bypass Footswitch: On/Off
Protection
- RF interference
- Output-current limiting
- Over-temperature
- Turn-on/off transient
- Subsonic filter
- External mains fuse
Power
- 100-120V ~50/60 Hz
Cabinet
- Vinyl-laminated MDF
Manufacturer: Presonus Audio
Model: TEMBLOR T8
Warranty: See manufacturer website for details
SKU: I342906-N-1
UPC: 673454003141
