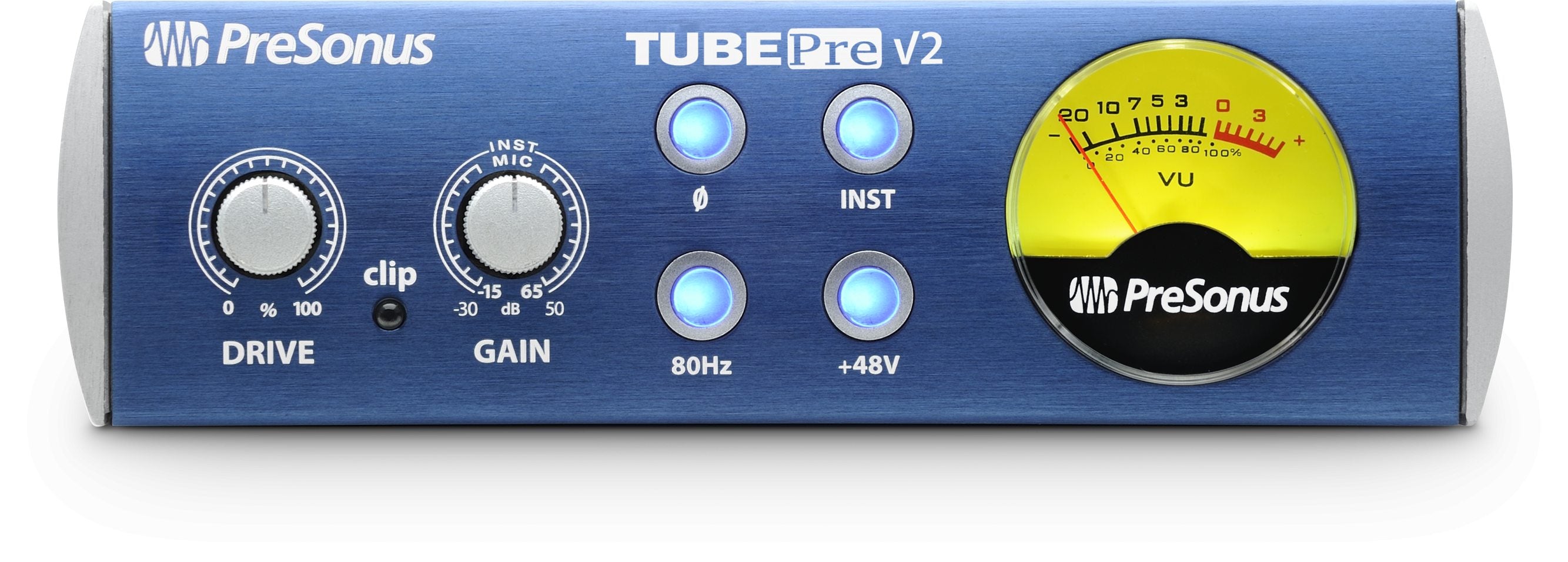

Presonus TubePre V2 Tube Preamplifier


  • Our Price
  • $149.95
  • Regular price MSRP: $194.95



The Warmth And Clarity Your Sound Needs - The Presonus TubePre V2 Tube Preamplifier

Like the original TubePre, the new version is a fully professional tube preamp, with a dual-servo (no capacitors) gain stage that lets you boost the program signal to smoking hot levels without significantly increasing the background noise. Discrete components and high-voltage operation offer dynamic range and detail not found in other single-channel tube preamps in its class.

 But the TubePre V2 provides an even wider palette of sound options, and a much more focused tube saturation, than the original TubePre. It has been upgraded to employ PreSonus’ popular XMAXâ„¢ Class A solid-state preamp, which is followed in the signal path by a 12AX7 vacuum-tube stage. Twist the TubePre V2 Drive saturation control to add the “color” that only a hand-selected 12AX7 vacuum tube can deliver - from gentle warmth to total fuzz.



  • XMAX Class A preamp input stage
  • 12AX7 dual-servo vacuum tube output stage
  • Input Gain control
  • 48V phantom power
  • 80 Hz high-pass filter
  • -20 dB pad
  • Instrument input select
  • Polarity-reverse switch
  • Backlit VU meter
  • Clip LED


MIC INPUT

  • Connector Type: XLR, female, balanced
  • EIN: -131 dB, 20 kHz BW, max gain, Rs=40Ω, A-wtd -128 dB, 20 kHz BW, max gain, Rs=40Ω, unwtd
  • Frequency Response: 20 Hz – 20 kHz, -0.3 dB, +4 dBu, unity gain 5 Hz - 120 kHz, -3 dB, +4 dBu, unity gain
  • THD+N: 0.01%, -10 dBu, 1 kHz, unity gain, 20 kHz BW, unwtd
  • Dynamic Range: 115 dB, 1 kHz, unity gain, 20 kHz BW, A-wtd 107 dB, 1kHz, unity gain, 20 kHz BW, unwtd
  • Input Impedance: 1.3 kΩ
  • Phantom Power: +48 VDC, 10 mA

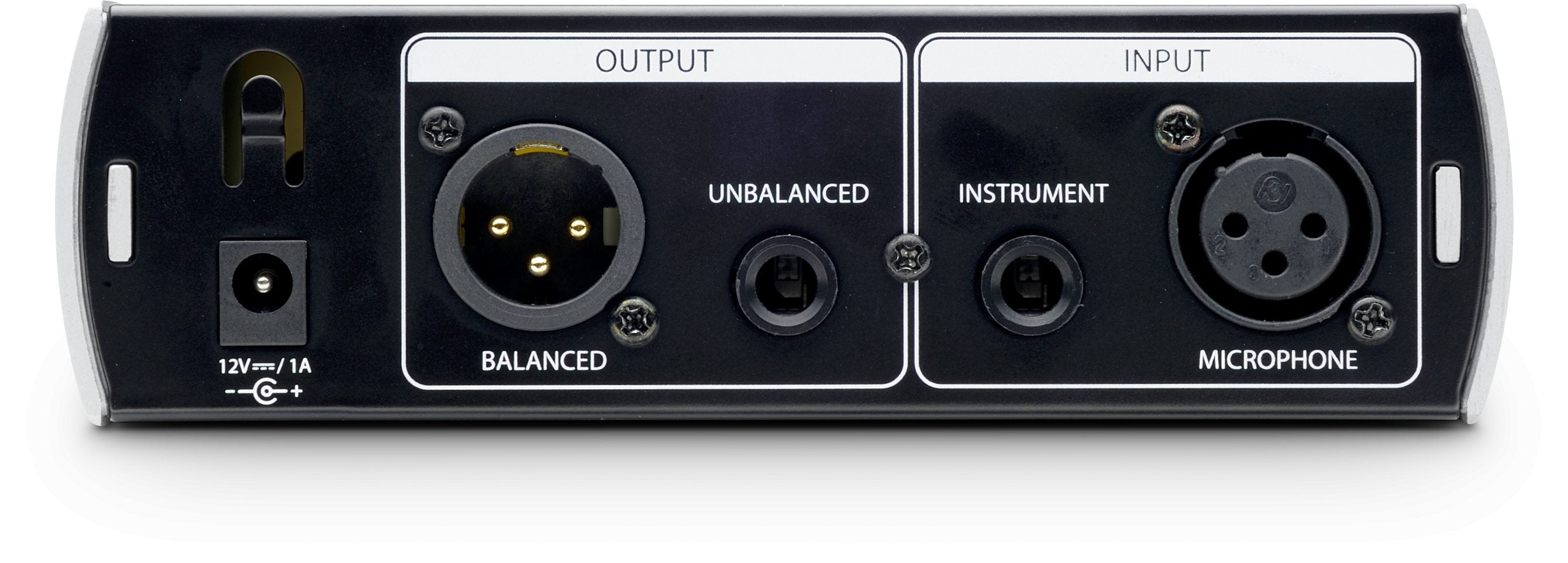

INSTRUMENT INPUT

  • Connector Type: ¼” TS, female, unbalanced
  • Input Impedance: 1 MΩ

ANALOG OUTPUT

  • Connector Types: XLR, male, balanced ¼” TS, female, unbalanced
  • Maximum Output: +20 dBu
  • Output Impedance: 51Ω

TUBE STAGE

  • Type: 12AX7

POWER

  • External Power Adapter: +12 VDC, 1A, center-pin positive
  • PSU Barrel Dimensions: 5.5 mm O.D., 2.1 mm I.D., 9.5 mm length

Manufacturer: Presonus Audio
Model: TUBEPRE V2
Warranty: See manufacturer website for details
SKU: I273909-N-3
UPC: #673454001659
Listing ID: NA78439
