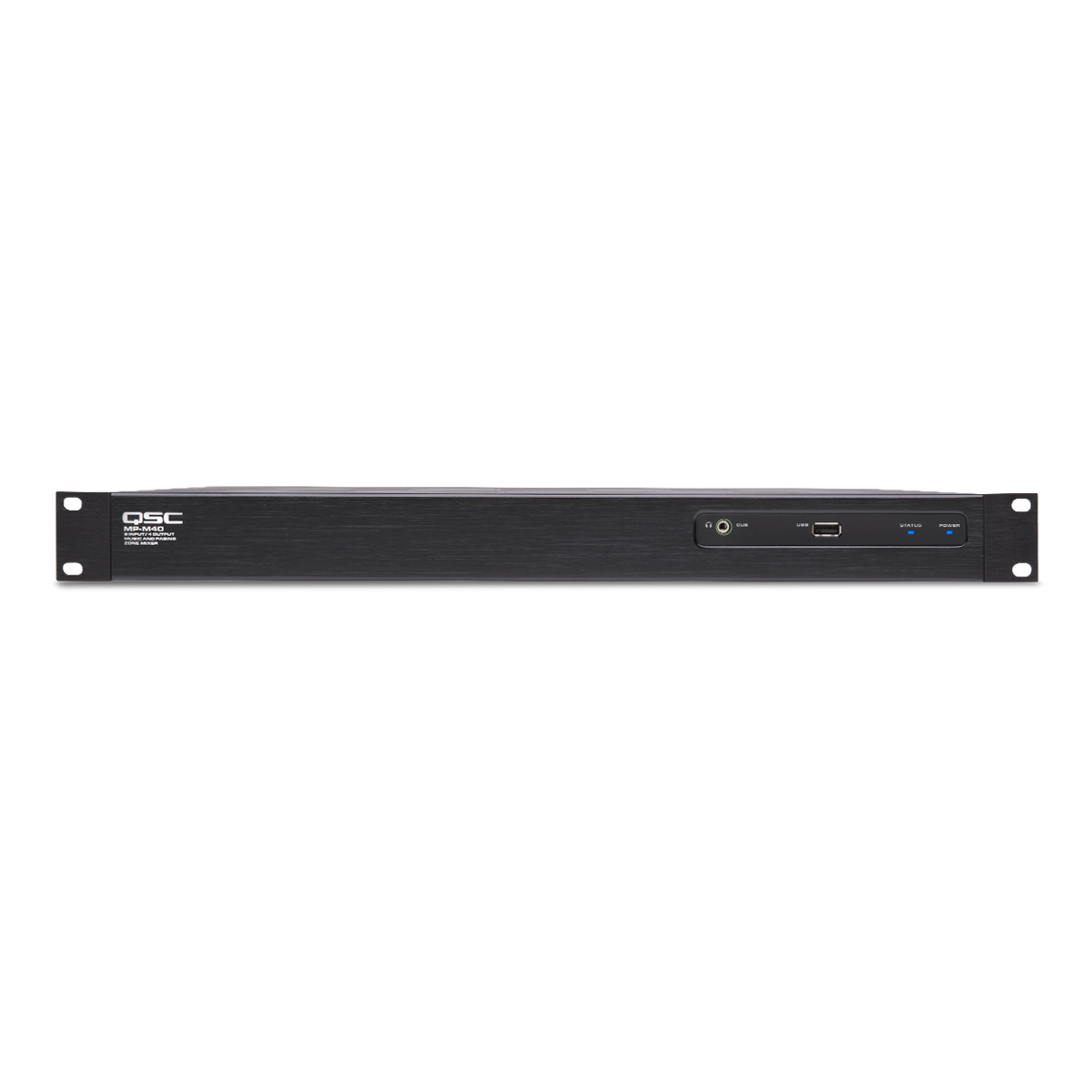

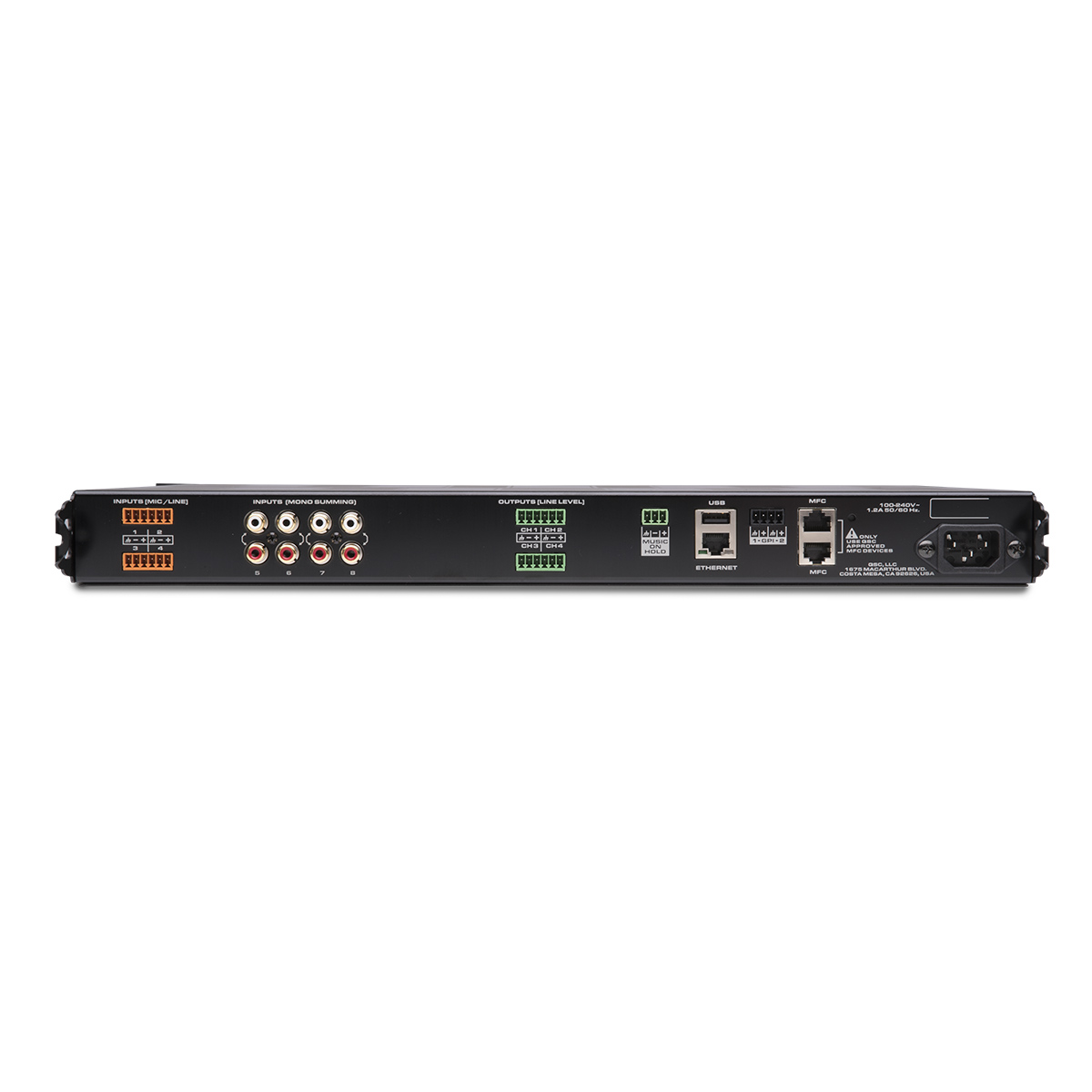

QSC MP-M40 8 Input 4 Output Digital Business Music Zone Mixer

The QSC MP-M music and paging mixers are fixed architecture mixer/processors offering unprecedented capabilities combined with ease of configuration and operation. The products are intended for retail and hospitality applications in which high-quality audio from various sources is routed to multiple zones. Live mixing functions are also supported for applications requiring reinforcement of entertainment, presentations or conferences.


SPECIFICATIONS

Inputs

  • Total: 8
  • Mic/Line: 4 (Euroblock)
  • RCA: 4 (mono-summed RCA pairs)

Outputs

  • Total: 6
  • Line: 4 (Euroblock, balanced)
  • Music on Hold: 1 (Euroblock, transformer balanced)
  • Cue (phones): 1 (3.5 mm, stereo)

Input Processing

  • EQ: 4-band parametric EQ with high/low shelving option, variable 24/octave HPF and LPF
  • Dynamics: Gate, choice of Auto Gain Control (AGC) or Compressor

Output Processing

  • EQ: 1/3 octave GEQ
  • Anti-feedback Filters: 12-band variable notch filters
  • Dynamics: Comp/limiter, ducker, loudness
  • Delay: 100 msec

Effects & RTA

  • Effects: 1 multi-effects processor
  • RTA: 1/3 octave RTA

Other Connections

  • Ethernet: 1 × RJ45 for connection to Wi-Fi router (user supplied)
  • MP-MFC ports: 2 × RJ45
  • GPI: 2 Inputs (Euroblock)

Dimensions

  • Weight: 3.2 kg / 7 lb
  • Phantom Power: All microphone inputs (+12 volts)
  • Power Requirements: TBD W, 100-240 VAC, 50-60 Hz, universal supply, IEC inlet
  • Indicators: Blue POWER LED, blue STATUS LED

Manufacturer: QSC Audio
Model: MP-M40
SKU: I566139-N-0-WHXE
UPC: 684284070791
