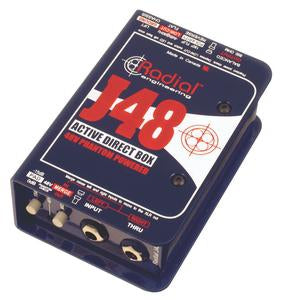

Radial Engineering J48 Phantom Powered Active Direct Box
MSRP: $30000
Couldn't load pickup availability
About Inventory Status
About Inventory Status
Questions? Call or text us at 301-946-8808.
♫ In stock: It is in stock and available to ship or pickup. Apparel must be shipped from another location and is not available for in-store pickup. We can usually ship or have these items available for pickup by the next business day if they don't require inspection, special handling, or setup. Our pickup location is 11151 Veirs Mill Rd. Silver Spring, MD 20902.
📆 Preorder: It is on the way to our warehouse. We can't predict when preorder items will arrive due to current supply chain issues. If you place an order for one of these items someone will contact you to estimate the delivery date.
❓ Out of stock: We don't currently have it available but you're not out of luck yet. We still may be able to get it. If you order one of these items we will contact you with an estimated fulfillment date. You have the option to cancel the order if you change your mind.
❔ Special order: The item is so special that it needs to be custom ordered for you. Some of these items are works of art and have to be made individually. Orders for special order items must be prepaid and we cannot accept cancellations or refunds.
█ Sold out: We don't think we can get this item because it was either discontinued by the manufacturer or was limited in quantity. If you want or need this item call or text us. Sometimes we can help you track down the item through other sources or help you find something similar.
About Item Conditions
About Item Conditions
Questions? Call or text us at 301-946-8808.
New: The item is brand new as received from the manufacturer with a full manufacturer warranty. Instruments such as guitars, snare drums, drum kits, brass and woodwind instruments may be opened for photography and quality control inspection and may not be in a factory sealed box.
Mint or Open Box: The item may have been opened and tested but has been repackaged. The original packaging may have superficial issues but the item itself and any originally included accessories are in perfect, like new condition.
Display Model: These items are so cool that we put them on display in our legendary shop. The condition is brand new as received from the manufacturer with manufacturer warranty. Rest assured, these items undergo a very careful inspection before shipping.
Demo: These items have been on our sales floor for demo purposes and will likely show signs of use. The original packaging may no longer be included, but you can be assured that you are receiving an awesome item and an awesome price.
Used: The item is used. These item may have varying degrees of wear. Please read the description for information about the condition of the item. Used items do not carry a warranty.
B or C Stock: Factory refurbished. These items were purchased from the manufacturer in a refurbished condition. They will show some cosmetic issues, but nothing that would impact performance. Being that these are sealed from the manufacturer, we generally do not open these to photograph the cosmetic issues. They are guaranteed to work and may have a limited warranty or you may purchase an extended warranty in some cases. Please see the listing description for item specific information.
Description
Description
Get A DI Relied On By Countless Pros With The Radial Engineering J48 Phantom Powered Active Direct Box
The Radial J48 has been designed from the ground up to deliver the most natural tone. As a direct box manufacturer, we do not believe it is our task to alter the sound of your prized '1962 Fender Jazz Bass', but retain and transfer the true character of the instrument to the mixing console without adding distortion or introducing artifact. This design philosophy has gained a tremendous following from many of the world's most demanding musicians.
Using only 48V phantom power, the Radial J48 is an active direct box that produces an exceptionally linear response that extends from 20Hz up to well above 40kHz. Low distortion of all types is achieved via a unique digital switching power supply that raises the internal operating rail voltage for added headroom and improved signal handling. The results are truly amazing. The J48 delivers an ideal even-order harmonic cascade and a sonic performance that outperforms DIs costing several hundreds more.
And like all Radial products, the J48 is both feature-rich for studio and made tough to handle the road. This includes a -15dB input pad to tame extra loud signals, 180° polarity reverse for feedback control on stage and a ground lift to help reduce hum & buzz caused by ground loops. Special features include a merge function that elegantly mixes left-right signals to mono without phase cancellation. To minimize resonant feedback with acoustic instruments, the J48 is also equipped with an 80Hz high-pass filter (low-cut). When engaged, this also increases headroom by eliminating unneeded bass frequencies.

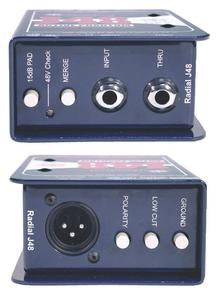

Radial's innovative book-end design protects switches and connectors from abuse while the internal I-beam construction eliminates stress on the PC board. This serves to reduce solder joints from going 'cold' and delivers trouble-free performance for years. A full-bottom no-slip pad provides mechanical and electrical isolation while providing plenty of 'stay-put' for rockin' stages!
SPECIFICATIONS
- Ultra low distortion of all types
- Exceptional headroom & dynamic range
- Retains instrument's natural sound
- Powered by 48V phantom
- Audio circuit type: Proprietary analog circuit with low-noise op-amp
- Frequency response: 20Hz ~ 20kHz
- Dynamic range: 109dB
- Noise floor: -99dB below 0dBu
- Equivalent input noise: -103dBu
- Maximum input: +10dBu
- Phase deviation: +10º at 20Hz | 0º at 1kHz | -1º at 20kHz
- Total harmonic distortion: 0.002% @ -5dBu
- Inter-modulation distortion: 0.003% @ -3dBu
- Input impedance: 220k Ohms - ¼" input
- Output impedance: 600 Ohms - XLR output
- Input connectors: Dual 1/4" in and thru jacks
- Input pad: -15dB
- Polarity: 180º signal polarity reverse switch
- High pass filter (HPF): -3dB @ 80Hz
- Ground lift: Disconnects pin-1 at XLR output
- XLR output: Follows AES standard (pin-2 hot)
- Power: 48V phantom - proprietary digital switching
- Construction: 14 gauge steel chassis and outer shell
- Finish: Durable powder coat
- Size: 3.3" x 5.0" x 2" (84 x 127 x 48mm)
- Weight: 1.55 lb (720 g)
- FCC approval: Complies with section 15 of the FCC Rules
- Conditions: For use in dry locations only between 5°C and 40°C
- Warranty: Radial 3-year, transferable
Manufacturer: Radial Engineering
Model: J48
SKU: I165067-N-0-WHXA
UPC: 676101034079
