Radial Engineering TX4L 4-Channel Cat 5 Audio Snake


  • Our Price
  • $249.99
  • Regular price MSRP: $290.00

*IN STOCK - READY TO SHIP





Send Analog Audio Anywhere That Has Cat 5 and 6 Cable With The Radial Engineering TX4L 4-Channel Cat 5 Audio Snake

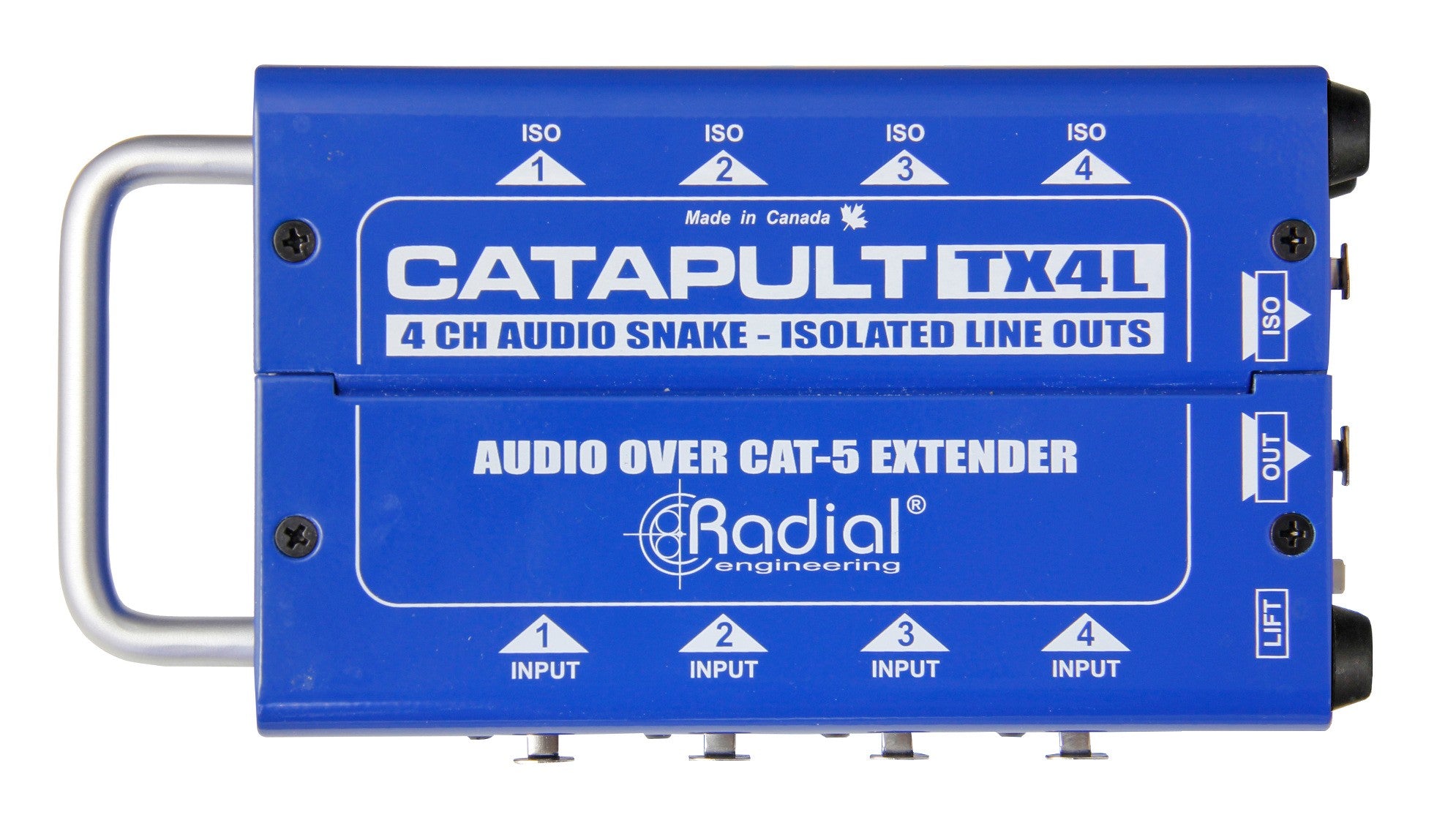

The Catapult TX4L is a four-channel line level splitter and isolator that allows you to split four audio channels and transmit them over a single standard cat5 shielded twisted pair cable. This allows you to split line level signals between three different destinations, either on stage or using a buildings existing Cat 5 or Cat 6 cabling to route the signal. Each unit features line level isolation transformers which help to eliminate buzz and hum caused by ground loops, saving hours of troubleshooting. The TX4L has four XLR-F inputs and four isolated XLR-M outputs. It features RJ45 type Ethercon connections with ground lift switches.




  • Ground lift
  • Input Connectors:XLR, RJ45
  • Output Connectors: XLR, RJ45


  • Audio circuit type:Passive line splitter, transformer based
  • Frequency response: 7Hz ~ 20KHz
  • Dynamic range: 140dB
  • Total harmonic distortion: 0.0007% @ 1kHz
  • Common Mode Rejection Ratio:>113dB
  • Maximum Input: +35dBu

Manufacturer: Radial Engineering
Model: CATAPULT TX4L
Warranty: See manufacturer website for details
SKU: I433845-N-2-B
UPC: 676101044375
