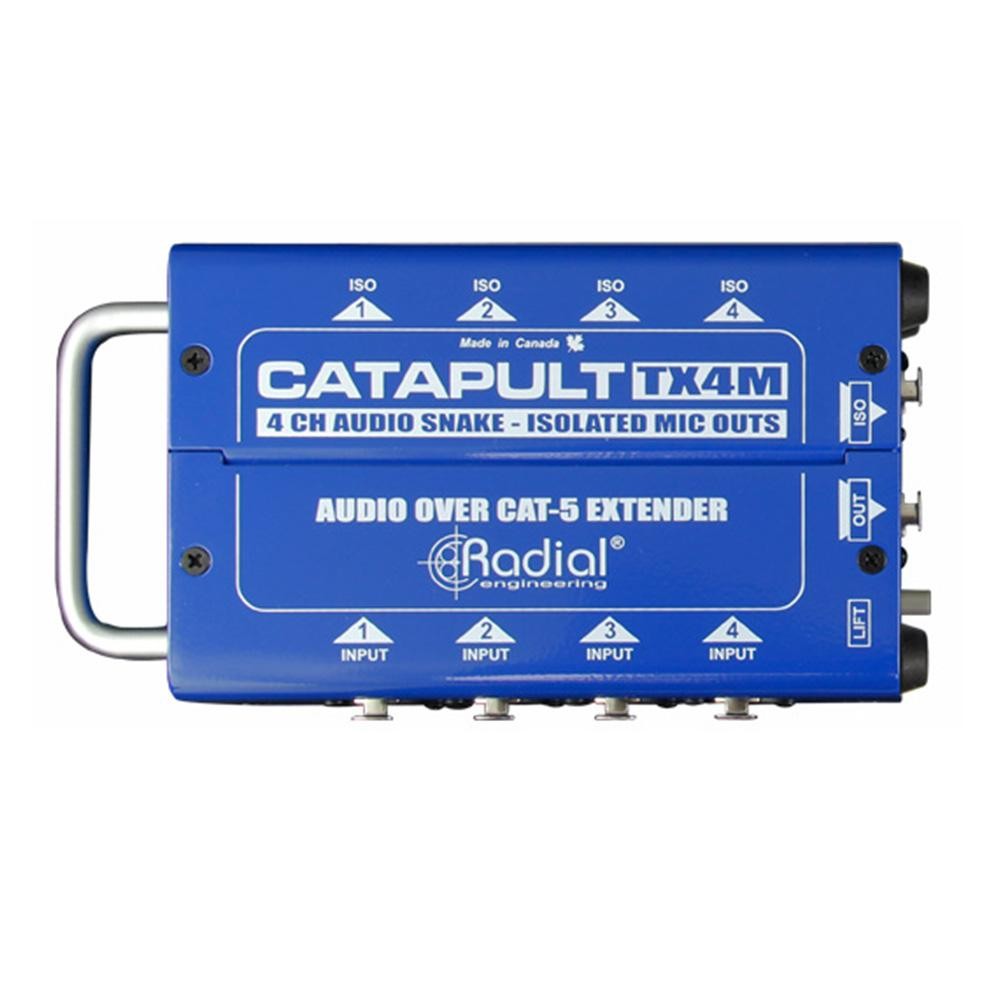

Send Analog Audio Anywhere That Has Cat 5 and 6 Cable With TheÂ Radial Engineering TX4M 4-Channel Cat 5 Audio Snake
The Catapult TX4M is a four-channel mic level splitter and isolator that allows you to split four mic feeds and transmit them over a single standard cat5 shielded twisted pair cable. This allows you to split mics to three different locations; such as front-of-house, monitors, and a recording device. Mic level isolation transformers in both units keep each destination isolated from the others, eliminating problems that arise from ground loops such as buzz and hum. The TX4M has four XLR-F inputs and four isolated XLR-M outputs. This unit features RJ45 type Ethercon connections with ground lift switches. Phantom power can be provided to the mics via the direct outputs, so long as a shielded Cat 5 cable is used.
- Ground lift
- Input Connectors:XLR, RJ45
- Output Connectors: XLR, RJ45
- Audio circuit type:Passive mic splitter, transformer based
- Frequency response: 7Hz ~ 20KHz
- Dynamic range: 140dB
- Total harmonic distortion: 0.001%
- Common Mode Rejection Ratio:>113dB
- Maximum Input: +35dBu
Model: CATAPULT TX4M
