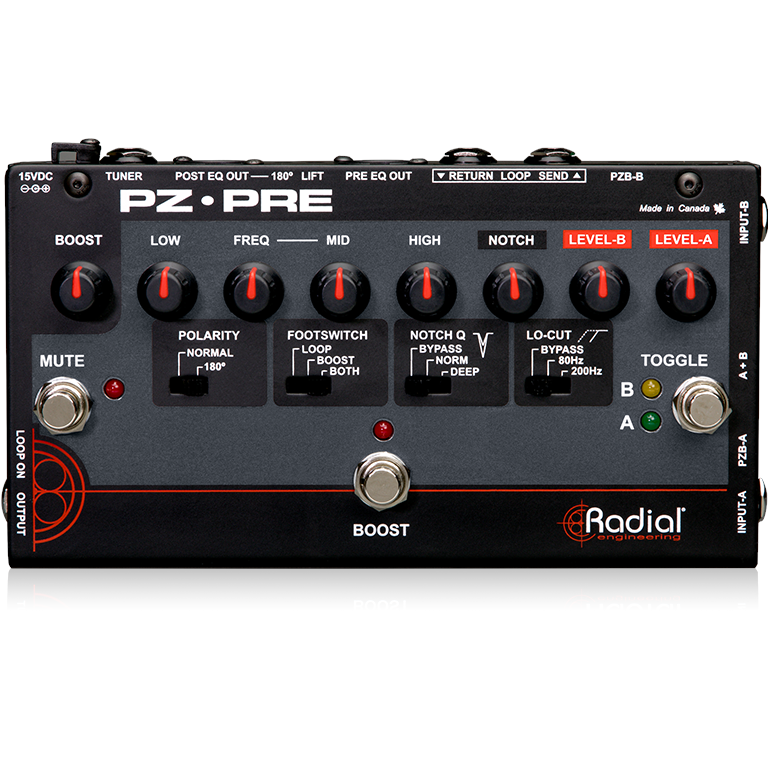

Radial Tonebone PZ-PRE Acoustic Instrument Preamp Pedal


  • Our Price
  • $349.99
  • Regular price MSRP: $400.00

OUT OF STOCK - CALL FOR AVAILABILITY
• Inventory changes daily
Contact us for availability | tel: 301-946-8808
• Please allow for additional delivery time due to COVID 19





Pick Up The Most Powerful Acoustic Preamp Ever To Be Put Inside A Pedal And Fall In Love With Your Tone All Over Again - The Radial Tonebone PZ-PRE Acoustic Instrument Preamp Pedal

The Radial Tonebone PZ-Pre™ is the most powerful acoustic preamplifier ever to be put inside a pedal. And when we say acoustic, we do not just mean acoustic guitar - we mean ANY acoustic instrument including banjo, violin, cello, mandolin, contrabass, bouzouki or lute. The magic lies in the combination of high performance 100% discrete class-A PZB piezo boosters, an ultra-quiet preamp circuit that will adapt to any pickup system and a host of connectivity options that will put you in total control.

The PZ-Pre is equipped with two inputs for quick instrument changes on stage. These can also be combined to blend two pickups together if you so desire. Features include a powerful yet warm sounding semi-parametric EQ to tailor your sound, feedback eliminating controls including a dual-Q notch filter to surgically remove feedback, a high-pass filter to cut low frequency resonance, and a phase reverse switch to eliminate hot spots on stage. It is also equipped with a host of outputs: a ¼" hi-Z instrument out for an on-stage amp, a pre-EQ balanced XLR output for the PA system and a post EQ XLR out for stage wedges or in-ear monitors. A dedicated tuner out with mute switch lets you quietly tune on-stage. There's even a combination power booster - effects loop to add sizzle and dynamics to the performance and extra presence when soloing!

Compact and easy to use, the Radial PZ-Pre packs in all of the features you need to take your acoustic instrument from home to studio and club to concert.



  • Two channels to switch between instruments
  • Notch & resonance filters eliminate feedback
  • Pre & Post Radial DI outputs for PA and monitors
  • Power booster and mute for more control on stage


  • Circuit Type: Proprietary active circuit
  • Standard input impedance: 6.8k Ohm at input jack ('PZB' switch out)
  • Input with PZB switch in Impedance: 10meg Ohm at input jack
  • Output Impendence: 1k Ohm
  • Low cut roll-off: Position 1: 75Hz / Position 2: 2:220Hz
  • Notch Freq. range: 56Hz to 330Hz
  • Notch Q: Setting 1: -8dB / Setting 2: -15dB
  • Boost level: 12dB
  • Effects send & receive: -10dB
  • FX loop impedance: Send: 1k Ohm / Receive: 15k Ohm
  • Polarity: 180° switch (absolute phase reversal)
  • LED indicators Large 3mm OD ultra-bright LED indicators for: mute, boost, Ch-1 & Ch-2 toggle status
  • Construction: 14 guage steel, baked enamel finish

EQ

  • LOW: Shelving   +/- 12dB @ 75Hz
  • MID: Parametric   +/- 12dB @ 82Hz to 5.6kHz
  • HIGH: Shelving   +/- 12dB @ 7.5kHz

CONNECTIONS

  • Input-1: ¼" unbalanced
  • Input-2: ¼" unbalanced
  • Insert Send/Receive: ¼" unbalanced
  • Amp output: ¼"unbalanced, Hi-Z, 1k Ohm
  • Tuner output: ¼"unbalanced, Hi-Z, 6.8k Ohm
  • Pre-EQ output: XLR balanced mic level 600 Ohms
  • Post-EQ output: XLR balanced mic level 600 Ohms

FOOTSWITCHES

  • Three: Mute, Boost, Toggle 1-2 / Heavy-duty high-cycle switches

Manufacturer: Radial Engineering
Model: PZ-PRE
Warranty: See manufacturer website for details
SKU: I203396-N-0-B
UPC: 676101037902
