Rane DR6 7" LCD Touchscreen Digital Remote

by Rane
Original price $210.00 - Original price $210.00
Original price
$210.00
Default Title: $210.00
Current price $210.00
♫ In stock
About Inventory Status


Questions?
Call or text us at 301-946-8808.

In stock: It is in stock and available to ship or pickup. Apparel must be shipped from another location and is not available for in-store pickup. We can usually ship or have these items available for pickup by the next business day if they don't require inspection, special handling, or setup. Our pickup location is 11151 Veirs Mill Rd. Silver Spring, MD 20902.

📆 Preorder: It is on the way to our warehouse. We can't predict when preorder items will arrive due to current supply chain issues. If you place an order for one of these items someone will contact you to estimate the delivery date.

Out of stock: We don't currently have it available but you're not out of luck yet. We still may be able to get it. If you order one of these items we will contact you with an estimated fulfillment date. You have the option to cancel the order if you change your mind.

Special order: The item is so special that it needs to be custom ordered for you. Some of these items are works of art and have to be made individually. Orders for special order items must be prepaid and we cannot accept cancellations or refunds.

█ Sold out: We don't think we can get this item because it was either discontinued by the manufacturer or was limited in quantity. If you want or need this item call or text us. Sometimes we can help you track down the item through other sources or help you find something similar.

About Item Conditions


Questions?
Call or text us at 301-946-8808.

New: The item is brand new as received from the manufacturer with a full manufacturer warranty. Instruments such as guitars, snare drums, drum kits, brass and woodwind instruments may be opened for photography and quality control inspection and may not be in a factory sealed box.

Mint or Open Box: The item may have been opened and tested but has been repackaged. The original packaging may have superficial issues but the item itself and any originally included accessories are in perfect, like new condition.

Display Model: These items are so cool that we put them on display in our legendary shop. The condition is brand new as received from the manufacturer with manufacturer warranty. Rest assured, these items undergo a very careful inspection before shipping.

Demo: These items have been on our sales floor for demo purposes and will likely show signs of use. The original packaging may no longer be included, but you can be assured that you are receiving an awesome item and an awesome price.

Used: The item is used. These item may have varying degrees of wear. Please read the description for information about the condition of the item. Used items do not carry a warranty.

B or C Stock: Factory refurbished. These items were purchased from the manufacturer in a refurbished condition. They will show some cosmetic issues, but nothing that would impact performance. Being that these are sealed from the manufacturer, we generally do not open these to photograph the cosmetic issues. They are guaranteed to work and may have a limited warranty or you may purchase an extended warranty in some cases. Please see the listing description for item specific information.

Educational & Government Sales Quotes

Click here to inquire about an educational or government quote and discover more about our Educational & Government Sales Division.

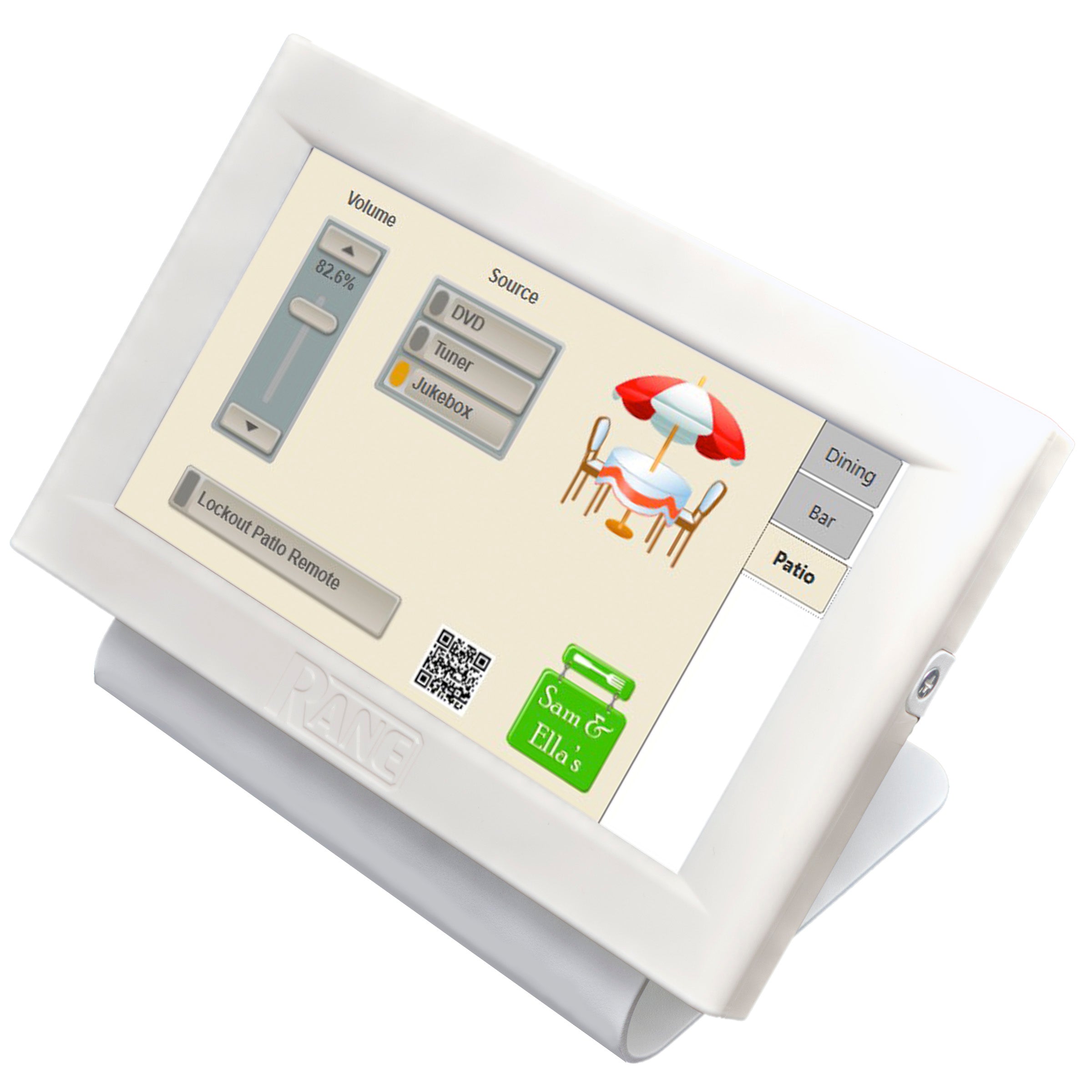

Enjoy Fully Customized Signal Control with the Rane DR6 7-Inch LCD Touchscreen Digital Remote

The DR (digital remote) models are designed to control the HAL series of multiprocessors in various ways: volume setting, preset recall, source selection, or reset / toggle system states.The DR6 is a fully customizable touchscreen remote for the HAL family. It supports multiple pages or tabs and any set of levels, toggles, selectors and/or commands on the 7-inch LCD display.Drag, drop and resize controls any way that's desired. Use custom background images and logos in full-color on the 7-inch LCD display.

Screw the included wall-mount bracket over U.S. or international electrical boxes, or flush mount the 3/4" thick DR6 with a 2-inch (5 cm) square hole in the wall to accommodate the cable. The optional DS1 desk stand accessory (shown) allows the DR6 to rest or mount on a horizontal surface. The optional RB1 rack bracket securely installs a DR6 into a 19" equipment rack.

The included midspan power injector (not PoE) connects shielded CAT 5e (or better) cables between any HAL and the DR6 to deliver communications and the extra power needed for the display.

Optional, on-screen User Access logins secure management pages from public or staff use, and a programmable ambient light sensor automatically dims the backlight.

The Control Page Designer in Halogen 5.0 allows you to create one set of pages and use them in a web control design, DR6 display or both.

*Desk stand not included.


SPECIFICATIONS

Display

  • Size: 3.38" x 6"
  • Resolution: 480 x 800
  • Color Depth: 16-bit
  • Ambient Light Sensitivity: Software configurable

Touch Screen

  • Size: 3.42" x 6.10"
  • Type: Resistive

Mounting Hardware

  • Included Wall Plate Size: 4.41" x 7.7"
  • Included Mounting Screws: #6-32x1/4" Torx T10 (qty 2)
  • Included Wall Screws: #6-20x1-1/4" (qty 4)
  • Included Electrical Box Screws: #6-32x7/8" (qty 4)

RPI Remote Power Injector (included)

  • Data Input Port: To a DR Port on a HAL
  • Data Output Port: To the DR6
  • Power: 24 VDC @ 550 mA
  • HAL to RPI to DR6 Distance: 100 meters / 325 feet total
  • Power Requirement:100 to 240 VAC
  • Wiring: Class 2
  • Ambient Room Temperature:104°F / 40°C
  • RPI Unit
  • Size:1.78"H x 6.9"W x 2.79"D
  • Weight:14.1 oz

DR6 Unit

  • Conformity: CE, FCC, CCSAUS
  • Size: 5.0"H x 7.7"W x 0.76"D
  • Weight: 1 lb
In The Box
  • Includes (2) Torx T10 screws to mount the DR6 to the Wall Plate or the DS1 Desk Stand.
  • Includes (4) #6-32x7/8" screws to attach the wall plate to a 1-, 2- or 3-gang US electrical box, or to the RB1 Rack Bracket.
  • Includes (4) #6-20x1-1/4" drywall screws with anchors to mount the wall plate directly on a wall. (1.55" square hole required)


Manufacturer: Rane
Model: DR6
SKU: I351935-N-7-WHXX
UPC: 0694318023129
