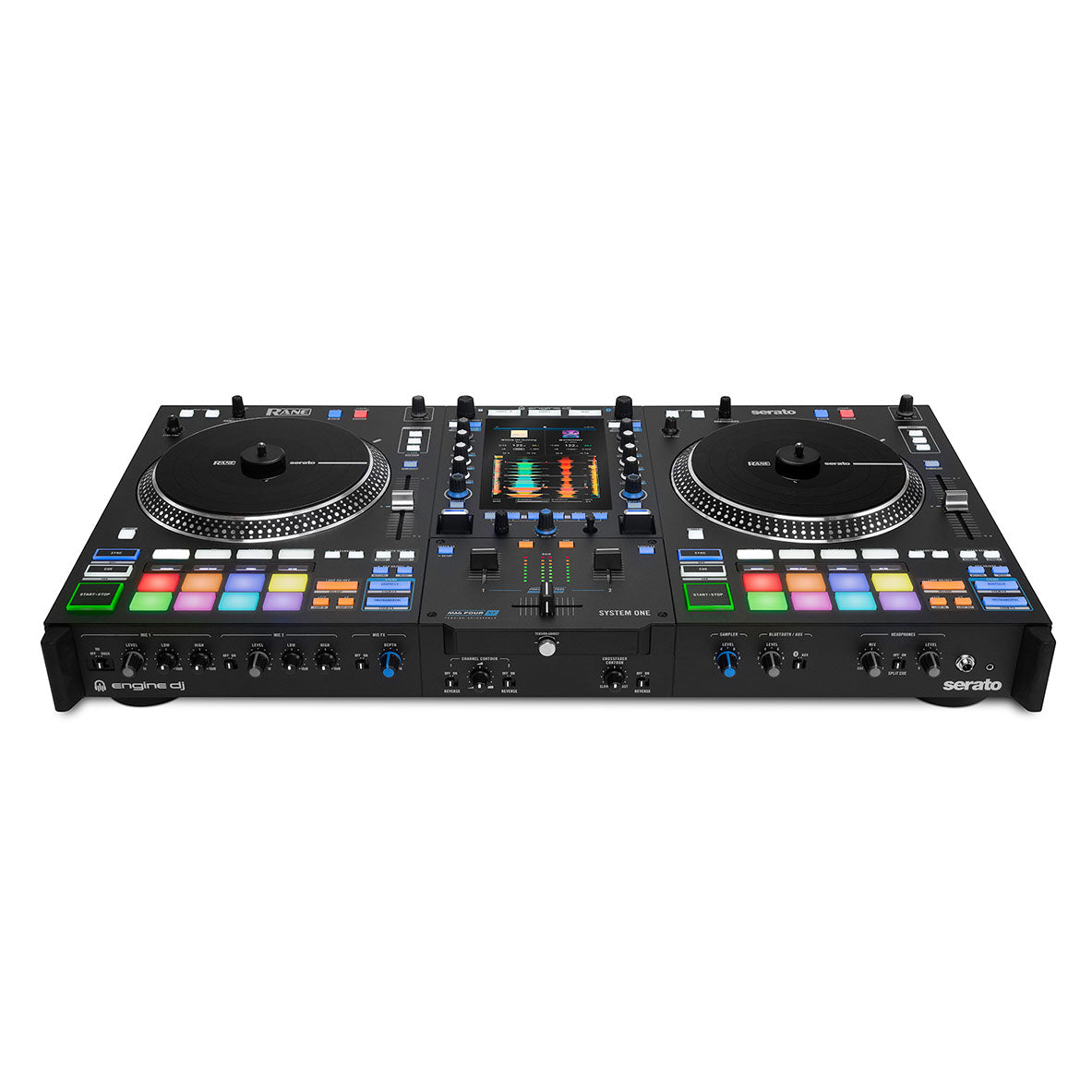

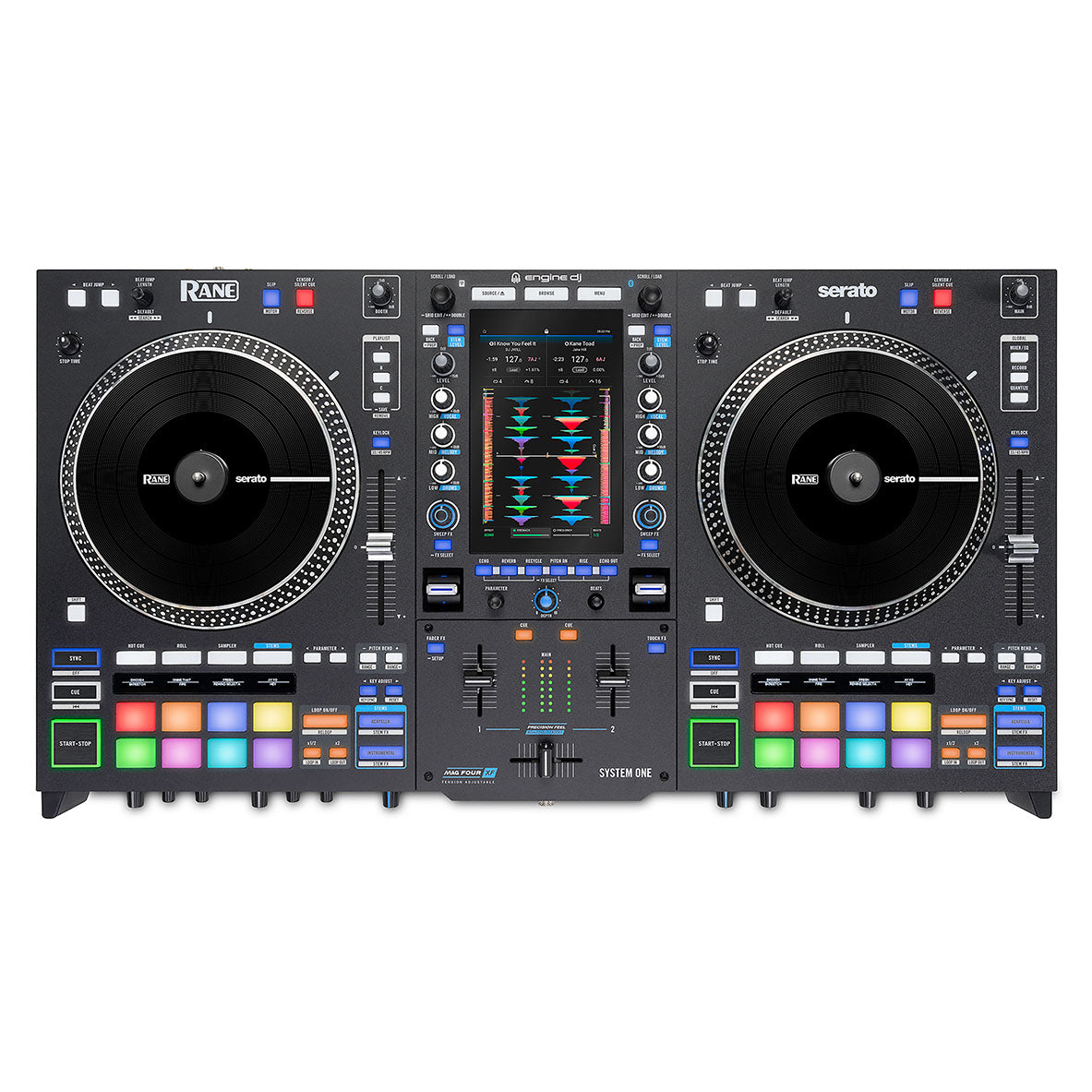

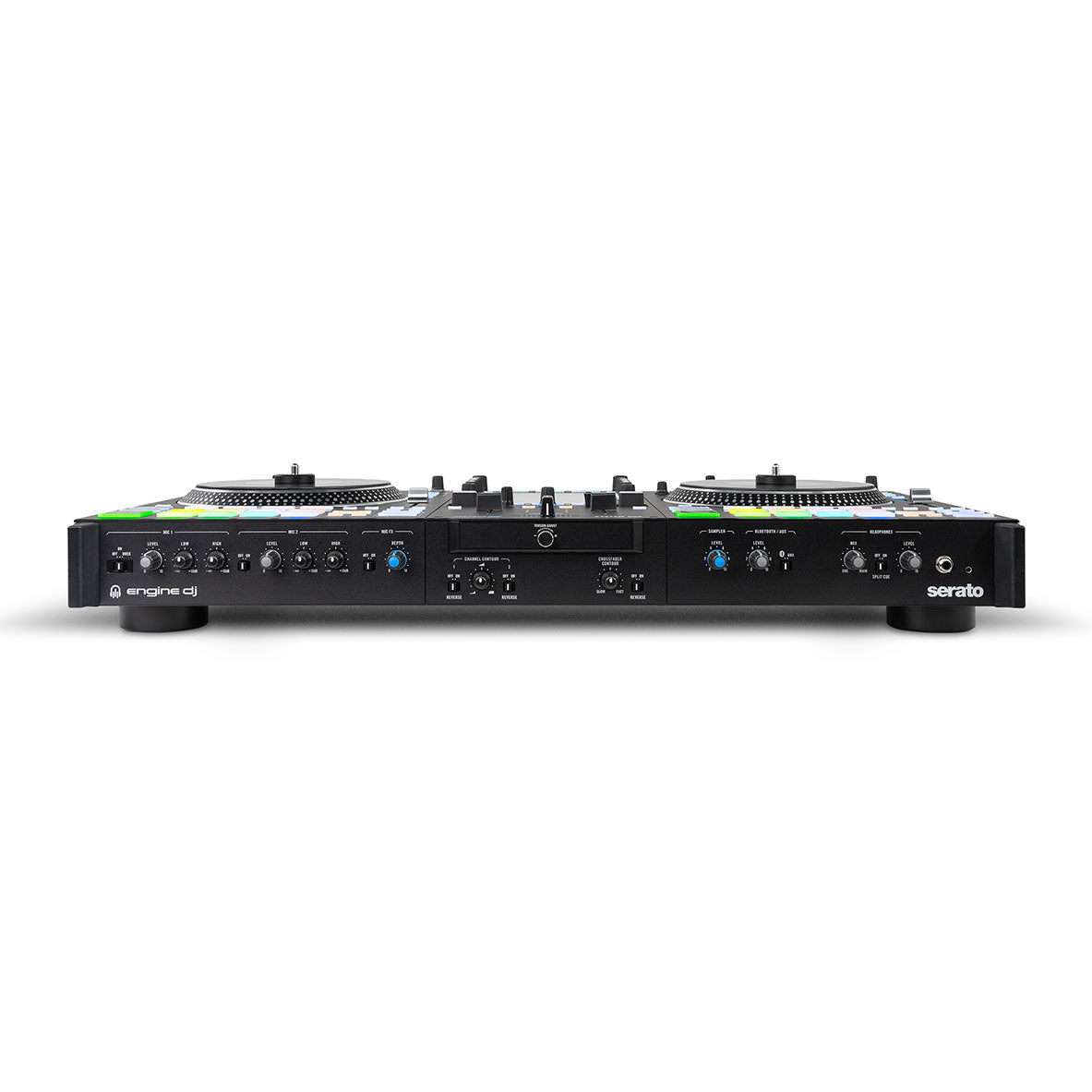

Rane System One DJ Controller

Get Laptop-Free Turntable Feel with the Rane System One DJ Controller

RANE SYSTEM ONE redefines what’s possible for open format DJs by fusing the legacy feel of turntables with modern, laptop-free standalone DJ technology. With Engine DJ onboard, high-torque 7.2” motorized platters, powerful Stems tools, deep FX, and pro connectivity, SYSTEM ONE is built for dynamic performances from standalone media, streaming services, and software sources like Serato DJ—plus Algoriddim djay support coming in early 2026.

• Engine DJ 5.0 introduces on-device stem rendering, RGB waveforms, track star ratings, and a redesigned browsing experience across compatible standalone hardware
• All-in-one standalone DJ system with high-torque motorized platters
• Engine DJ onboard for laptop-free performance workflows
• OmniSource architecture for seamless mixing between local media, streaming, and software sources
• Built-in Wi-Fi for streaming platforms and cloud access
• Standalone Stems workflow with Stem FX, Instant Acapella/Instrumental, and Stem Level EQ
• 25+ onboard Main FX across 6 assignable slots with toggle activation
• Additional creative tools: 5 Sweep FX, 10 Touch FX, and 4 fader-triggered Fader FX

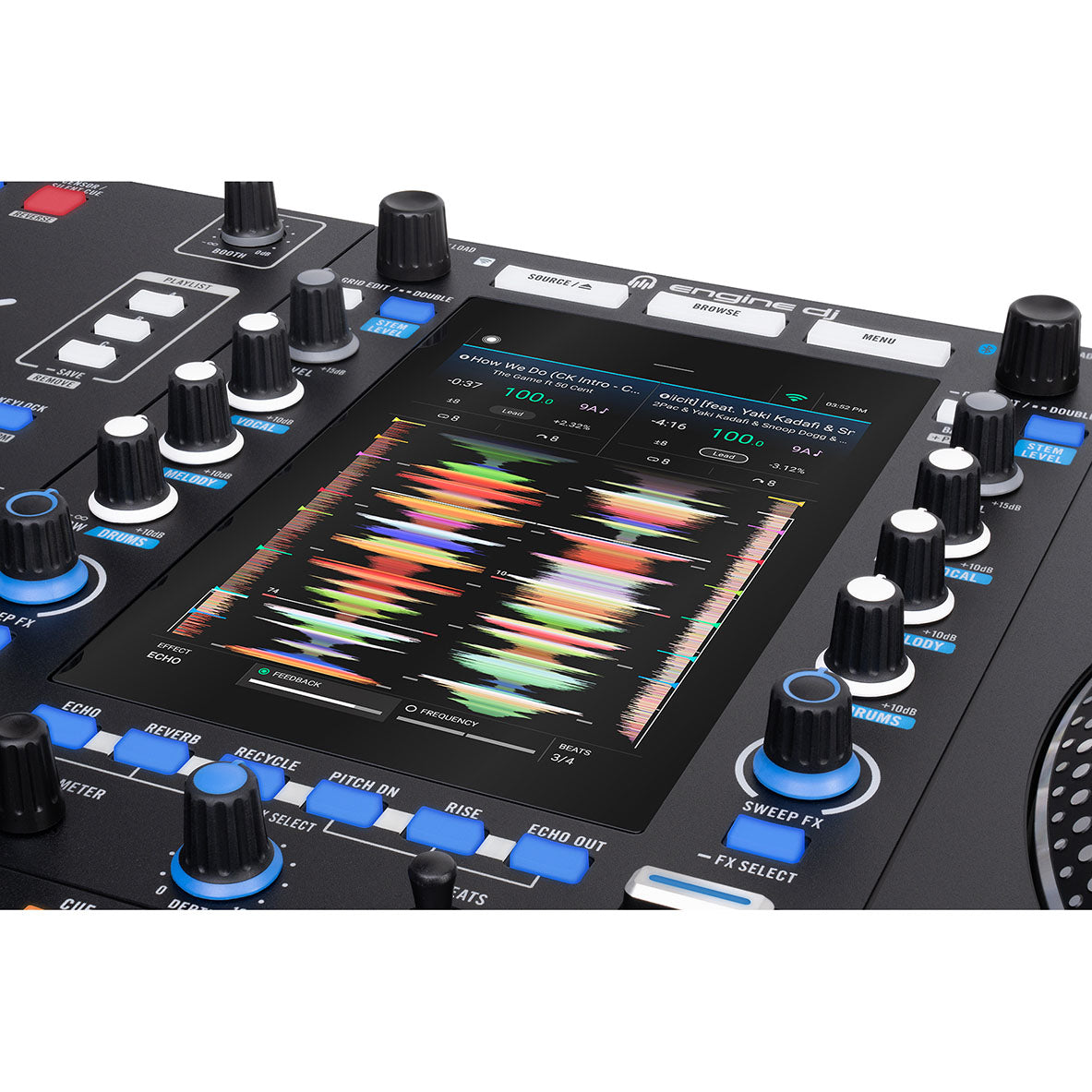

• 7” HD vertical touchscreen with moving RGB waveforms and flexible viewing modes
• Playlist Banks for fast access to favorite playlists, crates, and streaming lists
• RGB performance pads with OLED displays (8 per deck)
• On-board SoundSwitch lighting control (Philips Hue, Nanoleaf) and DMX support via SoundSwitch hardware
• Signature RANE high-fidelity sound with pro I/O: XLR/RCA Main, 1/4” Booth, Bluetooth output
• Two XLR/TRS combo mic inputs with EQ, Echo/Reverb FX, Talkover/Duck, and Anti-Feedback
• Multiple media inputs: USB-A, USB-C, SD card, and internal SATA drive bay (drive not included)

Freedom Fused with Feel

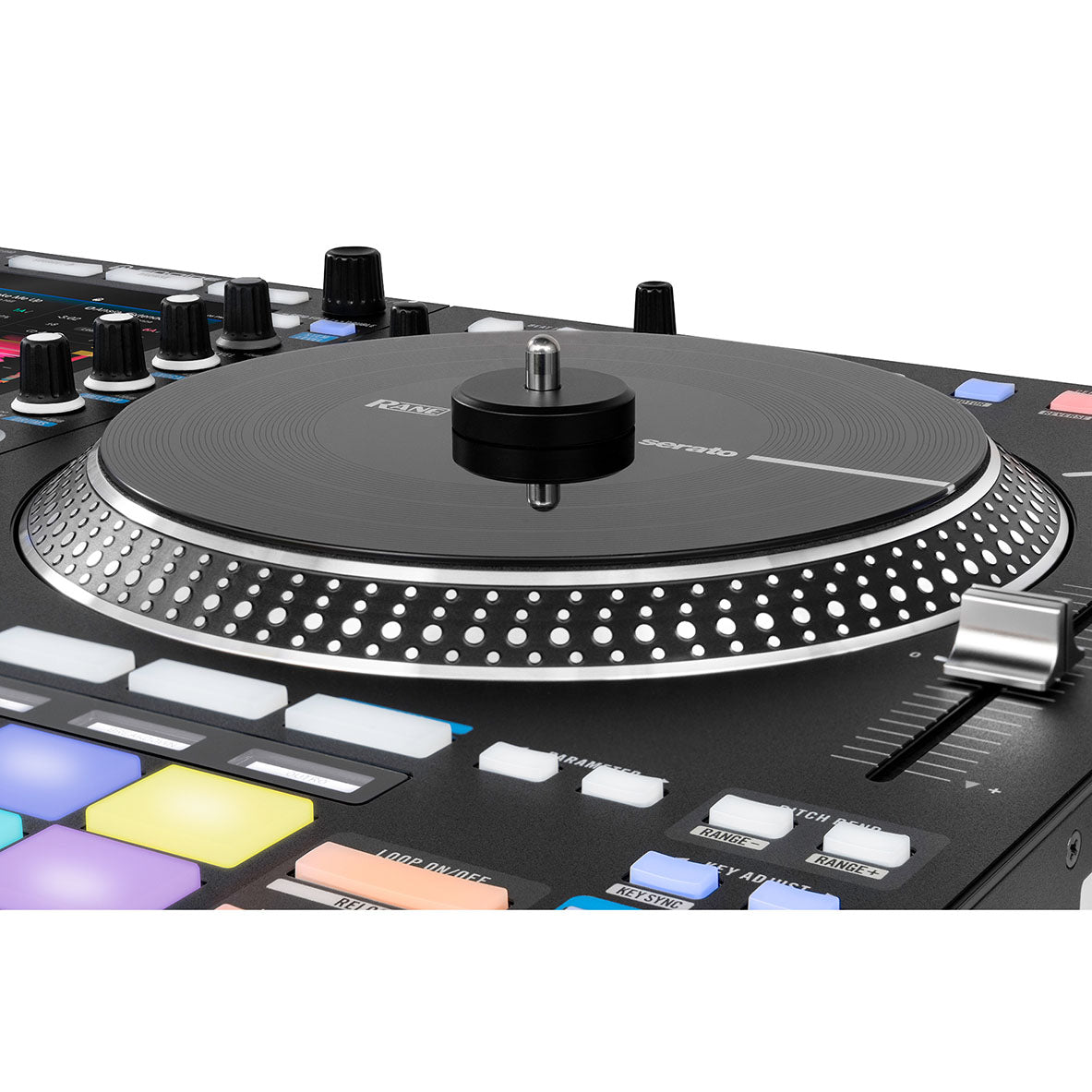

Engine DJ embedded frees you from the laptop, while the 7.2” aluminum motorized platters deliver a familiar, high-torque turntable response—giving open format DJs the confidence of classic feel with modern standalone power.

Mix Anything with OmniSource

Go from USB sticks, SD cards, or an internal drive (sold separately) to streaming services and computer-based software sources without breaking your flow. SYSTEM ONE is designed for fluid, flexible sets that adapt to any stage and any source.

Standout Stems in Standalone

Remix on the fly using standalone Stems, Stem FX, Instant Acapella/Instrumental buttons, Stems pad mode, and Stem Level EQ control. Prepare tracks in Engine DJ desktop, and render directly on the unit (on-board Stems rendering coming early 2026).

FX Built for Performance

Layer and trigger effects fast with 25+ onboard Main FX in six assignable slots, plus Sweep FX, Touch FX, and Fader FX. You can also tap into Serato’s software FX for added flexibility when using a computer.

SPECIFICATIONS

Digital Audio

• Converters: Cirrus Logic, 24-bit PCM, 44.1 kHz
• DSP: 32-bit floating point, double precision

Audio Outputs

• Main Output: Balanced XLR + RCA stereo pair
• Main DAC: 24-bit
• Main Dynamic Range: 117 dB
• Max Output Level (XLR): 8 Vrms
• Max Output Level (RCA): 4 Vrms
• Frequency Response (20 Hz–20 kHz): +0, -1 dB
• THD+N: 0.002% @ 1 kHz, 4 Vrms
• Channel Separation: > 80 dB
• Output Level Range: Off to 0 dB
• Input Gain Trim Range: Off to +12 dB

Booth Output

• Output: 1/4” (6.35 mm) TRS balanced
• DAC: 24-bit
• Dynamic Range: 117 dB
• Max Output Level: 8 Vrms
• Frequency Response (20 Hz–20 kHz): +0, -1 dB
• THD+N: 0.002% @ 1 kHz, 4 Vrms
• Channel Separation: > 80 dB
• Output Level Range: Off to 0 dB
• Input Gain Trim Range: Off to +12 dB

Headphone Output

• Outputs: 1/4” (6.35 mm) TRS and 1/8” (3.5 mm) TRS
• DAC: 24-bit
• Dynamic Range: 117 dB
• Cue: Cue / Split Cue
• Max Output Level (No Load): 4 Vrms
• Max Power Output @ 50 Ω: 150 mW
• Frequency Response (20 Hz–20 kHz): +0, -1 dB
• THD+N (No Load): 0.002% @ 1 kHz, 4 Vrms
• THD+N (Full Power @ 50 Ω): 0.08% @ 1 kHz
• Channel Separation: > 80 dB
• Level Control Range: Off to 0 dB

Inputs

• Microphone Inputs: (2) Combo XLR/1/4” (6.35 mm) TRS, balanced
• Mic ADC: 24-bit, 115 dB DR
• Mic Max Input Level: 110 mV
• Mic Analog Gain: 25 dB
• Mic Max System Gain: 60 dB
• Mic Frequency Response: -2.5 dB @ 20 Hz; -5 dB @ 20 kHz
• Mic THD+N: 0.015% (100 Hz–20 kHz) @ 0.1 Vin, Gain = 25 dB
• Mic DR (A-weighted): 102 dB (Gain 25 dB); 72 dB (Gain 60 dB)
• Mic IRN: -132 dB (A-weighted, Gain 60 dB); -130 dB (20 Hz–20 kHz, Gain 60 dB)
• Aux Input: Stereo RCA (unbalanced), selectable Bluetooth/RCA with dedicated front volume knob
• Aux Max Input Level: 4 Vrms
• Aux Frequency Response (20 Hz–20 kHz): +0, -1 dB
• Aux THD+N: 0.005% (20 Hz–20 kHz) @ 3 Vrms, unity gain
• Aux Gain Range: Off to +12 dB
• Aux DR (A-weighted): 108 dB (unity gain)
• Aux Crosstalk: ≤ -90 dB

Performance Controls

• Performance Pads: 16 total (8 per deck), multi-color backlit
• Pad Displays: (8) 128 x 32 monochrome OLEDs
• Channel Faders: 2 PRECISION FEEL, tension-adjustable with contour and reverse
• Crossfader: MAG FOUR, tension-adjustable with contour and reverse; on-screen calibration and cut-in settings

Display

• Main Display: 7” (178 mm) full-color LED-backlit touchscreen

CPU and Memory

• Processor: 8-core ARM®
• RAM: 4 GB

Wi-Fi and Bluetooth

• Wi-Fi: 2.4 GHz / 5 GHz, 802.11a/b/g/n/ac (Wi-Fi 5)
• Bluetooth: v5.4

Supported Media

• File Systems: exFAT (recommended), FAT32
• Playable Formats: AAC/M4A, AIF/AIFF (44.1–192 kHz, 16–32-bit), ALAC, FLAC, MP3 (32–320 kbps), MP4, Ogg Vorbis, WAV (44.1–192 kHz, 16–32-bit)

Streaming Services

• Amazon Music Unlimited, Apple Music, Beatport, Beatsource, SoundCloud Go+, TIDAL (subscription required)

Lighting

• Smart Lighting: Philips Hue, Nanoleaf
• Supported DMX: SoundSwitch DMX Micro, SoundSwitch Control One

Power

• Input Type: Locking IEC
• Input Voltage: 100–240 VAC
• Frequency: 50/60 Hz
• Power Consumption: 150 W

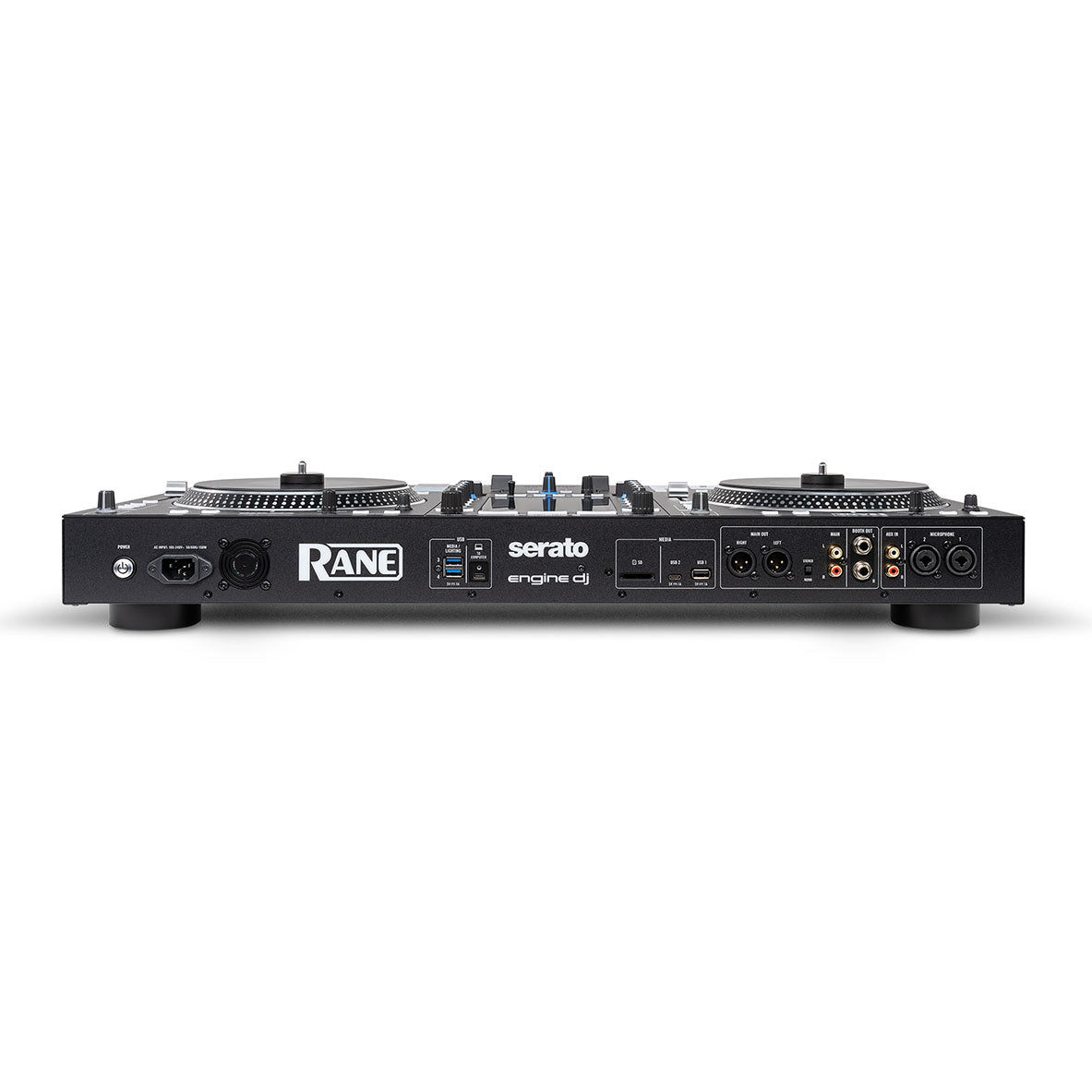

Connections

• Inputs: (2) Mic combo jacks (XLR + 1/4”), Aux RCA stereo pair, Bluetooth/RCA Aux
• Outputs: (2) XLR Main, RCA Main stereo pair, (2) 1/4” TRS Booth, headphones (1/4” and 3.5 mm), Bluetooth audio out
• USB/Media: (3) USB Type-A, (1) USB Type-C, SD/SDHC/SDXC
• Internal Drive Bay: SATA 3.0 (drive not included)
• Computer Connection: USB-C (USB 3.0 SuperSpeed) with retention screw

General

• Dimensions (W x D x H): 29.00 x 15.87 x 5.70 in (73.66 x 40.30 x 14.47 cm)
• Weight: 29.4 lb (13.33 kg)

Manufacturer: Rane
Model: SYSTEMONEXUS
SKU: I876783-N-19-WHXB
UPC: 694318026649
