RCF EVOX 12 Active Two Way Array


  • Our Price
  • $2,499.00
  • Regular price MSRP: $2,999.00




CALL FOR AVAILABILITY
• Inventory changes daily and this item may be out of stock
Contact us for availability | tel: 301-946-8808
• Please allow for additional delivery time due to COVID 19

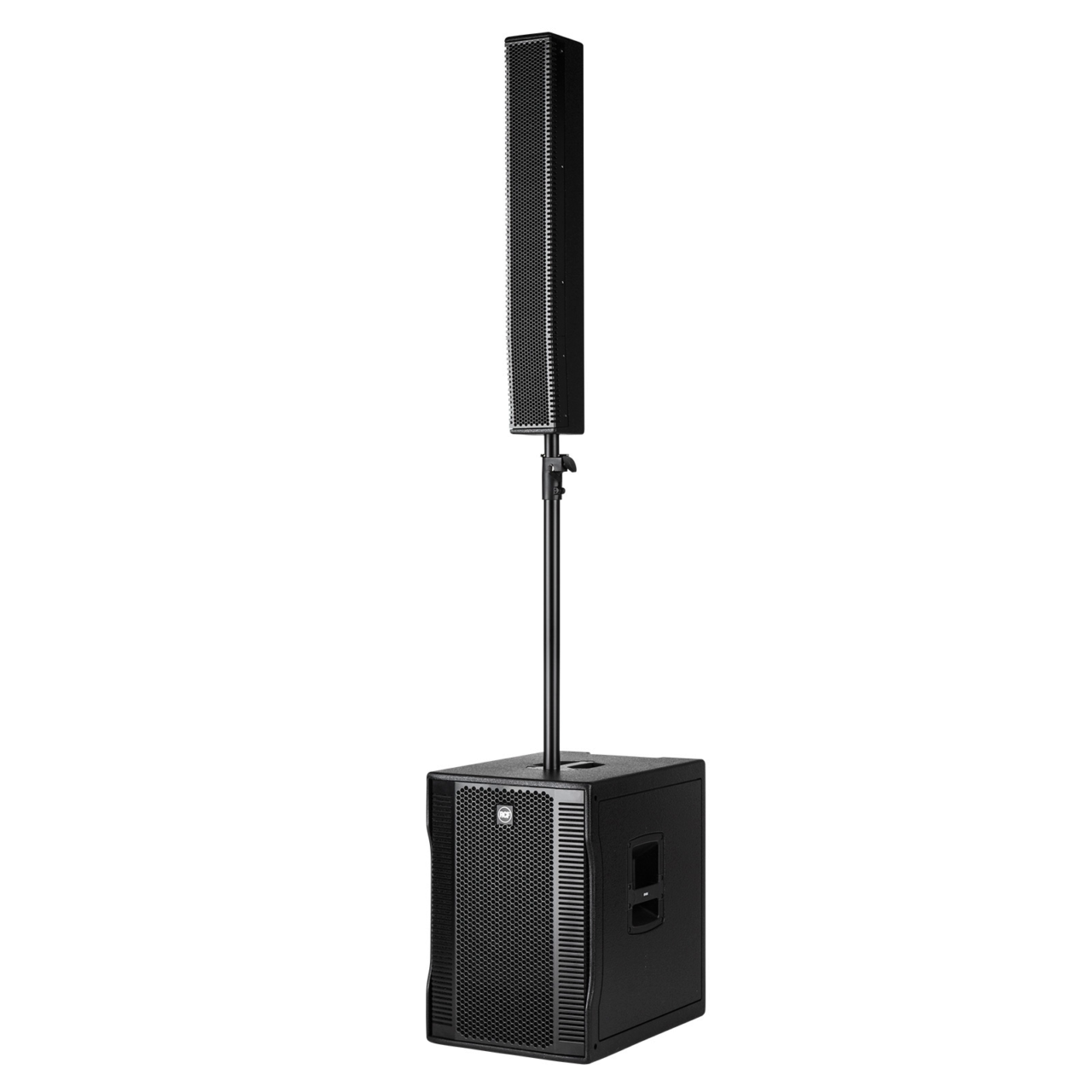

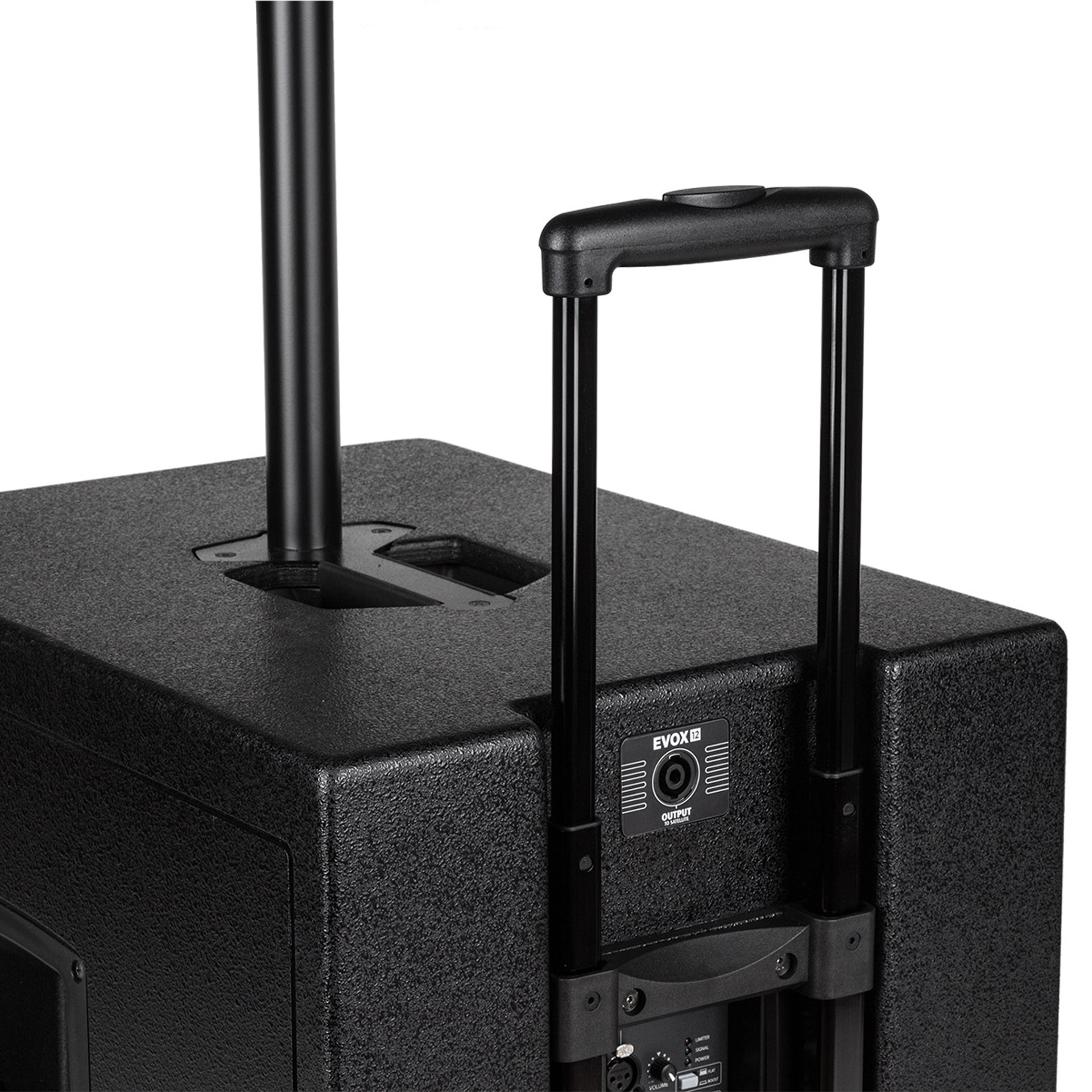

Get A High Performance Enclosure That's Very Compact, With Integrated Wheels And Extendable Handle - The RCF EVOX12 Active Two Way Array System

EVOX is the professional RCF answer to small satellite-subwoofer or column style portable speakers. EVOX, designed for live sound, exceeds the portability and the performances of other existing products.

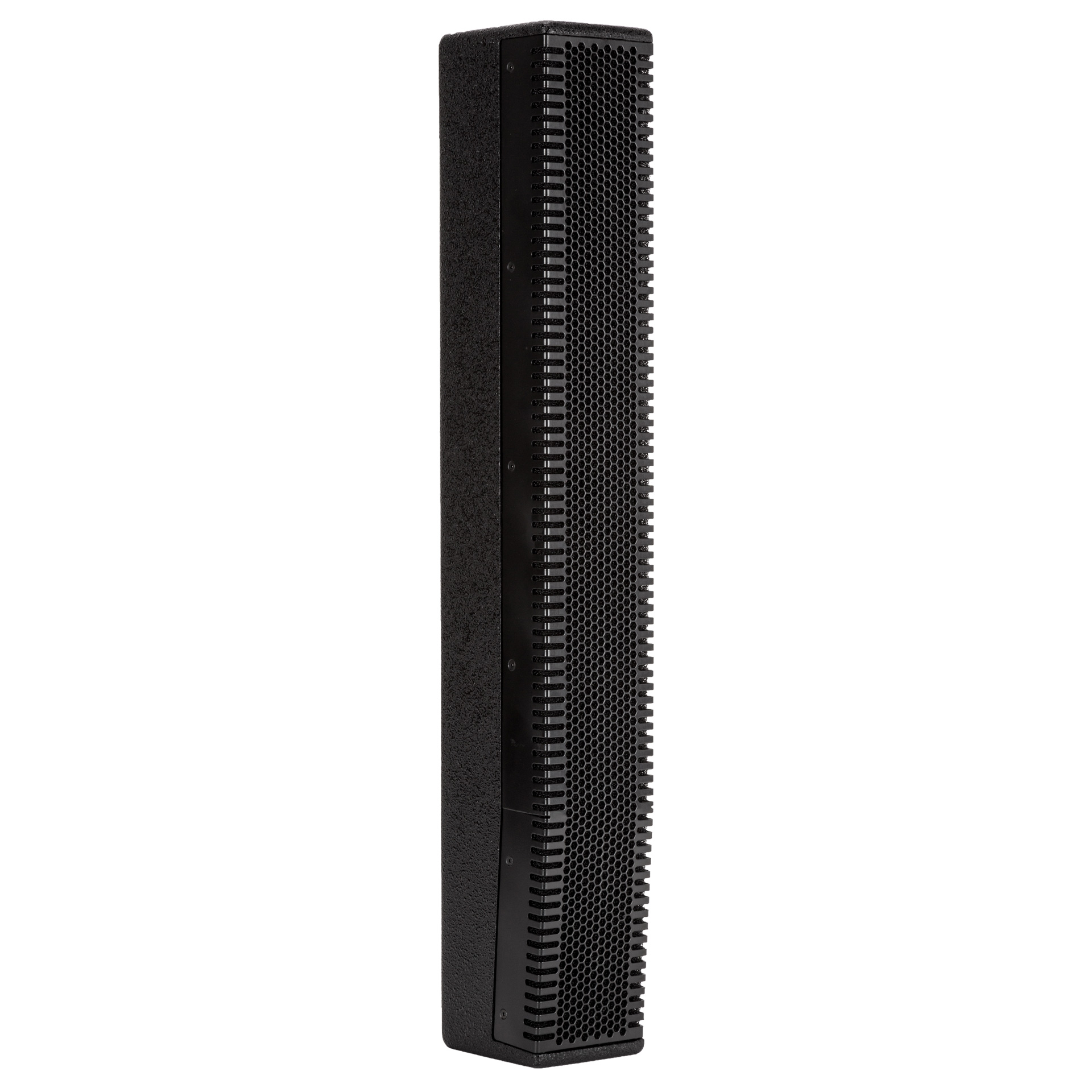

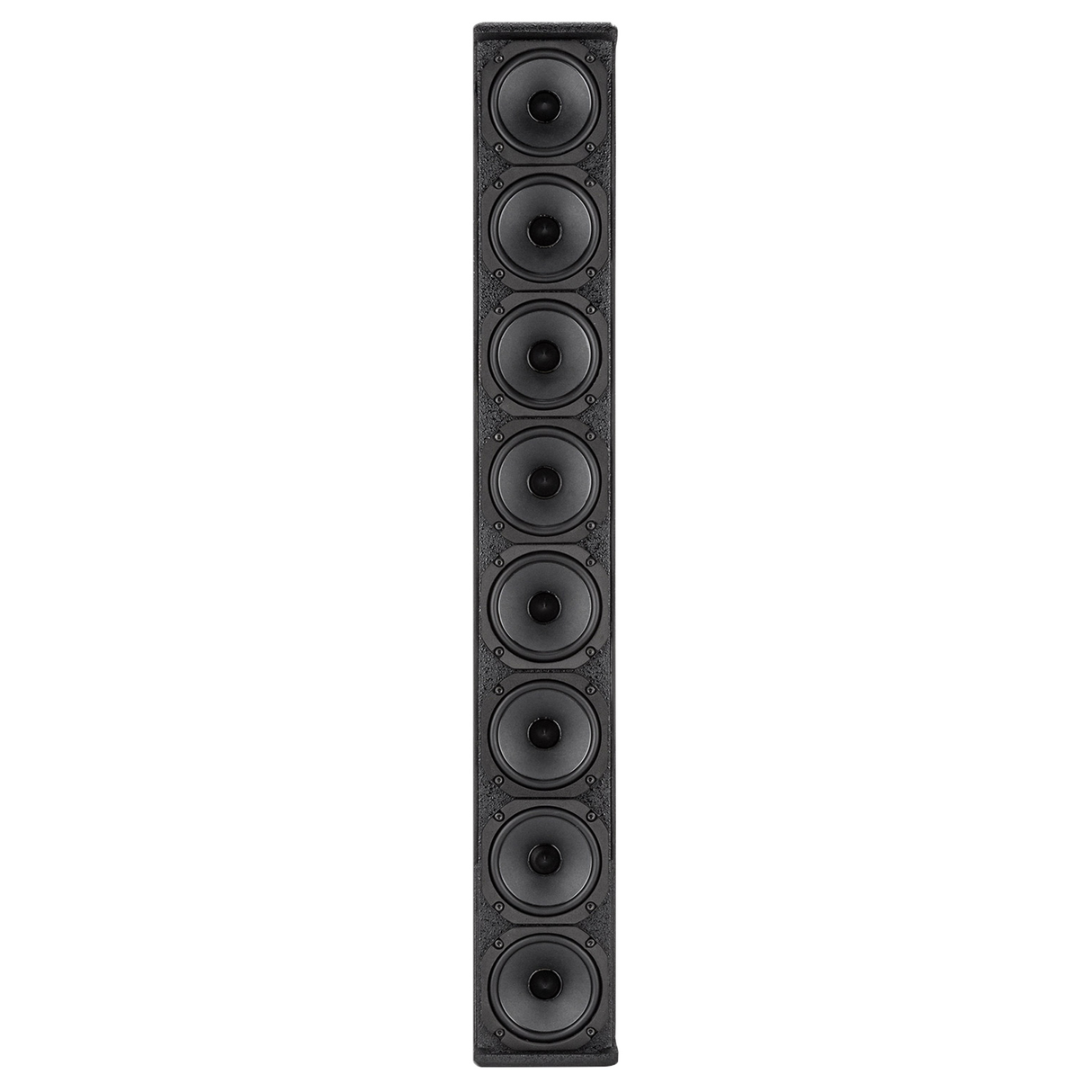

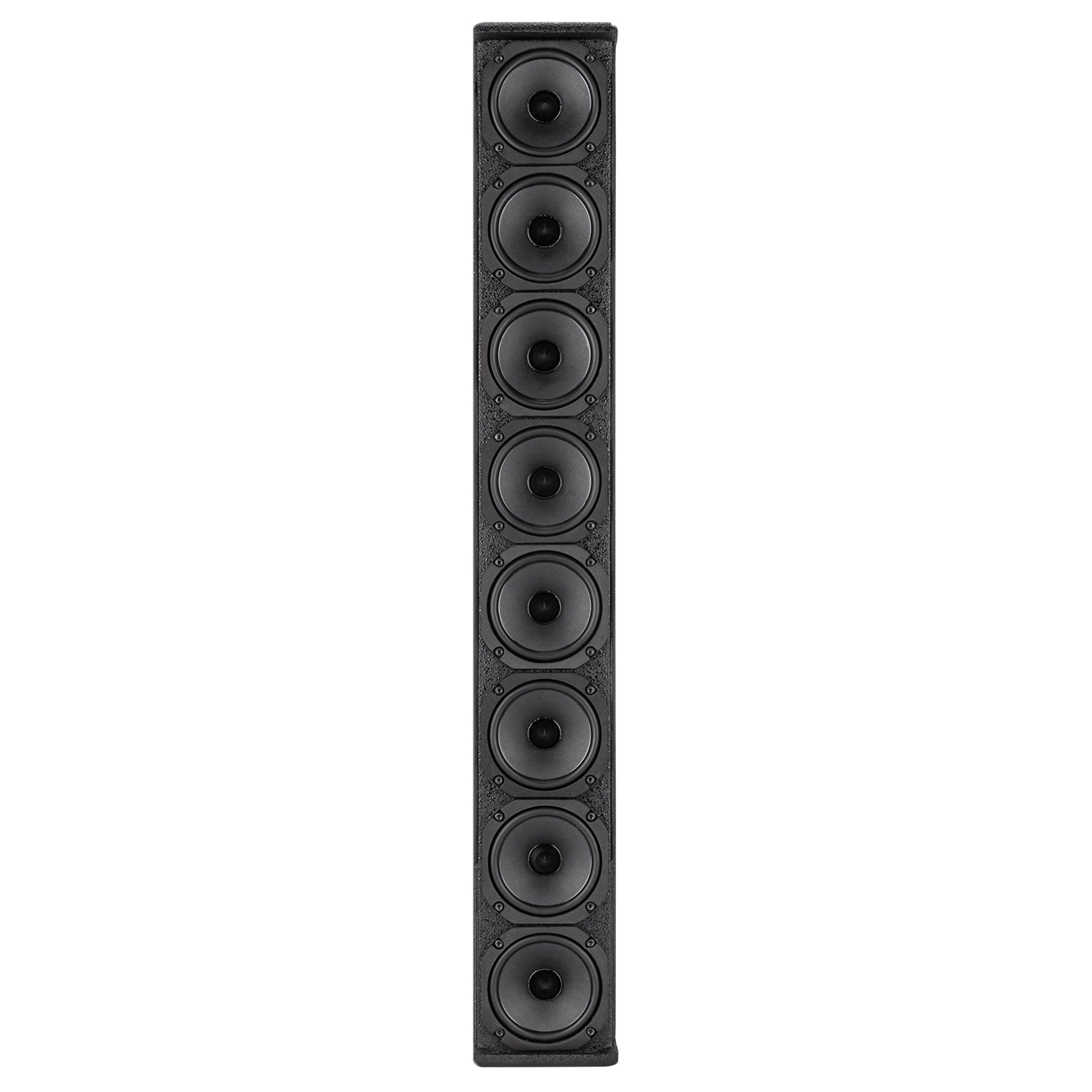

The RCF EVOX 12 is the most powerful line-source in its class and offers a particularly profound and dynamic reproduction at high levels due to the built-in 1400W power amplifier. The top section has eight high performance neodymium 4" full-range transducers with a phase plug. As a result, the EVOX 12 has a significantly increased low-mid playback at a constant level with a wide dispersion for the highs.

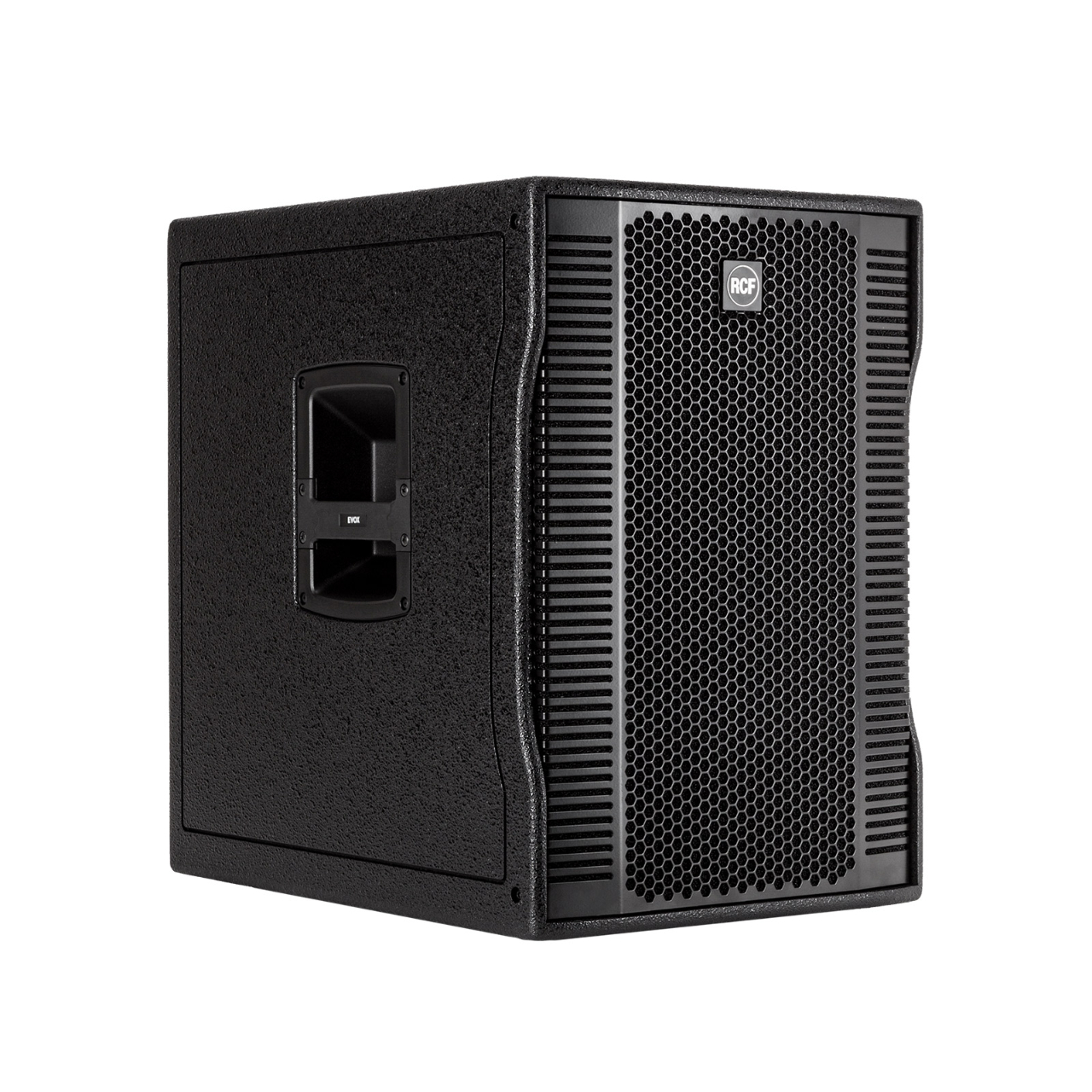

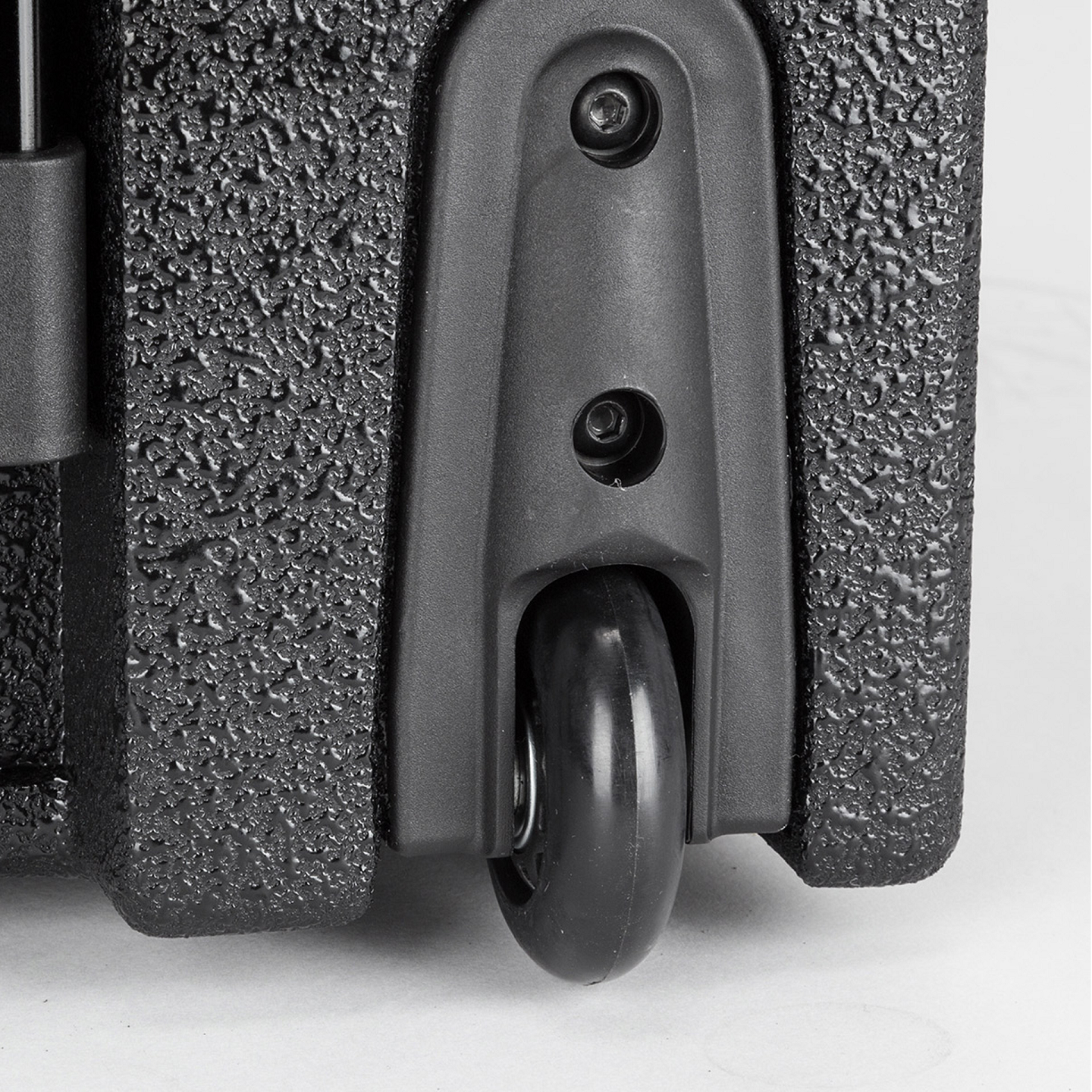

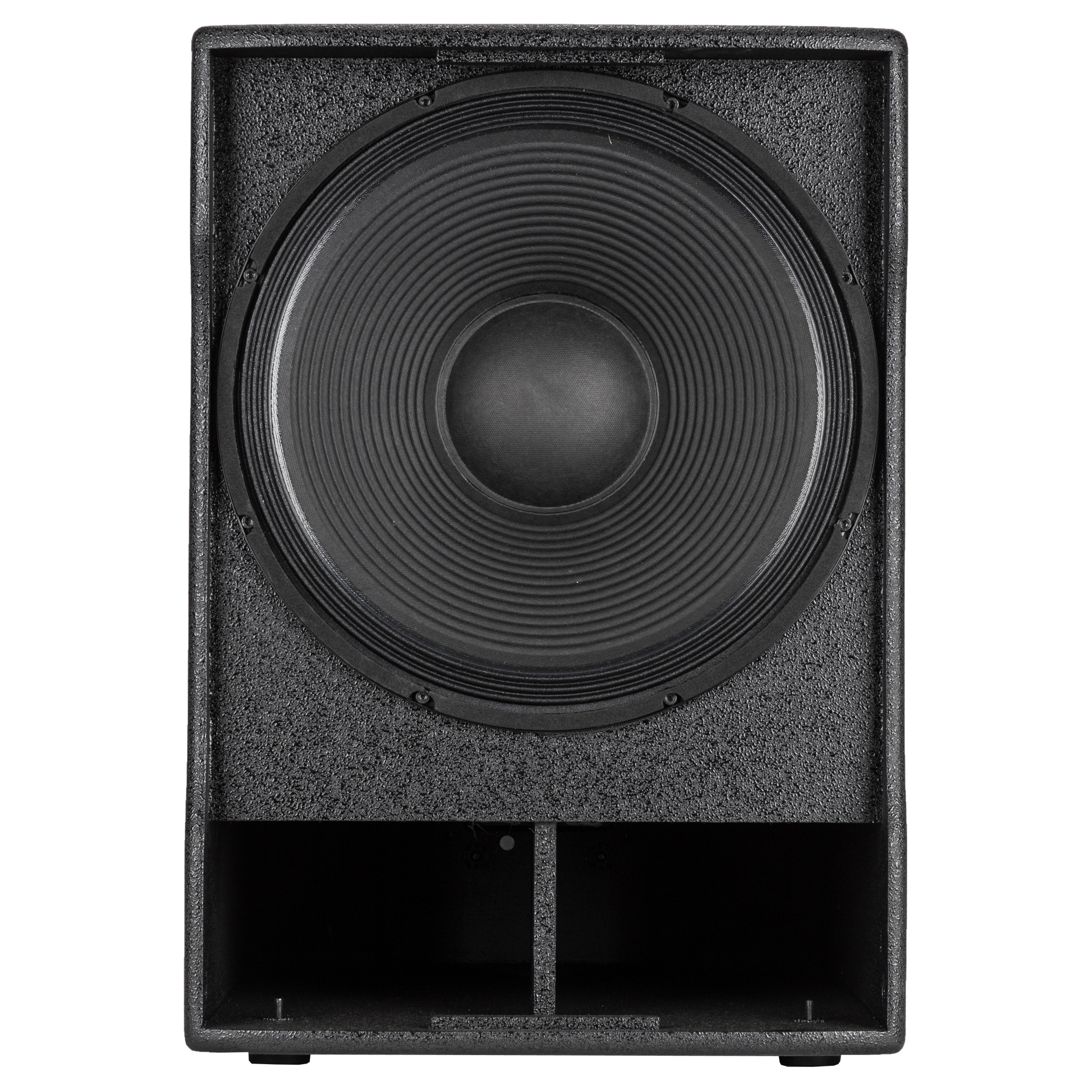

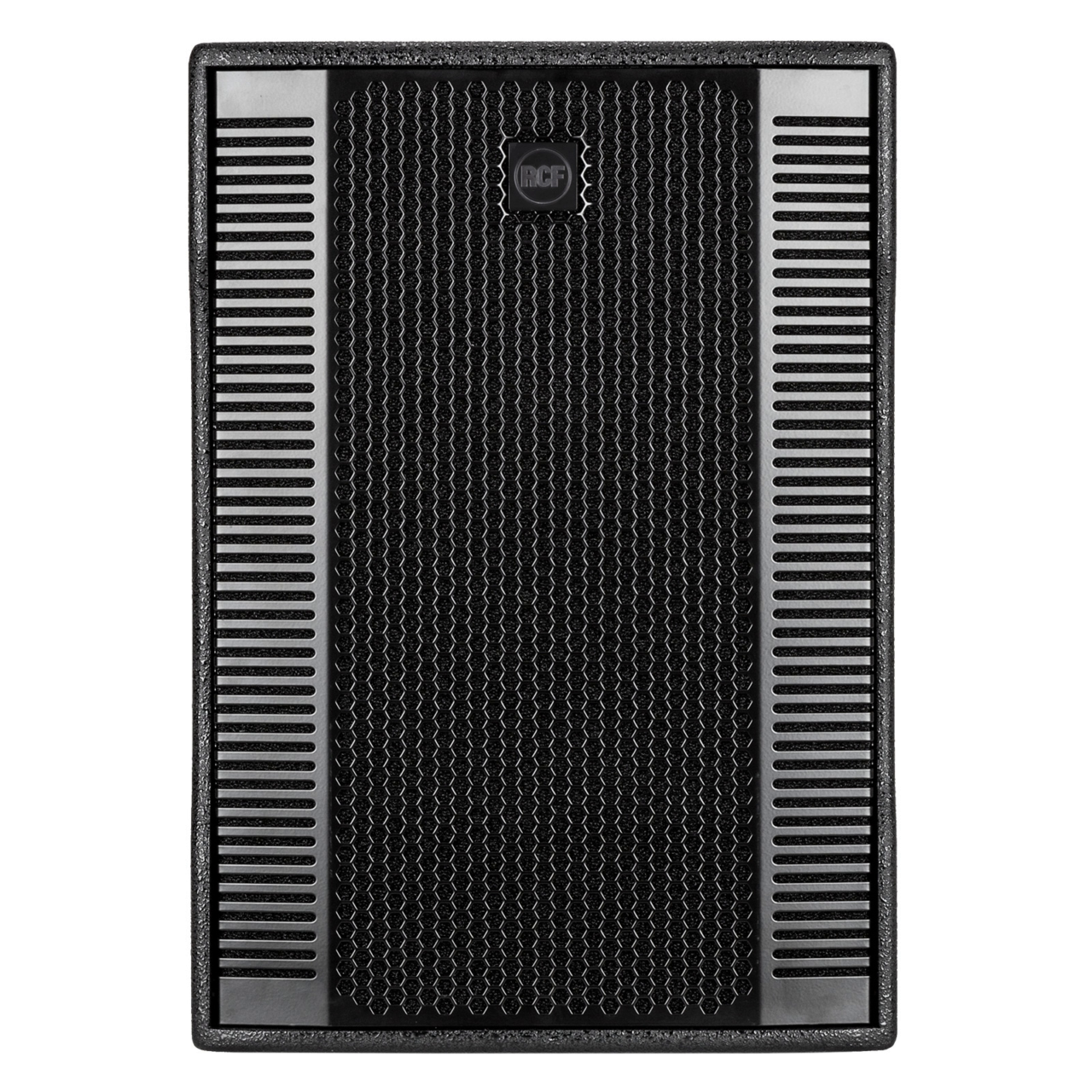

The 15" subwoofer delivers powerful bass sound to reinforce a big party or the kick drum of a live band. Despite high performance, the enclosure is very compact, and thanks to integrated wheels and extendable handle very easy to transport.


  • 1400 Watt
  • 130 dB max SPL
  • 40 Hz 20 kHz frequency response
  • 15" Woofer
  • 8 x 4" neodymium full-range woofer
  • 90° x 30° slightly tilted pattern control
  • Innovative DSP processing
  • Pole mountable, easy set-up and transportation


SPECIFICATIONS

Acoustical

  • Frequency Response -3 dB: 40 Hz - 20 Hz
  • Max SPL: 130 dB
  • Horizontal Coverage Angle: 90 Degrees
  • Vertical Coverage Angle: 30 Degrees
  • Full-Range: 8x 4.0", 1.0" v.c.
  • Woofer: 15", 3.0" v.c.

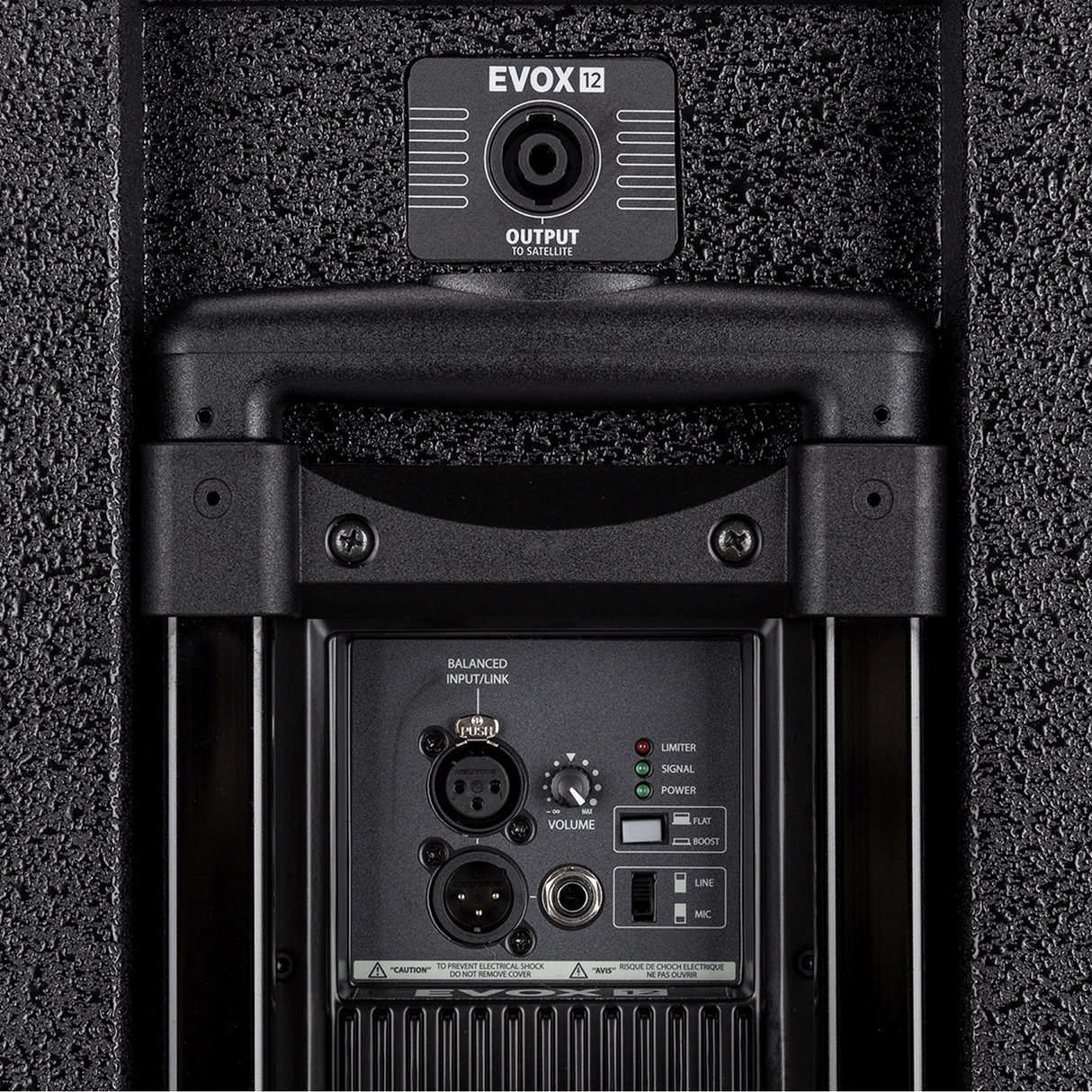

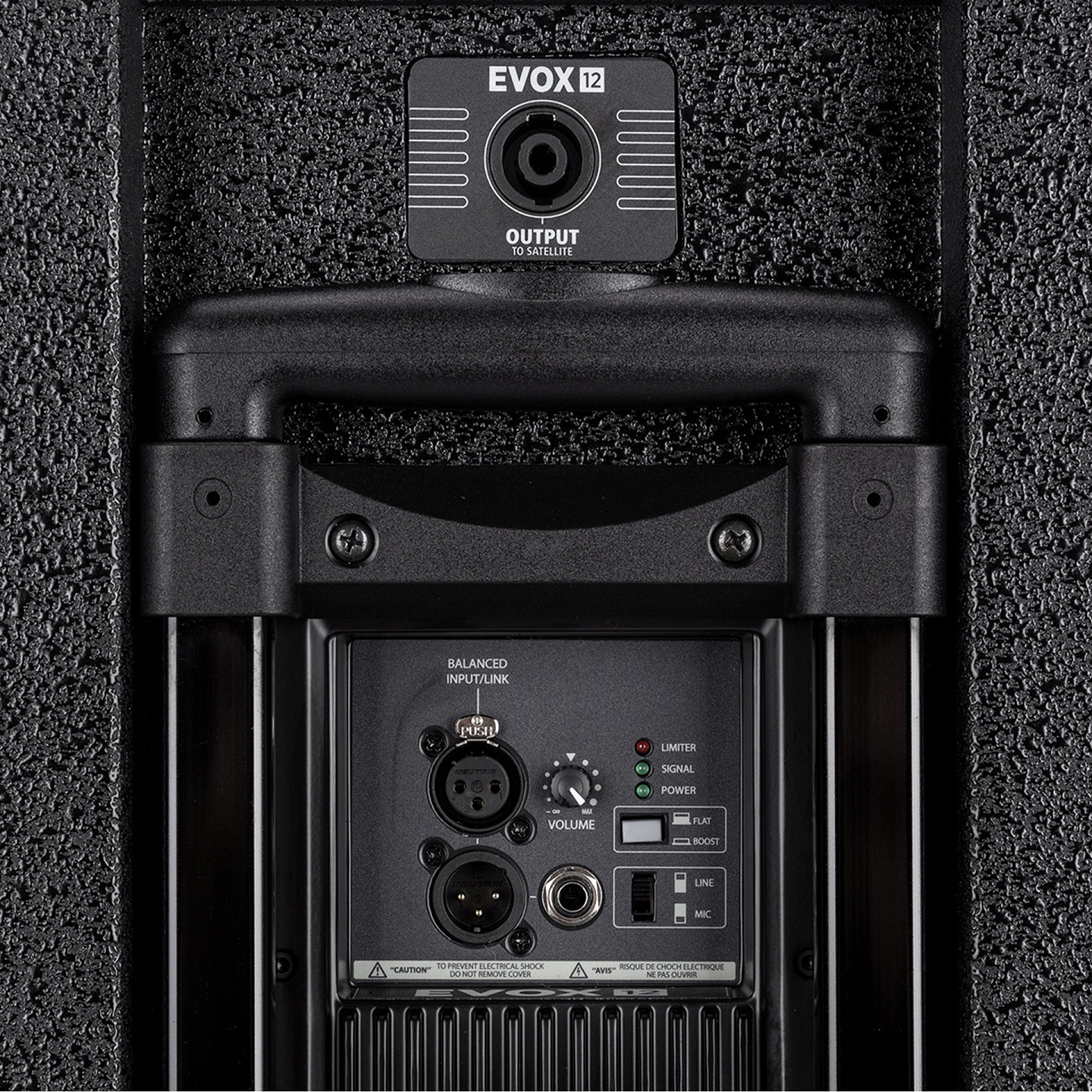

Input/Output

  • Input Connectors: Jack-XLR male
  • Output Connectors: XLR female
  • Input Sensitivity: -2 dBu / + 4 dBu

Processor

  • Crossover Frequencies: 180 Hz
  • Protections: thermal, rms
  • Limiter: Soft limiter
  • Controls: Volume, EQ

Amplifier

  • Total Power: 1400 W PEAK, 700 W RMS
  • High frequencies: 400 W PEAK, 200 W RMS
  • Low frequencies: 1000 W PEAK, 500 W RMS
  • Cooling: Convection
  • Connections: VDE connector

Cabinet

  • Cabinet Material: Baltic birch plywood
  • Handles: 2 side, 1 top
  • Pole Mount/Cap: Yes
  • Color: Black

Physical

  • Height: 2220 mm/87.4"
  • Width: 410 mm/16.14"
  • Depth: 560 mm/22.05"
  • Net Weight: 36.4 kg/80.24 lbs

Manufacturer: RCF USA
Model: EVOX-12-SYSTEM
Warranty: See manufacturer website for details
SKU: I439867-N-0-B
UPC: 8024530013233
