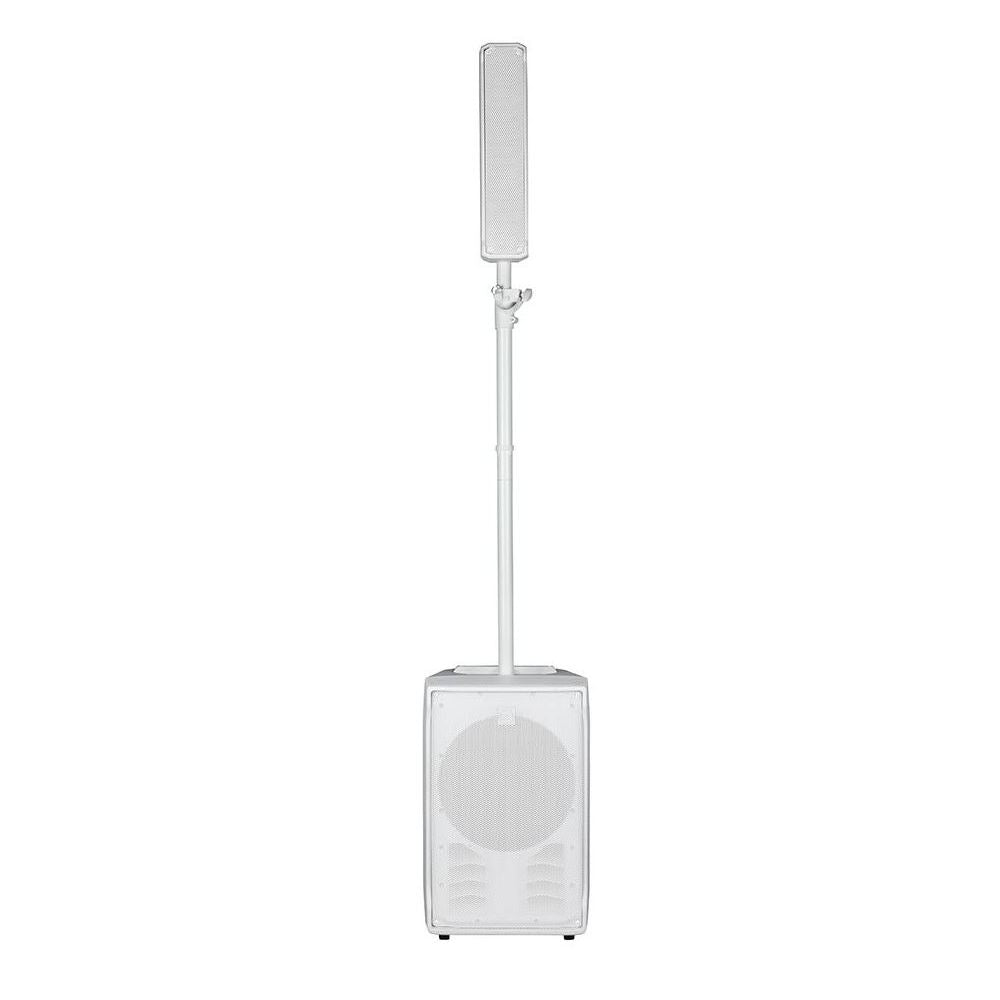

RCF EVOX JMIX8 Active Two Way Array Music System - White



*IN STOCK - READY TO SHIP


Get Stunning Sound Quality And Convenient Portability With The RCF EVOX JMIX8 Active Two Way Array Music System

Taking the EVOX J Series one step further, RCF has added an 8-input Digital Mixer to the system. The onboard processing power of the innovative Z.CORE DSP provides not only full mix functions; it includes high-quality instrument FX and AMP simulations. An EVOX iOS/Android-compatible app allows to manage the JMIX8. Adding Bluetooth audio and Hi-Z instrument input, the EVOX JMIX8 combines the quality and reliability of RCF transducers and amplification with a powerful remote controllable 8-channel digital mixer. The all-in-one solution, superior sound quality and easy set-up and transportation make the EVOX the perfect workmate for musicians.

FIRPHASE

RCF speakers are designed by using FiRPHASE, a proprietary and advanced FIR filtering technology, conceived for delivering transparent sound, absolute clarity and perfect stereo images to the listener. The FiRPHASE algorithm optimizes dynamics, amplitude and phase patterns, ensuring at the same time minimum system latency.

PHASE MATTERS

The design of the FIR filter for this specific purpose should start from an accurate measurement of the loudspeaker phase. The FiRPHASE algorithm uses this measurement and adapts the loudspeaker’s phase without touching the amplitude equalization. The heart of the advanced technique used by FiRPHASE is a recursive method (Least Squared method) combined with a proprietary algorithm that calculates the best FIR filter coefficients set in according to amplitude and phase constraints. The algorithm corrects phase and amplitude (when necessary) by taking into account the weak points of the transducers and the resonances or cancellations due to the cabinet of the loudspeaker. Despite the design perfection of our transducers and cabinets, we realize that the phase corrections are the “missing point” for the perfection. This technique allows a deep control of phase at mid-low frequencies with relatively small filters, reaching a higher resolution than that one as theory suggests.



  • 128 dB Max SPL
  • 1400 Watt 2-way peak power
  • 8 IN Digital Mixer with multiple FX, Amp Simulator and Remote Control
  • DSP Processing with FiRPHASE
  • 12" woofer, high power 2.5" voice coil
  • 8 x 2" ultra compact fullrange 1.0" voice coil
  • 2350x350x450 mm 92.5x13.77x17.71 in (HxWxD)
  • 24,4/53.8 kg/lbs
  • Bluetooth Audio


ACOUSTIC SPECIFICATIONS

  • FREQUENCY RESPONSE: 40 ÷ 20000 Hz
  • MAX SPL @ 1M: 128 dB
  • HORIZONTAL COVERAGE ANGLE: 120°
  • VERTICAL COVERAGE ANGLE: 30°

TRANSDUCERS

  • FULLRANGE: 8 x 2.0'', 1.0'' v.c
  • WOOFER: 12'', 2.5'' v.c

INPUT/OUTPUT SECTION

  • INPUT SIGNAL: bal/unbal
  • INPUT CONNECTORS: XRL, Jack
  • OUTPUT CONNECTORS: XLR
  • INPUT SENSITIVITY: -2 dBu/+4 dBu

PROCESSOR SECTION

  • CROSSOVER FREQUENCIES: 220 Hz
  • PROTECTIONS: Thermal, RMS
  • LIMITER: Soft Limiter
  • CONTROLS: Volume, Boost, Mic/Line

POWER SECTION

  • TOTAL POWER: 1400 W Peak, 700 W RMS
  • HIGH FREQUENCIES: 400 W Peak, 200 W RMS
  • LOW FREQUENCIES: 1000 W Peak, 500 W RMS
  • COOLING: Convection

ELECTRONIC SPECIFICATIONS

  • FREQUENCY RESPONSE: 20 Hz ÷ 20 Hz
  • THD+N, 20DB GAIN, 0DBU OUT: 0.004

PROCESSING

  • PROCESSING CHANNELS: 8
  • SIGNAL PROCESSING: 32 Bit Floating Point
  • A/D-D/A CONVERSION: 24 Bit @ 48.0 kHz
  • DYNAMIC RANGE: 108

INPUTS

  • MIC: 4
  • REMOTE CONTROLLED STORABLE GAIN: Yes
  • GAIN RANGE: 0÷45 dB
  • INPUT NOISE LEVEL: -114 dBu A-Weighted
  • MIC INPUTS IMPEDANCE: 3 kohm
  • LOW CUT: 20 Hz ÷ 1000 dB
  • PHANTOM POWER +48V: Yes
  • MONO LINE: 4
  • GAIN SELECTION: 0 dB ÷ 45 dB
  • LINE INPUT IMPEDANCE: 11 kohm
  • HI-Z LINE INPUTS: 1
  • HI-Z LINE INPUTS IMPEDANCE: 1 Mohm
  • A/D DYNAMIC RANGE: 108 dB
  • STEREO LINE: 2
  • GAIN SELECTION: 0 dB ÷ 45 dB
  • STEREO LINE INPUT IMPEDENCE (KOHM): 11 kohm
  • GAIN SELECTION: 0 dB

OUTPUTS

  • AUX SEND: 1
  • AUX OUTPUT: 1

OUTPUT SPECIFICATIONS

  • MAIN OUT IMPEDANCE: 150 ohm
  • MAIN OUT LEVEL: 19 dBu
  • AUX OUT IMPEDANCE: 150 ohm
  • AUX OUT LEVEL: 19 dBu
  • D/A DYNAMIC RANGE: 1084 dB

COMPRESSORS

  • 4 mono (6 preset) RCF
    Manufacturer: RCF USA
    Model: EVOX JMIX8 W
    Warranty: See manufacturer website for details
    SKU: I513206-N-2
    UPC: #8024530015619
    Listing ID: NA90937
