RCF F16-XR 16 Channel Mixer w/ FX And Recording
MSRP: $119900
Couldn't load pickup availability
About Inventory Status
About Inventory Status
Questions? Call or text us at 301-946-8808.
♫ In stock: It is in stock and available to ship or pickup. Apparel must be shipped from another location and is not available for in-store pickup. We can usually ship or have these items available for pickup by the next business day if they don't require inspection, special handling, or setup. Our pickup location is 11151 Veirs Mill Rd. Silver Spring, MD 20902.
📆 Preorder: It is on the way to our warehouse. We can't predict when preorder items will arrive due to current supply chain issues. If you place an order for one of these items someone will contact you to estimate the delivery date.
❓ Out of stock: We don't currently have it available but you're not out of luck yet. We still may be able to get it. If you order one of these items we will contact you with an estimated fulfillment date. You have the option to cancel the order if you change your mind.
❔ Special order: The item is so special that it needs to be custom ordered for you. Some of these items are works of art and have to be made individually. Orders for special order items must be prepaid and we cannot accept cancellations or refunds.
█ Sold out: We don't think we can get this item because it was either discontinued by the manufacturer or was limited in quantity. If you want or need this item call or text us. Sometimes we can help you track down the item through other sources or help you find something similar.
About Item Conditions
About Item Conditions
Questions? Call or text us at 301-946-8808.
New: The item is brand new as received from the manufacturer with a full manufacturer warranty. Instruments such as guitars, snare drums, drum kits, brass and woodwind instruments may be opened for photography and quality control inspection and may not be in a factory sealed box.
Mint or Open Box: The item may have been opened and tested but has been repackaged. The original packaging may have superficial issues but the item itself and any originally included accessories are in perfect, like new condition.
Display Model: These items are so cool that we put them on display in our legendary shop. The condition is brand new as received from the manufacturer with manufacturer warranty. Rest assured, these items undergo a very careful inspection before shipping.
Demo: These items have been on our sales floor for demo purposes and will likely show signs of use. The original packaging may no longer be included, but you can be assured that you are receiving an awesome item and an awesome price.
Used: The item is used. These item may have varying degrees of wear. Please read the description for information about the condition of the item. Used items do not carry a warranty.
B or C Stock: Factory refurbished. These items were purchased from the manufacturer in a refurbished condition. They will show some cosmetic issues, but nothing that would impact performance. Being that these are sealed from the manufacturer, we generally do not open these to photograph the cosmetic issues. They are guaranteed to work and may have a limited warranty or you may purchase an extended warranty in some cases. Please see the listing description for item specific information.
Description
Description

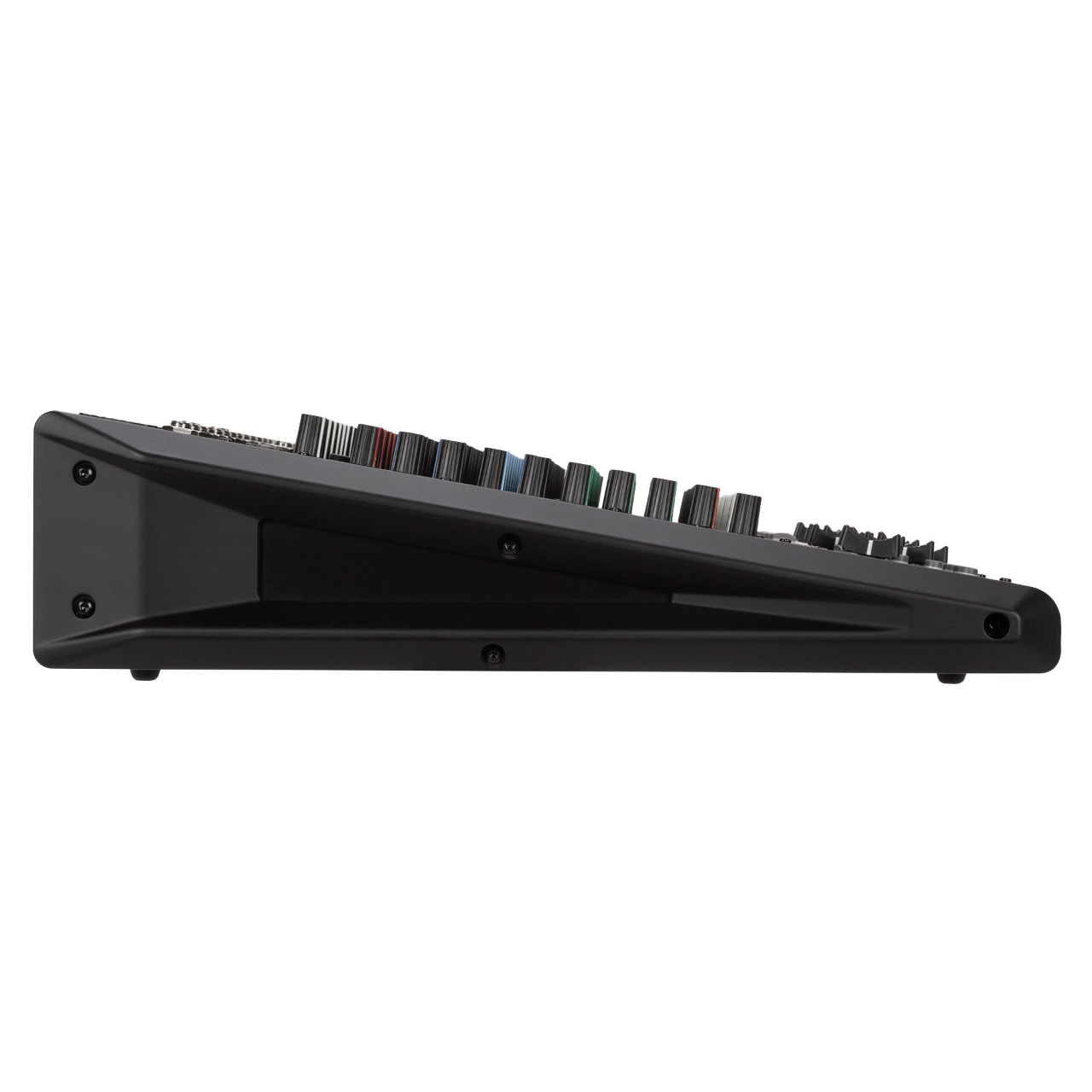

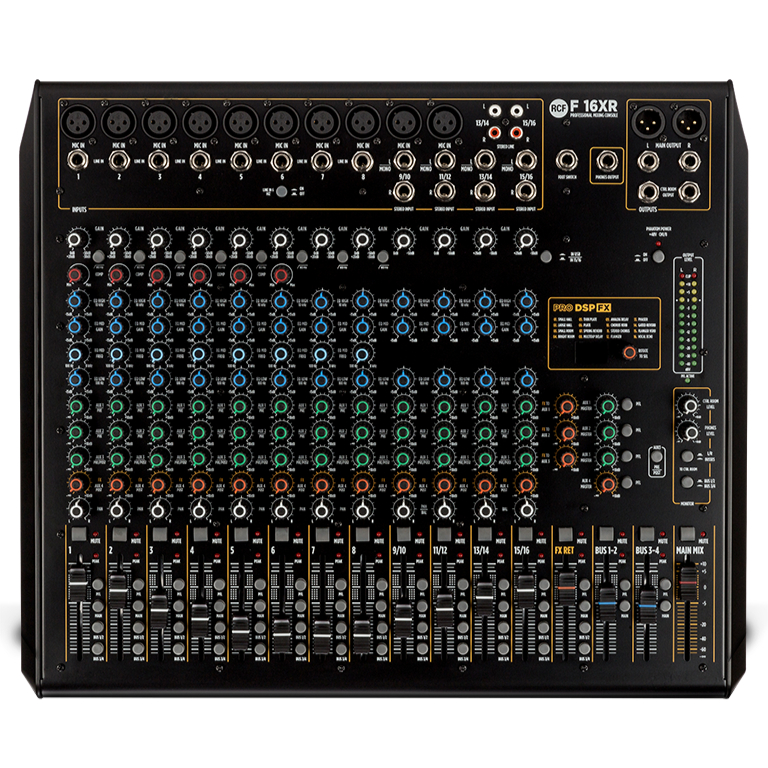

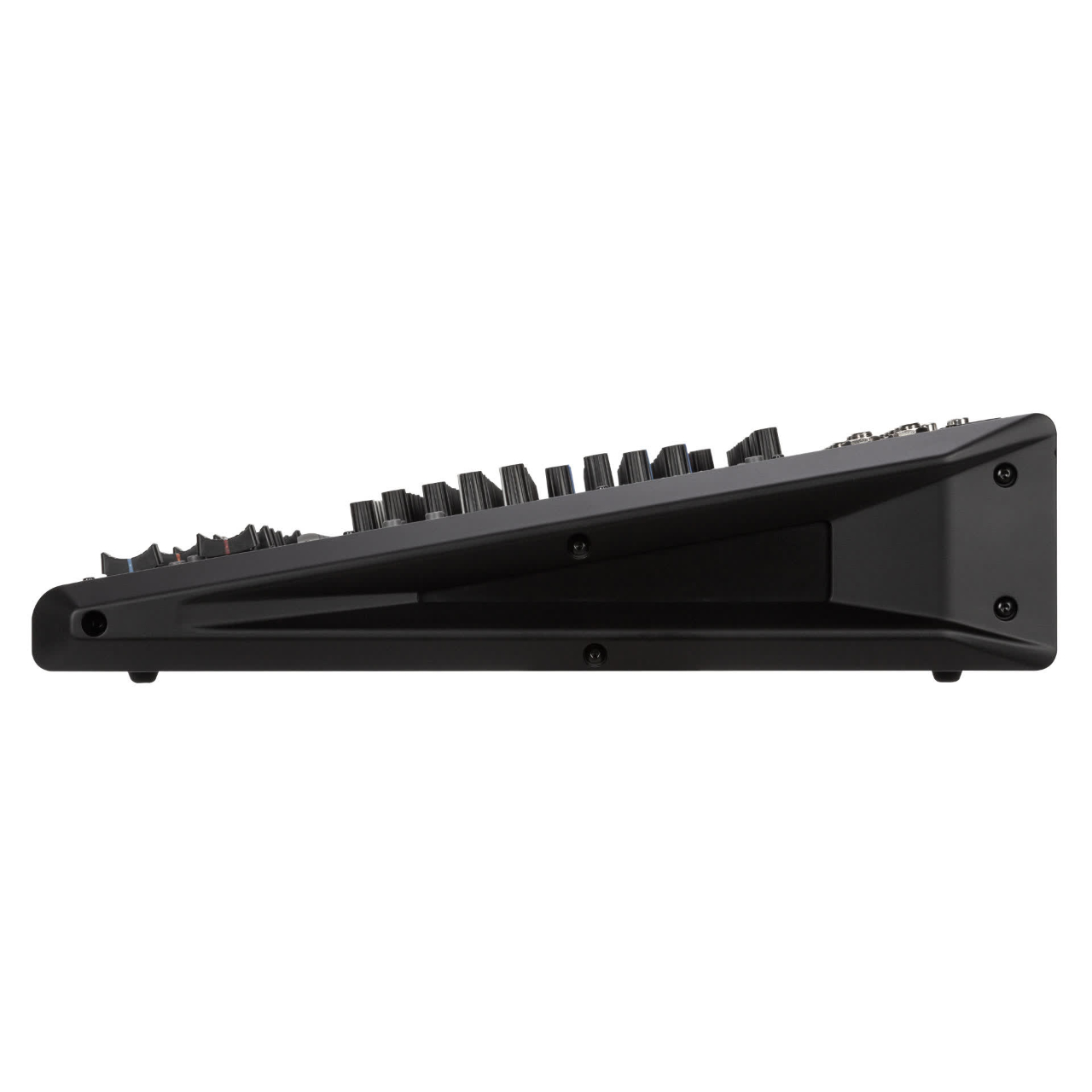

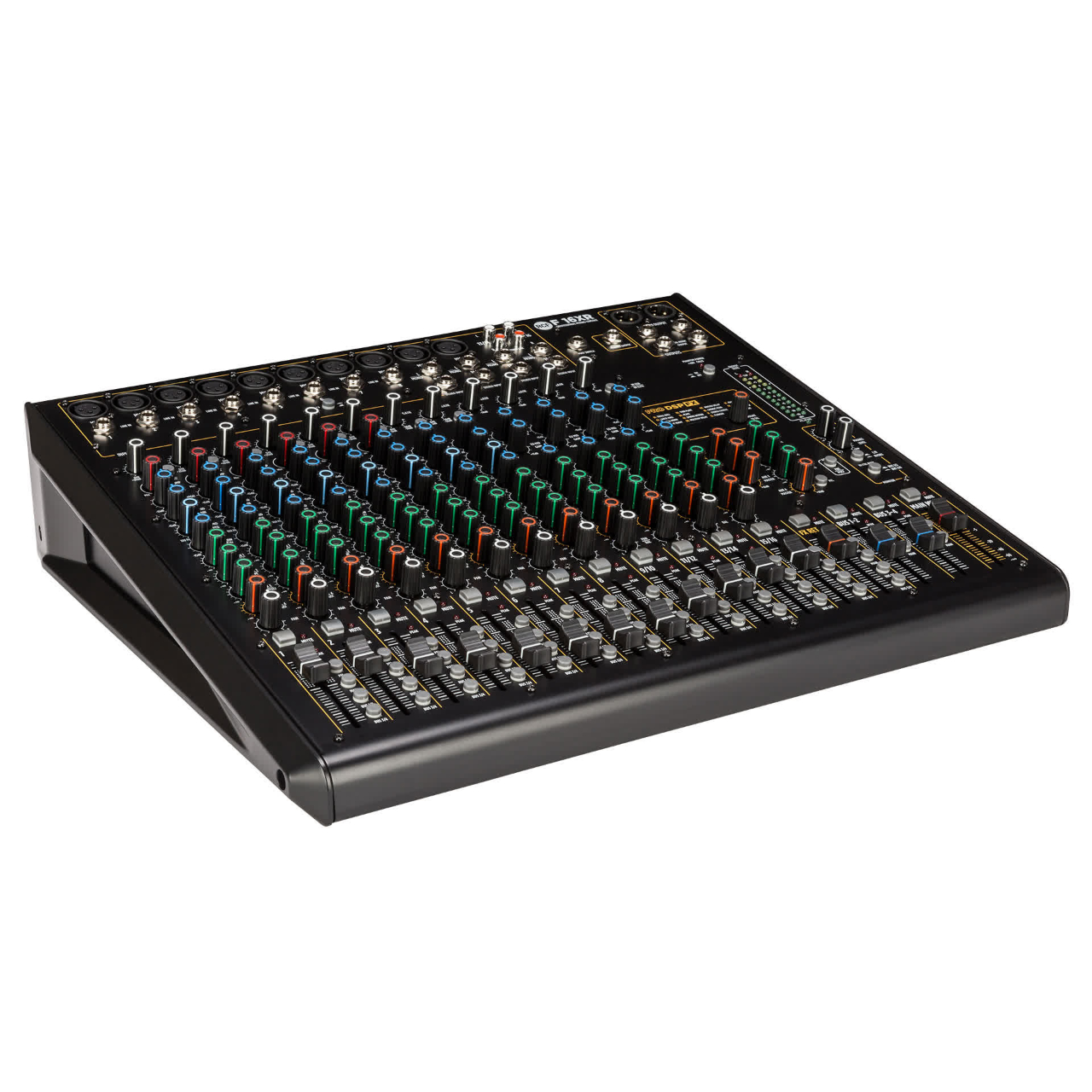

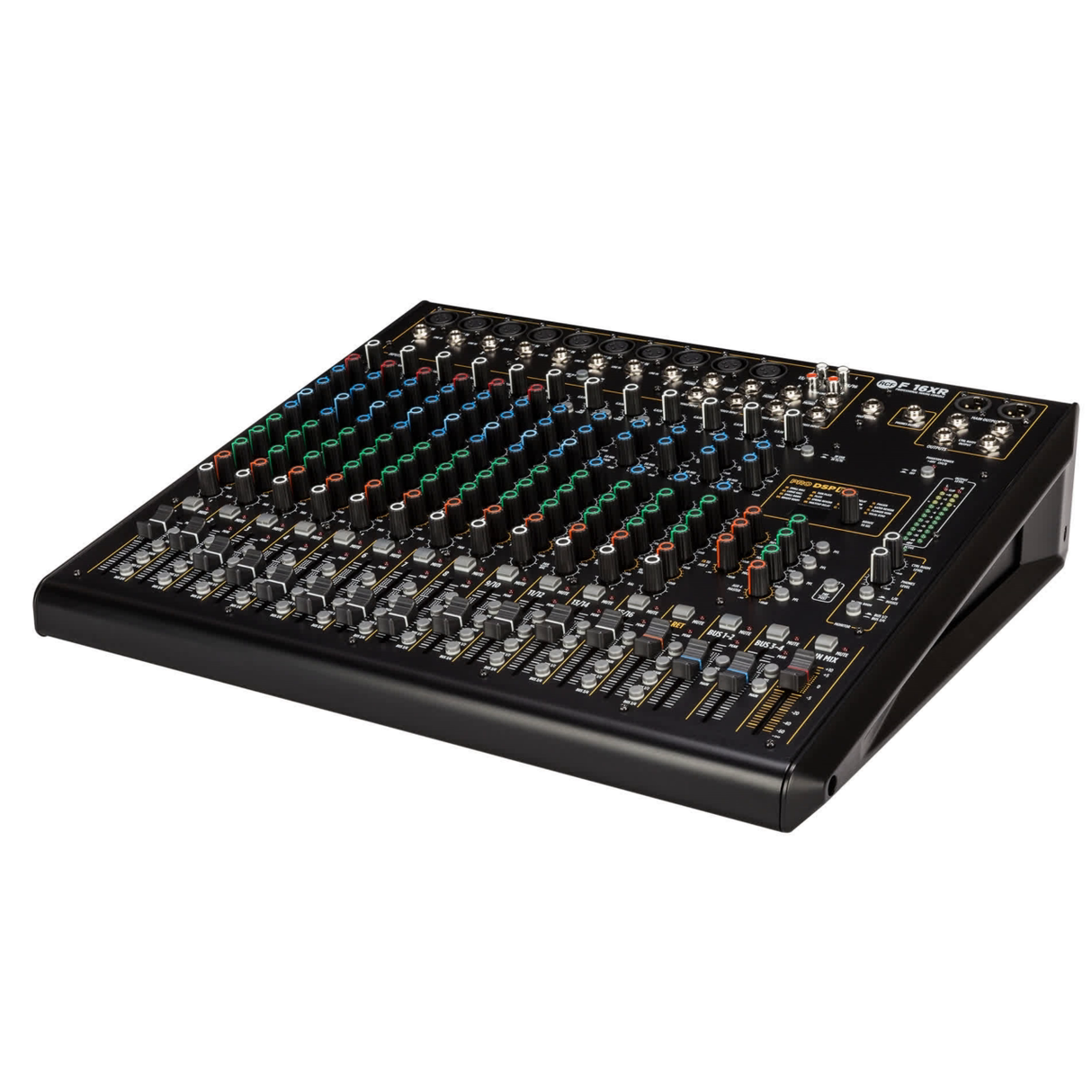

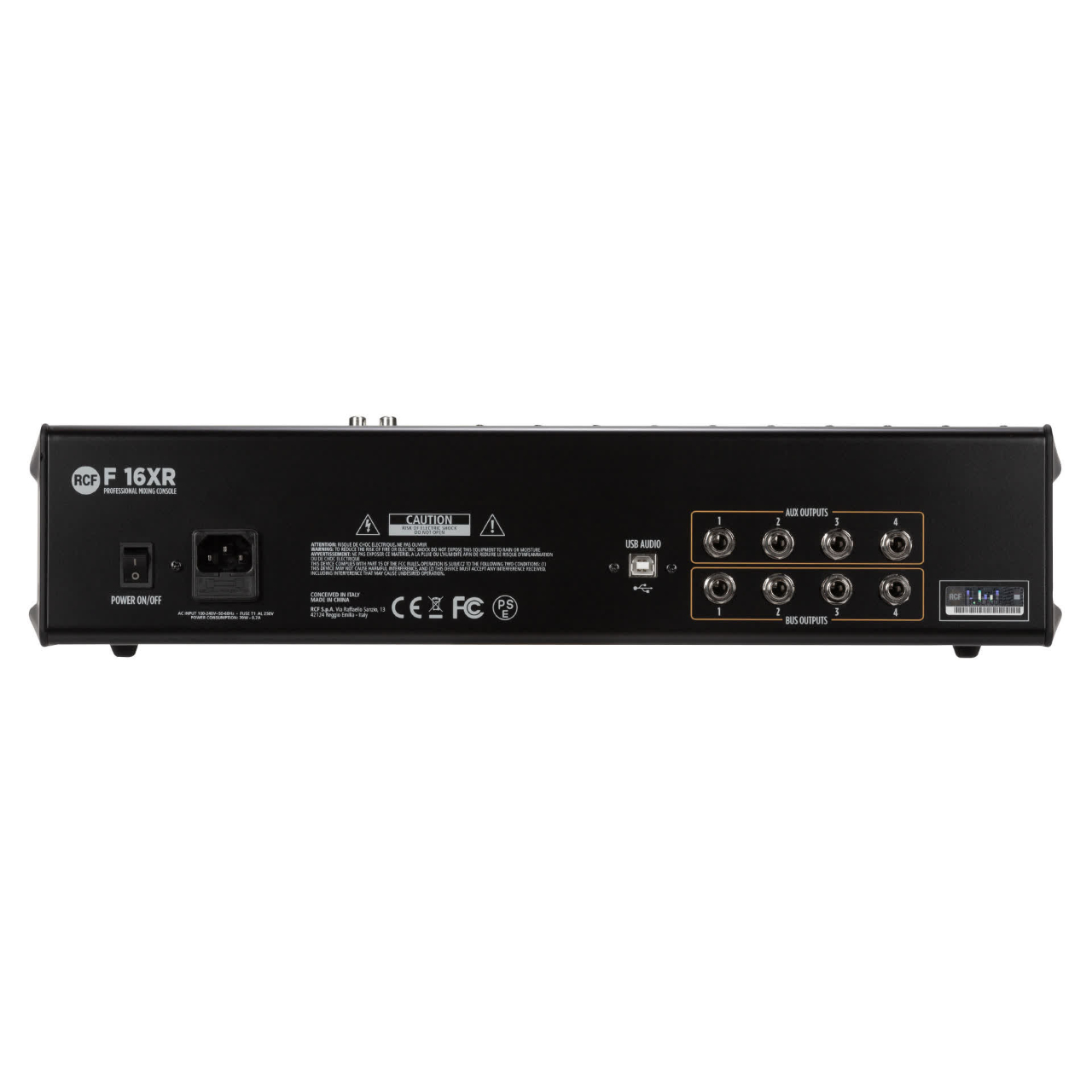

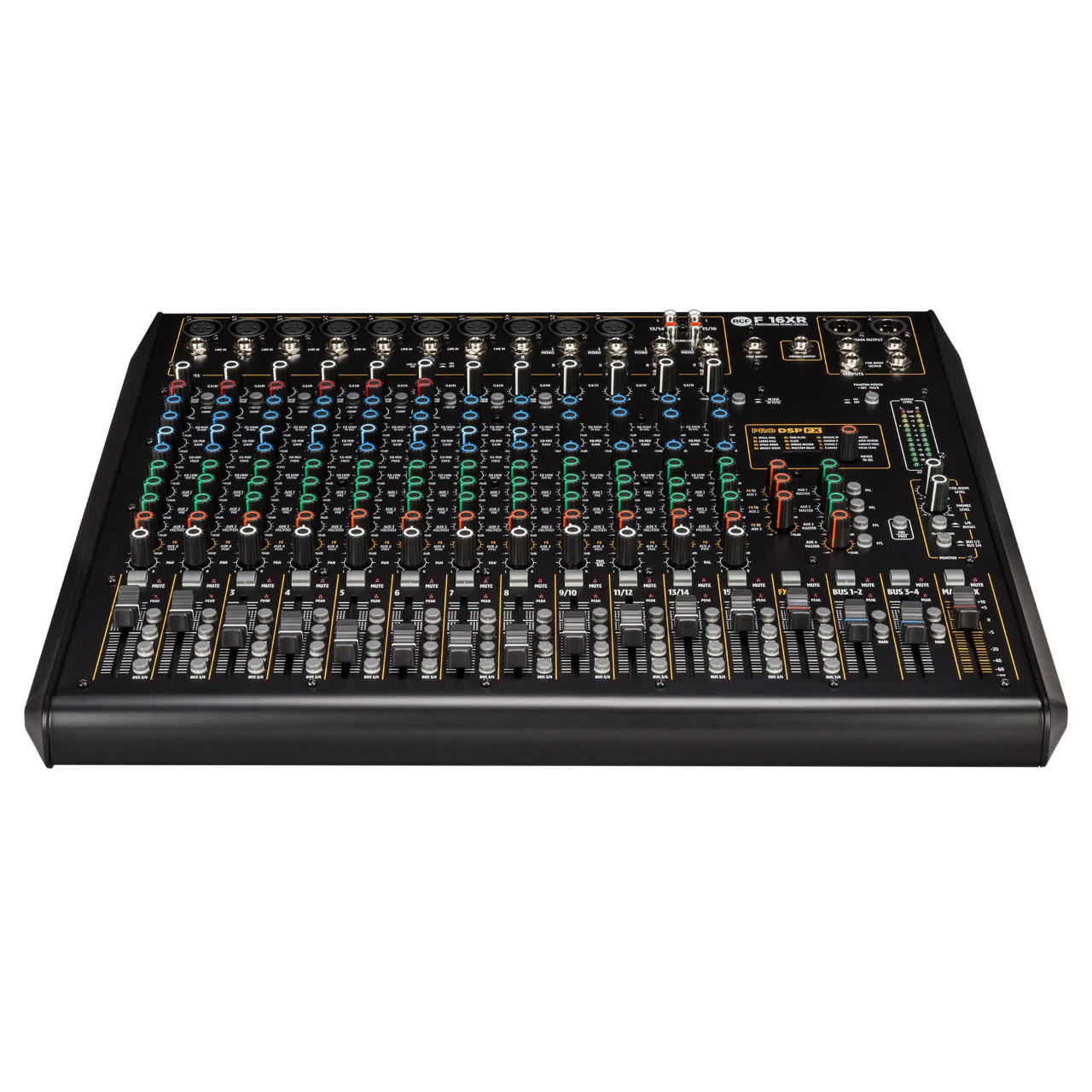

Get 16 Channels Of High Quality Audio With The RCF F16-XR 16 Channel Mixer w/ FX And Recording
The F 16XR features 10 mic preamp inputs, 4 mono line inputs, 4 stereo line inputs plus multi-FX and Recording via USB port, with balanced main output (Stereo XLR + TRS) and 6 single control compressors. The mono channels are provided with 3-band EQ, with selectable mid frequency, and 3-band for stereo channels. The mixer features 16 PRO DSP internal presets, two stereo output busses and 4 aux sends (2 pre, 1 pre/post, 1 post). It also features 60mm faders.
Enhanced Analog Mixing Flexibility
Premium RCF next-generation F Series mixers stages high-quality sound in five formats ranging from 6 to 24 channels. Aesthetically pleasing panel and high contrast graphics, premium quality connections and easy routing make it possible to mix your music with minimal technical expertise and the best results. Housed in a sturdy metal chassis, each mixer builds on a fully balanced and low noise audio path from input to output, with single control compressors* to limit signal peaks and a modern sounding EQ.
State Of The Art EQ
State-of-the-art 3 band EQ on mono channels, 2 bands EQ on stereo channels for precise and exquisitely transparent shaping of sound.
More Headroom, Less Noise
F Series Mixers feature high-quality preamplifiers with phantom power, offering superior sound and dynamics. With a separate line input, line level signals are less noisy than other consoles. F-16XR and F-12XR models feature Hi-Z input level control for musical instruments such as acoustic instruments with piezo transducers, electric bass or guitars with stomp boxes.
SPECIFICATIONS
Electrical
- Frequency Response:: 20 Hz - 20 Khz
- THD+N, 20db Gain, 0dbu Out: <0.02% A-Weighted
- Power Supply: External
- Voltage Requirements: 100 V - 240 V
- Power Consumption: 30 W
Inputs
- Gain Range: -50 - 0 dB
- Gain Selection: -30 - 20 dB
- Input Noise Level: -124 dBu A-Weighted
- Mic Inputs Impedance: 14 kohm
- Hi-Z Line Inputs: 1
- Hi-Z Line Input Impedance: 1 Mohm
- Line: 8
- Line Input Impedance: 21 KOhm
- Low Cut: 80 Hz
- Mic: 4
- Phantom Power +48v: Yes
- Stereo Line: 4
- Stereo Line Gain Selection: -30 - 20 dB
- Stereo Line Input Impedance: 15 kohm
Outputs
- Main Mix: 1
- Control Room: Yes
- FX Send: 1
- Aux Send: 3
- Aux Output: 4
- Phones: 4
- Main Out Level: 28 dBu
- Aux Out Level: 28 dBu
- Phones Out Impedance: 150 ohm
Size
- Depth: 15.98 inch / 406 mm
- Height: 4.21 inch / 107 mm
- Width: 18.86 inch / 479 mm
- Weight: 14.11 lb / 6.4 kg
Manufacturer: RCF
Model: F16-XR
SKU: I583611-N-0-WHXB
EAN: 8024530016722
