Description
Description

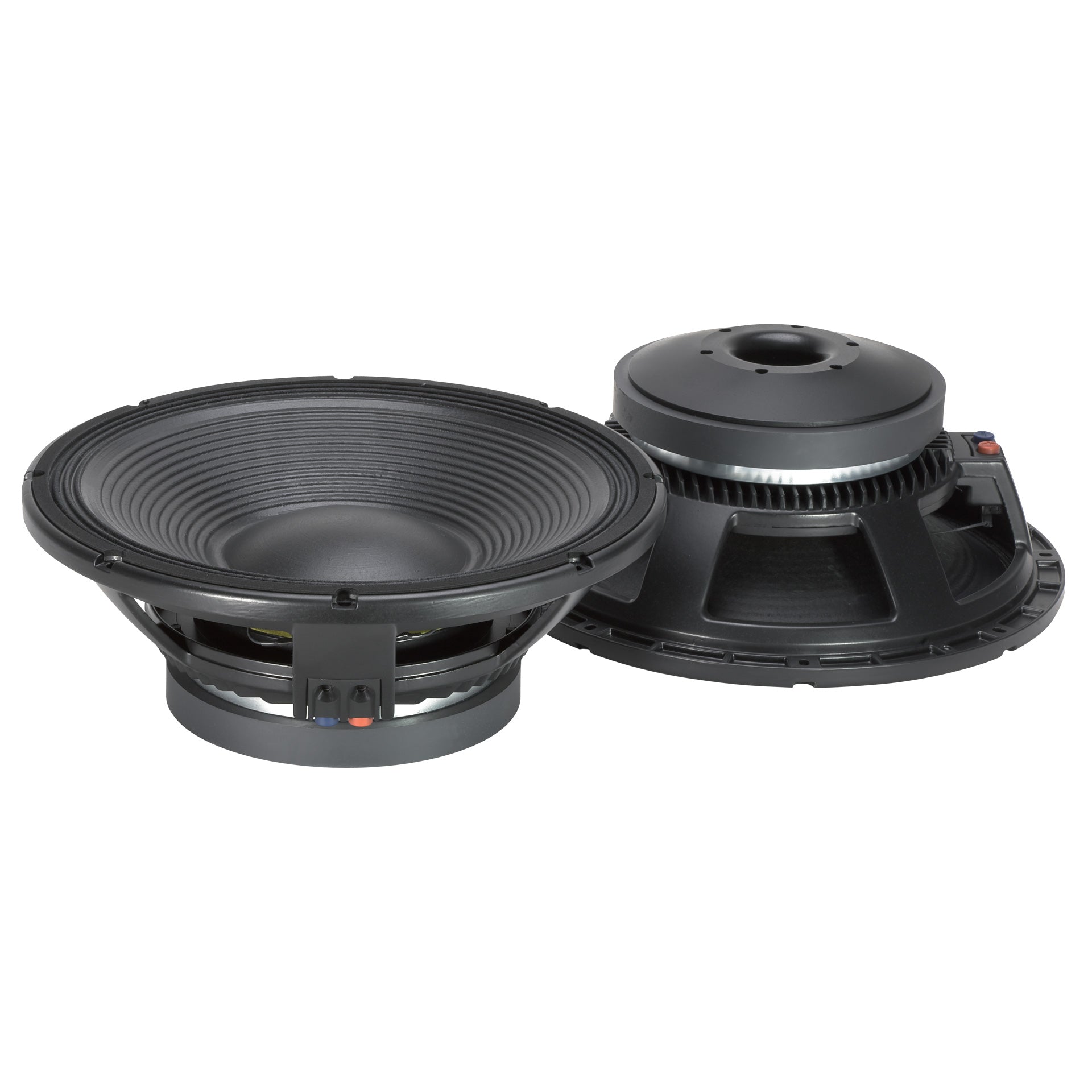

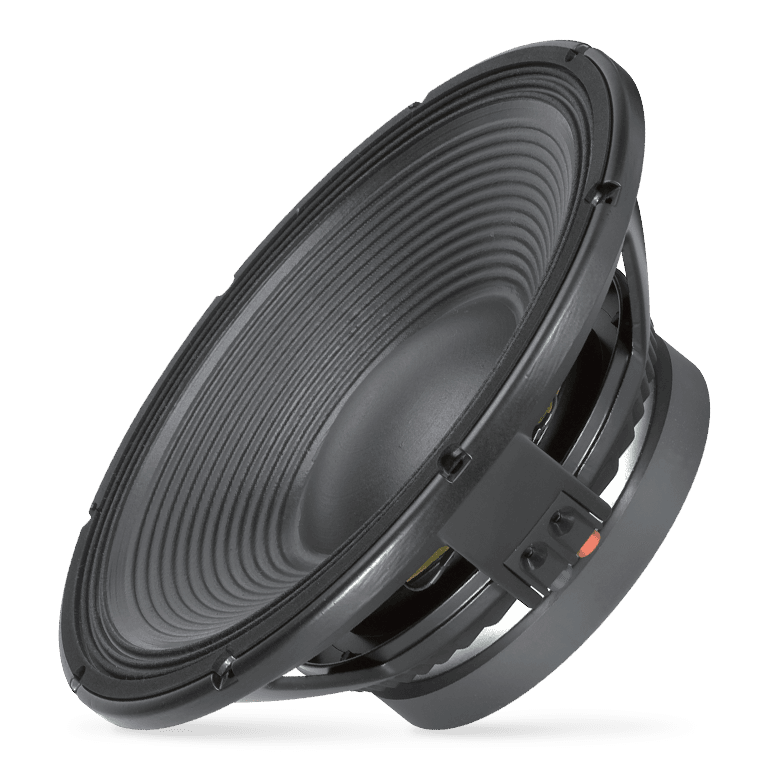

Get Low Distortion With the RCF L15P400 Low Frequency Replacement Woofer - 15 Inch
Incredibly linear frequency response characteristics, extreme high power handling while generating the lowest harmonic distortion of any comparable 15-inch transducer within its application range. The L15P400 uses a fiber loaded cone assembly along with a high excursion triple roll surround. This combination provides remarkable strength and a peak to peak maximum excursion of 52mm. The T-pole also features RCF Precision's spaced gap demodulation technology, progressively braking the voice coil, providing a much smoother transition for the moving mass as it reaches its maximum excursion limits. Forced air venting system.
- 4-inch, fiberglass inside/outside copper voice coil
- 1600 W continuous program power handling
- 97 dB Sensitivity
- 30 Hz – 1.5 kHz Frequency range
- Aluminum demodulation ring
- Forced air ventilation and 14 mm top plate for minimum power compression
- Dual spider design with silicon based dampening control
- Triple-roll surround and corrugated straight cone geometry
SPECIFICATIONS
- Nominal Diameter: 15 inch / 381 mm
- Program Power: 1600 W
- Sensitivity: 97 dB
- Effective Piston Diameter: 240 / 13.39
- Minimum Impedance: 6.3 ohms
- Voice Coil Winding Material: Copper
- Number of Layers: 2
- Top Plate Thickness: 14 mm / .55 inch
- Surround Material: Polycotton
- Magnets: Ceramic
- Spider Dual: With silicon based damping control
- Rated Impedance: 8 ohm
- Power Handling Capacity: 800 W
- Frequency Range: 30 - 1500 Hz
- Max. Excursion Before Damage: 50 mm / 1.97 inch
- Voice Coil Diameter: 4 inch
- Voice Coil Length: 23 mm / .91 inch
- Kind of Layers: Inside / outside
- Cone Design: Straight
- Surround Design: Triple roll
- Dual-Force Air Ventilation: Yes
Thiele - Small Parameters
- Resonance Frequency (FS): 36 Hz
- Mechanical Factor: 7.50
- Total Factor: .25 Qts
- Effective Moving Mass (MMS): 150 G
- Effective Piston Area (SD): .09 m2
- Voice Coil Inductance at 1 KHz (LE1K): 1.20 mH
- DC Resistance (RE): 4.8 ohm
- Electrical Factor (QES): .27 Qes
- BL Factor (BL): 24.8 T x m
- Equivalent Cas Air Loaded (VAS): 160 liters
- Max. Linear Excursion (XMAX): 8 mm
- Half-Space Efficiency (EFF): 2.6 %
Mounting Information
- Overall Diameter: 393 mm / 15.47
- Bolt Hole Diameter: 7 mm / .28 inch
- Rear Mount Baffle Cut-Out: 360 mm / 14.17
- Bolt Circle Diameter: 371-376 mm / 14.61-14.8
- Front Mount Baffle Cut-Out: 352 mm / 13.86
- Volume Occupied by the Driver: 4.3 liters / .17 ft
Standard Compliance
- CE Marking: Yes
Size
- Weight: 13.5 kg / 29.76 pounds
- Diameter: 393 mm / 15.47 inches
- Height: 159 mm / 6.26
Shipping Information
- Package Width: 420 mm / 16.54 inches
- Package Height: 195 mm / 7.68
- Package Weight: 15.5 kg / 34.17
- Package Depth: 425 mm / 16.73
Manufacturer: RCF
Model: L15P400
SKU: I431698-3-WHXC
