RCF Sub 8004-AS Powered 18" Subwoofer


  • Our Price
  • $3,199.00
  • Regular price MSRP: $3,999.00

*IN STOCK - READY TO SHIP





Deliver Serious Amount Of Low Frequency With The RCF Sub 8004-AS Powered 18---------" Subwoofer

The SUB 8004-AS is one of the most powerful 18---------" subwoofers in pro-sound category.

Featuring a high power, hyper-vented 18---------" woofer, with 4---------" inside/outside voice coils, this cabinet is designed to deliver a serious amount of low frequency. Powered by a 1250W digital amplifier module, the SUB 8004-AS can perform in the most demanding situations. The input board includes volume control, deep/punch switch, high pass switch, phase switch, cardioid, time delay.


  • 2500 Watt Peak, 1250 Watt RMS
  • 136 dB max SPL
  • 30 Hz - 120 Hz frequency response

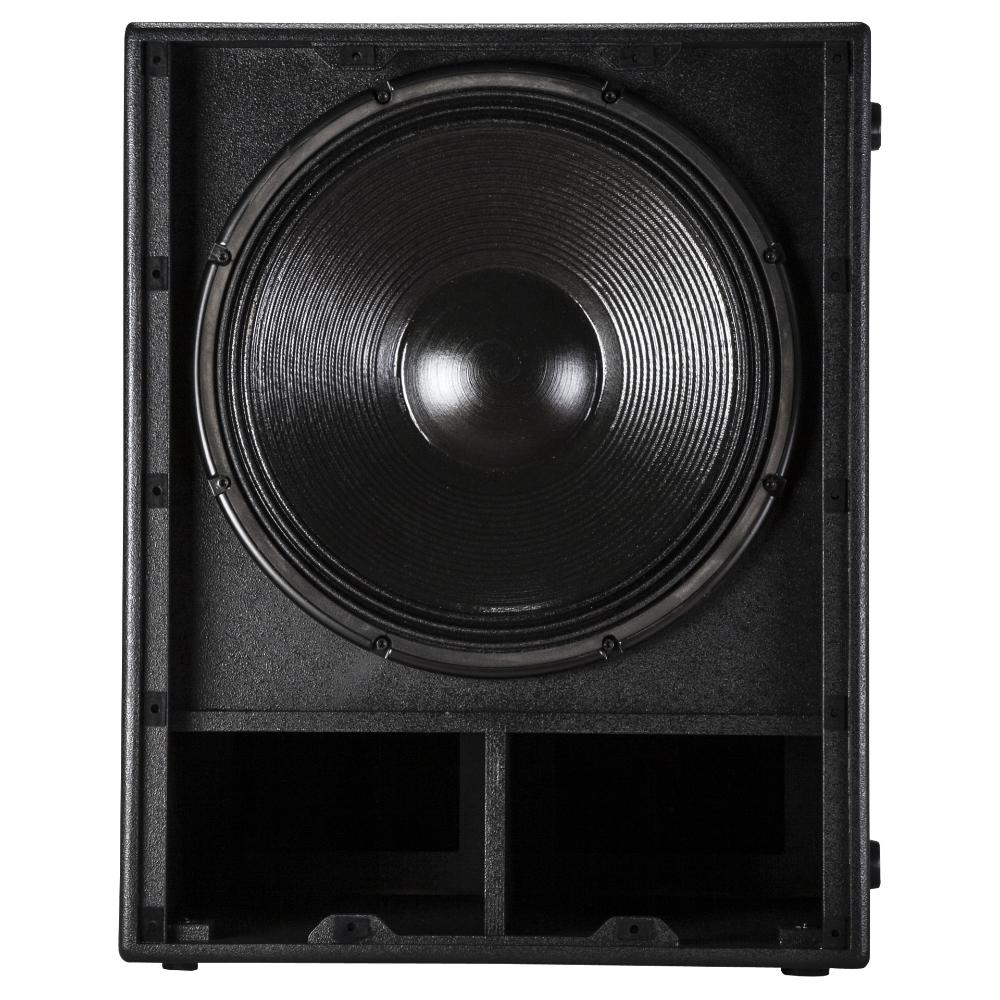

  • 18---------" Woofer, 4.0---------" voice coil vented woofer
  • DSP controlled Input section with selectable presets
  • Delay control

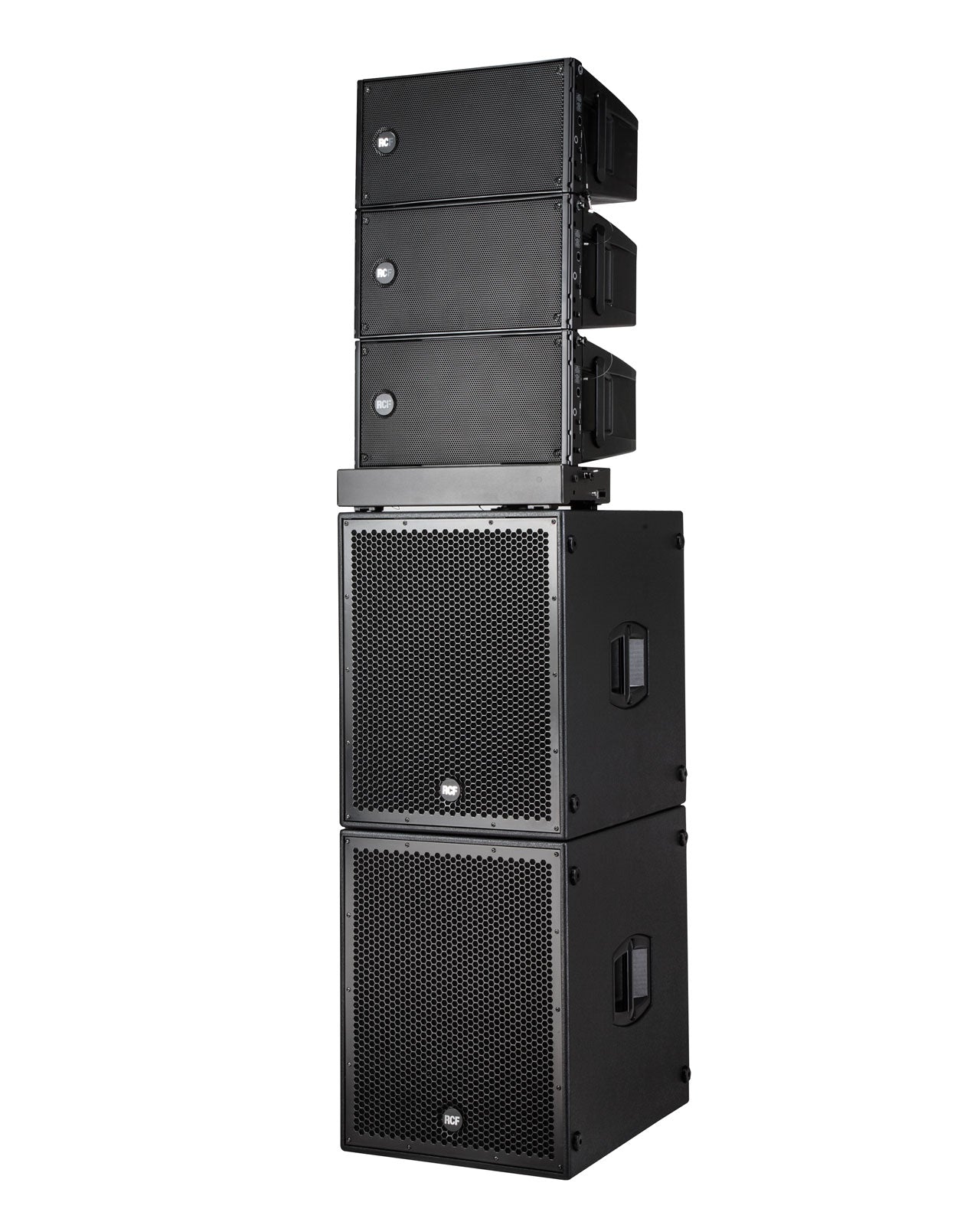

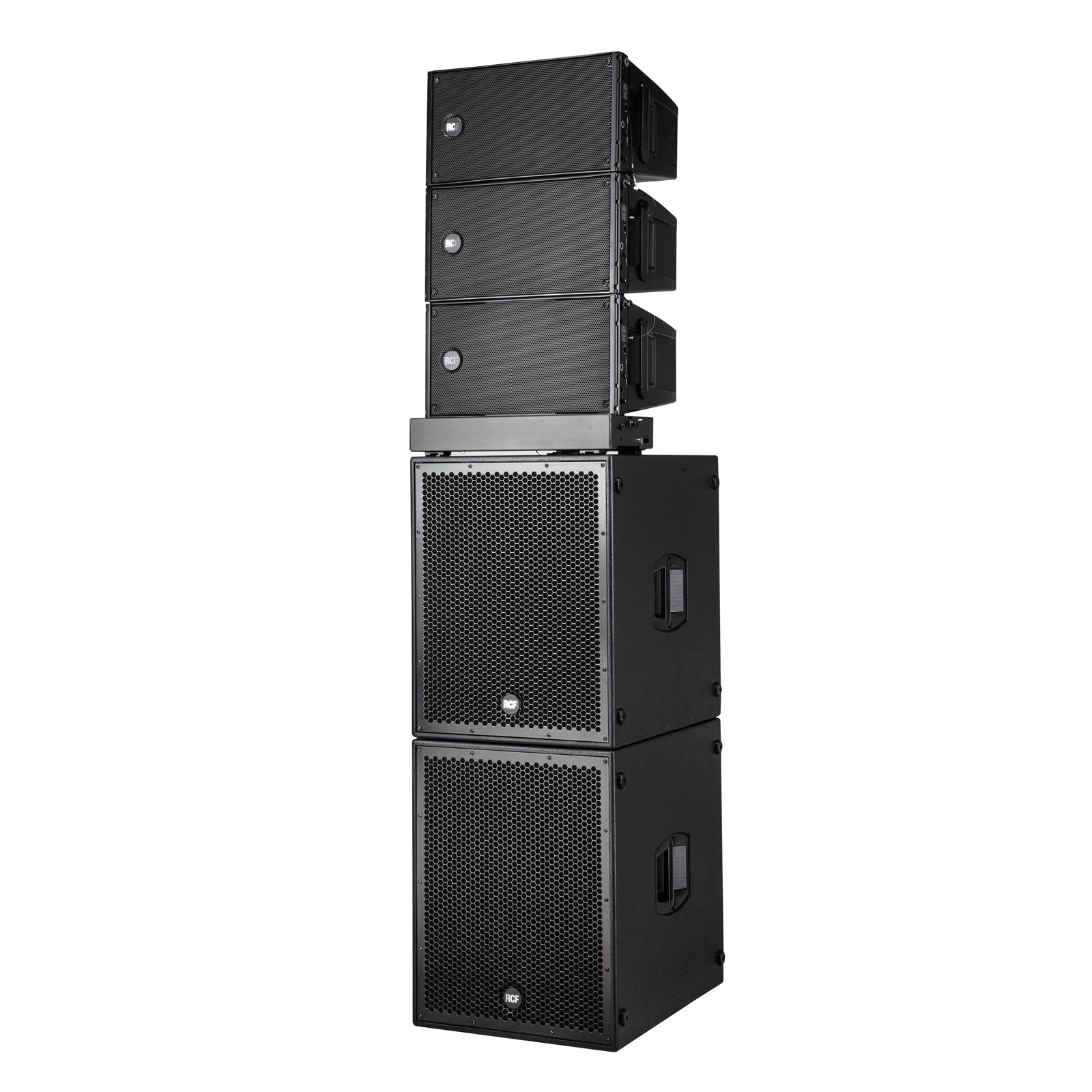

  • Compatible with NXL23-A (stacking)
  • Compatible with NXL24-A (stacking)
  • Multiple configurations with HDL 10-A and HDL 20-A
  • 30 Hz ÷ 120 Hz


SPECIFICATIONS

  • Frequency Response -3 dB: 30 Hz / 120 Hz
  • Max SPL: 136 dB
  • Woofer: 18---------", 4.0---------" v.c.
  • Input signal: bal/unbal
  • Input connectors: XLR
  • Output connectors: XLR
  • Input sensitivity: -2 dBu / +4 dBu
  • Crossover frequencies: Selectable 90 Hz - 120 Hz Hz
  • Protections: Thermal, RMS
  • Limiter: Fast limiter
  • Controls: Cover, Phase switch, Deep/Punch, Output Delay Settings, Cardioid
  • Total power: 2500 W PEAK
  • Low frequencies: 2500 W PEAK
  • Total power: 1250 W RMS
  • Low frequencies: 1250 W RMS
  • Cooling: Convection
  • Connections: Powercon in-out
  • Cabinet Material: Baltic Birch
  • Hardware: 2xM20, 4 x wheels mounting points
  • Handles: 2 side
  • Color: Black
  • Height: 700 / 27.56 mm/inch
  • Width: 557.5 / 21.95 mm/inch
  • Depth: 700 / 27.56 mm/inch
  • Net Weight: 51.0 / 112.20 kg/lbs

Manufacturer: RCF USA
Model: SUB-8004AS
SKU: I305602-1-WHXE
