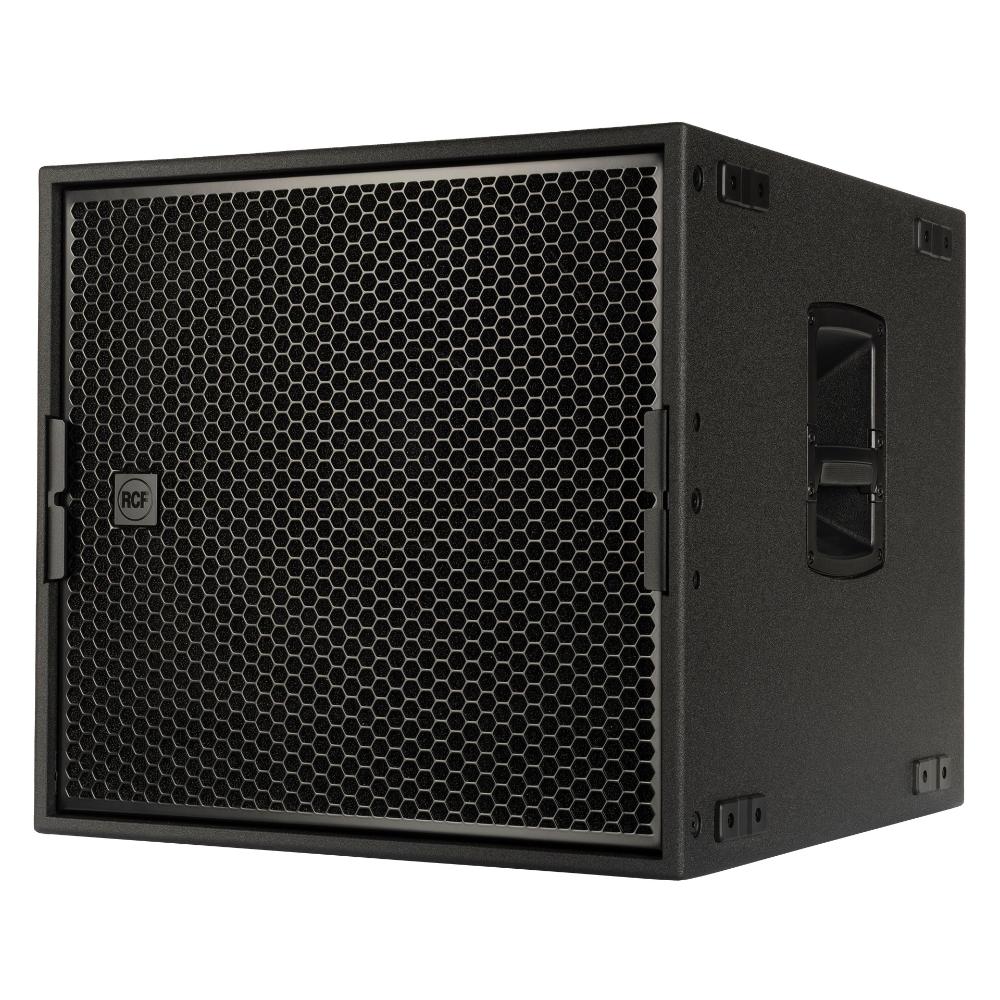

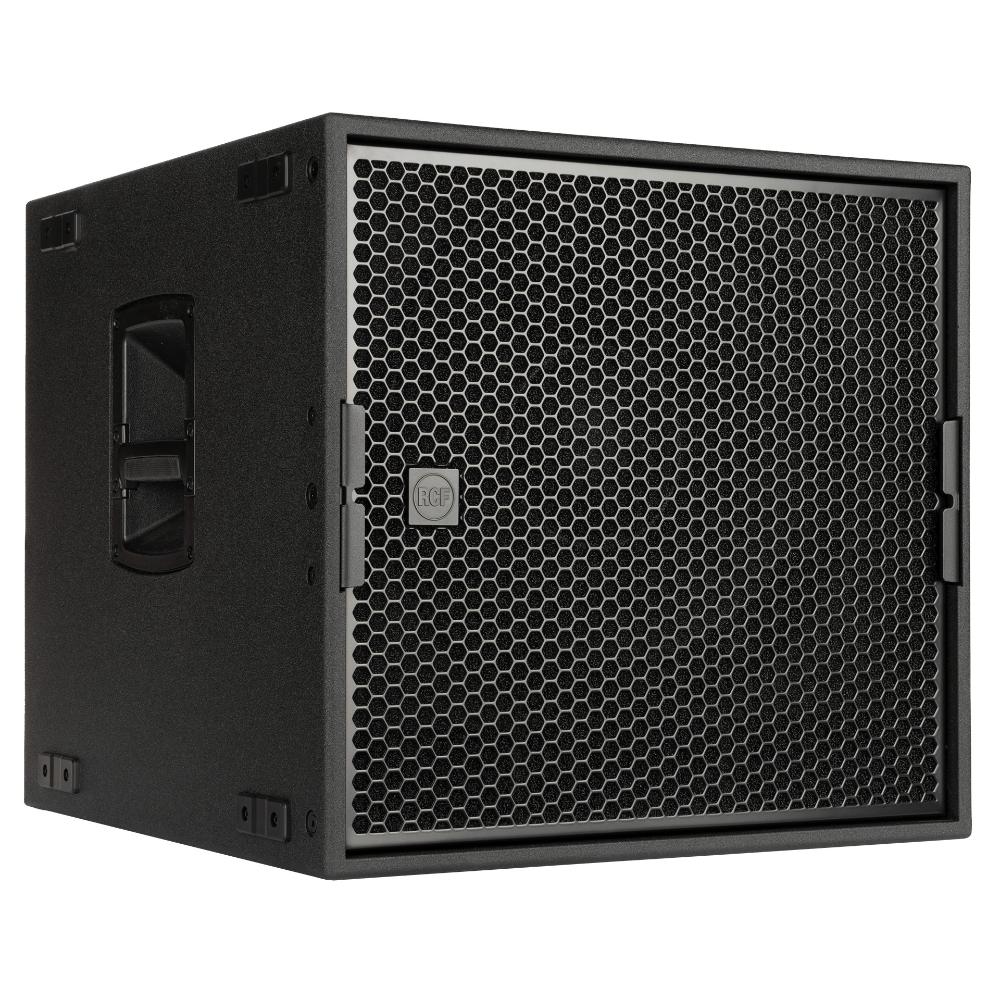

RCF SUB 9016-AS High-Powered 16-Inch Active Subwoofer

Designed for Touring Professionals - RCF SUB 9016-AS High Power 16-Inch Active Subwoofer

The RCF SUB 9016-AS is a high-performance 16-inch active subwoofer designed for touring professionals who demand maximum output and precise low-frequency reproduction. Delivering up to 137 dB Max SPL with a powerful 4000W Class-D amplifier, it features RDNet network control, innovative RDTap contactless configuration, and advanced Bass Motion Control (BMC) for exceptional bass performance without compromising stability. Built with a weatherproof, tour-ready plywood cabinet and finished in durable polyurea, the SUB 9016-AS is engineered to perform in the most demanding environments.

• 137 dB Max SPL for high-impact bass
• 4000W Class-D amplification
• 16-inch high-excursion precision transducer with 4-inch voice coil
• RDNet networked control with EQ, delay, and cardioid settings
• RDTap contactless configuration – setup even when unpowered
• BMC technology for extended low-frequency response without distortion
• ACE crossover presets for RCF speakers
• Weatherproof cabinet with durable polyurea finish
• I/O panel rain cover included
• M20 pole mounts on top and side for flexible setup
• Detachable front cart compatible (sold separately)
• Tour-grade steel grille with protective cloth
• Rain Cover Included

SPECIFICATIONS

• Frequency Response: 30 Hz – 200 Hz
• Max SPL: 137 dB @ 1m
• Woofer: 1 x 16" neodymium, 4" voice coil

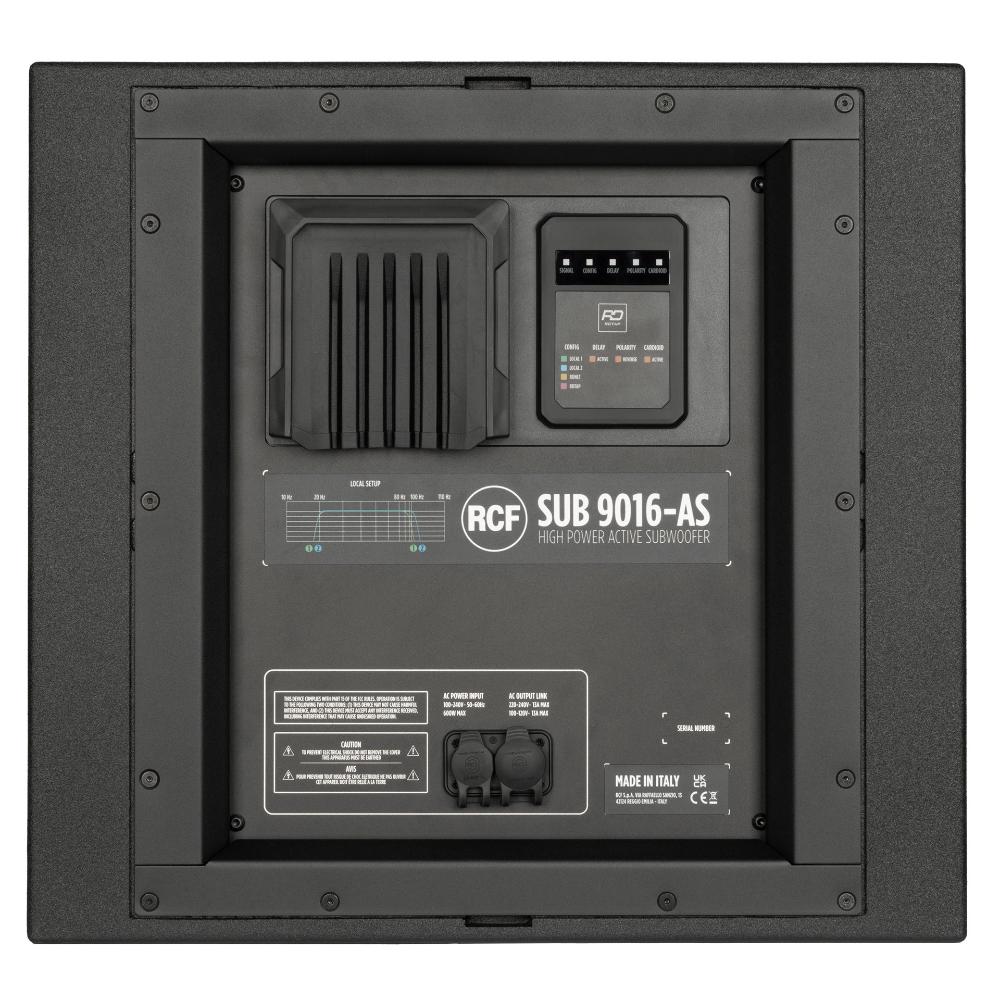

• Input/Output: XLR, RDNet Ethercon (bal/unbal)
• Controls: MUTE, VOL, PRESETS, RDTap
• Protections: Thermal, Soft Limiter
• Total Power: 4000 W Peak
• Cooling: Convection/Forced
• Power Connections: powerCON TRUE1 TOP IN/OUT
• Cabinet Material: Plywood with polyurea finish

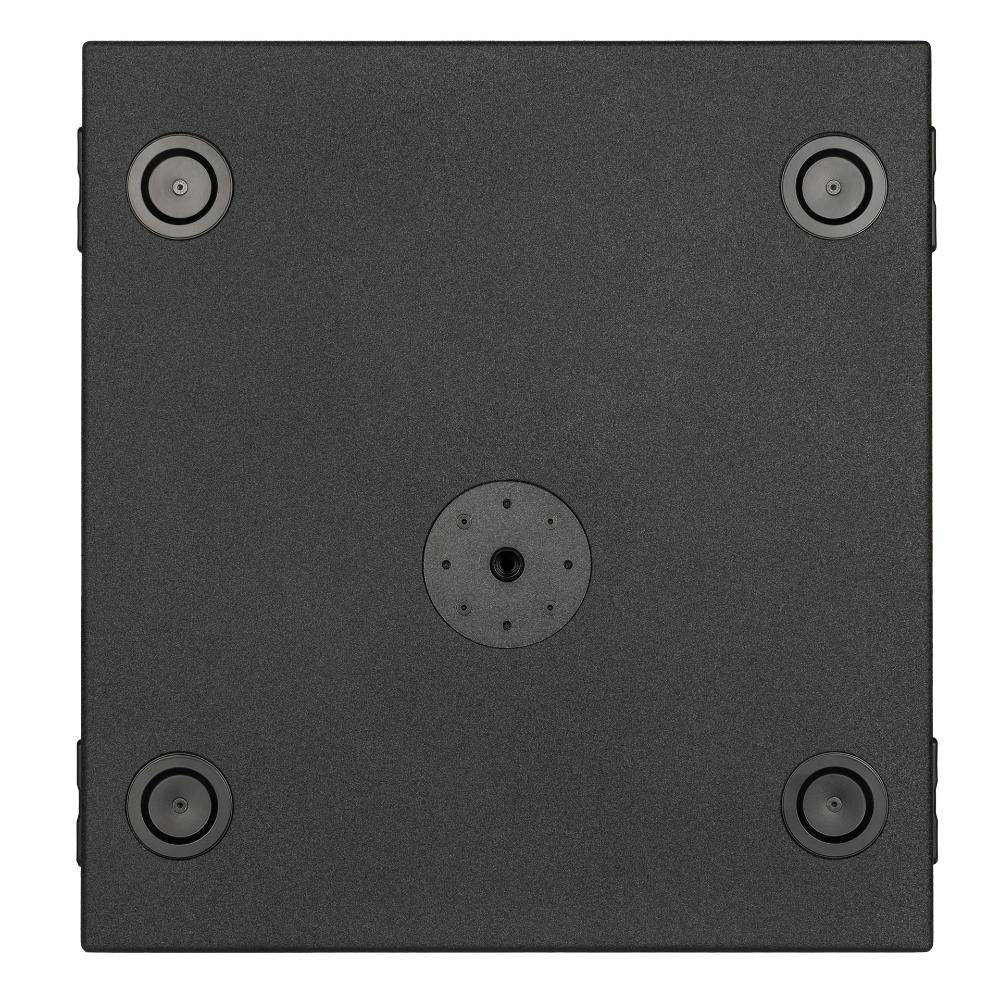

• Mounting: 2 x M20 pole mounts

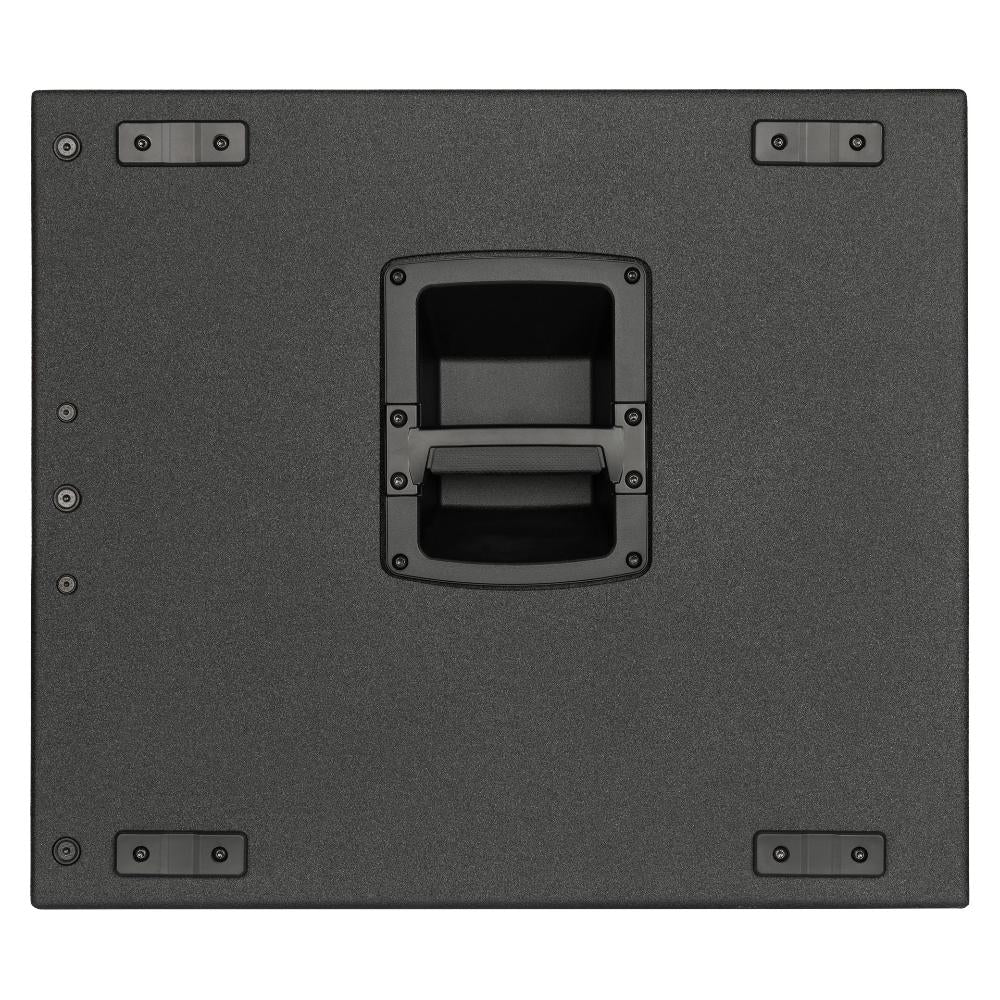

• Handles: 1 per side

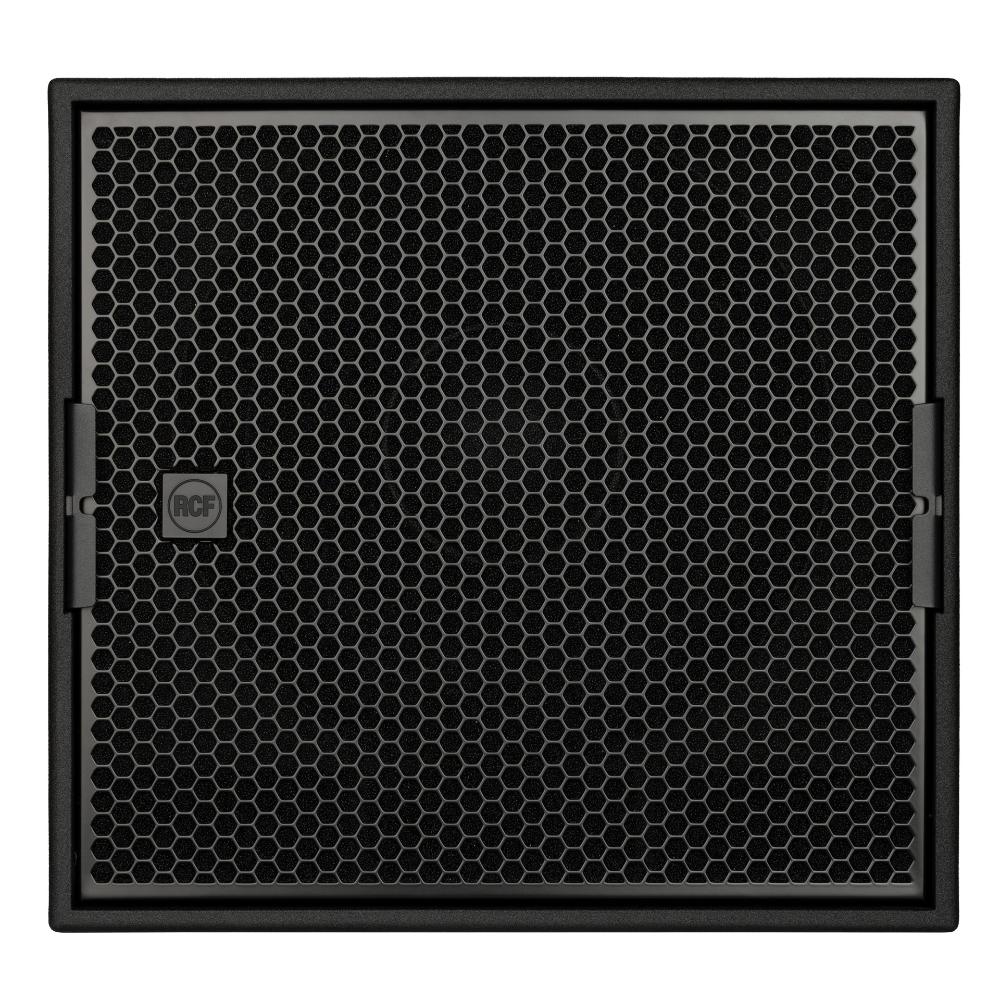

• Grille: Steel with cloth backing
• Color: Black

Dimensions

• Height: 20.98 inches (533 mm)
• Width: 22.44 inches (570 mm)
• Depth: 23.62 inches (600 mm)
• Weight: 99.21 lbs (45 kg)

Shipping Dimensions

• Height: 22.05 inches (560 mm)
• Width: 23.43 inches (595 mm)
• Depth: 25.47 inches (647 mm)
• Weight: 110.23 lbs (50 kg)
