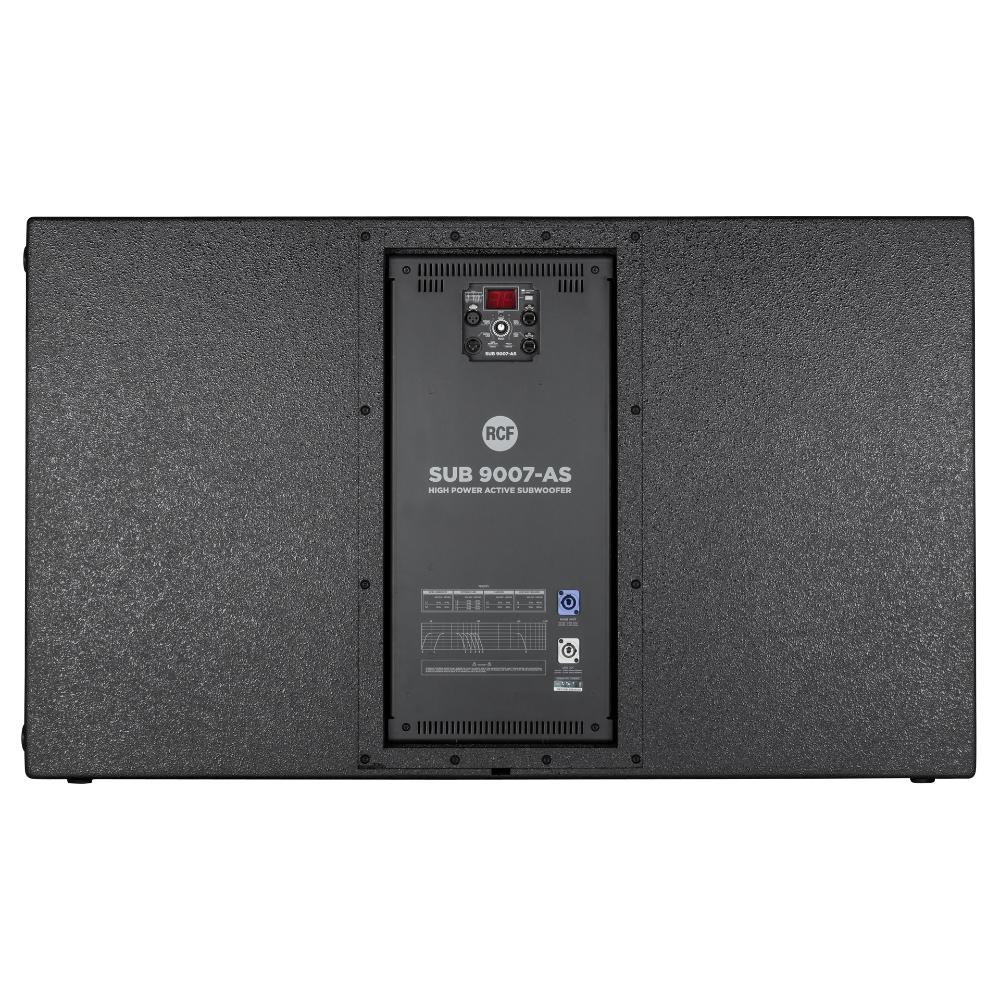

RCF SUB9007-AS Active 21-Inch Subwoofer with 4.5-Inch Voice Coil

Bring the Bass with the RCF SUB9007-AS Active 21-Inch Subwoofer with 4.5-Inch Voice Coil

The SUB 9007-AS is one of the most powerful 2x21” subwoofers in the field of live sound. Featuring two, high power, hyper-vented 21” neodymium woofers with 4.0” inside-outside voice coils, this cabinet deliver a serious amount of low frequencies. Powered by a 7200 W digital amplifier, the SUB 9007-AS can perform in the most demanding situations. The housing of the SUB 9007-AS match the RCF D-Line HDL 50 and HDL 20 array systems, enabling stacked systems matched a perfect combination.

• 7200 Watt Peak power - 3600 Watt RMS
• 141 dB max SPL
• 20 Hz ÷ 400 Hz frequency response
• 2 x 21" Woofer
• DSP controlled Input section with selectable presets
• Delay control
• Integrated mechanics for multiple configurations with HDL 50-A 4k, HDL 20-A, HDL 10-A
• RDNet remote and control
• Baltic birch tour grade cabinet

SPECIFICATIONS

• Frequency Response: 20Hz - 400Hz
• Max SPL @ 1M: 141dB
• Transducers
  • Woofer: 2 x 21'', 4.0'' voice coil
• Input/Output Section
  • Input Signal: balanced/unbalanced
  • Input Connectors: XLR, RDNet Ethercon
  • Output Connectors: XLR, RDNet Ethercon
  • Input Sensitivity: +4dBu
• Processor Section
  • Hi-Pass Frequencies: 25Hz, 35Hz
  • Low-Pass Frequencies: Variable from 50Hz to 400Hz
  • Protections: Thermal, RMS
  • Limiter: Fast Limiter
  • Controls: Gain, EQ, Xover, Phase switch, Output Delay Settings, Cardioid
  • RDNet: Yes
• Power Section
  • Total Power: 7200W Peak, 3600W RMS
  • Low Frequencies: 7200W Peak, 3600W RMS
  • Cooling: Convection
  • Connections: Powercon IN/OUT
• Standard Compliance
  • CE Marking: Yes
• Physical Specifications
  • Cabinet/Case Material: Baltic birch plywood
  • Hardware: Mounting points, 2 x M20
  • Handles: 8 on a side
  • Grille: Steel
  • Color: Black
• Size
  • Height: 708mm / 27.87 inches
  • Width: 1188mm / 46.77 inches
  • Depth: 785mm / 30.91 inches
  • Weight: 96kg / 211.64lbs
• Shipping Information
  • Package Height: 760mm / 29.92 inches
  • Package Width: 825mm / 32.48 inches
  • Package Depth: 1135mm / 44.69 inches
  • Package Weight: 110kg / 242.51lbs
