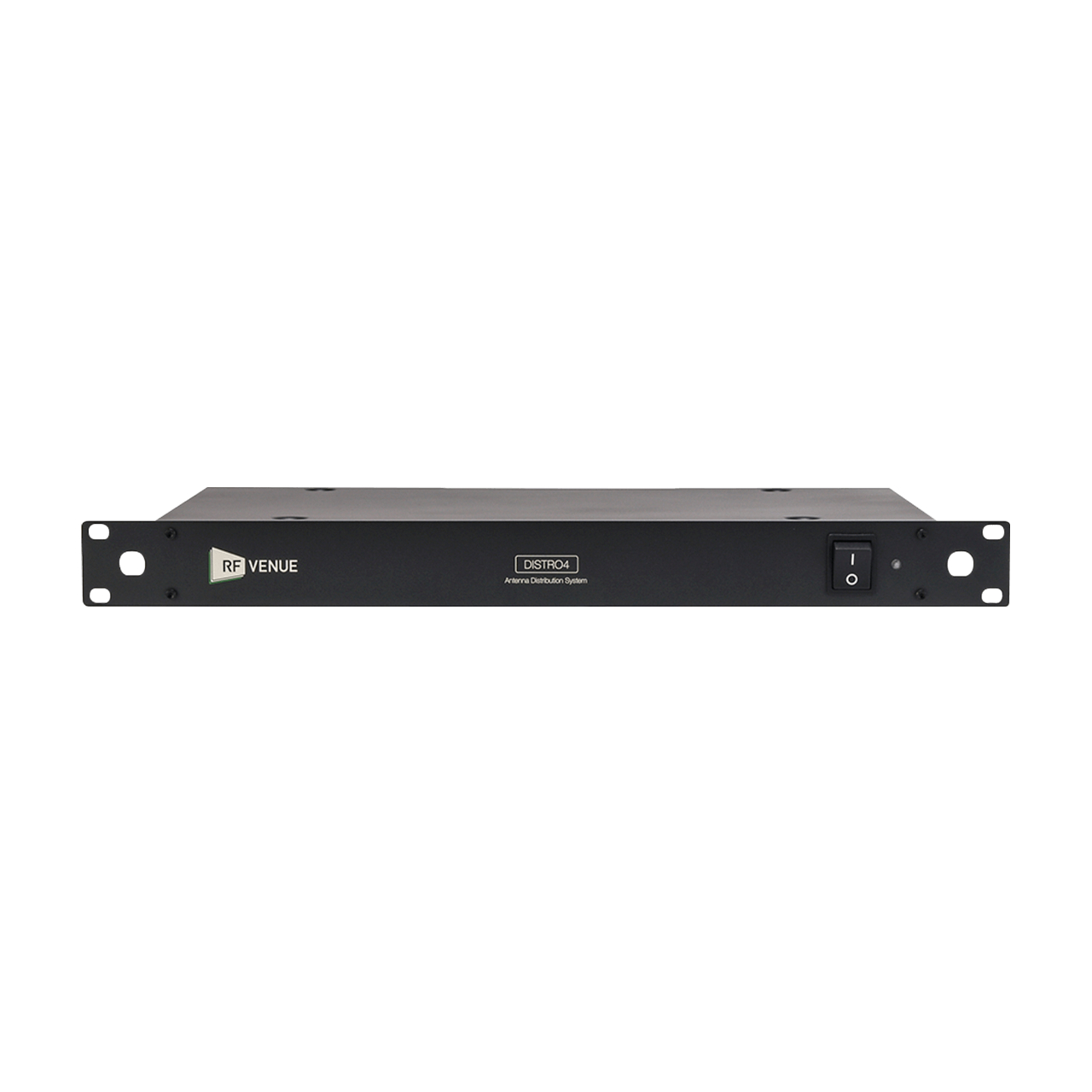

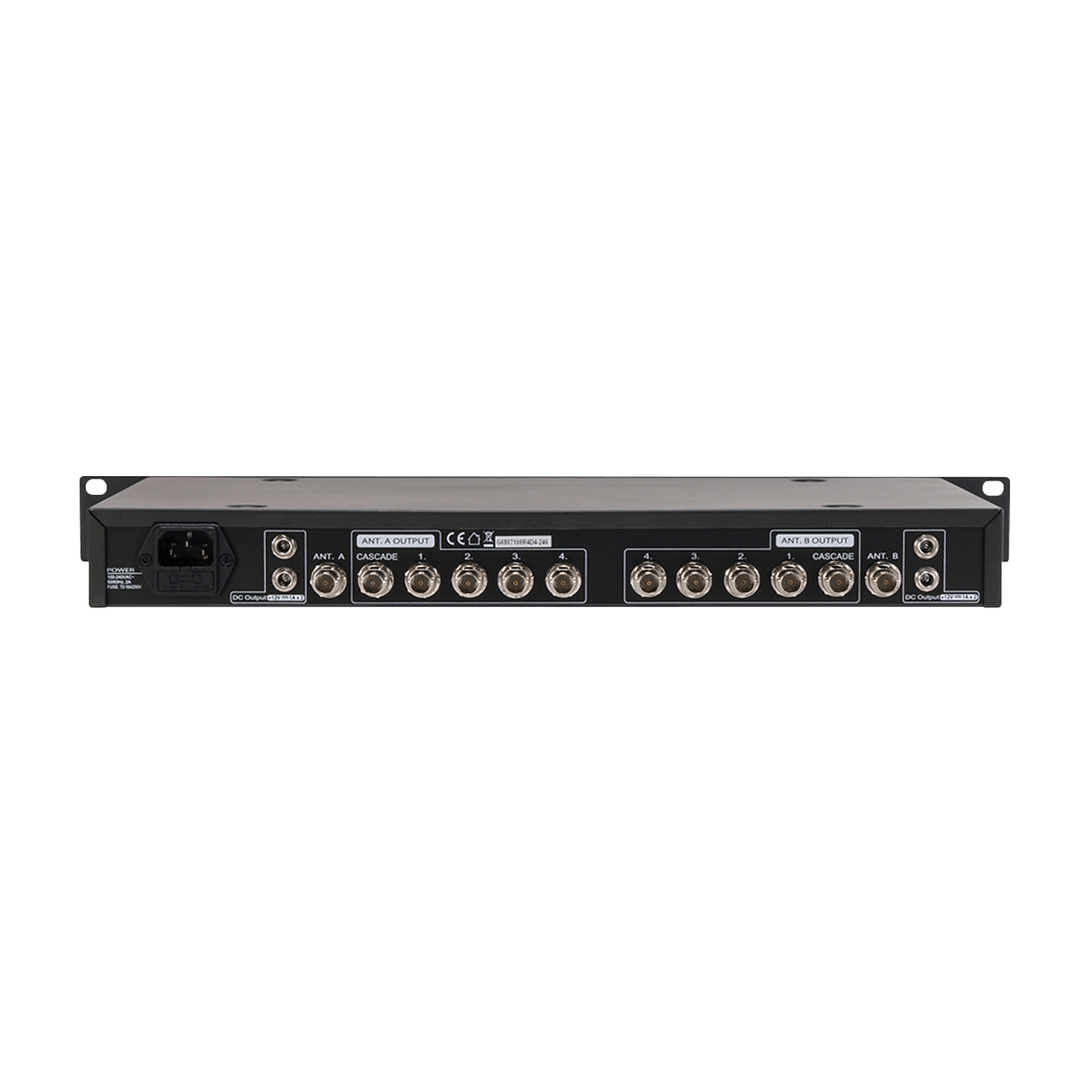

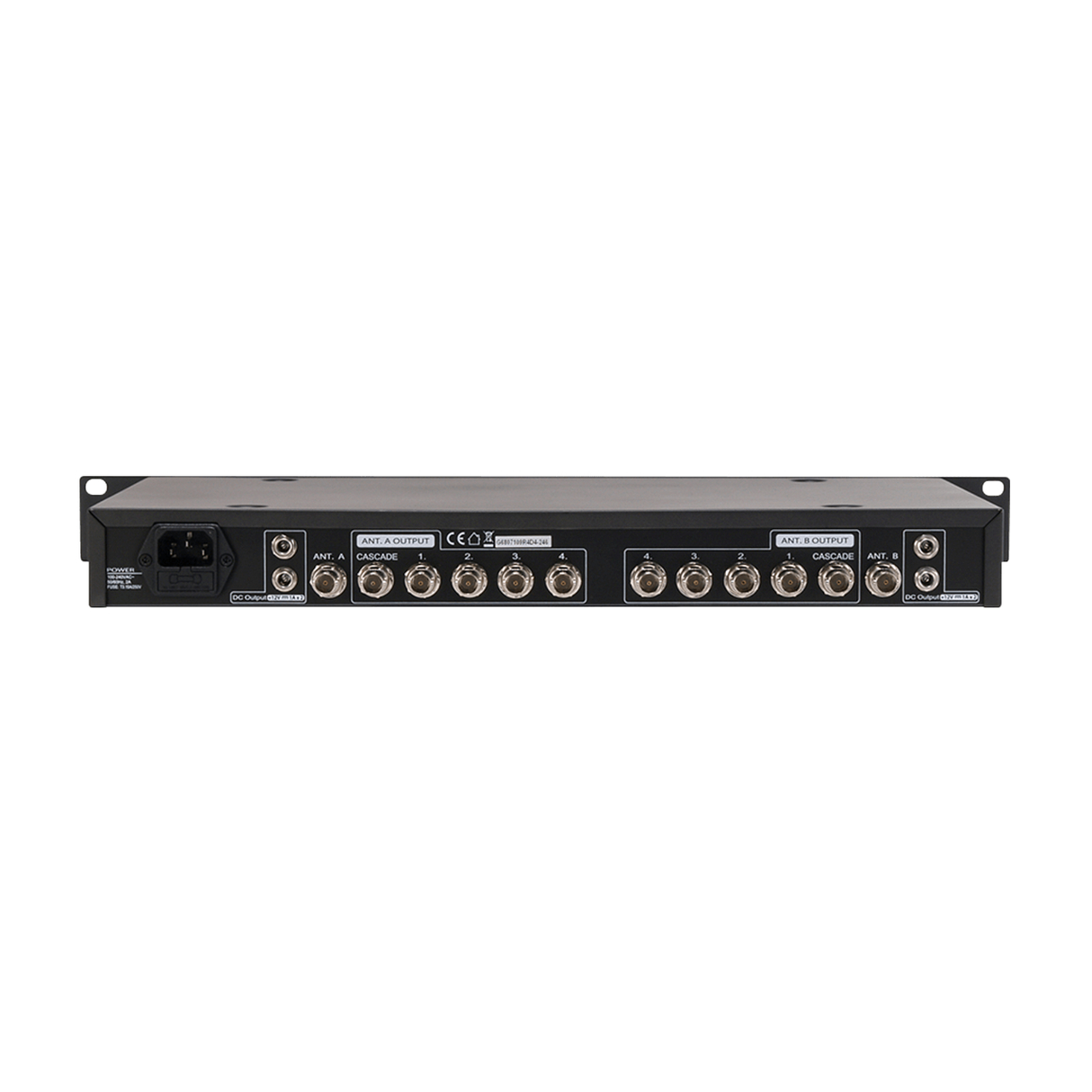

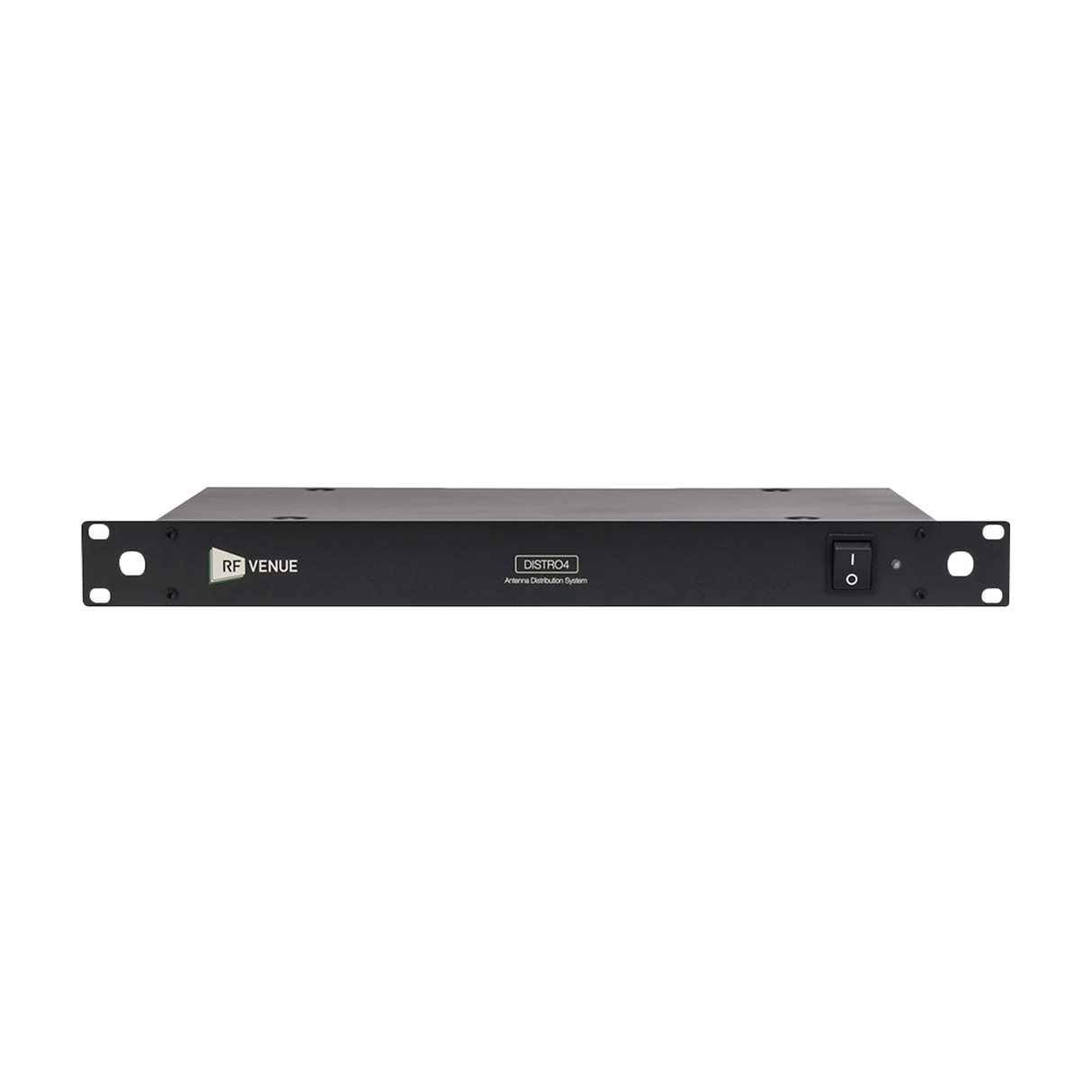

RF Venue DISTRO4 Antenna Distribution System


  • Our Price
  • Regular price $519.00

OUT OF STOCK - CALL FOR AVAILABILITY
• Inventory changes daily
Contact us for availability | tel: 301-946-8808
• Please allow for additional delivery time due to COVID 19





Increase Your Wireless Capabilities with the RF Venue DISTRO4 Antenna Distribution System

DISTRO4™ is a broadband UHF (470-952 MHz) antenna distribution amplifier that routes antenna signals from a pair of diversity antennas to several receivers in a multichannel system. Four amplified outputs compensate for signal strength lost in the splitting process. Two or more units may be cascaded together to accommodate setups with larger channel counts.

DISTRO4 features a 2000 mA internal power supply (no wall wart) and compares to antenna distributors twice its price. For active antennas and in-line amplifiers, DISTRO4 provides an internal switch to apply 12V DC power over coaxial cable to antenna connections. It includes all RF and DC power cables needed to connect a 4-channel wireless microphone system, as well as cascade to one additional DISTRO4.


  • Four amplified outputs compensate for signal strength lost in the splitting process
  • Cascade output allows two or more units to be connected together to accommodate more than four receivers
  • Internal switch for applying 12V DC power to antenna connections
  • DC output jacks supply power to connected receivers
  • Internal 2000 mA internal power supply (no wall wart)
  • Includes one AC cable, four DC cables, and 10 BNC jumpers
  • Full rack width (1 RU)


SPECIFICATIONS

  • Operating Frequency: 470 to 952 MHz
  • RF Output Level (gain): 3 dB (+/-2 dB)
  • Cascade Output Level: 0 dB ~ +2 dB
  • Output Connection Isolation: greater than or equal to 25 dB
  • Third Order Intercept Point: 24 dBm
  • Impedance: 50 ohms
  • Power Consumption: 60 W
  • Input AC Voltage: 100~240 V switching
  • DC Over Coax (to external antennas): 12~14V DC
  • Output DC voltage (to receiver jacks): +12V
  • Dimensions (W x D x H): 18.9 x 9.84 x 1.77 inch / 480 x 250 x 45 mm
  • Weight: 4.7 lb / 2.15 kg
  • Accessories Included: AC cable; DC cable (x 4), BNC jumper (x 10)

Manufacturer: RF Venue
Model: DISTRO4
SKU: I617369-N-0-WHXA
UPC: 718122341313
