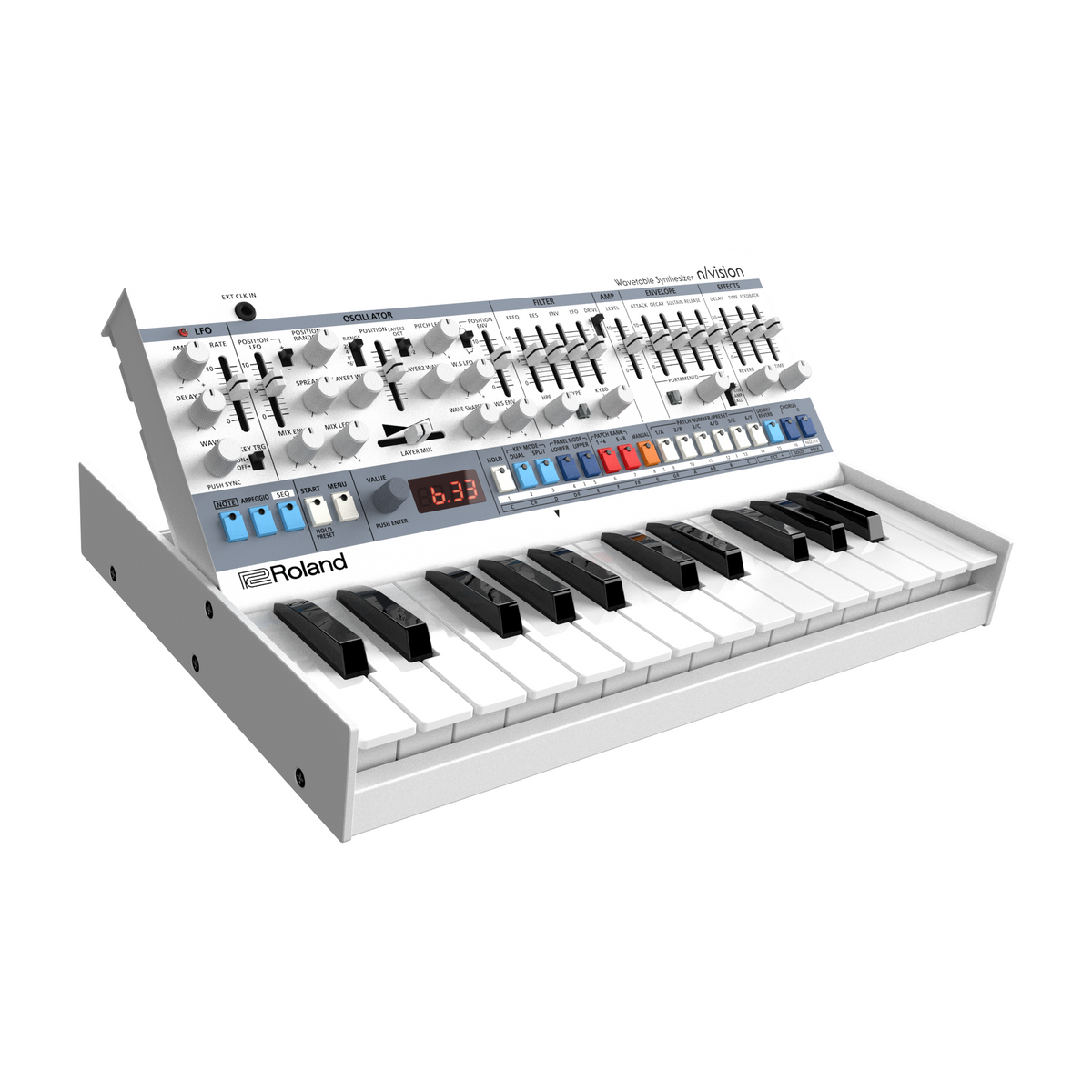

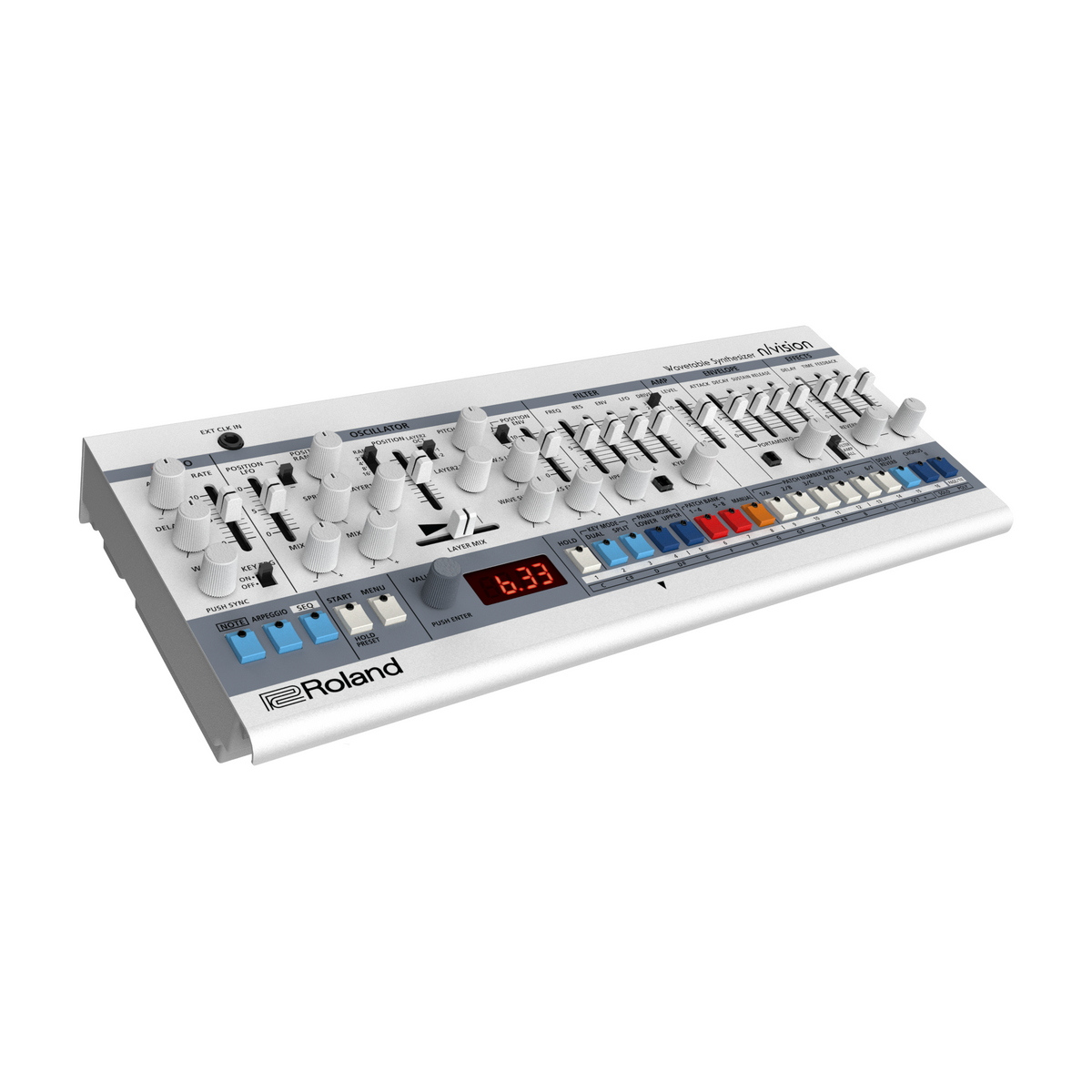

Roland n/vision Digital Synthesizer Keyboard

Modern Meets Vintage - The Roland n/vision Digital Synthesizer Keyboard

n/vision is a small yet mighty synthesizer that combines the character of classic 1980s wavetable instruments with Roland's latest technologies. This all-new Roland Boutique instrument is a powerful platform for crafting rich sounds and evolving textures, offering hands-on control for immediate creative interaction and deep menu-driven tools for sophisticated sound design.

• Powerful Roland Boutique instrument inspired by the sound and workflow of vintage wavetable synthesizers
• Easily craft rich harmonic textures and evolving timbres
• Vintage-inspired filter models and modern analog-style filtering
• Portable, standalone mini synth with built-in speakers and K-25m keyboard dock (included)
• Fluid sound creation with a two-layer wavetable architecture and hands-on controls
• Wave shaper processing for sophisticated harmonic manipulation
• Oscillator modulation and wavetable position control, plus a spread control for expanded stereo imaging
• Step LFO and advanced modulation options
• Arpeggio function for creating evolving patterns and rhythmic movement
• MFX engine with 17 effect types, plus dedicated delay and hall/shimmer reverb
• Immediate front-panel workflow plus deep, menu-driven sound design tools for advanced users
• Go-everywhere design and compact footprint for travel, desktop setups, and mobile rigs
• USB-C audio/MIDI interface for connecting with smartphones, tablets, and computers
• Traditional MIDI I/O for connecting with hardware devices
• External clock input to smoothly integrate with analog workflows
• Powered via four AA batteries or USB-C

Sounds That Morph and Move

Inspired by pioneering ’80s-era wavetable synthesizers, n/vision allows players to craft evolving digital textures with a familiar hands-on synthesizer workflow. Blend and shape two wavetable layers to create animated movement, evolving pads, aggressive leads, and complex timbres.

Advanced Oscillator Modulation

Multiple modulation sources can influence wavetable position, layer balance, pitch, and shaping parameters, enabling highly dynamic sound movement.

SPECIFICATIONS

User Memory

• Sound Patch: 240
• Pattern: 96

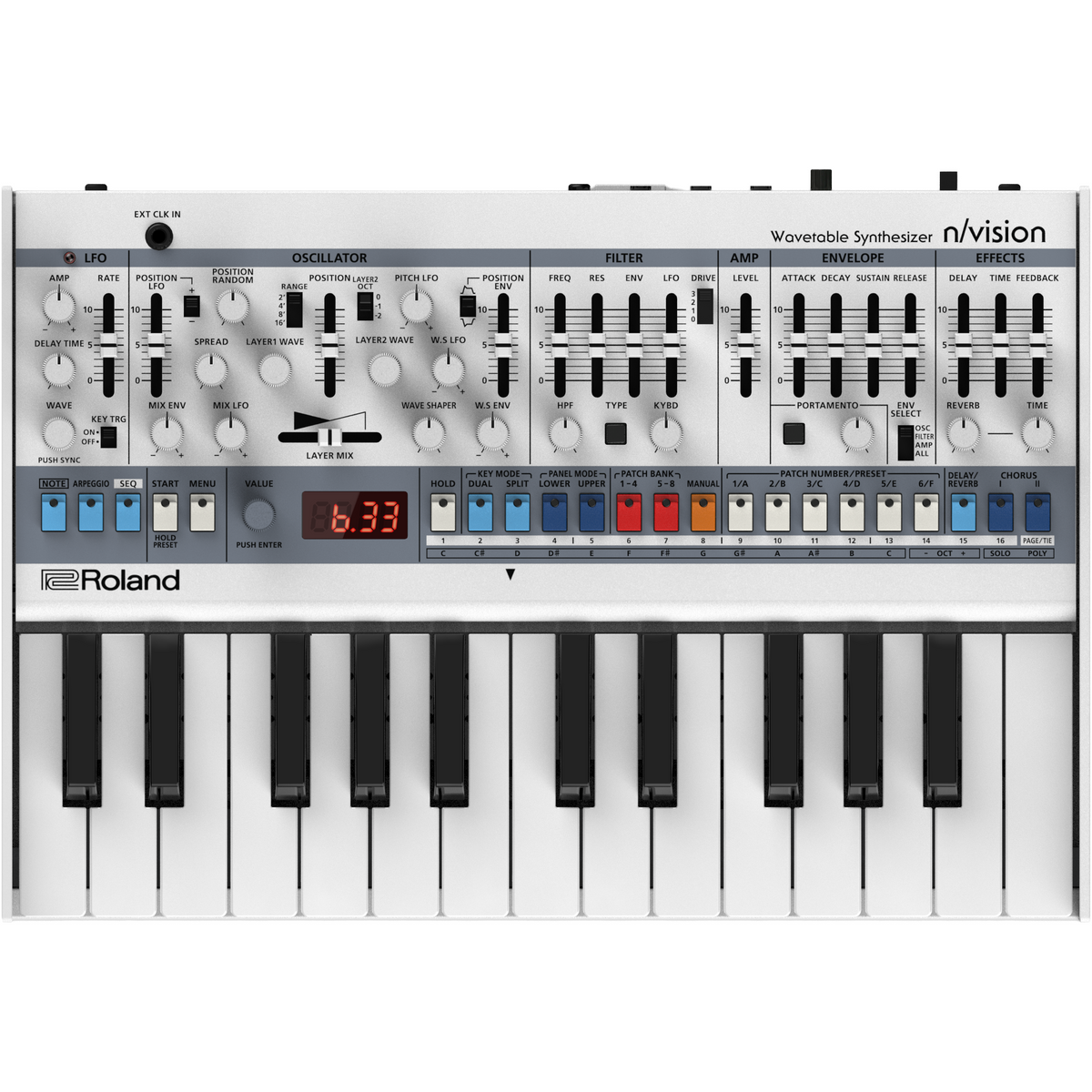

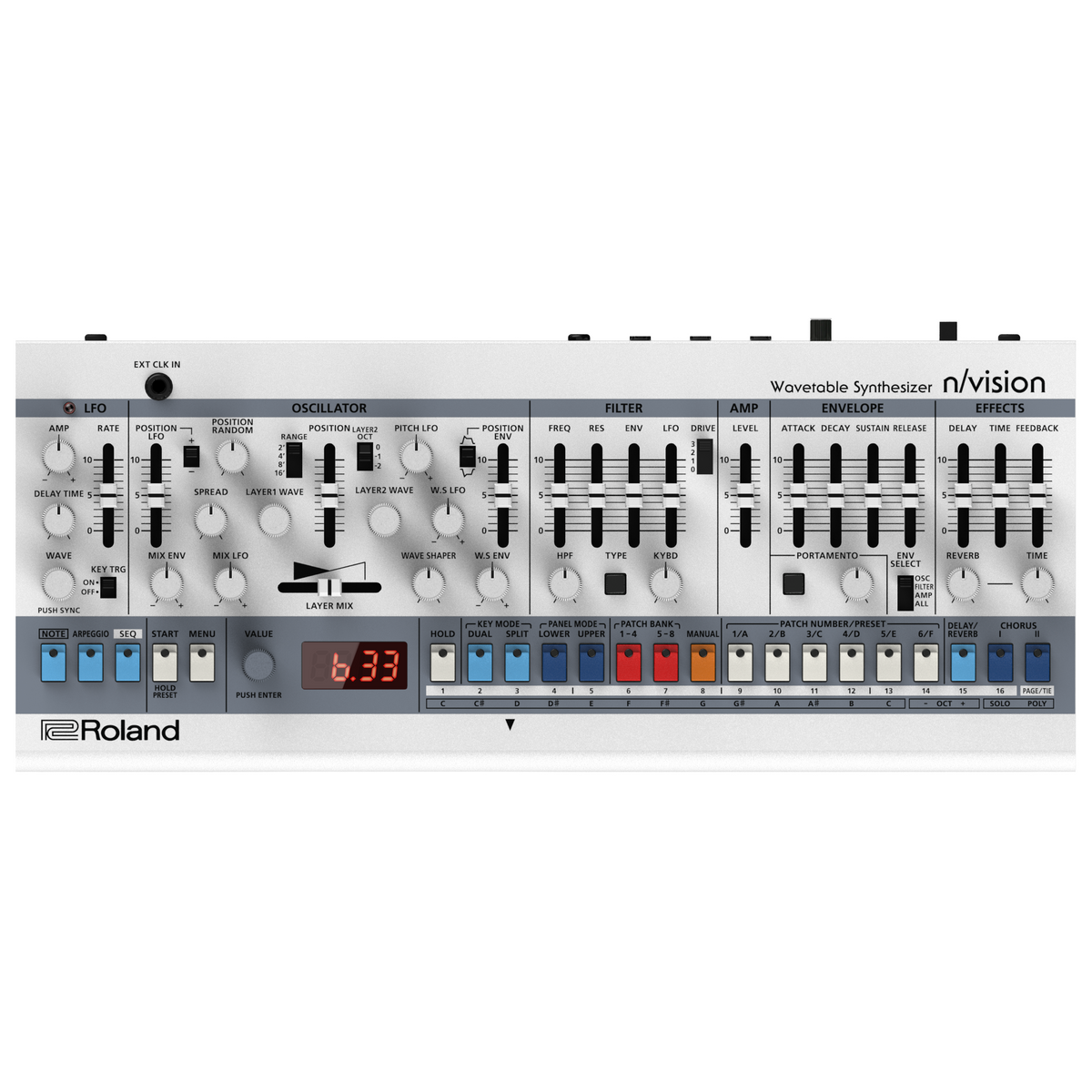

Controllers

• Power Switch
• Volume Knob
• LFO Section: AMP Knob, DELAY TIME Knob, WAVE Knob, RATE Slider, KEY TRIGGER Switch
• Oscillator Section: POSITION LFO Slider, POSITION LFO Switch, POSITION RANDOM Knob, SPREAD Knob, MIX ENV Knob, MIX LFO Knob, LAYER 1 WAVE Knob, RANGE Switch, LAYER 2 WAVE Knob, LAYER 2 OCT Switch, POSITION Slider, LAYER MIX Slider, PITCH LFO Knob, W.S LFO Knob, WAVE SHAPER Knob, W.S ENV Knob, POSITION ENV Slider, POSITION ENV Switch
• Filter Section: FREQ Slider, RES Slider, ENV Slider, LFO Slider, DRIVE Switch, HPF Knob, TYPE Button, KYBD Knob
• Amp Section: LEVEL Slider
• Envelope Section: ATTACK Slider, DECAY Slider, SUSTAIN Slider, RELEASE Slider, PORTAMENTO Button, PORTAMENTO Knob, ENV SELECT Switch
• Effects Section: DELAY Slider, TIME Slider, FEEDBACK Slider, REVERB Knob, TIME Knob
• NOTE Button
• ARPEGGIO Button
• SEQ Button
• START Button
• MENU Button
• VALUE Knob
• HOLD Button
• DUAL Button
• SPLIT Button
• LOWER Button
• UPPER Button
• PATCH BANK 1–4 Button
• PATCH BANK 5–8 Button
• MANUAL Button
• PATCH NUMBER/PRESET 1/A Button
• PATCH NUMBER/PRESET 2/B Button
• PATCH NUMBER/PRESET 3/C Button
• PATCH NUMBER/PRESET 4/D Button
• PATCH NUMBER/PRESET 5/E Button
• PATCH NUMBER/PRESET 6/F Button
• DELAY/REVERB Button
• CHORUS I Button
• CHORUS II Button

Effects

• Chorus: 3
• Delay: 4
• Overdrive
• FUZZ
• Drive
• Bit Crusher
• LOFI Comp
• Phaser: 2
• Filter
• Pitch Shifter: 2

Maximum Polyphony

• 56 voices (varies according to the sound generator load)

Step Sequencer

• 2 parts
• 64 steps
• 8 notes per part (Polyphonic)

Display

• 7 segments, 4 characters (LED)

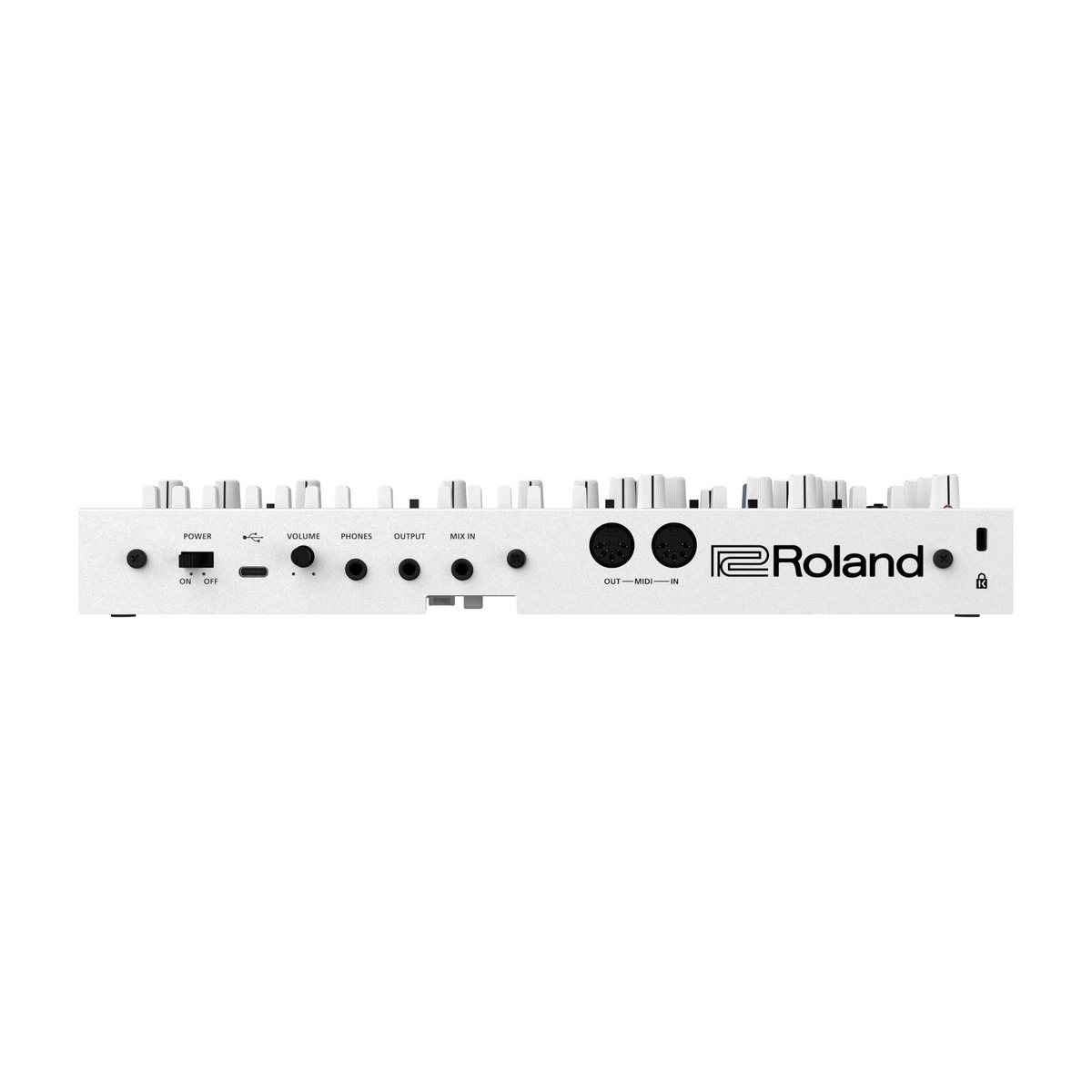

Connectors

• EXT CLOCK IN Jack: Mono miniature phone type
• PHONES Jack: Stereo miniature phone type
• OUTPUT Jack: Stereo miniature phone type
• MIX IN Jack: Stereo miniature phone type
• MIDI (IN, OUT) Connectors
• USB Port: USB Type-C (Audio, MIDI)

Power Supply

• Ni-MH Battery (AA, HR6) × 4 or Alkaline Battery (AA, LR6) × 4
• USB Bus Power

Current Draw

• 500 mA (USB bus power)

Expected Battery Life Under Continuous Use

• Ni-MH Battery: Approx. 6 hours (When using batteries having a capacity of 1,900 mAh.)
• This can vary depending on the specifications of the batteries, capacity of the batteries, and the conditions of use.

Size

• 308 (Width) × 209 (Depth) × 54 (Height) mm
• 12-1/8 (Width) × 8-1/4 (Depth) × 2-1/8 (Height) inches

Weight

• 1.7 kg (3 lbs. 12 oz.) including K-25m and batteries

Accessories

• Quick Start
• Leaflet "USING THE UNIT SAFELY"
• Alkaline Battery (AA, LR6) × 4
• K-25m
• K-25m Owner's Manual
