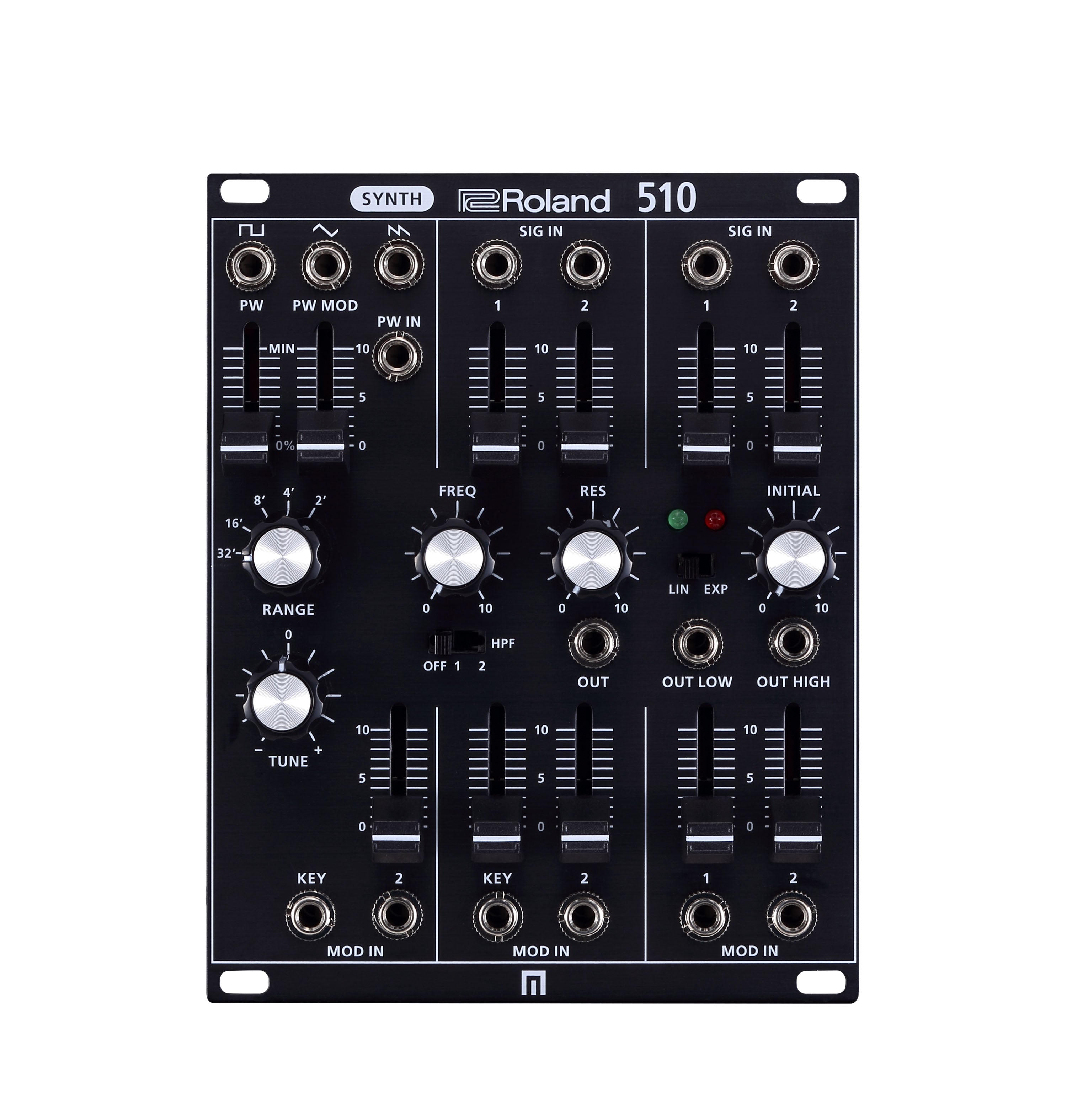

Roland SYS-510 Analogue VCO VCF VCA Eurorack Synth Module


  • Our Price
  • Regular price $399.99





CALL FOR AVAILABILITY
• Inventory changes daily and this item may be out of stock
Contact us for availability | tel: 301-946-8808
• Please allow for additional delivery time due to COVID 19



Expand Your Sonic Horizons With The Roland SYS-510 Analog VCO Module


The SYSTEM-500 consists of Eurorack format modules that you can mix and match in any combination to create the ultimate Roland modular synthesizer. Each module is completely analog and has been designed for maximum compatibility with the world of contemporary synthesizer and effects modules. The SYSTEM-500 is a compact, powerful system that opens up vast possibilities for sound design and musical exploration.


With the SYS-510, designing your first modular setup or integrating classic Roland sound into your existing modular rig has never been easier. Based on the vintage SYSTEM-100m's 110 VCO, VCF, and VCA module, the SYS-510 brings together the best aspects of the SYSTEM-500 into a single voice module. It contains three pristine oscillator waveforms, classic Roland low pass filter with hi-pass switches, and a VCA with multiple outputs. It has inputs for external signals and modulation, and output jacks for both Eurorack and line-level audio. At 20hp and internally normalled for cableless operation, the SYS-510 is an essential building block, whether you’re an experienced user or just diving into modular synthesis.


Specifications:


Controllers

VCO

  • PULSE WIDTH: slider
  • PULSE WIDTH MODULATION: slider
  • MODULATION IN 2: slider
  • RANGE: knob
  • TUNE: knob

VCF

  • SIGNAL IN 1: slider
  • SIGNAL IN 2: slider
  • KEY IN: slider
  • MODULATION IN 2: slider
  • HPF: switch
  • FREQUENCY: knob
  • RESONANCE: knob

VCA

  • SIGNAL IN 1: slider
  • SIGNAL IN 2: slider
  • MODULATION IN 1: slider
  • MODULATION IN 2: slider
  • LINER/EXPONENTIAL: switch
  • INITIAL: knob

Indicators

  • LOAD Indicator
  • OVERLOAD Indicator

Connectors

VCO

  • SQUARE WAVE jack: Miniature phone type
  • TRIANGLE WAVE jack: Miniature phone type
  • SAW WAVE jack: Miniature phone type
  • PULSE WIDTH IN jack: Miniature phone type
  • KEY IN jack: Miniature phone type
  • MODULATION IN 2 jack: Miniature phone type

VCF

  • SIGNAL IN 1 jack: Miniature phone type
  • SIGNAL IN 2 jack: Miniature phone type
  • OUT jack: Miniature phone type
  • KEY IN jack: Miniature phone type
  • MODULATION IN 2 jack: Miniature phone type

VCA

  • SIGNAL IN 1 jack: Miniature phone type
  • SIGNAL IN 2 jack: Miniature phone type
  • OUT LOW jack: Miniature phone type
  • OUT HIGH jack: Miniature phone type
  • MODULATION IN 1 jack: Miniature phone type
  • MODULATION IN 2 jack: Miniature phone type

Power Supply

  • Eurorack Power

Current Draw

  • 75 mA (+12 V)
  • 60 mA (-12 V)

Accessories

  • Owner's Manual
  • Leaflet "USING THE UNIT SAFELY"
  • Eurorack installation screws (4 pcs)
  • Eurorack power cable

Size & Weight

  • Width: 101.3 mm; 4 inches
  • Depth: 128.5 mm; 5-1/16 inches
  • Height: 57.2 mm; 2-1/4 inches
  • Weight: 264 g; 10 oz

Manufacturer: Roland
Model: SYS-510
Warranty: See manufacturer website for details
SKU: I512190-N-0-B
UPC: 761294512098
