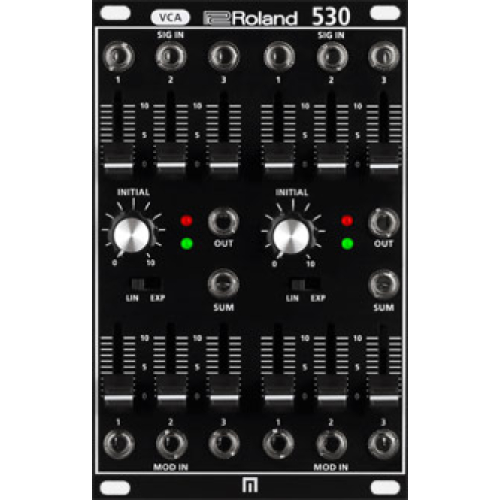

Roland SYS-530 Analogue VCA Eurorack Module

Expand Your Modular Arsenal With The Roland SYS-530 Analogue Dual VCA Module

Based on the classic SYSTEM-100M modular synthesizer, the SYSTEM-500 is a fully analog recreation of one of the most revered electronic instruments of all time. Newly designed in Eurorack format, the SYSTEM-500 delivers the classic character and functionality of the original with the advantages of a modern instrument. Built in the USA and assembled in Japan, the SYSTEM-500 is made to exacting standards with top-quality components and solid controls. And it’s surprisingly affordable, turning the fantasy of finally owning this legendary instrument into reality.

Specifications:
Controllers

• SIGNAL IN 1: slider
• SIGNAL IN 2: slider
• SIGNAL IN 3: slider
• MODULATION IN 1: slider
• MODULATION IN 2: slider
• MODULATION IN 3: slider
• LINER/EXPONENTIAL: switch
• INITIAL: knob
  Indicator
• LOAD Indicator
• OVERLOAD Indicator
  Connectors
• SIGNAL IN 1 jack: Miniature phone type
• SIGNAL IN 2 jack: Miniature phone type
• SIGNAL IN 3 jack: Miniature phone type
• OUT jack: Miniature phone type
• SUM jack: Miniature phone type
• MODULATION IN 1 jack: Miniature phone type
• MODULATION IN 2 jack: Miniature phone type
• MODULATION IN 3 jack: Miniature phone type
  Power Supply
• Eurorack power
• Current draw50 mA (+12 V) , 35 mA (-12 V)
  Accessories
• Owner's Manual
• Leaflet "USING THE UNIT SAFELY"
• Eurorack installation screws (4 pcs)
• Eurorack power cable
  Size And Weight
• Width81 mm or 3-3/16 inches (16 HP)
• Depth: 58 mm or 2-5/16 inches
• Height: 128.5 mm or 5-1/16 inches
• Weight: 194 g or 7 oz
