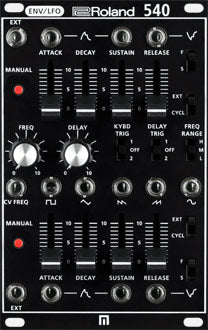

Roland SYS-540 Analogue Dual Envelope + LFO Eurorack Module

Expand Your Modular Arsenal With The Roland SYS-540 Analogue Dual Envelope Generator And LFO Module

Based on the classic SYSTEM-100M modular synthesizer, the SYSTEM-500 is a fully analog recreation of one of the most revered electronic instruments of all time. Newly designed in Eurorack format, the SYSTEM-500 delivers the classic character and functionality of the original with the advantages of a modern instrument. Built in the USA and assembled in Japan, the SYSTEM-500 is made to exacting standards with top-quality components and solid controls. And it’s surprisingly affordable, turning the fantasy of finally owning this legendary instrument into reality.

Specifications:
Controllers

• ATTACK slider
• DECAY slider
• SUSTAIN slider
• RELEASE slider
• MANUAL switch
• FAST/SLOW switch
• EXTERNAL/CYCLE switch
• KEYBOARD TRIGGER switch
• DELAY TRIGGER switch
• FREQUENCY RANGE switch
• FREQUENCY knob
• DELAY knob
  Connectors
• EXTERNAL jack: Miniature phone type
• ENVELOPE 1 jack: Miniature phone type
• ENVELOPE 2 jack: Miniature phone type
• INVERTED ENVELOPE jack: Miniature phone type
• CV FREQUENCY jack: Miniature phone type
• SQUARE WAVE jack: Miniature phone type
• TRIANGLE WAVE jack: Miniature phone type
• SAW WAVE jack: Miniature phone type
• INVERTED SAW WAVE jack: Miniature phone type
• SINE WAVE jack: Miniature phone type
  Power Supply
• Eurorack power
• Current draw: 85 mA (+12 V) , 50 mA (-12 V)
  Accessories
• Owner's Manual
• Leaflet "USING THE UNIT SAFELY"
• Eurorack installation screws (4 pcs)
• Eurorack power cable
  Size And Weight
• Width81 mm or 3-3/16 inches(16 HP)
• Depth58 mm or 2-5/16 inches
• Height128.5 mm or5-1/16 inches
• Weight:202 g or 8 oz
