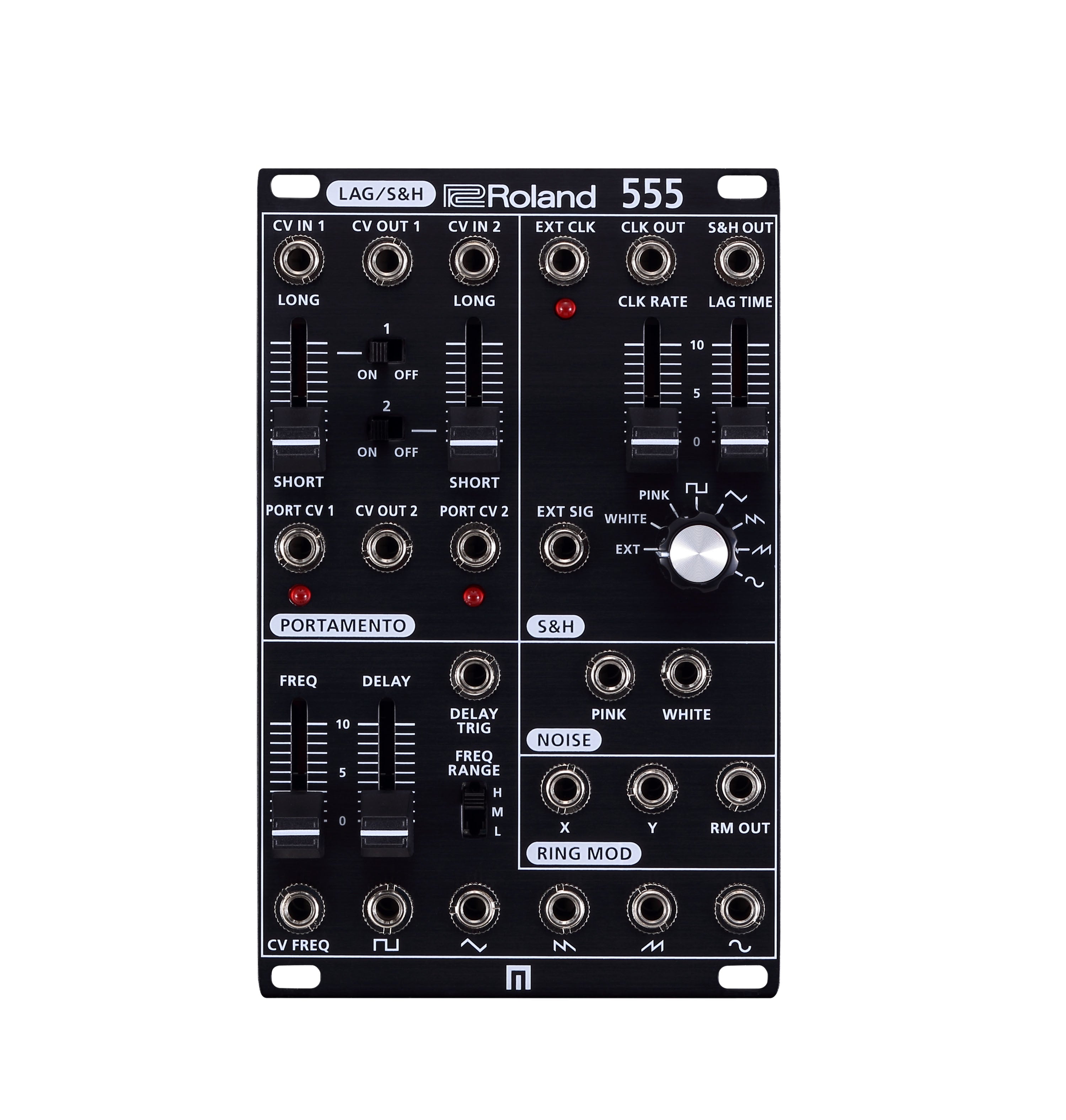

Roland SYS-555 Analogue Portamento S&H Utility Eurorack Module


  • Our Price
  • Regular price $369.99





CALL FOR AVAILABILITY
• Inventory changes daily and this item may be out of stock
Contact us for availability | tel: 301-946-8808
• Please allow for additional delivery time due to COVID 19


Expand Your Sonic Horizons With The Roland SYS-555 Portamento/S&H/ Noise Utility Eurorack Module


The SYSTEM-500 consists of Eurorack format modules that you can mix and match in any combination to create the ultimate Roland modular synthesizer. Each module is completely analog and has been designed for maximum compatibility with the world of contemporary synthesizer and effects modules. The SYSTEM-500 is a compact, powerful system that opens vast possibilities for sound design and musical exploration.


Channeling inspiration from the Roland SYSTEM-100m's 150 and 165 modules, the SYS-555 is a five-in-one powerhouse that brings core utility functions to your modular setup, but with some new and interesting twists. The SYS-555 contains both traditional and non-traditional modulation sources applicable to any imaginable configuration or setup. With ring modulation, versatile sample and hold with seven waveforms and internal LPF, pink and white noise modes, LFO with internal ENV and VCA, and two CV controlled portamento circuits, your tonal shaping and modulation options are near infinite.


CONTROLLERS

  • PORTAMENTO 1: slider
  • PORTAMENTO 1: switch
  • PORTAMENTO 2: slider
  • PORTAMENTO 2: switch
  • CLOCK RATE: slider
  • LAG TIME: slider
  • SAMPLE & HOLD: knob
  • FREQUENCY: slider
  • DELAY: slider
  • FREQUENCY RANGE: switch

INDICATORS

  • PORTAMENTO 1: indicator
  • PORTAMENTO 2: indicator
  • CLOCK RATE: indicator

CONNECTORS

  • CV IN 1 jack: Miniature phone type
  • CV OUT 1 jack: Miniature phone type
  • PORTAMENTO CV IN1 jack: Miniature phone type
  • CV IN 2 jack: Miniature phone type
  • CV OUT 2 jack: Miniature phone type
  • PORTAMENTO CV IN2 jack: Miniature phone type
  • EXTERNAL CLOCK IN jack: Miniature phone type
  • CLOCK OUT jack: Miniature phone type
  • SAMPLE & HOLD OUT jack: Miniature phone type
  • EXTERNAL SIGNAL IN jack: Miniature phone type
  • DELAY TRIGGER jack: Miniature phone type
  • CV IN jack: Miniature phone type
  • SQUARE jack: Miniature phone type
  • TRIANGLE jack: Miniature phone type
  • SAW jack: Miniature phone type
  • INVERTED SAW jack: Miniature phone type
  • SINE WAVE jack: Miniature phone type
  • PINK NOISE jack: Miniature phone type
  • WHITE NOISE jack: Miniature phone type
  • RING MODULATOR X IN jack: Miniature phone type
  • RING MODULATOR Y IN jack: Miniature phone type
  • RING MODULATOR OUT jack: Miniature phone type

POWER SUPPLY

  • Eurorack Power

CURRENT DRAW

  • 110 mA (+12 V)
  • 85 mA (-12 V)

ACCESSORIES

  • Owner's Manual
  • Leaflet "USING THE UNIT SAFELY"
  • Eurorack installation screws (4 pcs)
  • Eurorack power cable

SIZE AND WEIGHT

  • Width: 80.8 mm; 3-3/16 inches
  • Depth: 128.5 mm; 5-1/16 inches
  • Height: 57.2 mm; 2-1/4 inches
  • Weight: 201 g; 8 oz

Manufacturer: Roland
Model: SYS-555
Warranty: See manufacturer website for details
SKU: I512192-N-0
UPC: 761294512067
