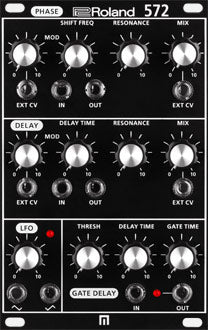

Roland SYS-572 Analogue Phase Shifter Delay LFO Eurorack Module

Expand Your Modular Arsenal With The Roland SYS-572 Analogue Phase Shifter + Delay + LFO Synth Module

Based on the classic SYSTEM-100M modular synthesizer, the SYSTEM-500 is a fully analog recreation of one of the most revered electronic instruments of all time. Newly designed in Eurorack format, the SYSTEM-500 delivers the classic character and functionality of the original with the advantages of a modern instrument. Built in the USA and assembled in Japan, the SYSTEM-500 is made to exacting standards with top-quality components and solid controls. And it’s surprisingly affordable, turning the fantasy of finally owning this legendary instrument into reality.

Specifications:
Controllers

[PHASE SHIFTER section]

• MODULATION knob
• SHIFT FREQUENCY knob
• RESONANCE knob
• MIX knob
  [DELAY section]

• MODULATION knob
• TIME knob
• RESONANCE knob
• MIX knob
  [LFO section]
• FREQUENCY knob
  [GATE DELAY section]
• THRESHOLD knob
• DELAY TIME knob
• GATE TIME knob

  Indicator
• LFO Indicator
• GATE DELAY OUT Indicator

  Connectors
  [PHASE SHIFTER section]
• MODULATION EXTERNAL CV jack: Miniature phone type
• IN jack: Miniature phone type
• OUT jack: Miniature phone type
• MIX EXTERNAL CV jack: Miniature phone type
  [DELAY section]
• MODULATION EXTERNAL CV jack: Miniature phone type
• IN jack: Miniature phone type
• OUT jack: Miniature phone type
• MIX EXTERNAL CV jack: Miniature phone type
  [LFO section]
• OUT jack: Miniature phone type
• INVERTED OUT jack: Miniature phone type
  [GATE DELAY section]
• IN jack: Miniature phone type
• OUT jack: Miniature phone type

  Power Supply
• Eurorack power
• Current draw110 mA (+12 V) , 90 mA (-12 V)

  Accessories
• Owner's Manual
• Leaflet "USING THE UNIT SAFELY"
• Eurorack installation screws (4 pcs)
• Eurorack power cable


• Size & Weight
• Width: 81 mm or 3-3/16 inches (16 HP)
• Depth: 58 mm or 2-5/16 inches
• Height: 128.5 mm or 5-1/16 inches
• Weight: 213 g or 8 oz
