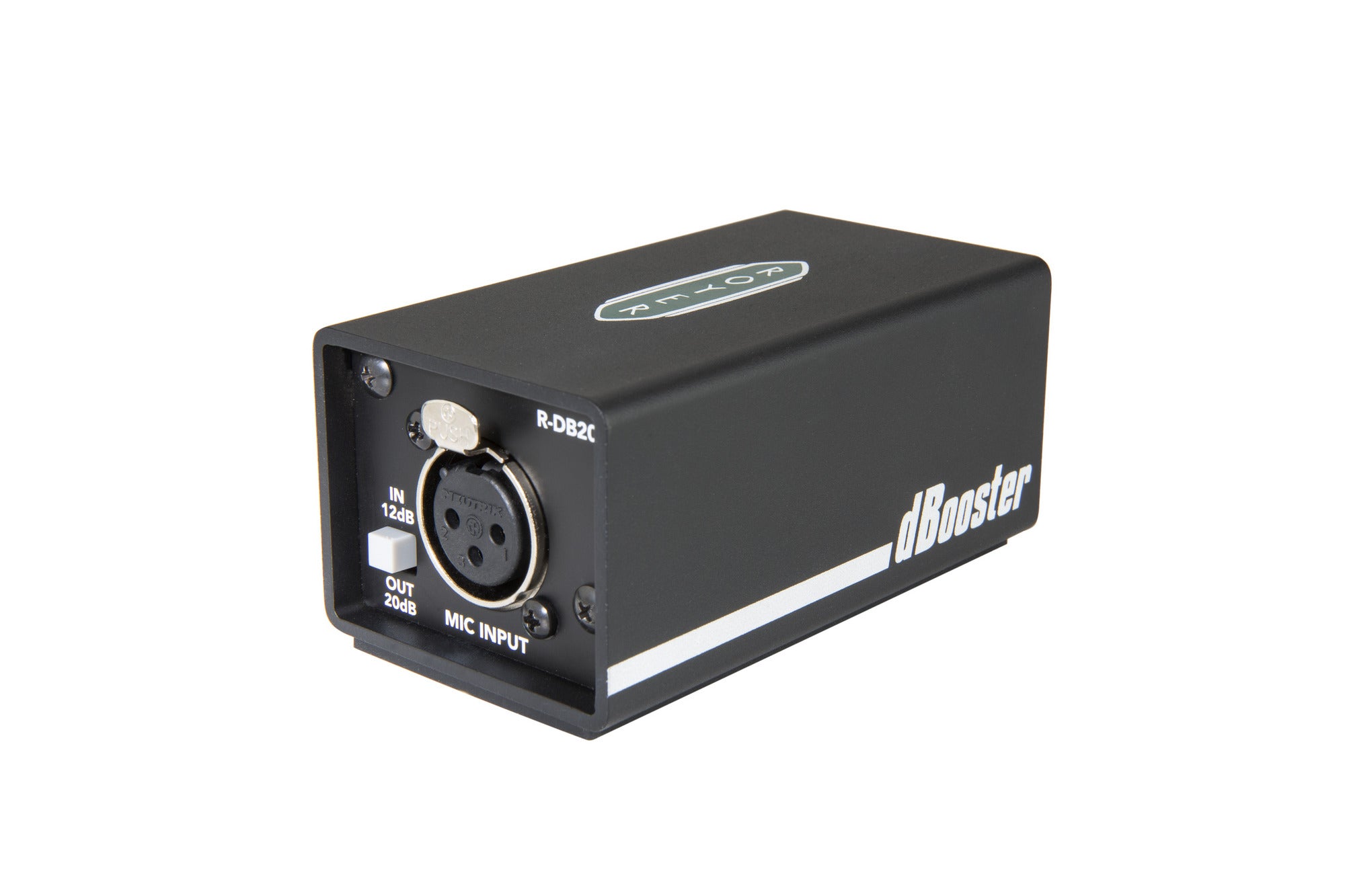

Royer dBooster In-Line Signal Booster


  • Our Price
  • $179.00
  • Regular price MSRP: $199.00

OUT OF STOCK - CALL FOR AVAILABILITY
• Inventory changes daily
Contact us for availability | tel: 301-946-8808
• Please allow for additional delivery time due to COVID 19





Add A Multipurpose Utility To Your Signal Chain With The Royer dBooster In-Line Signal Booster

The Royer model R-DB20 is a phantom-powered ribbon and dynamic microphone signal booster and impedance buffer. It increases the level of passive low-output ribbon and dynamic microphones with a minimum of distortion or coloration. Designed for professional applications, the dBooster provides two levels of clean gain boost; 12dB and 20dB, selectable by a front panel switch. The dBooster maintains headroom and gain regardless of load.

The Class A input circuitry presents a high source impedance to the microphone, which minimizes loading (damping). This reduces coloration and distortion while at the same time improving headroom.

By utilizing the 12/20dB gain switch, optimum balance between gain and headroom can be achieved for a variety of uses.

The low-impedance output of the dBooster is an increased microphone-level signal that can drive a digital interface directly or a standard microphone preamplifier. It also minimizes signal loss on long cable runs.

RECOMMENDED APPLICATIONS

  • Miking any low-volume sound source (acoustic instruments, vocals, etc.)
  • Recording direct to a DAW interface
  • Use on long cable runs to retain sound quality

BENEFITS

  • Safe for use on all ribbon mics
  • Increases headroom at the preamp
  • Provides true electrical isolation
  • Protects ribbon mics from phantom-power
  • Minimizes mic loading
  • Capable of driving difficult loads, such as mic splitters and vintage style preamps, without increased distortion or loss of gain
  • Gain: 12dB or 20dB switchable
  • THD+N: @ 20dB Gain = .0015%, -25dBu input signal, 1.3Vp-p output signal; @ 12dB Gain = .001%, -6Bu input signal, 3.66Vp-p output signal
  • IM Distortion: @ 20dB setting, < .002% @ 800mV output, @ 12dB setting, < .005% @ 2.6volts output
  • Self-Noise: referred to -48dB re. 1V/pa, 20dB setting < 11dBa, 12dB setting < 15dBa
  • Headroom: referred to -48dB re. 1V/pa and 4mV/pa, 20dB setting: 127dB, 12dB setting: 120dB
  • Frequency response: 20Hz-20kHz +/- .25dB
  • Input Impedance: 3.6K-Ohm
  • Output Impedance: (at 20dB setting) 300-Ohms
  • Current draw: approximately 5ma at zero signal and 7.5ma at full output
  • Input and output connections: Balanced XLR: (Pin 1 Ground, Pin 2 Signal Hot, Pin 3 Signal Cold)
  • Power: 48-Volt phantom
  • Dimensions: 3.62” (92mm) L X 2.0” (51mm) W X 1.62” (41.3mm) W
  • Weight: 6 oz (170g)

Manufacturer: ROYER LABS
Model: R-DB20
Warranty: See manufacturer website for details
SKU: I579170-N-0-B
UPC: 899060002709
