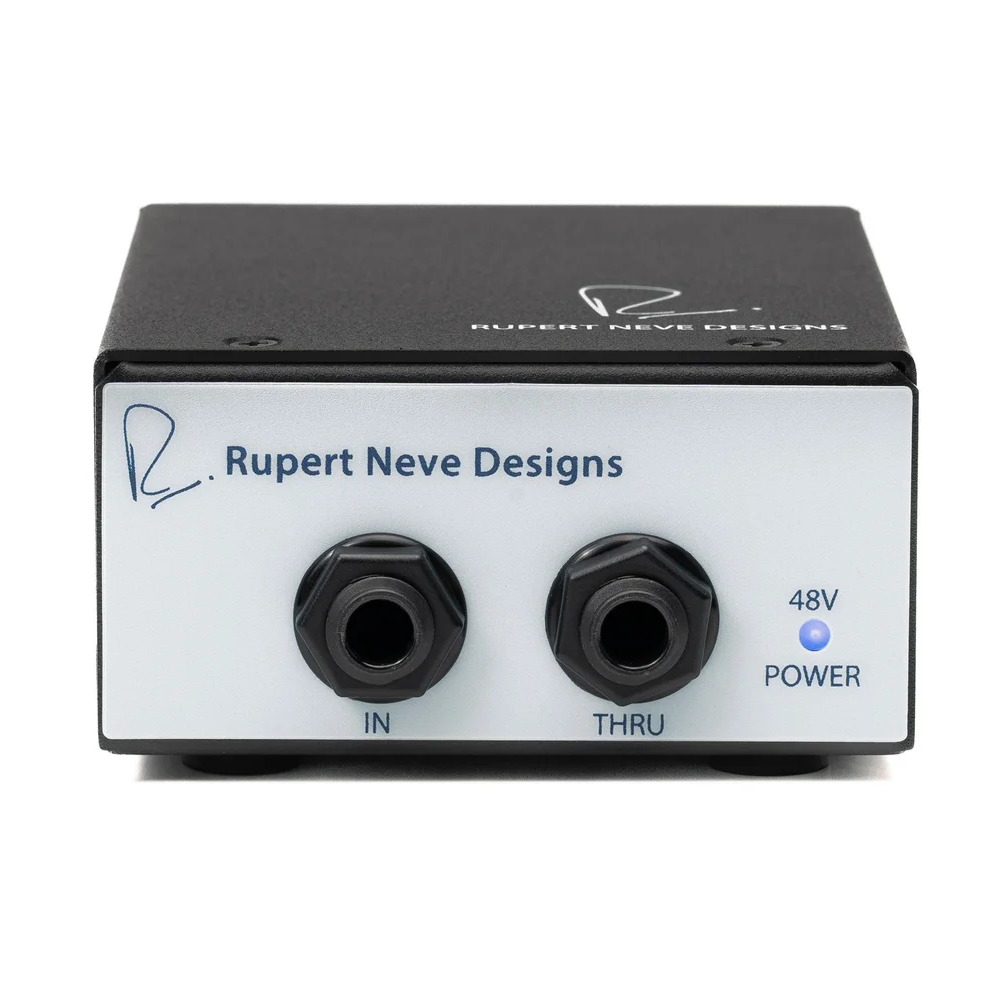

Rupert Neve Designs RNDI-M Active Transformer Direct Interface
Compact Design, Giant Tone – The Rupert Neve Designs RNDI-M Active Direct Injection Box
The Rupert Neve Designs RNDI-M brings the acclaimed tone and clarity of its award-winning predecessors into a compact, pedalboard-friendly format. Built with the same custom Rupert Neve transformers and discrete Class-A FET input stage as the RNDI, RNDI-S, and RNDI-8, the RNDI-M delivers the legendary Neve sound in a rugged, travel-ready chassis.
Streamlined yet uncompromising, the RNDI-M provides pristine direct injection for electric and acoustic guitars, basses, keyboards, synthesizers, drum machines, and more. With ultra-wide bandwidth, exceptional headroom, and low distortion, it delivers powerful, musical results both live and in the studio. The RNDI-M is powered by standard 48V phantom power and built for a lifetime of reliable performance.
- Compact, pedalboard-friendly design with the same circuitry as the RNDI, RNDI-S, and RNDI-8

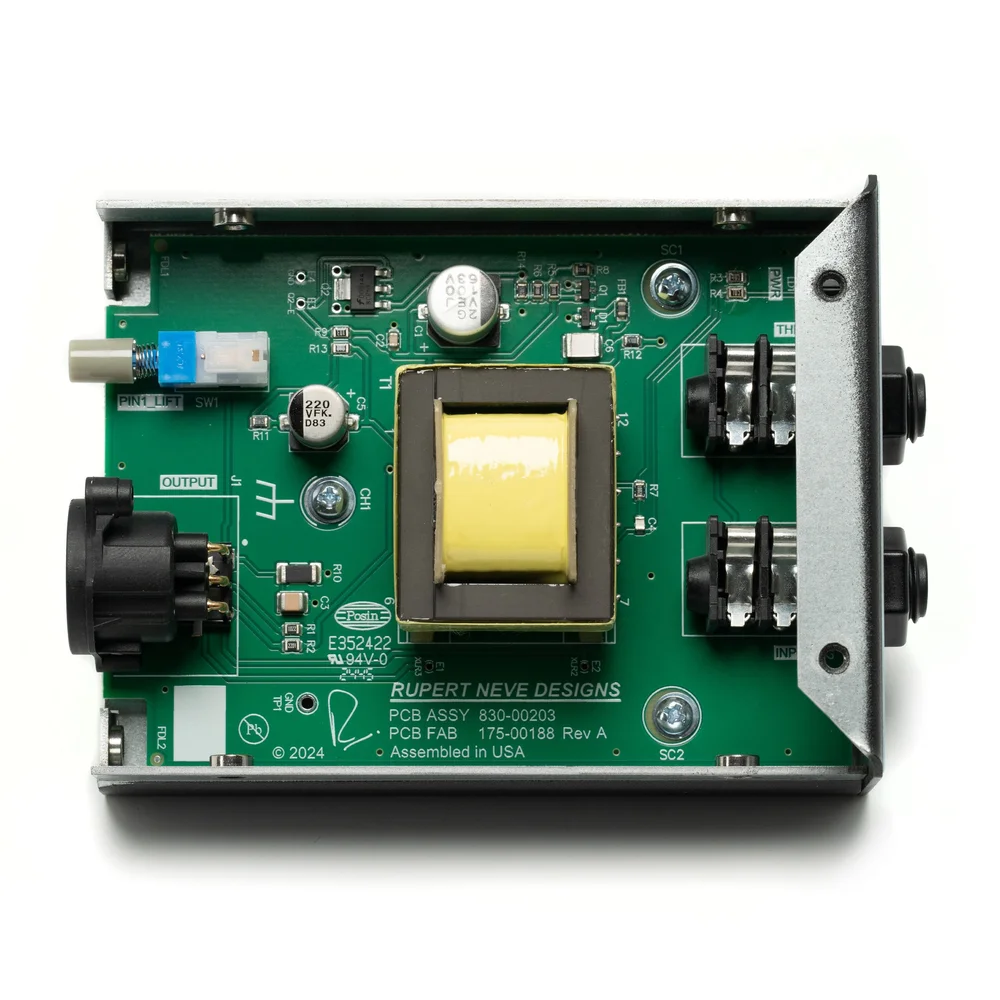

- Custom Rupert Neve Designs transformer for exceptional tone and clarity
- Class-A discrete FET input stage powered by +48V phantom power
- Wide bandwidth response from below 5 Hz to beyond 90 kHz
- Handles instrument input levels up to +20.5 dBu
- Transformer-balanced output (<40 ohms) for driving long cable runs without signal loss
- High input impedance (2.2 MΩ) ensures transparency across a variety of instruments
- Ground Lift switch for eliminating hum and ground loops
- 1/4-inch THRU output for connecting to an amplifier while recording direct
- Rugged steel chassis for touring and studio reliability
- Blue LED indicator for phantom power status
SPECIFICATIONS
- Noise (22 Hz–22 kHz, Unweighted): Better than -110 dBV
- Input Impedance: 2.2 MΩ
- Output Impedance: Less than 40 Ω
- Maximum Input Level: +20.5 dBu (8.2 V RMS)
- Maximum Output Level: +11.5 dBu typical
- Frequency Response: ±0.25 dB (28 Hz–60 kHz), ±1 dB (14 Hz–90 kHz), -3 dB below 5 Hz
- Total Harmonic Distortion + Noise:
- @ 1 kHz, +20 dBu: 0.25% typical (2nd & 3rd harmonic)
- @ 1 kHz, -20 dBu: 0.015% typical (2nd & 3rd harmonic)
- @ 20 Hz, -20 dBu: 0.75% typical (2nd & 3rd harmonic)
- Power Requirements: 4.5 mA @ +48V DC (phantom powered)
- Dimensions (W x D x H): 3.25 x 4.3 x 1.6 in (8.25 x 10.9 x 4 cm)
- Weight: 1 lb (0.45 kg)
- Shipping Dimensions: 5.13 x 4.13 x 2 in (13 x 10.5 x 5.1 cm)
Manufacturer: Rupert Neve Designs
Model: RNDI-M
SKU: I827223-N-1-WHXX
UPC: 763854076941
