Rupert Neve RNHP Precision Headphone Amplifier


  • Our Price
  • $499.00
  • Regular price MSRP: $549.00

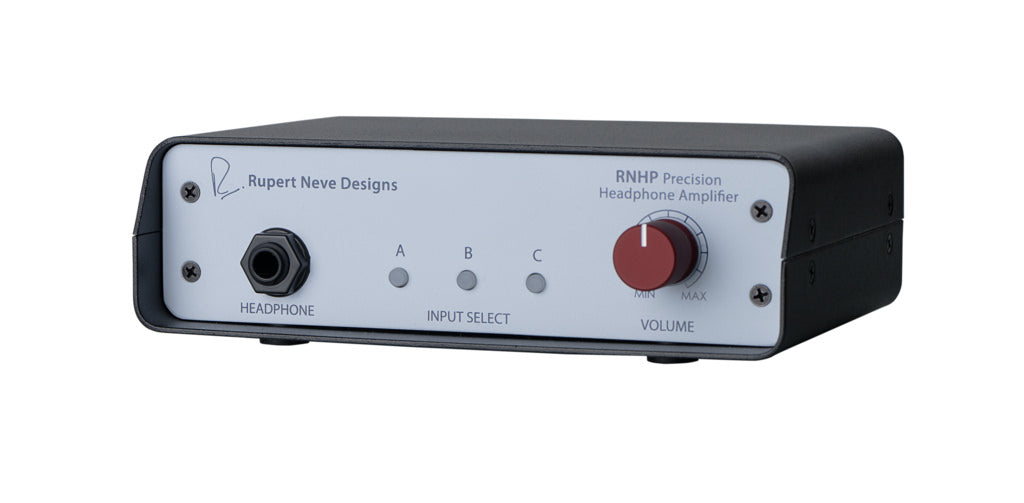

Get The Headphone Amplifier Only Rupert Neve Could Bring You - The Rupert Neve RNHP

Whether you’re tracking, mixing, or just listening to music, your headphone amplifier is as important to the final sound quality as your headphones – yet the world is full of headphone amps with compromised sonics, headroom, and power. To address these shortcomings, Rupert and his team at Rupert Neve Designs have developed the RNHP.

Based on the headphone output circuit in the 5060 Centerpiece Desktop Mixer, the RNHP is a dedicated 24V reference-quality headphone amplifier with specifically-calibrated +4dBu balanced line, unbalanced RCA and 3.5mm (1/8”) inputs, housed in a rugged VESA-mountable steel chassis. With effortless, wide-open sonic performance and the ability to drive any pair of headphones without compromise, the RNHP allows you to perform, mix and enjoy your music with a new level of clarity.

DEDICATED VS INTEGRATED AMPLIFIERS

For much equipment, the headphone output is an afterthought. Most products with integrated headphone amps have large feature sets, small footprints, and relatively low price points. This leads to comprised power and audio quality of the headphone amplifier itself, which can lead to a number of issues in real world usage such as low headroom, unreliable performance, and a lack of focus.

The RNHP was made to accomplish one simple purpose: making any headphones sound their best. As a dedicated design, the RNHP is tailored to deliver extremely high quality, powerful amplification, with precise calibration for any source input. This exceptional level of quality can be the difference that inspires an artist to give their best performance, lets an engineer make better choices in mic and placement, gives a mix engineer reliable translation of EQ and dynamics adjustments, or lets a music listener appreciate the full depth and detail of a recording.

SPECIALLY-CALIBRATED INPUTS FOR ALL OF YOUR DEVICES

In addition to being able to drive a wide variety of headphones without sacrificing performance, the RNHP is also capable of receiving a wide array of signals with its 3 inputs, calibrated for optimum level and impedance.



PRECISION SOUND

Wide-open, extremely detailed sound quality allows you to get the most out of your headphones

DEDICATED POWER

High-power, high-headroom design can effortlessly drive high-impedance (up to 600 Ohm) headphones even during the loudest, most dynamic tracking sessions

RELIABLE TRANSLATION

The near-zero output impedance (.01 Ohm at 1kHz), direct-coupled amplifier design provides for excellent translation with any pair of headphones

PRECISION STEREO POTENTIOMETER

The highly damped stereo potentiometer is designed to give you precise level control and maintain perfect left-right balance

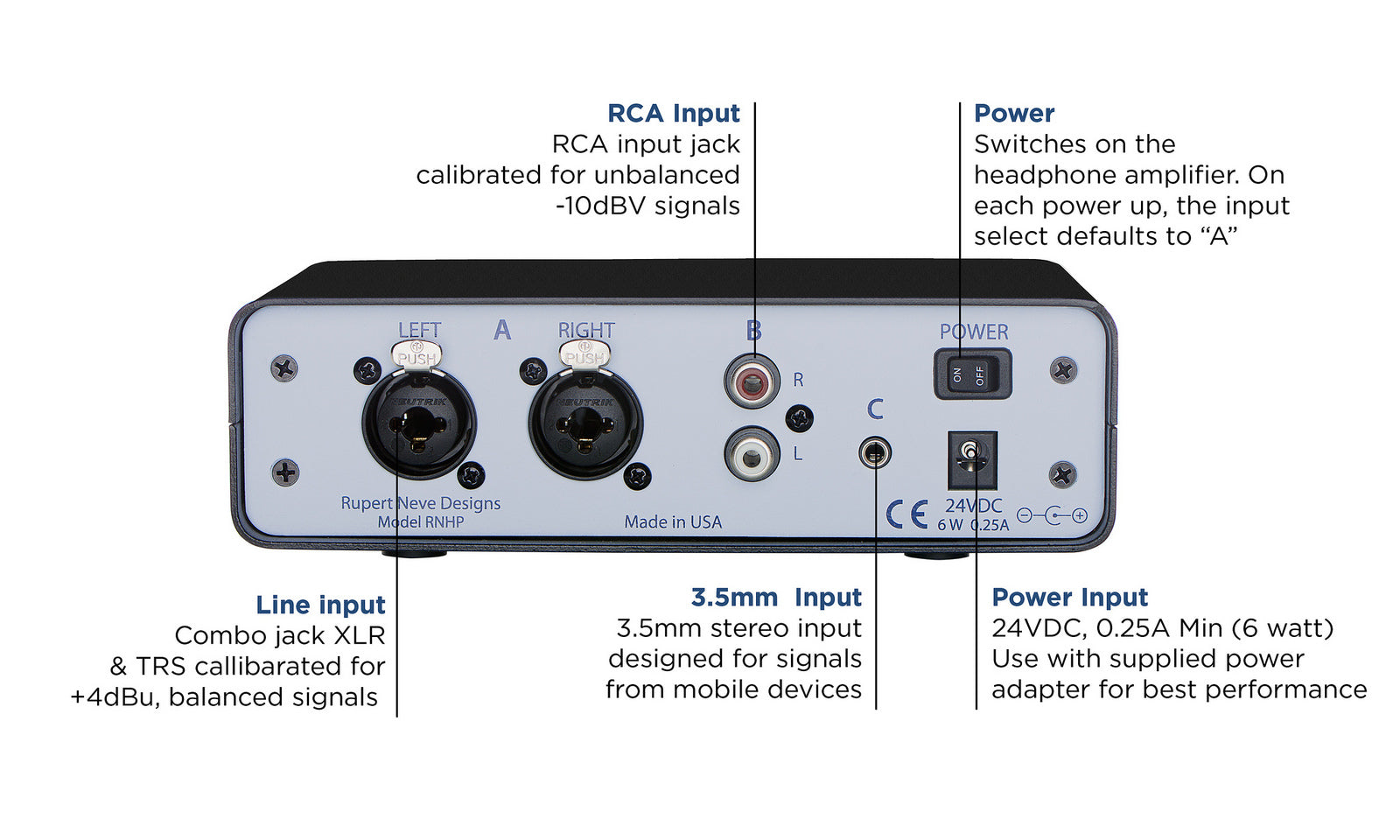

PROFESSIONAL LINE INPUT

The calibrated +4dBu line input is selected with the “A” switch. The combo jack accepts either XLR or TRS inputs for balanced professional devices.

RCA INPUT

The unbalanced RCA input is calibrated for -10dBV signals and is selected with the “B” switch. The RCA jack is commonly used with home stereo devices or Prosumer equipment

3.5MM INPUT

Stereo 3.5mm input specifically calibrated to work with mobile devices like phones, computers and digital cameras

VESA MOUNT

The VESA 100 compatible mount enables you to mount the RNHP wherever it needs to be. Common mounts are pole-mount arm for mic stands, pivoting multi-arm desk mount, and wall / surface mount for securing upside-down under a table, music stand or other studio furniture

STEEL CLAMSHELL CHASSIS

The RNHP’s rugged, solid-steel chassis is built to a high industrial standard with an overhang to protect the connectors and main level control from glancing blows, as well as shock-absorbing rubberized feet

24V DC INPUT

The RNHP can be powered using either the included 6 watt power supply or a 24V, 0.25A min battery (not  sold by RND)



Maximum Input Levels

  • “A” XLR I/P: +22.8 dBu @1kHz
  • “B” RCA I/P: +14.7dBu @1kHz,
  • “C” 3.5mm I/P: +3.3dBu @1kHz

Output Power:

  • As measured with typical headphones, Z=44 Ω: 3.617 VAC RMS @1kHz = 300mW RMS
  • 16 Ω typical Load: 1.933 VAC RMS @1kHz = 230mW RMS
  • 150 Ω typical Load: 5.108 VAC RMS @1kHz = 175mW RMS

Output Impedance

  • .08 Ω @ 1KHz, 16-150 Ω load, 0dBu input

Frequency Response

  • +/- .2dB from 10Hz to 120KHz

Noise

Measured with typical headphones, Z=44 Ω, BW 22Hz – 22kHz

  • “A” XLR Input: -101.9dBV,
  • “B” RCA Input: -100.9dBV
  • “C” 3.5mm Input: -88.8dBV

Power Supply Requirements

  • 24VDC @ 0.25Amp (6 watt) minimum. Use with supplied power adapter, as this has been carefully selected for best output power and noise performance. May be used with a properly configured 24V battery as well.

Manufacturer: Rupert Neve Designs
Model: RNHP
Warranty: See manufacturer website for details
SKU: I430370-N-0
UPC: #752423657346
Listing ID: NA80559
