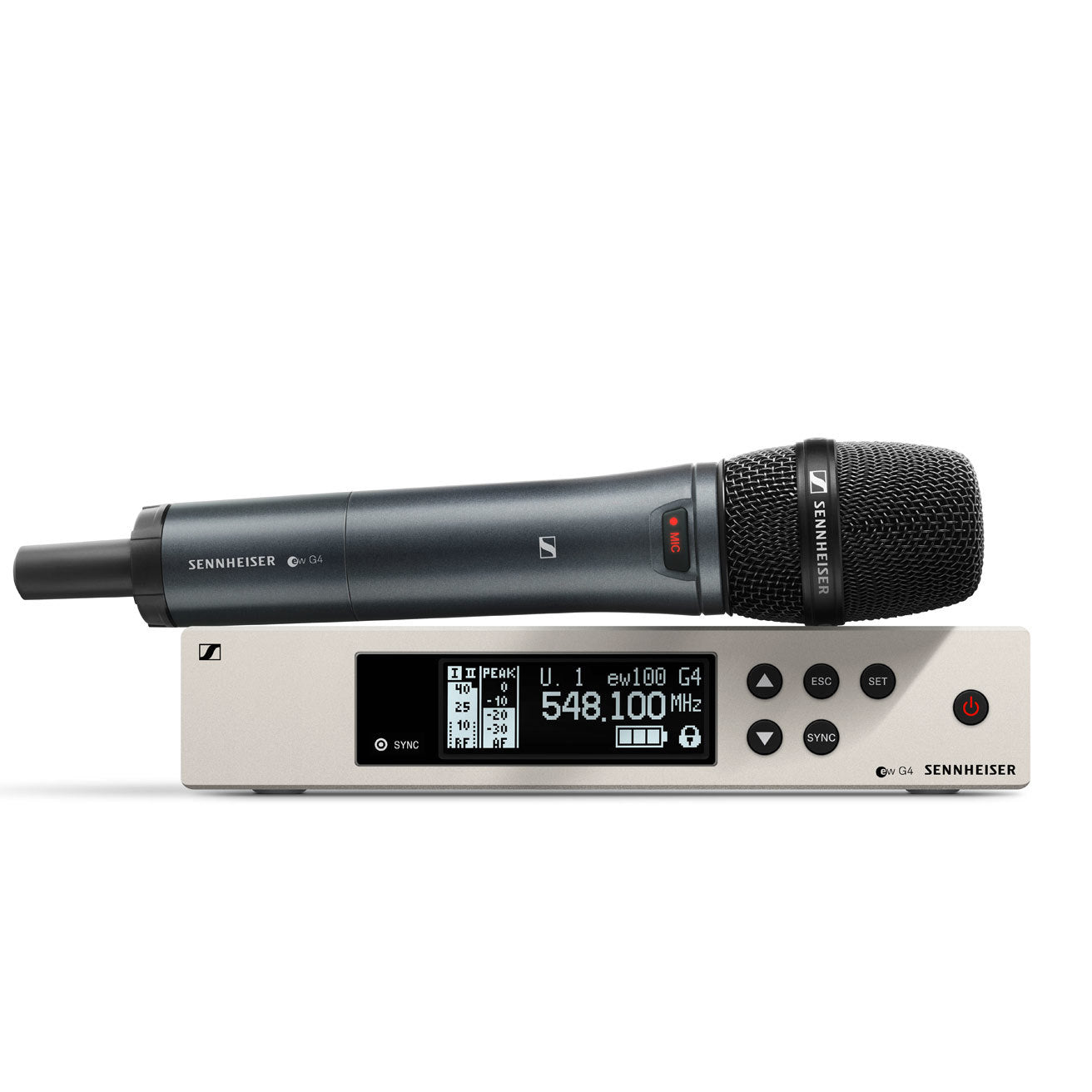

Sennheiser EW 100 G4-835-S-A1 Cardioid Dynamic Wireless System - A1 Band
Couldn't load pickup availability
About Inventory Status
About Inventory Status
Questions? Call or text us at 301-946-8808.
♫ In stock: It is in stock and available to ship or pickup. Apparel must be shipped from another location and is not available for in-store pickup. We can usually ship or have these items available for pickup by the next business day if they don't require inspection, special handling, or setup. Our pickup location is 11151 Veirs Mill Rd. Silver Spring, MD 20902.
📆 Preorder: It is on the way to our warehouse. We can't predict when preorder items will arrive due to current supply chain issues. If you place an order for one of these items someone will contact you to estimate the delivery date.
❓ Out of stock: We don't currently have it available but you're not out of luck yet. We still may be able to get it. If you order one of these items we will contact you with an estimated fulfillment date. You have the option to cancel the order if you change your mind.
❔ Special order: The item is so special that it needs to be custom ordered for you. Some of these items are works of art and have to be made individually. Orders for special order items must be prepaid and we cannot accept cancellations or refunds.
█ Sold out: We don't think we can get this item because it was either discontinued by the manufacturer or was limited in quantity. If you want or need this item call or text us. Sometimes we can help you track down the item through other sources or help you find something similar.
About Item Conditions
About Item Conditions
Questions? Call or text us at 301-946-8808.
New: The item is brand new as received from the manufacturer with a full manufacturer warranty. Instruments such as guitars, snare drums, drum kits, brass and woodwind instruments may be opened for photography and quality control inspection and may not be in a factory sealed box.
Mint or Open Box: The item may have been opened and tested but has been repackaged. The original packaging may have superficial issues but the item itself and any originally included accessories are in perfect, like new condition.
Display Model: These items are so cool that we put them on display in our legendary shop. The condition is brand new as received from the manufacturer with manufacturer warranty. Rest assured, these items undergo a very careful inspection before shipping.
Demo: These items have been on our sales floor for demo purposes and will likely show signs of use. The original packaging may no longer be included, but you can be assured that you are receiving an awesome item and an awesome price.
Used: The item is used. These item may have varying degrees of wear. Please read the description for information about the condition of the item. Used items do not carry a warranty.
B or C Stock: Factory refurbished. These items were purchased from the manufacturer in a refurbished condition. They will show some cosmetic issues, but nothing that would impact performance. Being that these are sealed from the manufacturer, we generally do not open these to photograph the cosmetic issues. They are guaranteed to work and may have a limited warranty or you may purchase an extended warranty in some cases. Please see the listing description for item specific information.
Description
Description
Simple, Flexible, and Reliable - Sennheiser EW 100 G4-835-S-A1 Cardioid Dynamic Wireless System - A1 Band
The Sennheiser 100 series has become the first choice for both sound designers and occasional users because of its intuitive operating concept. Make no compromises in terms of live sound.
- Engineered for professional live sound: Rugged all-in-one wireless system for singers and presenters
- State-of-the-art live sound featuring Sennheiser‘s renowned e 835, e 845, e 865, e 935, e 945 capsules on a lightweight aluminum transmitter with integrated mute switch
- True diversity half-rack receiver in a full-metal housing with intuitive LCD display for full control
- Easy and flexible wireless synchronization between transmitter and receiver via infrared
- Fast frequency allocation for up to 12 receivers via new linking functionality
- Up to 20 compatible channels
- Up to 42 MHz bandwidth with 1680 selectable frequencies, fully tunable in a stable UHF range
- Transmission Range: up to 100 meters / 300 feet
- High RF output power (up to 30 mW) depending on country regulations
SPECIFICATIONS

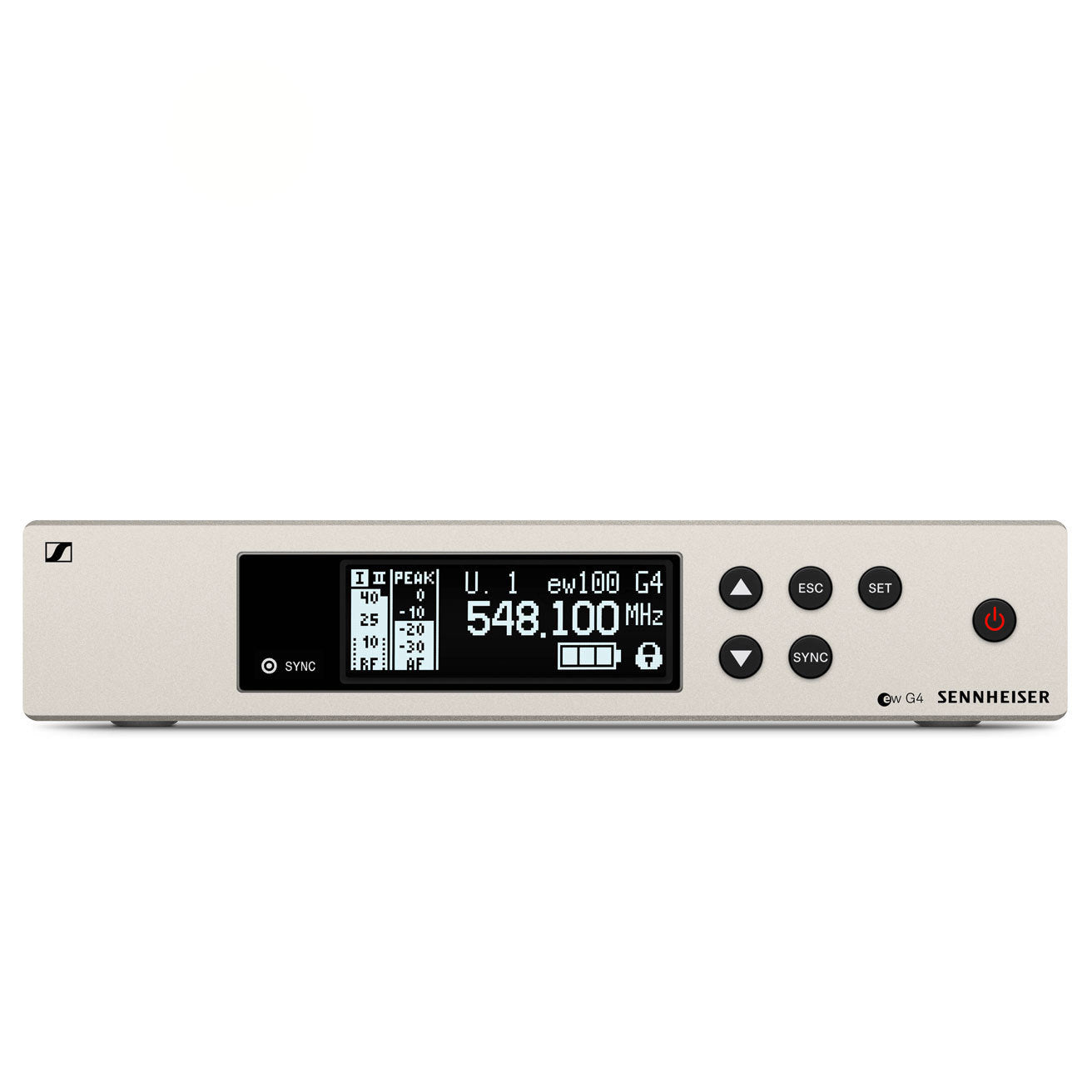

EM 100 G4
- Frequency Range: A1: 470 - 516 MHz
- Dimensions: Approx. 190 x 212 x 43 mm
- THD, Total Harmonic Distortion: ≤ 0.9 %
- Weight: Approx. 980 g
- Audio Output: 6.3 mm jack socket (unbalanced): +12 dBu
- XLR socket (balanced): +18 dBu
- Signal-to-Noise ratio: ≥ 110 dBA
- Switching Bandwidth: Up to 42 MHz
- Peak Deviation: ±48 kHz
- Nominal Deviation: ±24 kHz
- Modulation: Wideband FM
- Power Supply: 12 V DC
- Antenna Connector: 2 BNC sockets
- Current Consumption: 300 mA
- Adjacent Channel Rejection: Typically ≥ 65 dB
- Intermodulation Attenuation: Typically ≥ 65 dB
- Receiving Frequency: Max. 1680 receiving frequencies, adjustable in 25 kHz steps 20 frequency banks, each with up to 12 factory-preset channels, no intermodulation 1 frequency bank with up to 12 programmable channels
- RF Sensitivity: < 2.5 μV for 52 dBA eff S/N
- Squelch Low: 5 dBµV middle: 15 dBµV high: 25 dBμV
- Equalizer
- Preset 1: Flat
- Preset 2: Low Cut (-3 dB at 180 Hz)
- Preset 3: Low Cut/High Boost (-3 dB at 180 Hz, +6 dB at 10 kHz)
- Preset 4: High Boost (+6 dB at 10 kHz)
- Temperature Range: -10 °C to +55 °C
- Receiver Principle: True diversity
- Blocking: ≥ 70 dB
SKM 100 G4-S
- Dimensions: Approx. Ø 50 x 265 mm
- THD, Total Harmonic Distortion: ≤ 0.9 %
- Weight (incl. batteries): Approx. 450 g
- Signal-to-Noise Ratio: ≥ 110 dBA
- RF Output Power: Max. 30 mW
- Switching Bandwidth: Up to 42 MHz
- Peak Deviation: ±48 kHz
- Nominal Deviation: ±24 kHz
- Operating Time: Typically 8 h
- Modulation: Wideband FM
- Power Supply:c2 AA batteries, 1.5 V or BA 2015 accupack
- Current Consumption: at nominal voltage: typ. 180 mA with transmitter switched off: ≤ 25 µA
- Input Impedance: 40 kΩ
- Max. Input Voltage: 3 Veff
- Powering: 3 V battery / 2.4 V rechargeable battery
- Transmission frequency: Max. 1680 transmitting frequencies, adjustable in 25 kHz steps 20 frequency banks, each with up to 12 factory-preset channels, no intermodulation 1 frequency bank with up to 12 programmable channels
- AF Frequency Response: 80 – 18,000 Hz
- Temperature Range: -10 °C to +55 °C
- Frequency Stability: ≤ ±15 ppm
MMD 835-1
- Sound Pressure Level (SPL): 154 dB SPL
- Transducer Principle: Dynamic
- Pick-Up Pattern: Cardioid
- Sensitivity: 2.1 mV/Pa
Manufacturer: Sennheiser
Model: EW 100 G4-835-S-A1
SKU: I670948-0-WHXX
