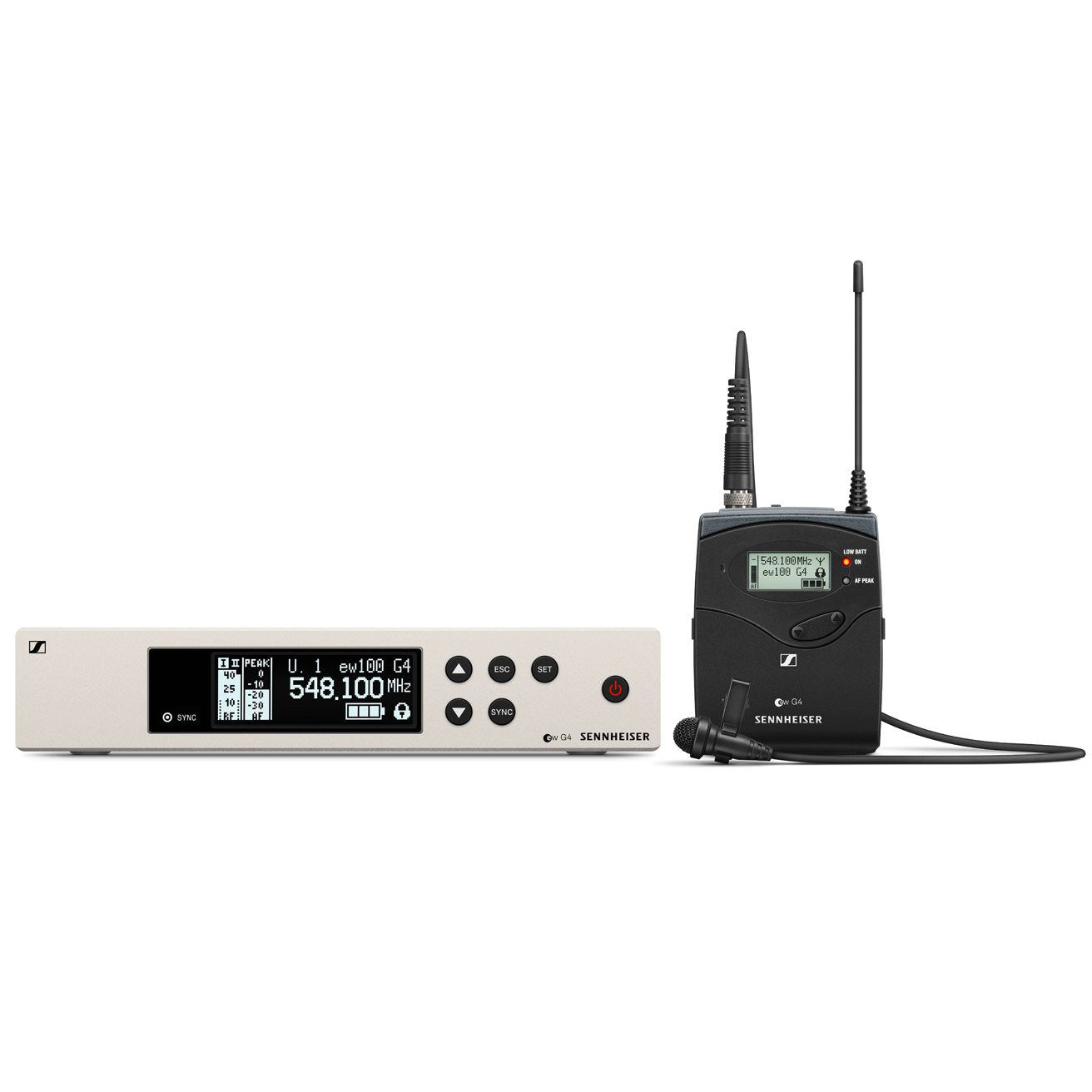

Sennheiser EW 100 G4-ME2 Wireless Lavalier Set - A Frequency


  • Our Price
  • $599.00
  • Regular price MSRP: $749.00



Achieve professional live sound, optimal for public speakers and dynamic singers who perform hands-free, with the Sennheiser EW 100 G4-ME2 Wireless Lavalier Set

Versatile wireless systems for those who sing, speak or play instruments with up to 42 MHz tuning bandwidth in a stable UHF range and fast, simultaneous setup of up to 12 linked systems.

The perfect choice for moderators and presenters: Robust bodypack transmitter and unobtrousive clip-on ME 2-II omni-directional microphone with high speech intelligibility for easy hands-free operation on any stage.

Operates in Frequency Range A: 516 - 558 MHz



Overview

  • Engineered for professional live sound: Rugged all-in-one wireless system for presenters and moderators.
  • Robust bodypack transmitter and unobstrusive clip-on microphone ME 2-II (omni-directional) or ME 4 (cardioid) with high speech intelligibility for daily use on stage
  • True diversity half-rack receiver in a full-metal housing with intuitive LCD display for full control
  • Easy and flexible wireless synchronization between transmitter and receiver via infrared
  • Fast frequency allocation for up to 12 receivers via new linking functionality
  • Up to 20 compatible channels
  • Up to 42 MHz bandwidth with 1680 selectable frequencies, fully tunable in a stable UHF range
  • Transmission Range: up to 100 meters / 300 feet
  • High RF output power (up to 30 mW) depending on country regulations

What's in the box?

  • EM 100 G4 true diversity receiver
  • SK 100 G4 bodypack transmitter
  • ME 2 clip-on microphone (ew 100 G4-ME2 set only)
  • ME 4 clip-on microphone (ew 100 G4-ME4 set only)
  • GA 3 rackmount set
  • power supply
  • 2 AA batteries
  • 2 rod antennas
  • RJ 10 cable
  • quick guide
  • safety guide
  • manufacturer declaration sheet
  • frequency supplement sheet


EM 100 G4

  • Dimensions Approx. 190 x 212 x 43 mm
  • Compander Sennheiser HDX
  • THD, total harmonic distortion ≤ 0.9 %
  • Weight Approx. 980 g
  • Audio output 6.3 mm jack socket (unbalanced): +12 dBu
  • XLR socket (balanced): +18 dBu
  • Signal-to-noise ratio ≥ 110 dBA
  • Switching bandwidth up to 42 MHz
  • Peak deviation ±48 kHz
  • Nominal deviation ±24 kHz
  • Modulation Wideband FM
  • Power supply 12 V DC
  • Antenna connector 2 BNC sockets
  • Current consumption 300 mA
  • Adjacent channel rejection Typically ≥ 65 dB
  • Intermodulation attenuation Typically ≥ 65 dB
  • Receiving frequency Max. 1680 receiving frequencies, adjustable in 25 kHz steps 20 frequency banks, each with up to 12 factory-preset channels, no intermodulation 1 frequency bank with up to 12 programmable channels
  • RF sensitivity < 2.5 uV for 52 dBA eff S/N
  • Squelch low: 5 dBµV middle: 15 dBuV high: 25 dBuV
  • Equalizer Preset 1: Flat
  • Preset 2: Low Cut (-3 dB at 180 Hz)
  • Preset 3: Low Cut/High Boost (-3 dB at 180 Hz, +6 dB at 10 kHz)
  • Preset 4: High Boost (+6 dB at 10 kHz)
  • Receiver Principle True diversity
  • Blocking ≥ 70 dB

SK 100 G4

  • Dimensions Approx. 82 x 64 x 24 mm
  • Compander Sennheiser HDX
  • THD, total harmonic distortion ≤ 0.9 %
  • Weight (incl. batteries) approx. 160 g
  • Signal-to-noise ratio ≥ 110 dBA
  • RF output power Max. 30 mW
  • Switching bandwidth up to 42 MHz
  • Peak deviation ±48 kHz
  • Nominal deviation ±24 kHz
  • Operating time Typically 8 h
  • Modulation Wideband FM
  • Power supply 2 AA batteries, 1.5 V or BA 2015 accupack
  • Current consumption at nominal voltage: typ. 180 mA
  • with transmitter switched off: ≤ 25 µA
  • Max. Input voltage 3 Veff
  • Powering 3 V battery / 2.4 V rechargeable battery
  • Transmission frequency Max. 1680 transmitting frequencies, adjustable in 25 kHz steps 20 frequency banks, each with up to 12 factory-preset channels, no intermodulation 1 frequency bank with up to 12 programmable channels
  • AF frequency response Mic: 80 – 18,000, Hz Line: 25 – 18,000 Hz
  • Frequency stability ≤ ±15 ppm

ME 2

  • Connector 3.5 mm jack
  • Frequency response 50 to 18,000 Hz (ME 2-II)
  • Max. sound pressure level 130 dB
  • Cable length approx. 1.60 m
  • Transducer principle pre-polarized condensor microphone
  • Pick-up pattern omni-directional
  • Sensitivity in free field, no load (1kHz) 20 mV/Pa
  • Equivalent noise level 36 dB

Manufacturer: Sennheiser
Model: EW 100 G4-ME2-A
Warranty: See manufacturer website for details
SKU: I509355-N-4
UPC: #615104308435
Listing ID: NA90879
