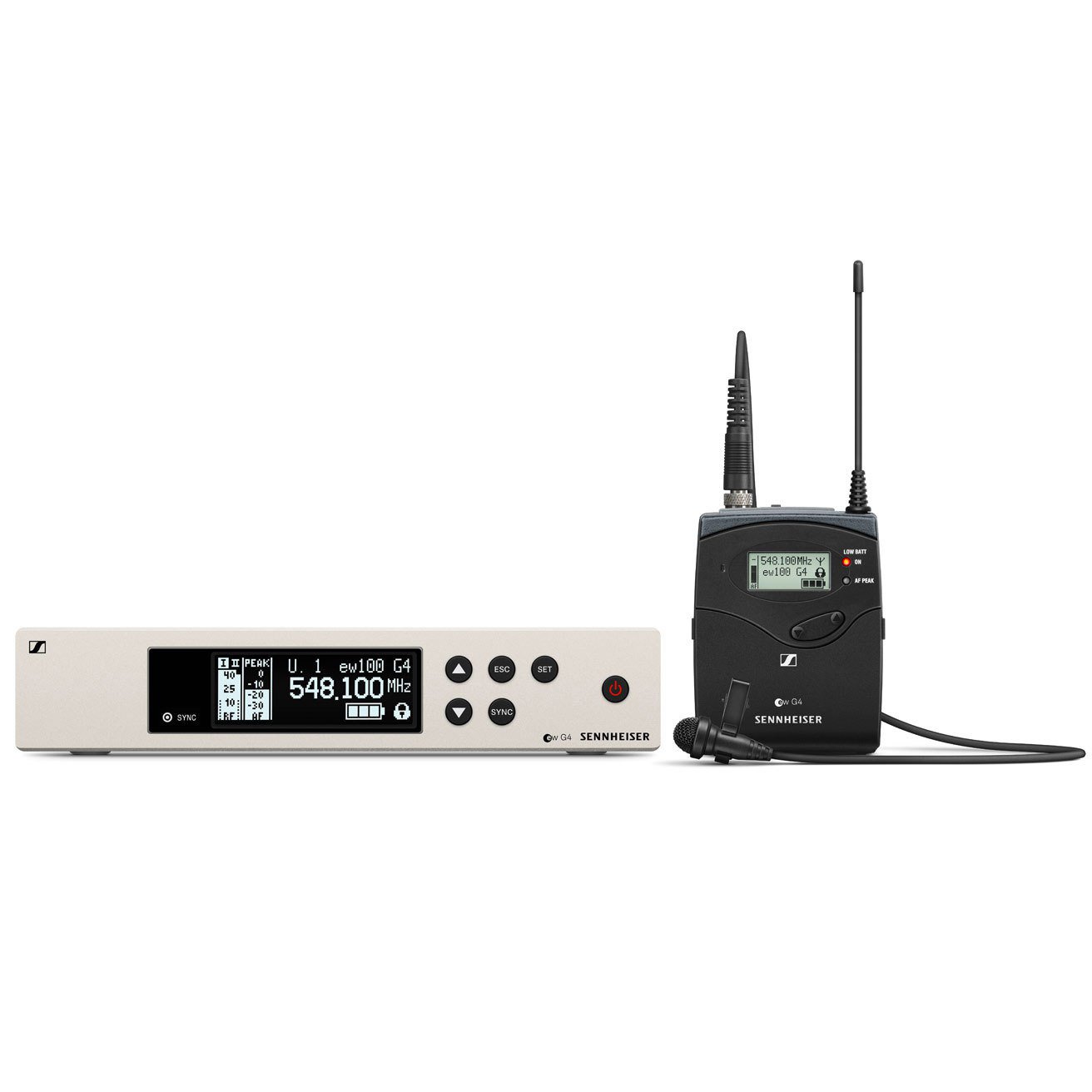

Sennheiser EW 100 G4-ME4 Wireless Lavalier Set - Frequency Range A

Achieve professional live sound, optimal for public speakers and dynamic singers who perform hands-free, with the Sennheiser EW 100 G4-ME4 Wireless Lavalier Set

Versatile wireless systems for those who sing, speak or play instruments with up to 42 MHz tuning bandwidth in a stable UHF range and fast, simultaneous setup of up to 12 linked systems.

The perfect choice for moderators and presenters: Robust bodypack transmitter and unobtrusive clip-on microphone ME 4 (cardioid) with high speech intelligibility for easy hands-free operation on any stage.

• Engineered for professional live sound: Rugged all-in-one wireless system for presenters and moderators.
• Robust bodypack transmitter and unobstrusive clip-on microphone ME 2-II (omni-directional) or ME 4 (cardioid) with high speech intelligibility for daily use on stage
• True diversity half-rack receiver in a full-metal housing with intuitive LCD display for full control
• Easy and flexible wireless synchronization between transmitter and receiver via infrared
• Fast frequency allocation for up to 12 receivers via new linking functionality
• Up to 20 compatible channels
• Up to 42 MHz bandwidth with 1680 selectable frequencies, fully tunable in a stable UHF range
• Transmission Range: up to 100 meters / 300 feet
• High RF output power (up to 30 mW) depending on country regulations

SPECIFICATIONS

EM 100 G4

• Frequency range:A: 516 - 558 MHz
• Dimensions Approx. 7.48" x 8.35" x 1.69"
• Compander Sennheiser HDX
• THD, total harmonic distortion Less than or equal to 0.9 %
• Weight Approx. 980 g
• Audio output 6.3 mm jack socket (unbalanced): +12 dBu
• XLR socket (balanced): +18 dB
• Signal-to-noise ratio Greater Than or equal to 110 dBA
• Switching bandwidth up to 42 MHz
• Peak deviation +/-48 kHz
• Nominal deviation +/-24 kHz
• Modulation Wideband FM
• Power supply 12 V DC
• Antenna connector 2 BNC sockets
• Current consumption 300 mA
• Adjacent channel rejection Typically Greater than or equal to 65 dB
• Intermodulation attenuation Typically Greater than or equal to 65 dB
• Receiving frequency Max. 1680 receiving frequencies, adjustable in 25 kHz steps 20 frequency banks, each with up to 12 factory-preset channels, no intermodulation 1 frequency bank with up to 12 programmable channels
• RF sensitivity: 2.5 uV for 52 dBA eff S/N
• Squelch low: 5 dBuV middle: 15 dBµV high: 25 dBuV
• Equalizer Preset 1: Flat
• Preset 2: Low Cut (-3 dB at 180 Hz)
• Preset 3: Low Cut/High Boost (-3 dB at 180 Hz, +6 dB at 10 kHz)
• Preset 4: High Boost (+6 dB at 10 kHz)
• Temperature Range -10 Degrees C to +55 Degrees C
• Receiver Principle True diversity
• Blocking 70 dB

SK 100 G4

• Dimensions Approx. 3.23" x 2.52" x .94"
• Compander Sennheiser HDX
• THD, total harmonic distortion Less than or equal to 0.9 %
• Weight (incl. batteries) approx. 160 g
• Signal-to-noise ratio 110 dBA
• RF output power Max. 30 mW
• Switching bandwidth up to 42 MHz
• Peak deviation +/- 48 kHz
• Nominal deviation +/- 24 kHz
• Operating time Typically 8 h
• Modulation Wideband FM
• Power supply 2 AA batteries, 1.5 V or BA 2015 accupack
• Current consumption at nominal voltage: typ. 180 mA
• with transmitter switched off: Less Than or Equal to 25 uA
• Input impedance 40 k, unbalanced / 1 M
• Max. Input voltage 3 Veff
• Powering 3 V battery / 2.4 V rechargeable battery
• Transmission frequency Max. 1680 transmitting frequencies, adjustable in 25 kHz steps 20 frequency banks, each with up to 12 factory-preset channels, no intermodulation 1 frequency bank with up to 12 programmable channels
• AF frequency response Mic: 80 18,000 Hz, Line: 25 18,000 Hz
• Frequency stability: ±15 ppm

ME 4

• Connector 3.5 mm jack
• Frequency response 50 to 18,000 Hz
• Max. sound pressure level 120 dB
• Cable length approx. 1.60 m
• Transducer principle pre-polarized condenser microphone
• Pick-up pattern cardioid
• Sensitivity in free field, no load (1kHz) 40 mV/Pa
• Equivalent noise level 31 dB

In The Box

• EM 100 G4 true diversity receiver
• SK 100 G4 bodypack transmitter
• GA 3 rackmount set
• Power supply
• 2 AA batteries
• 2 rod antennas
• RJ 10 cable
• quick guide
• safety guide
• manufacturer declaration sheet
• frequency supplement sheet
