Sennheiser EW-DX 835-S SET Digital Wireless Dual Handheld Set - Q1-9 Band
MSRP: $294900
Couldn't load pickup availability
About Inventory Status
About Inventory Status
Questions? Call or text us at 301-946-8808.
♫ In stock: It is in stock and available to ship or pickup. Apparel must be shipped from another location and is not available for in-store pickup. We can usually ship or have these items available for pickup by the next business day if they don't require inspection, special handling, or setup. Our pickup location is 11151 Veirs Mill Rd. Silver Spring, MD 20902.
📆 Preorder: It is on the way to our warehouse. We can't predict when preorder items will arrive due to current supply chain issues. If you place an order for one of these items someone will contact you to estimate the delivery date.
❓ Out of stock: We don't currently have it available but you're not out of luck yet. We still may be able to get it. If you order one of these items we will contact you with an estimated fulfillment date. You have the option to cancel the order if you change your mind.
❔ Special order: The item is so special that it needs to be custom ordered for you. Some of these items are works of art and have to be made individually. Orders for special order items must be prepaid and we cannot accept cancellations or refunds.
█ Sold out: We don't think we can get this item because it was either discontinued by the manufacturer or was limited in quantity. If you want or need this item call or text us. Sometimes we can help you track down the item through other sources or help you find something similar.
About Item Conditions
About Item Conditions
Questions? Call or text us at 301-946-8808.
New: The item is brand new as received from the manufacturer with a full manufacturer warranty. Instruments such as guitars, snare drums, drum kits, brass and woodwind instruments may be opened for photography and quality control inspection and may not be in a factory sealed box.
Mint or Open Box: The item may have been opened and tested but has been repackaged. The original packaging may have superficial issues but the item itself and any originally included accessories are in perfect, like new condition.
Display Model: These items are so cool that we put them on display in our legendary shop. The condition is brand new as received from the manufacturer with manufacturer warranty. Rest assured, these items undergo a very careful inspection before shipping.
Demo: These items have been on our sales floor for demo purposes and will likely show signs of use. The original packaging may no longer be included, but you can be assured that you are receiving an awesome item and an awesome price.
Used: The item is used. These item may have varying degrees of wear. Please read the description for information about the condition of the item. Used items do not carry a warranty.
B or C Stock: Factory refurbished. These items were purchased from the manufacturer in a refurbished condition. They will show some cosmetic issues, but nothing that would impact performance. Being that these are sealed from the manufacturer, we generally do not open these to photograph the cosmetic issues. They are guaranteed to work and may have a limited warranty or you may purchase an extended warranty in some cases. Please see the listing description for item specific information.
Description
Description
Professional Workflow - The Sennheiser EW-DX 835-S SET Q19 Digital Wireless Dual Handheld Set
Frequency Band: Q1-9 (470.2 - 550 MHz)

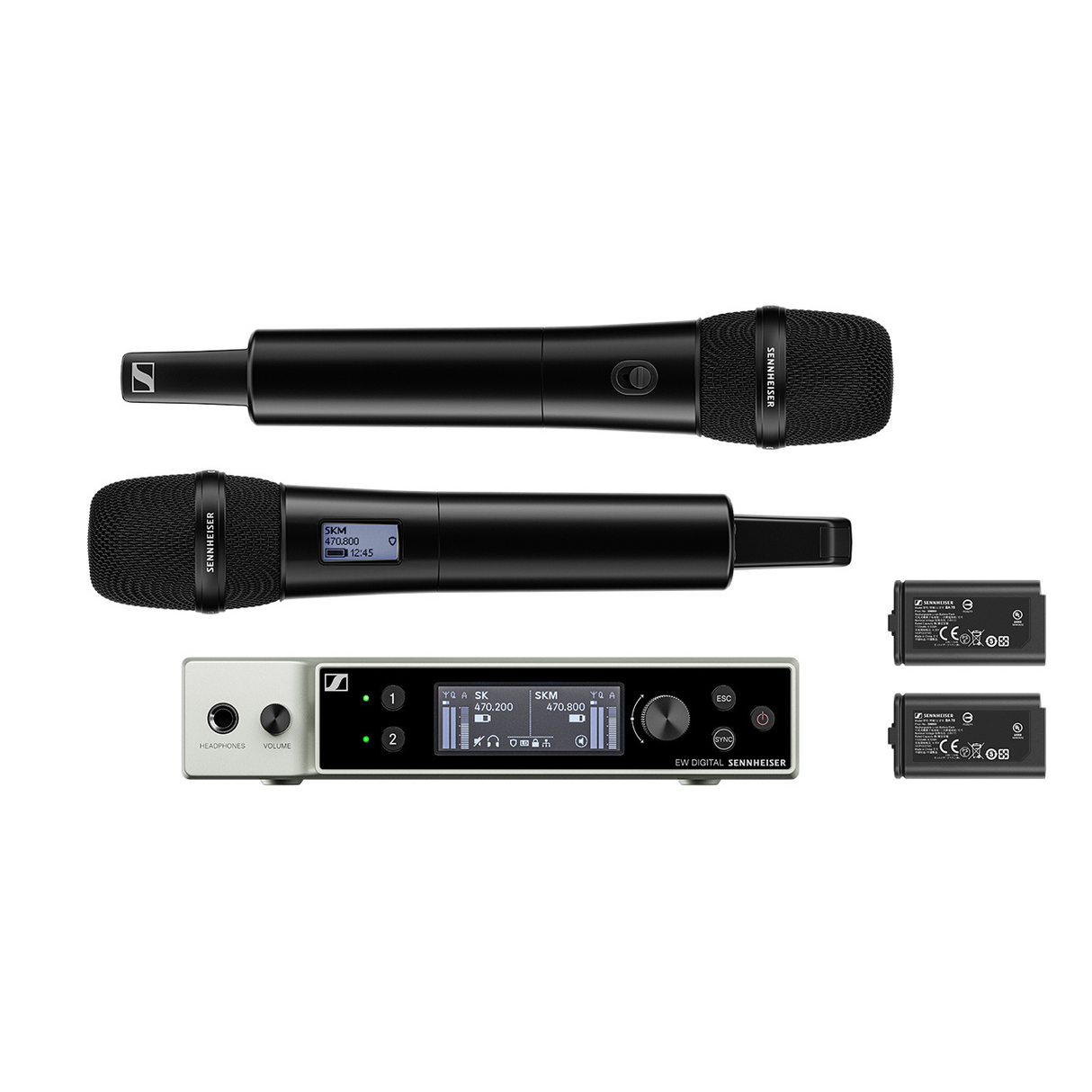

This set consists of two EW-DX SKM-S (handheld with mute switch), two MMD 835 capsule (cardioid, dynamic), one EW-DX EM 2 rackmount receiver (2 channels), and two BA 70 rechargeable batteries.
- 134 dB input dynamic range - no need to set gain on your wireless transmitters at all, thanks to proprietary Sennheiser Performance Audio Codec (SePAC)
- AutoScan-feature quickly scans your environment and deploys frequencies with equidistant channel spacing - even without RF knowledge
- Network enabled for expanded remote control with Sennheiser Control Cockpit, Wireless System Manager (WSM - Available in mid-2023) and 3rd party media control systems via plug-in
- Remote control via Smart Assist App over Bluetooth® Low Energy (BLE) at distances up to 25 meters
- Secure transmission of confidential content using AES 256 encryption
- Up to 12 hours of operation time with rechargeable lithium ion battery BA 70 (included)
- Function buttons - control all the transmitter settings directly from the handheld including button lock function
- Persistent E-Ink display for "always on" information - parameters visible on screen even when taking out batteries
- Equidistant channel spacing to easily allocate intermodulation-free channels: Standard Mode with 600 kHz spacing for up to 146 channels; Link Density (LD) Mode with 300 kHz spacing for up to 293 channels
- Up to 88 MHz switching bandwidth
- Low latency of 1.9 ms wireless transmission thanks to proprietary Sennheiser Performance Audio Codec (SePAC)
- Digital audio trim
- Sennheiser Standard Capsule Interface - compatible with a wide range of Sennheiser and Neumann capsules (sold separately)
- Versatile charging options optionally available: CHG 70 N, L 70 USB, LM 6070 Module for L 6000 full rack charging station
- Worldwide usage (specific frequencies subject to local RF regulations)
Sennheiser EW-DX simplifies your professional workflow by utilizing refined technologies and decades of research to deliver a digital UHF system that can be scaled with ease. With its advanced feature set and hardware options, classrooms, corporate campuses, and live productions benefit from a network-ready system that is designed to integrate seamlessly. The system quickly assesses your environment and uses equidistant channel spacing to deploy frequencies while tools like Sennheiser’s Control Cockpit, Wireless Systems Manager, and Smart Assist App allow you to monitor your system remotely. In-device charging, 12-hour battery operation, and switching bandwidth up to 88 MHz are only a few more of the many features that make EW-DX the right tool for the job.
SPECIFICATIONS
System
- Bluetooth Low Energy (BLE) Frequency Range: 2405 - 2480 MHz
- Audio Frequency Response: 20 Hz - 20 kHz (-3 dB) @ 3 dBfs
- Total Harmonic Distortion (THD): ≤ -60 dB for 1 kHz @ -3 dBfs input level
- Dynamic Range: 134 dB
- System Latency: 1.9 ms
- RF Technology: Intelligent Switching Diversity
- Operating Temperature: -10 °C - +55 °C (14 °F - 131 °F)
- Operating Relative Humidity: 5 - 95 % (non-condensing)

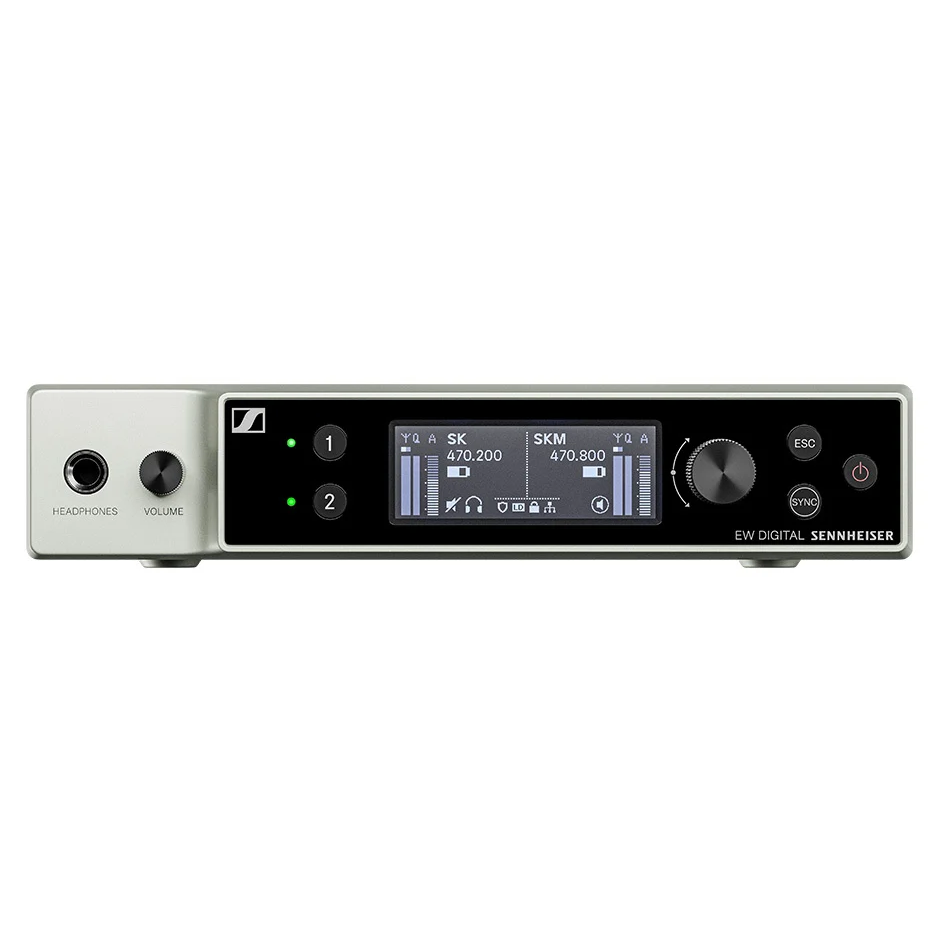

EW-DX EM 2 (Rack Receiver)
- Input Voltage Range: 11 - 13 V ⎓ or PoE IEEE 802.3af Class 0
- Input Current: ≤ 1A
- Transmission Power: BLE: max. 10 mW EIRP
- Audio Output Power: 18 dBu max.
- Ethernet: RJ-45 socket, IEEE802.3, 100Base-TX (half+full duplex), 10Base-T (half+full duplex), (CAT5e or higher)
- Dimensions: 212 x 44 x 189 mm
- Weight: approx. 1000 g (without antennas and power supply)

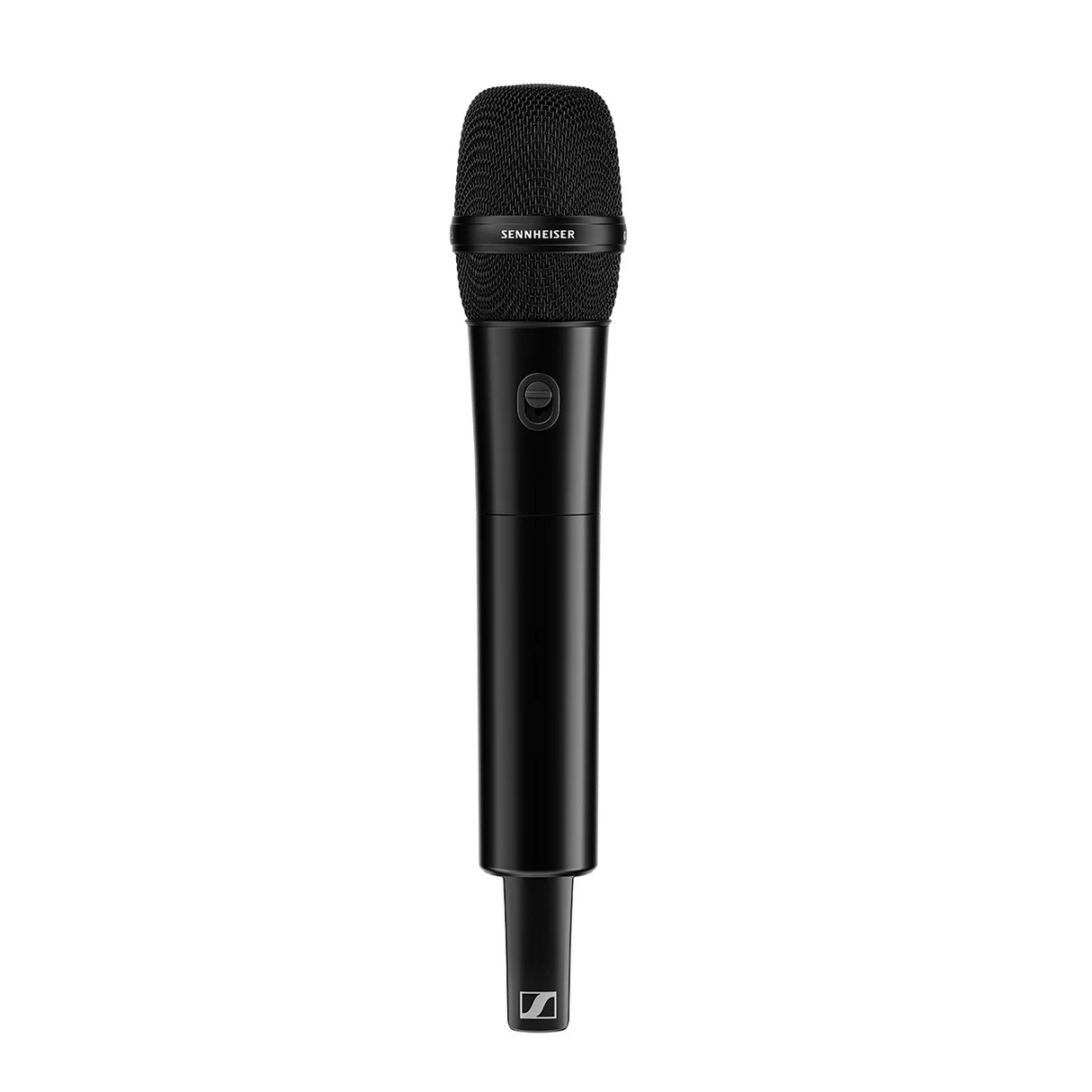

EW-DX SKM (Handheld Transmitter)
- Input Voltage: 2.0 - 4.35 V
- Input Current: ≤ 300 mA
- Power Supply: 2 AA batteries 1.5 V (alkaline manganese) or BA 70 rechargeable battery pack
- Occupied Bandwidth: 200 kHz
- Transmit power (radiated): Audio link: 10 mW ERP, (Range Y1-3): 12 mW ERP, LD mode: 10 mw ERP, BLE: max. 10 mW EIRP
- Dimensions: 50 x 268 mm (incl. MMD 835 microphone module)
MMD 835 (Microphone Module)
- Transducer Principle: Dynamic
- Sensitivity: 2,1 mV/Pa
- Sound Pressure Level (SPL): 154 dB SPL
- Pick-up pattern: Cardioid
MMD 835 (Microphone Module)
- Transducer Principle: Dynamic
- Sensitivity: 2,1 mV/Pa
- Sound Pressure Level (SPL): 154 dB SPL
- Pick-up pattern: Cardioid
EW-DX SK (Bodypack Transmitter)
- Input Voltage: 2.0 - 4.35 V
- Input Current: ≤ 300 mA
- Power Supply: 2 AA batteries 1.5 V (alkaline manganese) or BA 70 rechargeable battery pack
- Occupied Bandwidth: 200 kHz
- Dimensions: 63 x 80 x 20 mm (without antenna)
- Weight: approx. 120 g (without batteries)
MKE 2 (Lavalier Microphone)
- Transducer Principle: pre-polarized condensor microphone
- Pick-up Pattern:; Omni-directional
- Sensitivity in free field, no load (1 kHz): 5 mV/Pa +- 3 dB
- Max. SPL at 1 kHz: 142 dB
- Frequency Response: 20 to 20,000 Hz
- Equivalent noise level A-weighted: 26 dB
- Connector: 3.5 mm jack
- Cable Length: approx. 1.60 m (62.99 inches)
- Supply Voltage: 7.5 V
Manufacturer: Sennheiser
Model: EW-DX 835-S SET (Q1-9)
SKU: I722247-N-4-WHXD
UPC: 615104360747
