Amplify Yourself - The Sennheiser EW-DX MKE 2/835-S Wireless Dual Handheld and Lavalier System

Frequency Band: R1-9 (520 - 607.8 MHz)

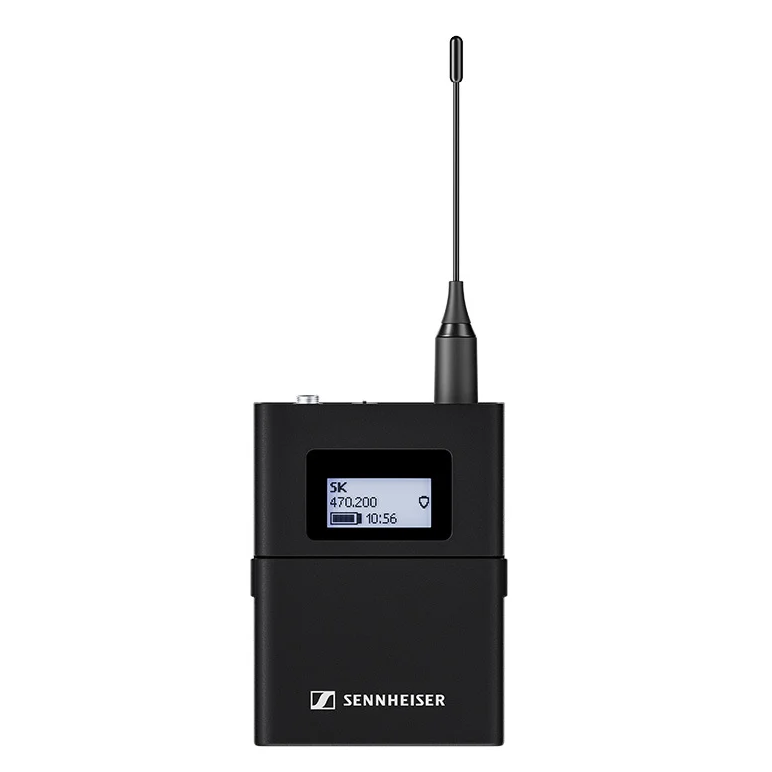

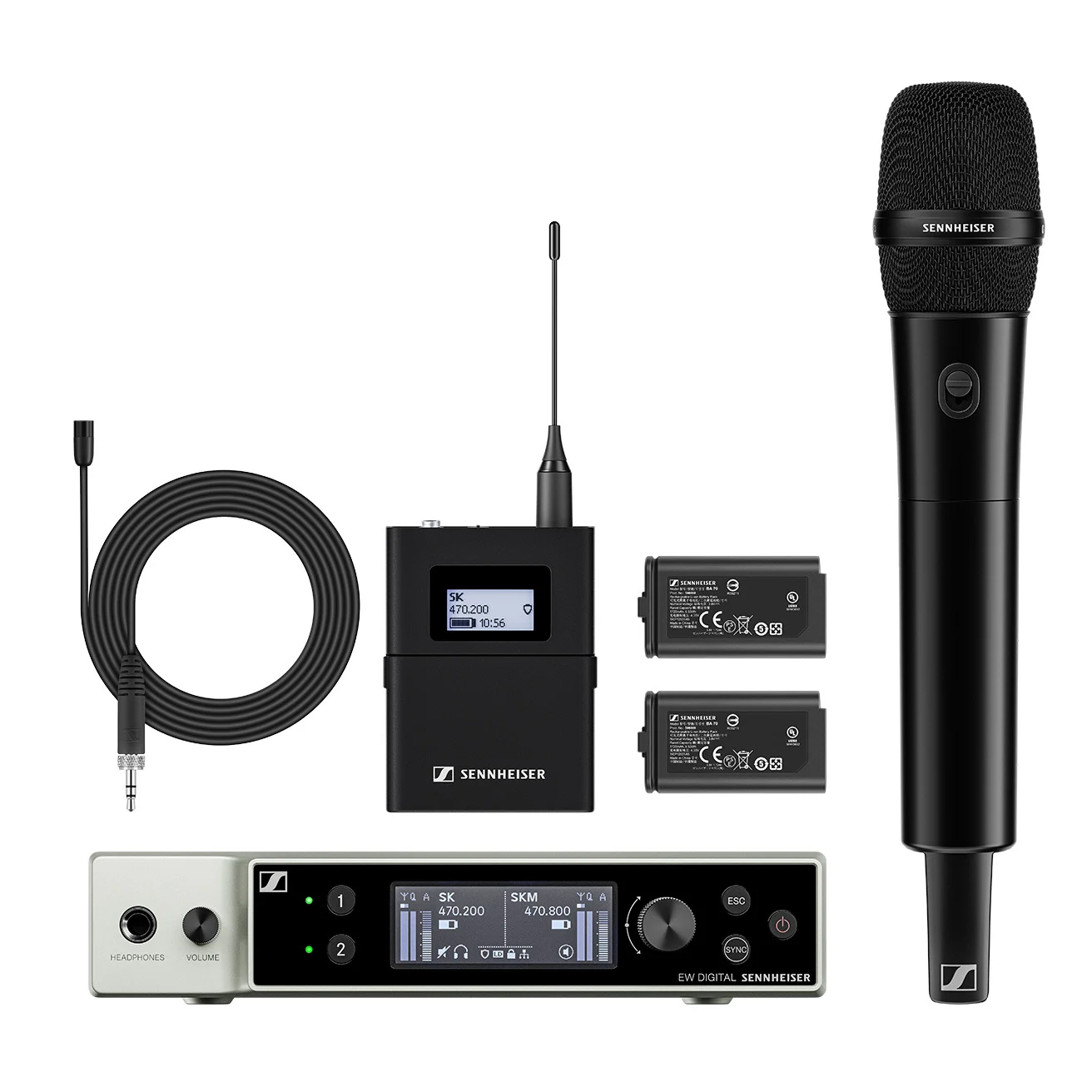

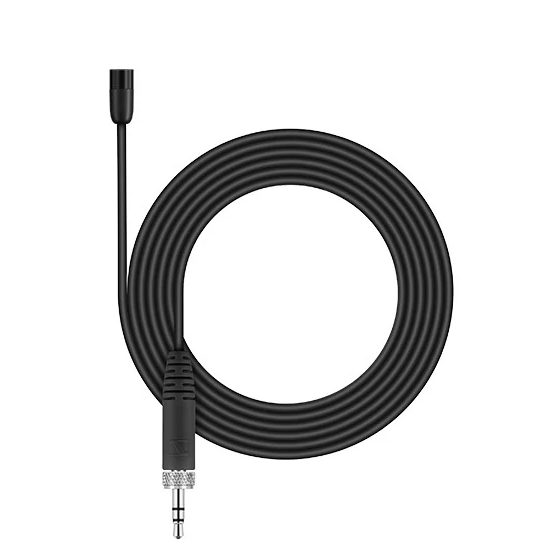

This combo set consists of 1 x EW-DX SKM-S (handheld with mute switch), 1 x MMD 835 capsule (cardioid, dynamic), 1 x EW-DX SK (wireless bodypack transmitter), 1 x MKE 2 (omni-directional clip-on lavalier microphone), 1 x EW-DX EM 2 rackmount receiver (2 channels) and 2 x BA 70 rechargeable batteries.


  • 134 dB input dynamic range - no need to set gain on your wireless transmitters at all, thanks to proprietary Sennheiser Performance Audio Codec (SePAC)
  • AutoScan-feature quickly scans your environment and deploys frequencies with equidistant channel spacing - even without RF knowledge
  • Network enabled for expanded remote control with Sennheiser Control Cockpit, Wireless System Manager (WSM - Available in mid-2023) and 3rd party media control systems via plug-in
  • Remote control via Smart Assist App over Bluetooth® Low Energy (BLE) at distances up to 25 meters
  • Secure transmission of confidential content using AES 256 encryption
  • Up to 12 hours of operation time with rechargeable lithium ion battery BA 70 (included)
  • Function buttons - control all the transmitter settings directly from the handheld including button lock function
  • Persistent E-Ink display for "always on" information - parameters visible on screen even when taking out batteries
  • Equidistant channel spacing to easily allocate intermodulation-free channels: Standard Mode with 600 kHz spacing for up to 146 channels; Link Density (LD) Mode with 300 kHz spacing for up to 293 channels
  • Up to 88 MHz switching bandwidth
  • Low latency of 1.9 ms wireless transmission thanks to proprietary Sennheiser Performance Audio Codec (SePAC)
  • Digital audio trim
  • Sennheiser Standard Capsule Interface - compatible with a wide range of Sennheiser and Neumann capsules (sold separately)
  • Versatile charging options optionally available: CHG 70 N, L 70 USB, LM 6070 Module for L 6000 full rack charging station
  • Worldwide usage (specific frequencies subject to local RF regulations)


Sennheiser EW-DX simplifies your professional workflow by utilizing refined technologies and decades of research to deliver a digital UHF system that can be scaled with ease. With its advanced feature set and hardware options, classrooms, corporate campuses, and live productions benefit from a network-ready system that is designed to integrate seamlessly. The system quickly assesses your environment and uses equidistant channel spacing to deploy frequencies while tools like Sennheiser’s Control Cockpit, Wireless Systems Manager, and Smart Assist App allow you to monitor your system remotely. In-device charging, 12-hour battery operation, and switching bandwidth up to 88 MHz are only a few more of the many features that make EW-DX the right tool for the job.


SPECIFICATIONS

System

  • Bluetooth Low Energy (BLE) Frequency Range: 2405 - 2480 MHz
  • Audio Frequency Response: 20 Hz - 20 kHz (-3 dB) @ 3 dBfs
  • Total Harmonic Distortion (THD): ≤ -60 dB for 1 kHz @ -3 dBfs input level
  • Dynamic Range: 134 dB
  • System Latency: 1.9 ms
  • RF Technology: Intelligent Switching Diversity
  • Operating Temperature: -10 °C - +55 °C (14 °F - 131 °F)
  • Operating Relative Humidity: 5 - 95 % (non-condensing)

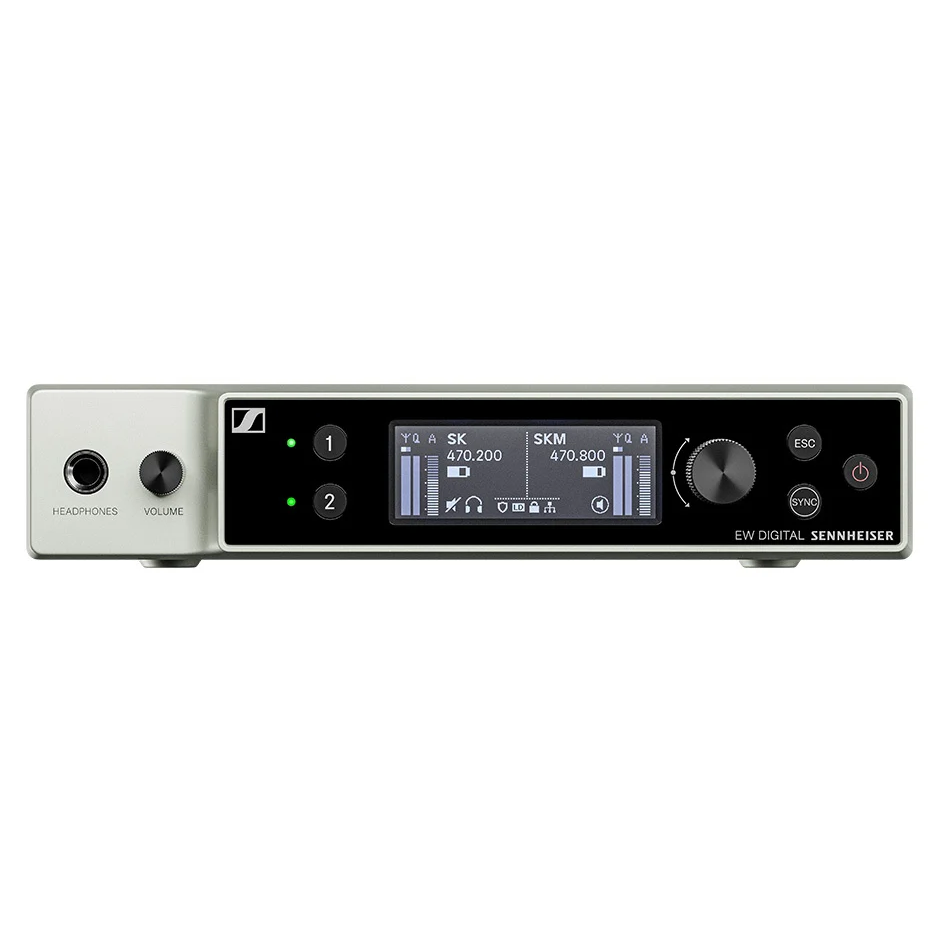

EW-DX EM 2 (Rack Receiver)

  • Input Voltage Range: 11 - 13 V ⎓ or PoE IEEE 802.3af Class 0
  • Input Current: ≤ 1A
  • Transmission Power: BLE: max. 10 mW EIRP
  • Audio Output Power: 18 dBu max.
  • Ethernet: RJ-45 socket, IEEE802.3, 100Base-TX (half+full duplex), 10Base-T (half+full duplex), (CAT5e or higher)
  • Dimensions: 212 x 44 x 189 mm
  • Weight: approx. 1000 g (without antennas and power supply)

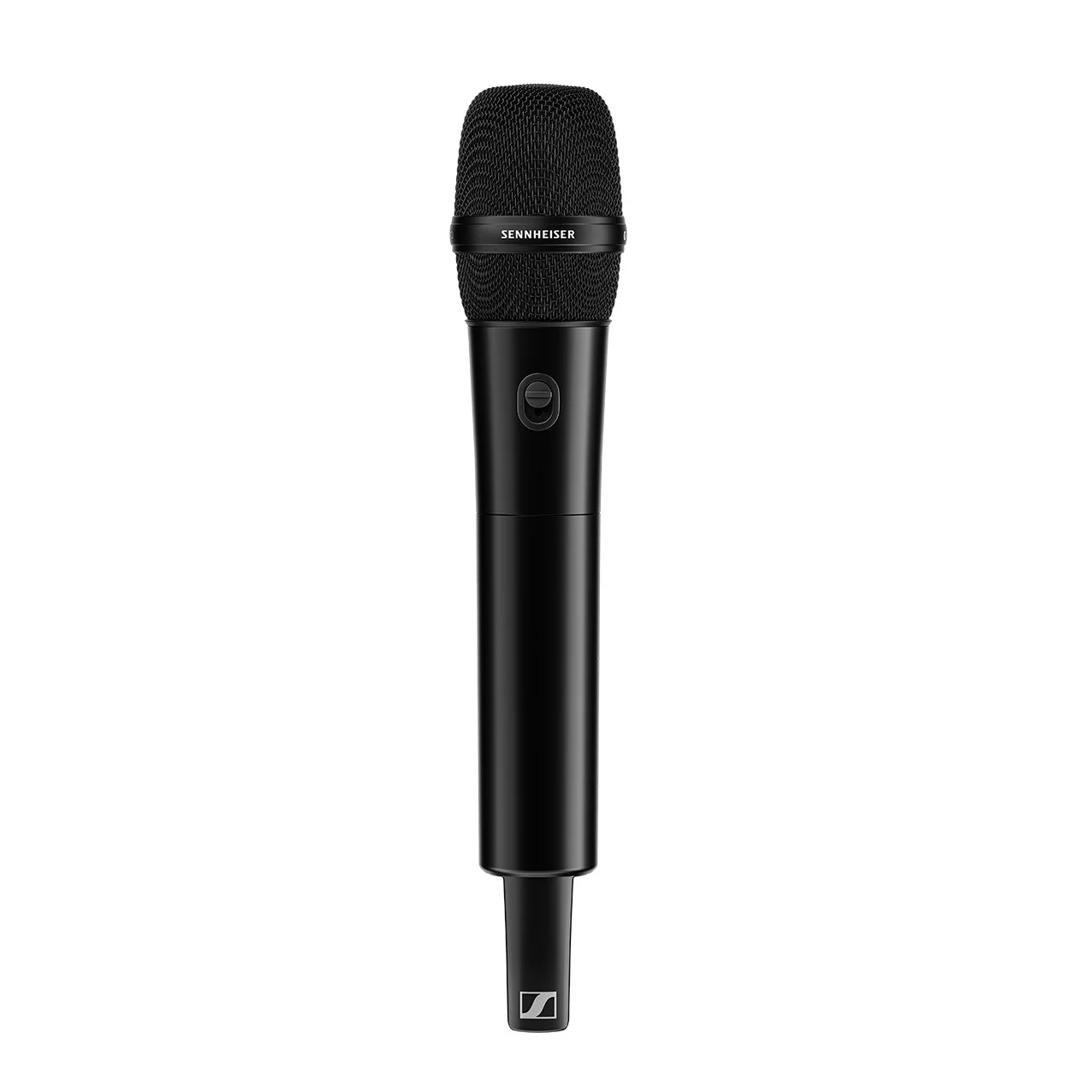

EW-DX SKM (Handheld Transmitter)

  • Input Voltage: 2.0 - 4.35 V
  • Input Current: ≤ 300 mA
  • Power Supply: 2 AA batteries 1.5 V (alkaline manganese) or BA 70 rechargeable battery pack
  • Occupied Bandwidth: 200 kHz
  • Transmit power (radiated): Audio link: 10 mW ERP, (Range Y1-3): 12 mW ERP, LD mode: 10 mw ERP, BLE: max. 10 mW EIRP
  • Dimensions: 50 x 268 mm (incl. MMD 835 microphone module)


Manufacturer: Sennheiser
Model: EW-DX MKE 2 / 835-S SET (R1-9)
SKU: I722251-N-1-WHXC
UPC: 615104361201
