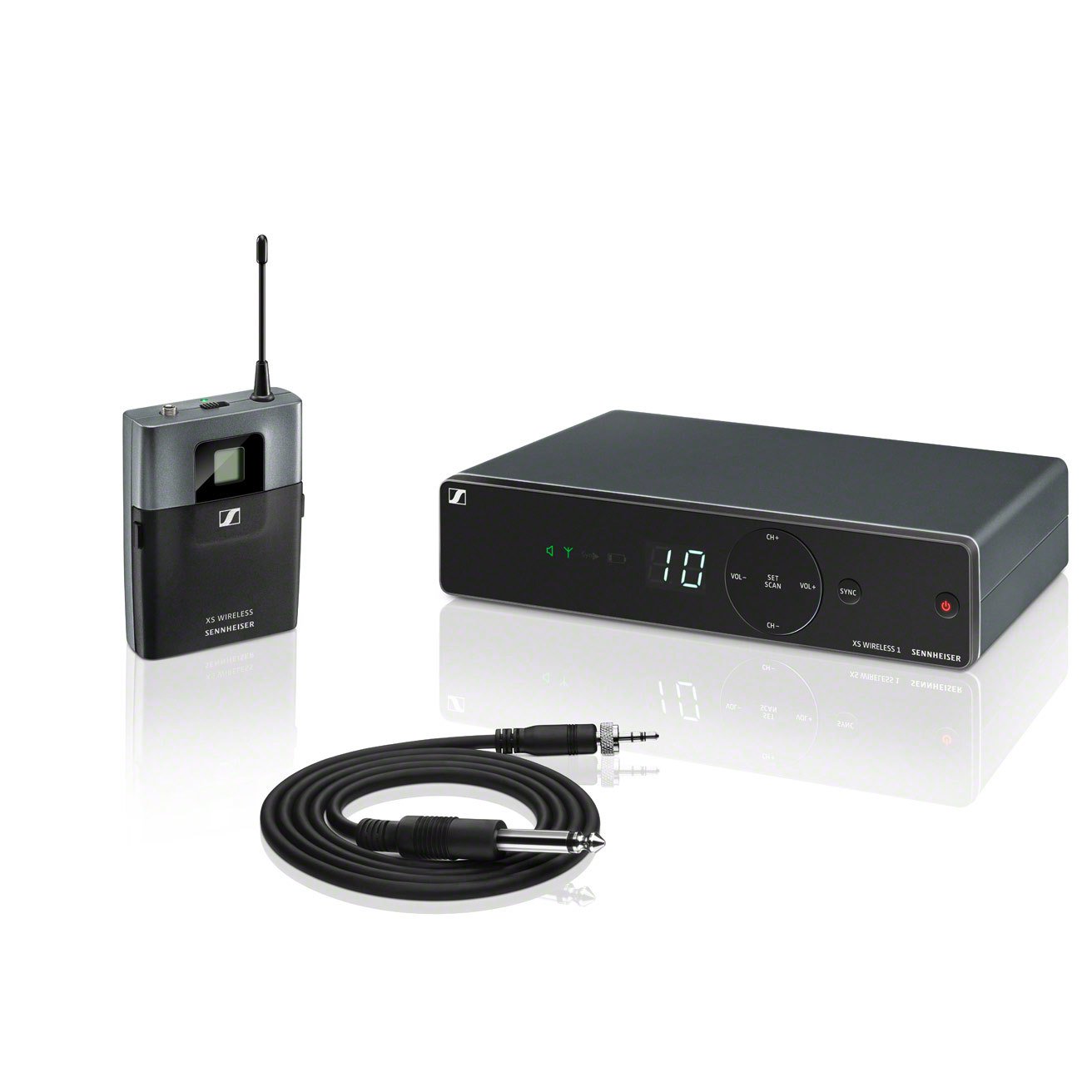

Sennheiser XSW 1-CI1-A Guitar Wireless Instrument System


  • Our Price
  • $269.00
  • Regular price MSRP: $319.00

*IN STOCK - READY TO SHIP





Break Free From The Confines Of Cables With The Sennheiser XSW 1-CI1-A Guitar Wireless Instrument System

Amplify your tunes. Go for XS WIRELESS 1 and rely on a solid wireless transmission with up to 10 compatible channels in a stable UHF band. The XS WIRELESS 1 INSTRUMENT SET is an easy to use all-in-one wireless system for guitarists and bassists, excellent for live sound. The set includes an intuitive stationary receiver for quick set-up and hassle-free handling, as well as a compact bodypack transmitter and a robust instrument cable.

This wireless system operates on a frequency range of 548-572 MHz


  • Compact bodypack transmitter, rugged instrument cable
  • Antenna-switching diversity reception
  • Integrated antennas
  • Automatic frequency management and synchronization via remote channel for easy setup
  • Selectable UHF frequencies within a large bandwidth
  • Up to 10 compatible channels


SPECIFICATIONS

  • Frequency Range A: 548-572 MHz
  • Dimensions Receiver: approx. 200 x 42 x 127 mm
  • Bodypack transmitter: approx. 71 x 96 x 28 mm
  • THD, total harmonic distortion 0.9%
  • Weight approx. 340g (receiver), approx. 95g (transmitter)
  • Signal-to-noise ratio 103 dBA
  • RF output power 10 mW
  • Switching bandwidth up to 24 MHz
  • Operating time approx. 10 hrs
  • Modulation Wideband FM
  • Power supply Receiver: 12 V DC nom. / 300 mA
  • Transmitter: 2 AA size batteries, 1.5 V
  • Output voltage 1/4 (6.3 mm) jack socket (unbalanced): +6 dBu, XLR socket (balanced): +12 dBu
  • Housing Rugged ABS housing
  • Frequency 8 frequency banks, each with up to 10 factory-preset channels
  • Sensitivity: 3V at 52 dB(A)rms S/N
  • SPL for peak deviation 130 dB
  • Squelch adjustable from 3 dB¼V to 28 dB¼V (combined with pilot tone)
  • Synchronization 2.4 GHz, Low Power OQPSK (only active during synchronization)
  • Input sensitivity 1.5 mV / Pa
  • AF frequency response Receiver: 50 to 16,000 Hz (3 dB)
  • Adjustment Range Transmitter 0 to -30 dB, adjustable in 10 dB steps
  • Audio adjustment range 45 dB, adjustable in 5-dB steps
  • Line / Mic level 20 dB, switchable
  • Temperature Range operation: 0°C to +40°C, storage: 20°C to +70°C
  • Receiver Principle double superheterodyne
  • Diversity principle Antenna switching diversity via internal antennas

Included In The Box

  • 1 receiver EM-XSW 1
  • 1 bodypack transmitter SK-XSW
  • 1 instrument cable Cl1
  • 1 power supply NT 12-5 CW
  • 2 AA batteries

Manufacturer: Sennheiser
Model: XSW 1-CI1-A
Warranty: See manufacturer website for details
SKU: I450767-N-1-B
UPC: 615104278448
