Sennheiser XSW-D Pedalboard Set

  • Our Price
  • $379.00
  • Regular price MSRP: $479.00


Connect Your Audio With The Sennheiser XSW-D Pedalboard Set

One-touch ease-of-use wireless audio set that utilizes a digital transmission to seamlessly link audio sources. This elegant solution allows you to play guitar wirelessly and still use a pedalboard, all while maintaining a reliable connection.



  • One touch ease-of-use
  • 2.4 GHz digital transmission for worldwide operation
  • 75m range (250ft) in optimal conditions
  • Up to 5 hours battery life on a single charge
  • Switch between multiple transmitters linked to one receiver
  • Configure any combination of transmitters and receivers
  • Mute from either transmitter or receiver


  • XSW-D XLR Female TX: approx. 102 x 24 x 28 mm
  • XSW-D Mini Jack TX: approx. 86 x 24 x 28 mm
  • XSW-D Instrument TX: approx. 122 x 24 x 28 mm
  • XSW-D XLR Male RX: approx. 109 x 24 x 28 mm
  • XSW-D Mini Jack RX: approx. 86 x 24 x 28 mm
  • XSW-D Instrument RX: approx. 122 x 24 x 28 mm
  • XSW-D Pedalboard RX: approx. 130 x 82 x 51 mm

Total Harmonic Distortion

  • 0.1 %

Charging Time

  • typ. 3 h

Audio Output

  • max. 12 dBu

Operating Temperature

  • -10 degrees C to +55 degrees C (14 degrees F to 131 degrees F)

Signal-To-Noise Ratio

  • Less than or equal to 106 dB

Operating Time

  • up to 5 h


  • GFSK with TDMA


  • Li-Ion


  • 850 mAh


  • aptX Live

Frequency Range

  • 2,400 - 2,483.5MHz

Max Input Value

  • typ. 5.0 V

Transmission Power

  • max. 10 mW


  • 3.7 V

Operating Relative Humidity

  • 95 % (non-condensing)


  • 4 ms

Temperature Range

  • 0 degrees C - 60 degrees C (32 degrees F - 140 degrees F)

Audio Frequency Response

  • 3.5 mm Jack/XLR: 80 - 18,000 Hz6.3 mm Jack: 10 - 18,000 Hz

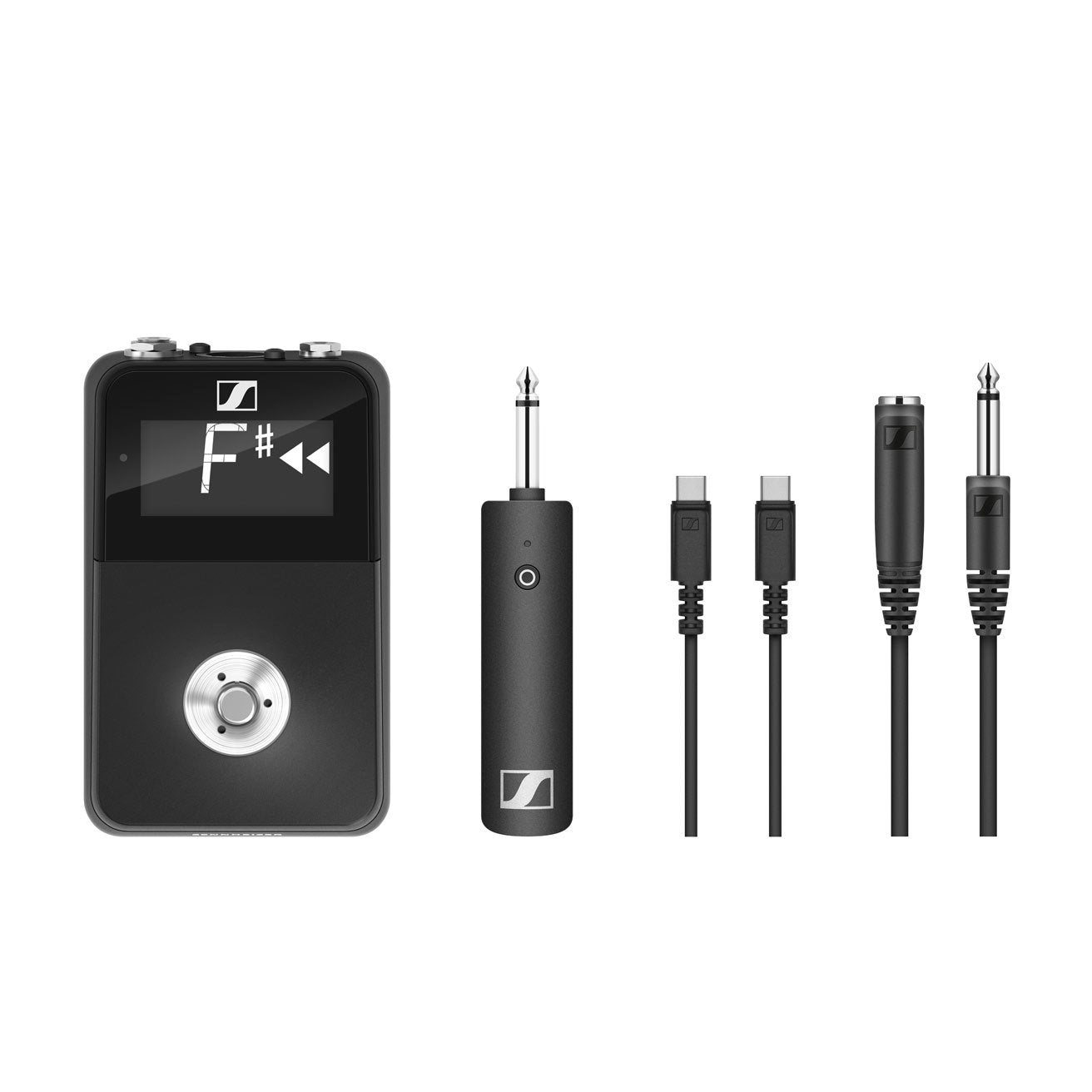

In The Box

  • XSW-D 6.3mm (1/4") transmitter
  • XSW-D Pedalboard receiver
  • Receiver power supply
  • Extension cable 6.3mm (1/4")
  • Belt clip
  • USB-C to USB-C charging cable

Manufacturer: Sennheiser
SKU: I576861-N-1-WHXD
UPC: 615104317758
