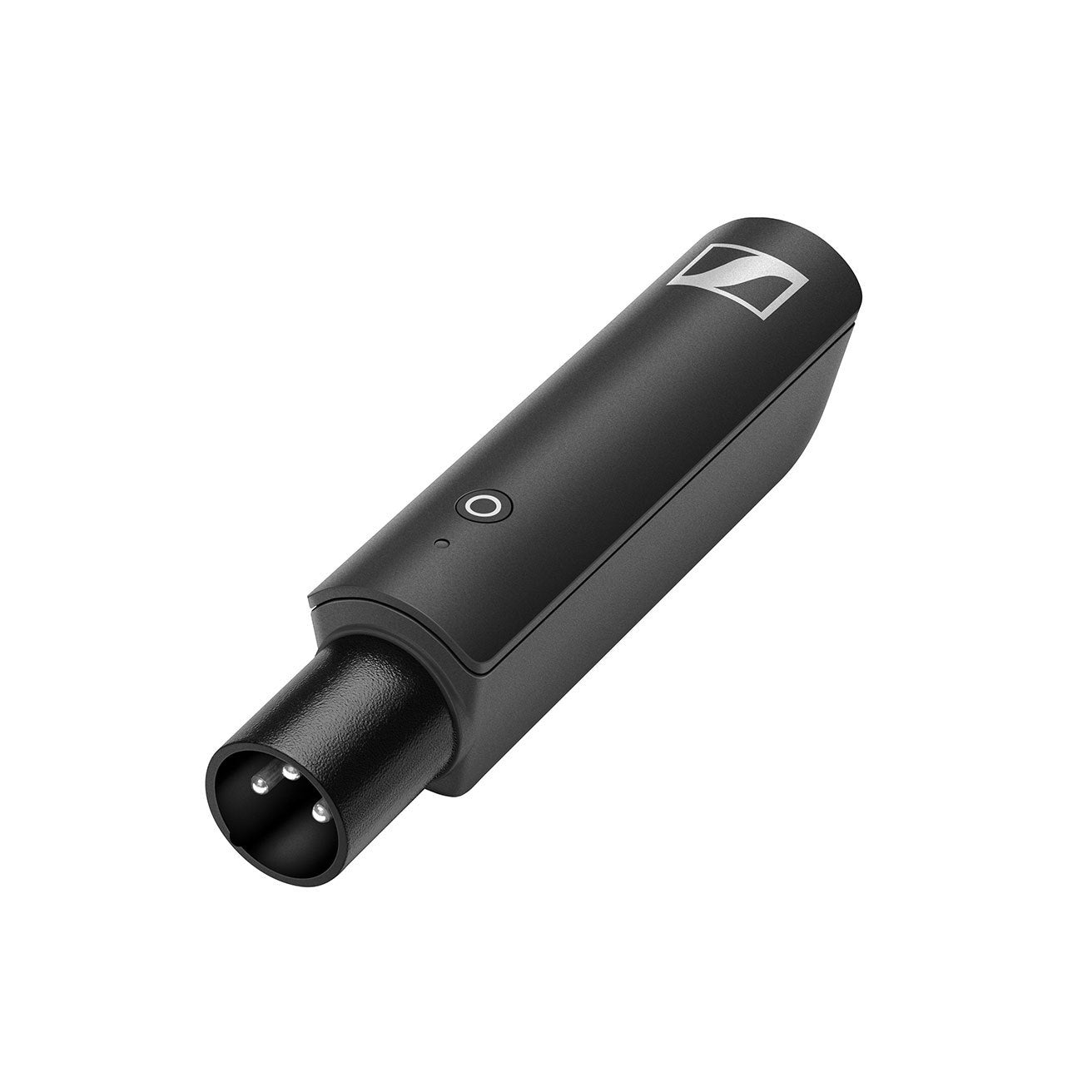

Sennheiser XSW-D XLR Male RX Wireless Digital Receiver

Add Compatible Receivers To An Existing Senneheiser XSW System With The Sennheiser XSW-D XLR Male RX Wireless Digital Receiver

XSW-D receiver with male XLR output. Compatible with:

• XSW-D Lavalier Set
• XSW-D Presentation Base Set
• XSW-D Vocal Set
• XSW-D XLR Base Set

SPECIFICATIONS

General

• THD, total harmonic distortion: 0.1%
• Charging Time: typ. 3 hours
• Audio output: max. 12 dBu
• Signal-to-noise ratio: less than or equal to 106 dB
• Operating time: Up to 5 h
• Modulation: GFSK with TDMA
• Battery Specification: Li-Ion
• Capacity: 850 mAh
• Codecs: aptX Live
• Frequency range: 2,400 - 2,483.5MHz
• Max. Input voltage: typ. 5.0 V
• Transmission power: max. 10 mW
• Voltage: 3.7 V
• Latency: < 4 ms
• Audio frequency response: 3.5 mm Jack/XLR: 80 - 18,000 Hz6.3 mm Jack: 10 - 18,000 Hz

Dimensions

• XSW-D XLR Male RX: approx. 109 x 24 x 28 mm

In The Box

• USB-A to USB-C charging cable
