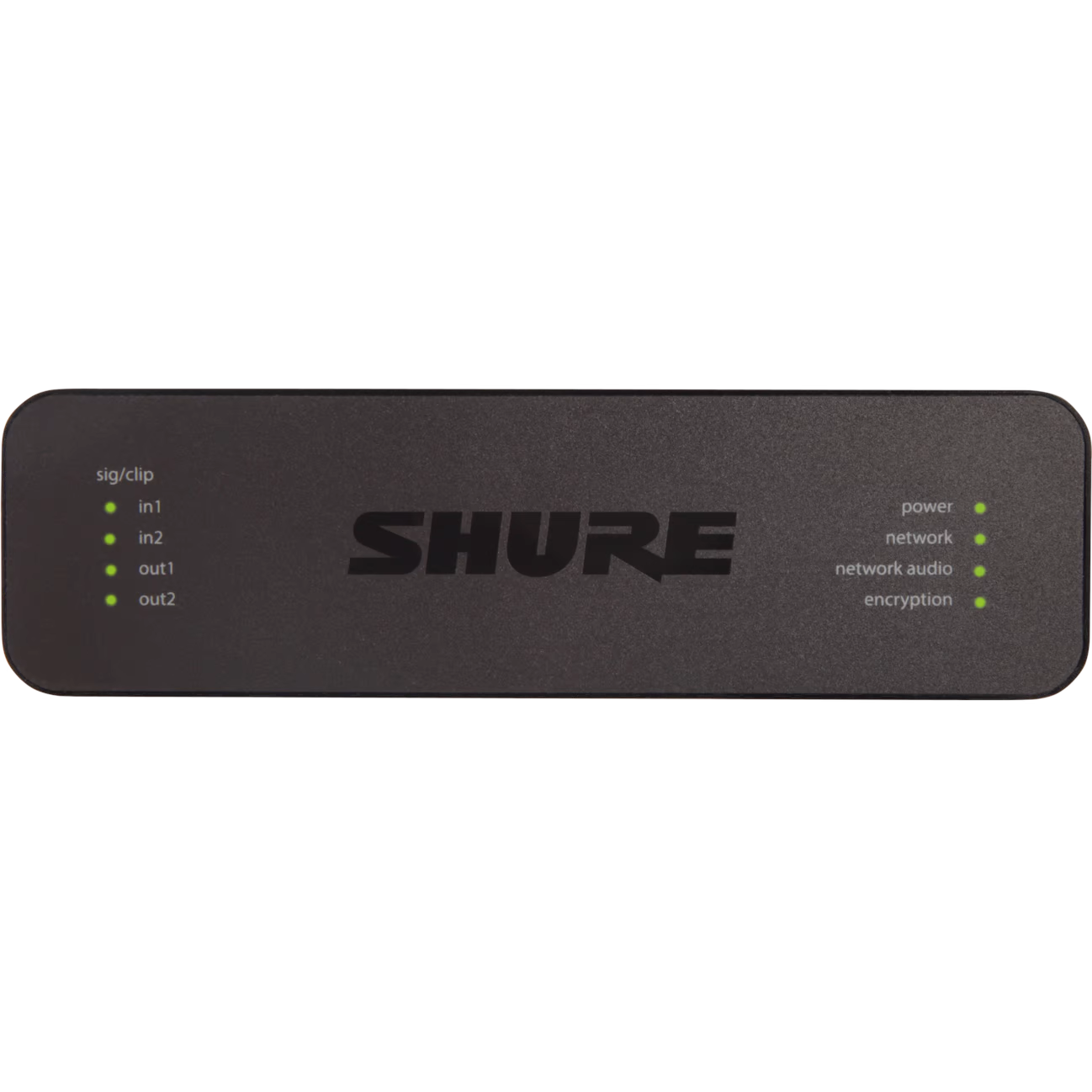

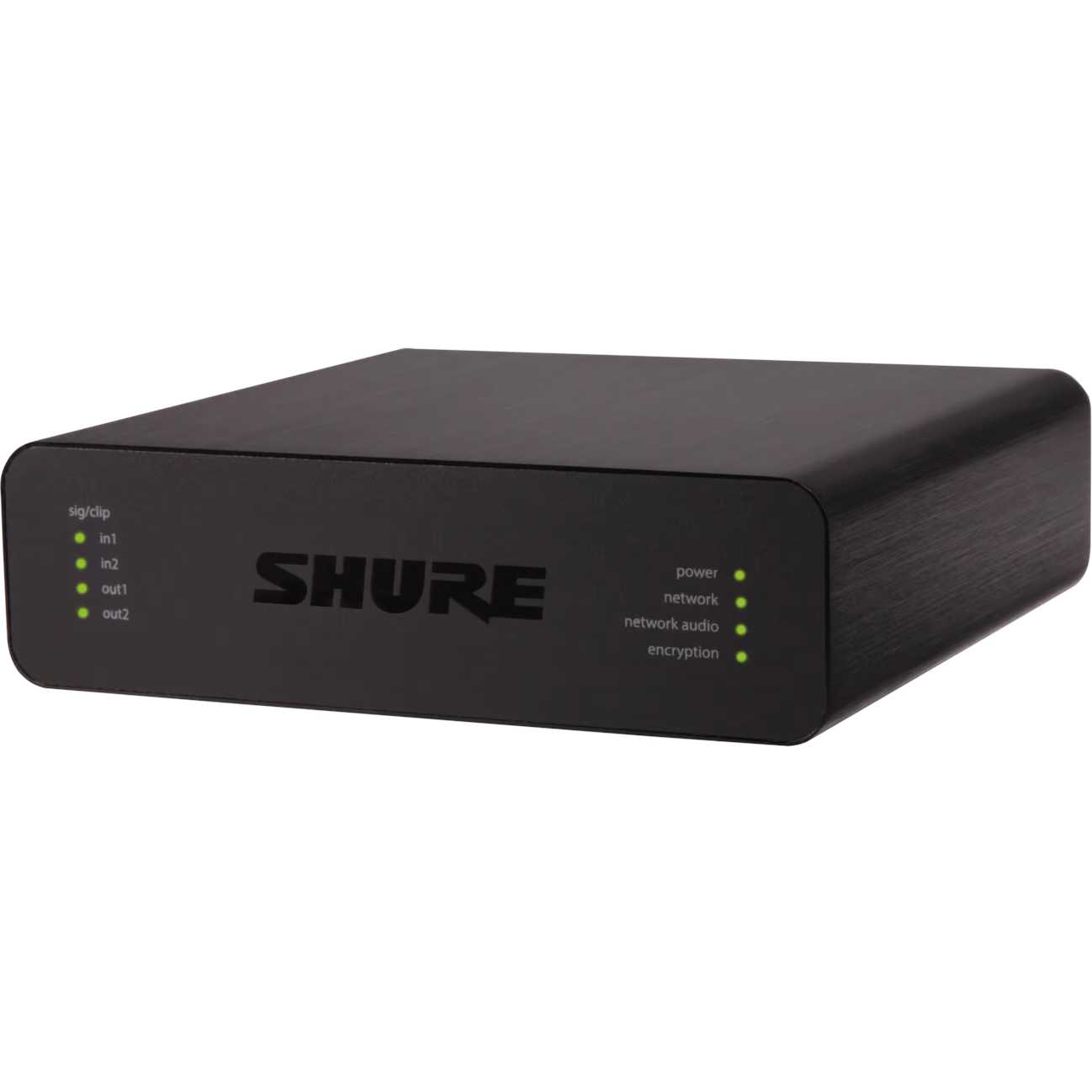

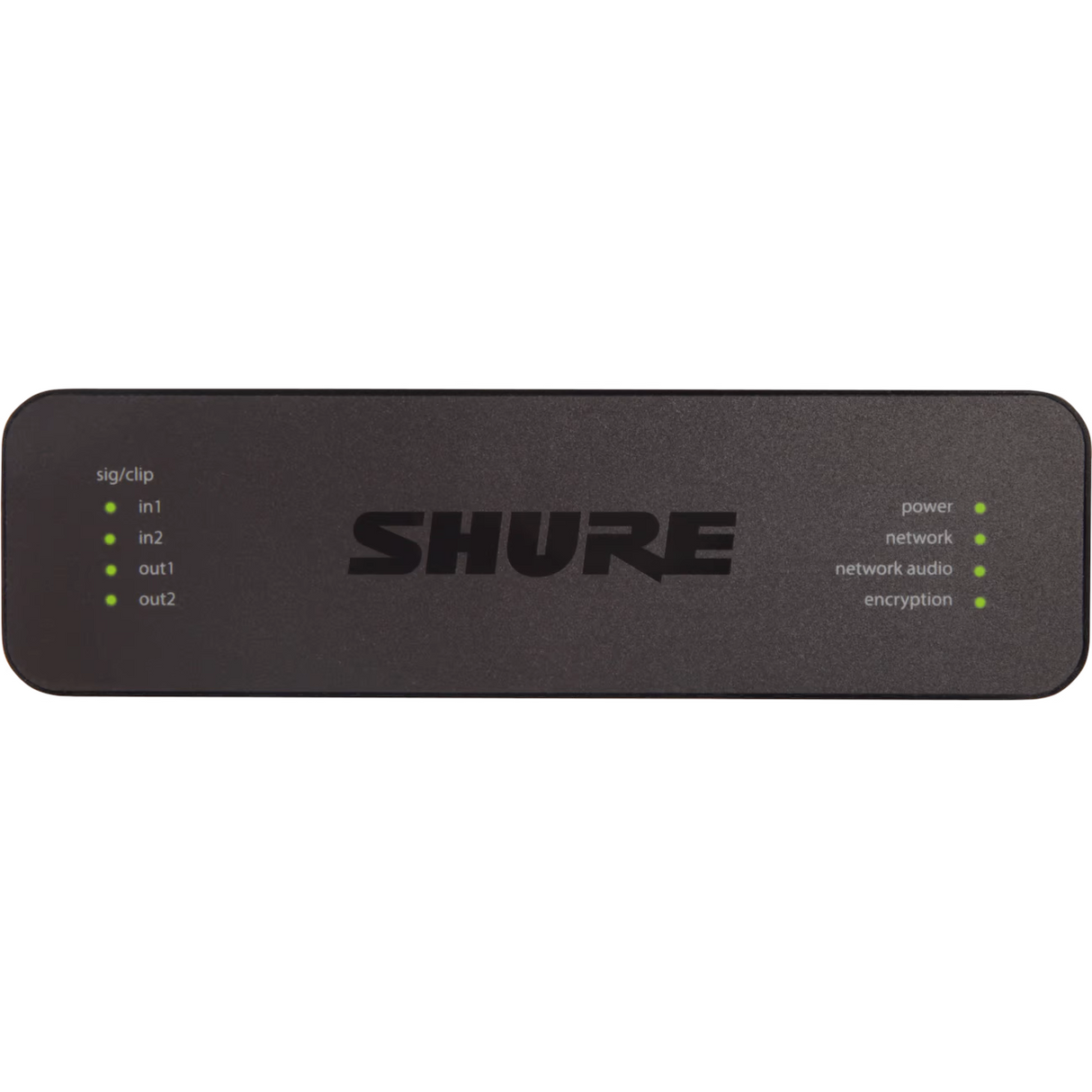

Shure ANI22-XLR Audio Network Interface

Streamline Your Conference Calls With The Shure ANI22-XLR Audio Network Interface

The ANI22 can bring up to two line / mic signals onto or from a Dante network for easy audio routing and convenient browser-based remote control. Available with XLR or block connectors.

Works with Microflex Advance and Microflex Wireless.

• Converts up to 2 mic / line analog signals onto a Dante Network
• Converts up to 2 Dante digital audio signals to line / mic analog signals
• Power-over-Ethernet (PoE) eliminates need for outboard power supply
• Compact form factor is easy to mount without equipment rack

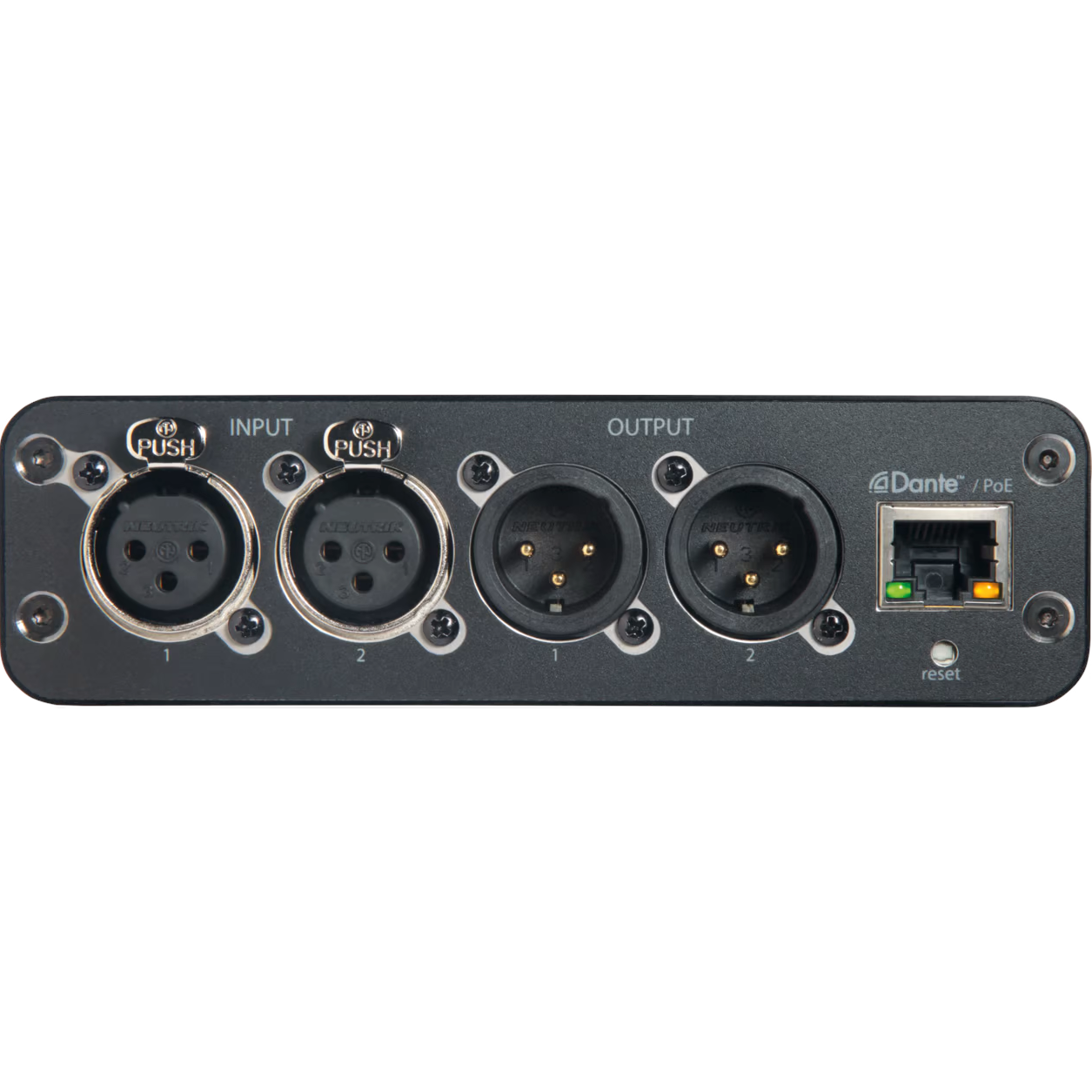

• Inputs Active Balanced: (2) XLR connector
• Outputs Impedance Balanced: (2) XLR connector
• Network Connections (Dante Digital Audio): (1) RJ45, Channel Count: 2 Inputs, 2 Outputs
• Polarity: Non-inverting, any input to any output
• Power Requirements: Power over Ethernet (PoE), Class 0. (PoE Plus compatible).
• Power Consumption: 11W, maximum
• Control Application: HTML5 Browser-based
• Operating Temperature Range: −6.7°C (20°F) to 40°C (104°F)
• Storage Temperature Range: −29°C (-20°F) to 74°C (165°F)
• Thermal Power Dissipation: Maximum 12.1 W (41.3 BTU/hr), typical 9.8 W (33.7 BTU/hr)
• Frequency Response: ±1 dB 20 to 20,000 Hz
• Dante Digital Audio:Sampling Rate 48 kHz, Bit Depth 24
• Latency (Does not include Dante latency) Analog to Dante 0.35 ms, Dante to Analog 0.71 ms
• Analog Gain Range (Adjustable in 3 dB steps): 51 dB
• Dynamic Range (Analog-to-Dante) 20 Hz to 20 kHz, A-weighted, typical: 113 dB
• Equivalent Input Noise: 20 Hz to 20 kHz, A-weighted, input terminated with 150Ω
• Analog Gain Setting= +0 dB -93 dBV
• Analog Gain Setting= +27 dB -119 dBV
• Analog Gain Setting= +51 dB -130 dBV
• Total Harmonic Distortion @ 1 kHz, 0 dBV Input, 0 dB analog gain: <0.05%
• Common Mode Rejection Ratio: 150 Ohms balanced source @ 1 kHz >70 dB
• Input Impedance: 5 kΩ
• Output Impedance: 150 Ω
• Input Clipping Level: Analog Gain Setting= +0 dB +20 dBV, Analog Gain Setting= +27 dB -7 dBV, Analog Gain Setting= +51 dB -31 dBV
• Analog Output Level: Selectable Line 0 dB, Aux - 20 dB, Mic -46 dB
• Built-in Digital Signal Processing Per Channel: Equalizer (4-band Parametric, Dante Channels Only), Mute, Limiter, Gain (140 dB range)
• System: Channel Summing
