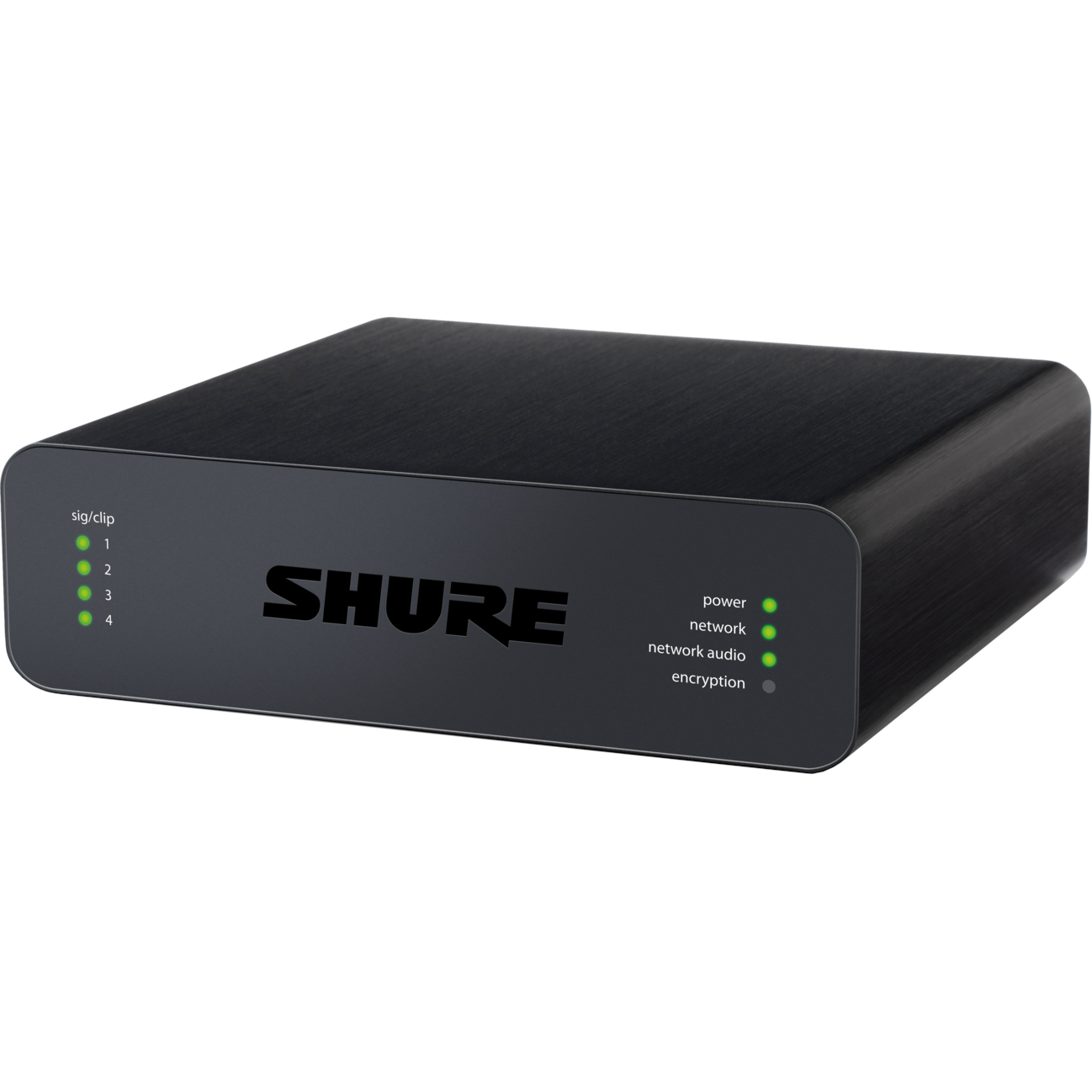

Shure ANI4OUT-BLOCK 4-Channel Audio Network Interface

Get Legendary Performance with the Shure ANI4OUT-BLOCK 4-Channel Audio Network Interface

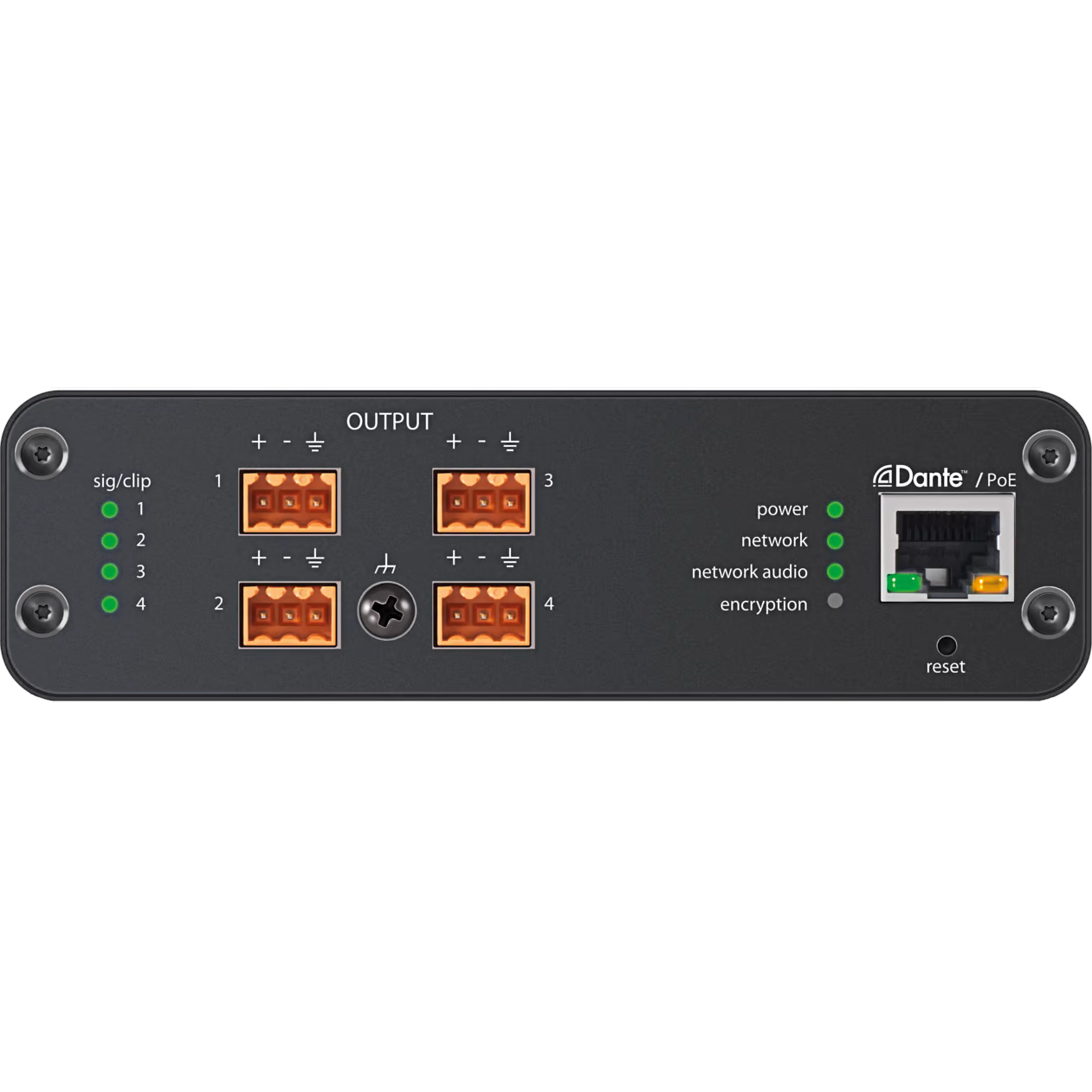

Converts Dante digital audio signal to four discrete line / mic analog signals for easy audio routing and convenient browser-based remote control.

• Single Ethernet port carries Dante audio, power (PoE – class 0 / 3)

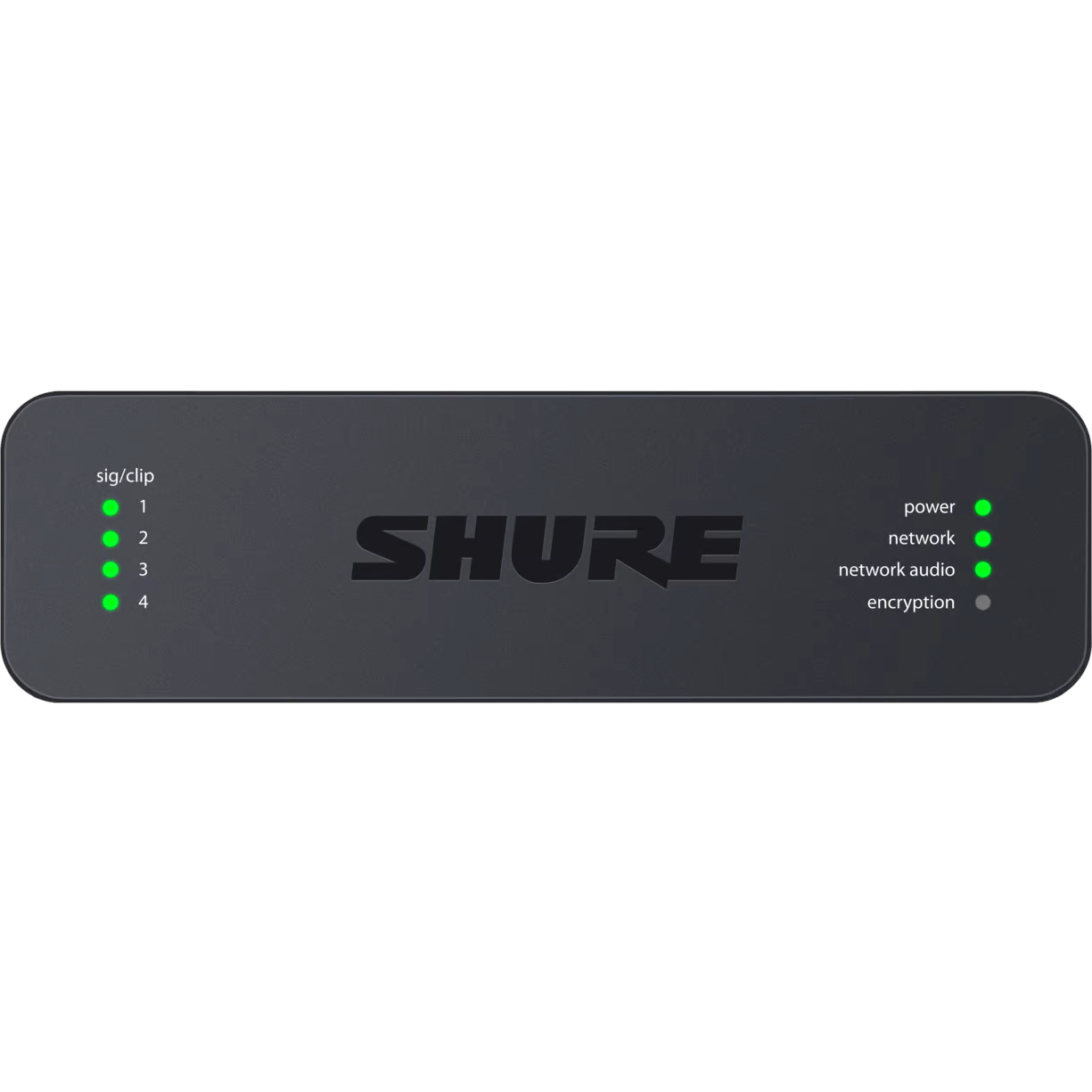

• LEDs indicate power, network and audio
• 4 Band C/S PEQ on every channel
• 4 block out channels

SPECIFICATIONS

• Input: (1) RJ45
• Frequency Response: 20 to 20,000 Hz
• Configuration: Impedance Balanced
• Output Impedance: 150 Ω
• Polarity: Non-inverting, any input to any output
• Power Requirements: Power over Ethernet (PoE), Class 0
• Power Consumption: 10 W, maximum
• Weight: 663 g (1.5 lbs)
• Dimensions: 4 x 14 x 12.8 cm (1.6 x 5.5 x 5.0 inches)
• Control Application: HTML5 Browser-based
• Operating Temperature Range: −6.7°C (20°F) to 40°C (104°F)
• Storage Temperature Range: −29°C (-20°F) to 74°C (165°F)
• Input (Dante Digital Audio): Channel Count 4
• Sampling Rate 48 kHz: Bit Depth 24
• Latency: 0.71 ms
• Dynamic Range (Dante-to-Analog) 20 Hz to 20 kHz, A-weighted, typical: 117 dB
• Total Harmonic Distortion @ 1 kHz, -20 dBFS Output, 0 dB analog gain: <0.05%
