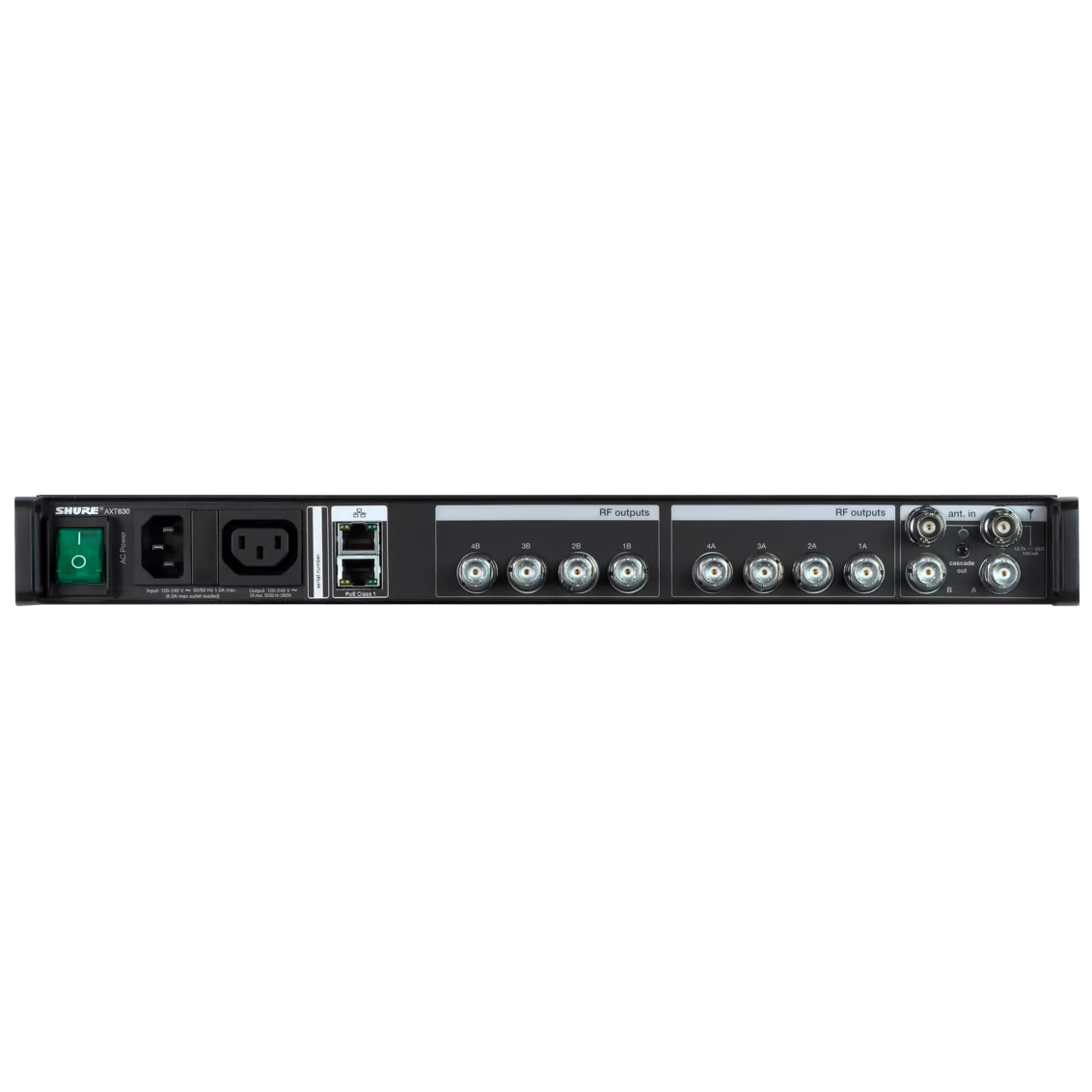

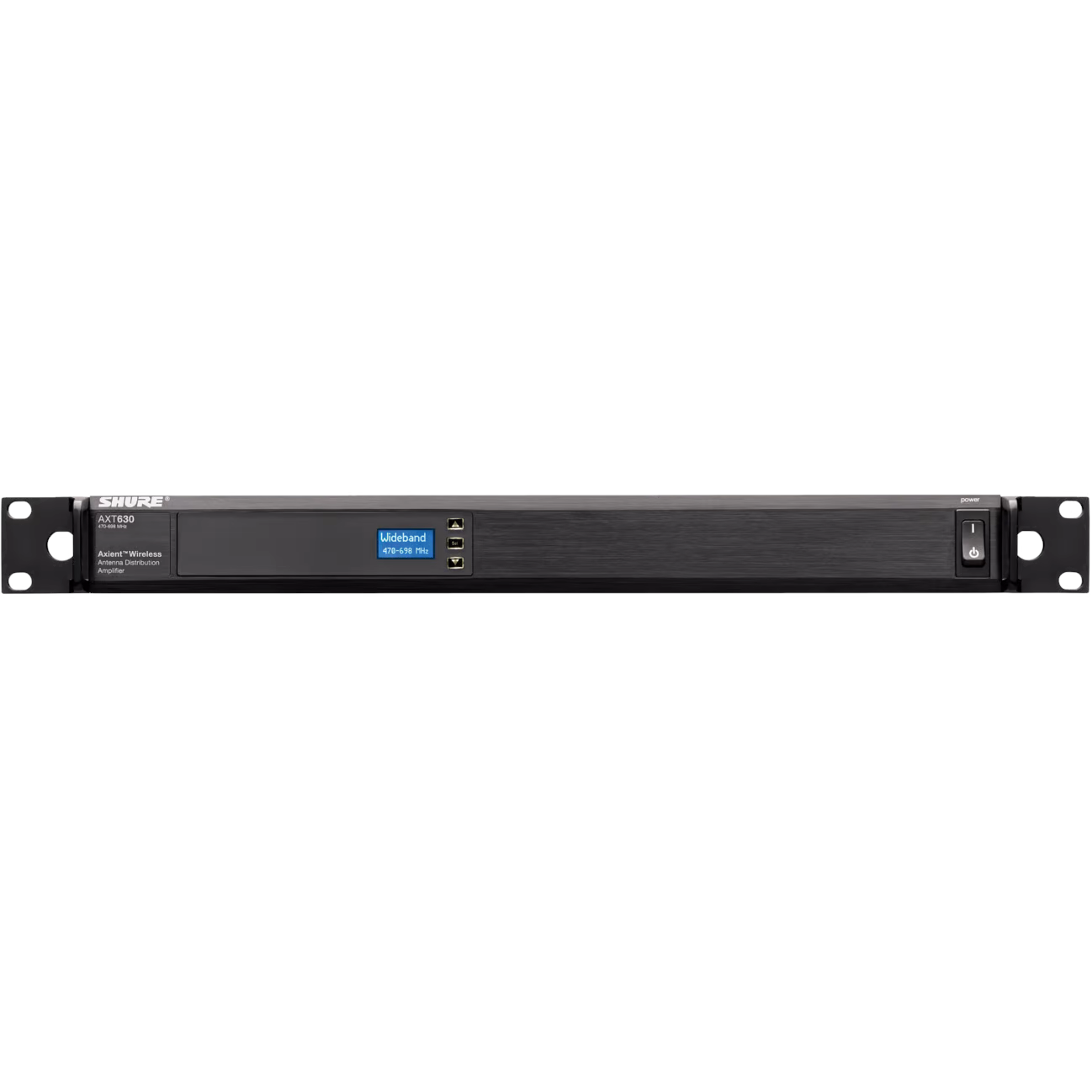

Shure Axient AXT630 Antenna Distribution System


  • Our Price
  • $1,565.00
  • Regular price MSRP: $1,956.00

*IN STOCK - READY TO SHIP





Effortlessly Manage Your Shure Systems with the Shure AXT630 Wireless Antenna Distribution System, So Your Mind is Always On The Show

Antenna Distribution Systems send the RF signal from a single pair of antennas to multiple receivers. Ultra-linear amplification and adjustable attenuation optimize performance in difficult RF environments. Selectable input filters match the available frequency bands of transmitters, providing extra protection from strong out-of-band signals. BNC antenna output pairs distribute band-filtered signals to up to 4 receivers. A pair of wideband cascade ports supply wideband RF signals to Spectrum Managers or additional antenna distribution amplifiers. Networking allows Wireless Workbench to control filtering ranges and attenuation. For added flexibility, Axient Antenna Distribution Systems are compatible with Shure ULX-D and UHF-R receivers.


  • Selectable input filtering provides system-wide protection against strong out-of-band signals
  • Wideband filtering option covers multiple bands
  • Up to 15 dB of selectable RF attenuation for signal-to-noise optimization
  • Front panel interface and Wireless Workbench 6 software control provide easy setup and control of filtering, antenna power, and attenuation
  • BNC outputs: 4 antenna output pairs
  • Wideband RF cascade port with selectable 3 dB make-up gain for connecting wideband devices
  • Ethernet Networking: 2 PoE enabled Ethernet ports
  • IEC power ports enable daisy-chaining of AC power


SPECIFICATIONS

  • Housing: Steel; Extruded aluminum
  • Operating Temperature Range: -18°C (0°F) to 63°C (145°F)
  • Storage Temperature Range: -29°C (-20°F) to 74°C (165°F)
  • Power Requirements: 100 to 240 V AC, 50-60 Hz
  • Current Drain: 1.0 A RMS (referenced at 120 V AC)
  • Connector Type: BNC
  • Configuration: Unbalanced, active
  • Frequency Band: Wideband- 470–698 MHz
  • Impedance: 50 Ω
  • Bias Voltage: 12 V DC, 150 mA (300 mA maximum)
  • Dimensions (H x W x D): 44 x 483 x 366 mm/1.7 x 19.0 x 14.4")
  • Weight: 4.6 kg/10.1 lbs

Manufacturer: Shure
Model: AXT630US
Warranty: See manufacturer website for details
SKU: I268669-2-B
