Play Your Guitar Onstage Without The Hassle Of Wires With The Shure BLX14-H9 Bodypack Guitar Wireless System
The BLX14 Bodypack Wireless System is part of the BLX wireless systems family. Shure BLX Wireless Systems combine professional-quality sound with simple setup and an intuitive interface for legendary audio performance right out of the box. Precision-built and available in a variety of configurations, it's the most accessible way to own the stage.

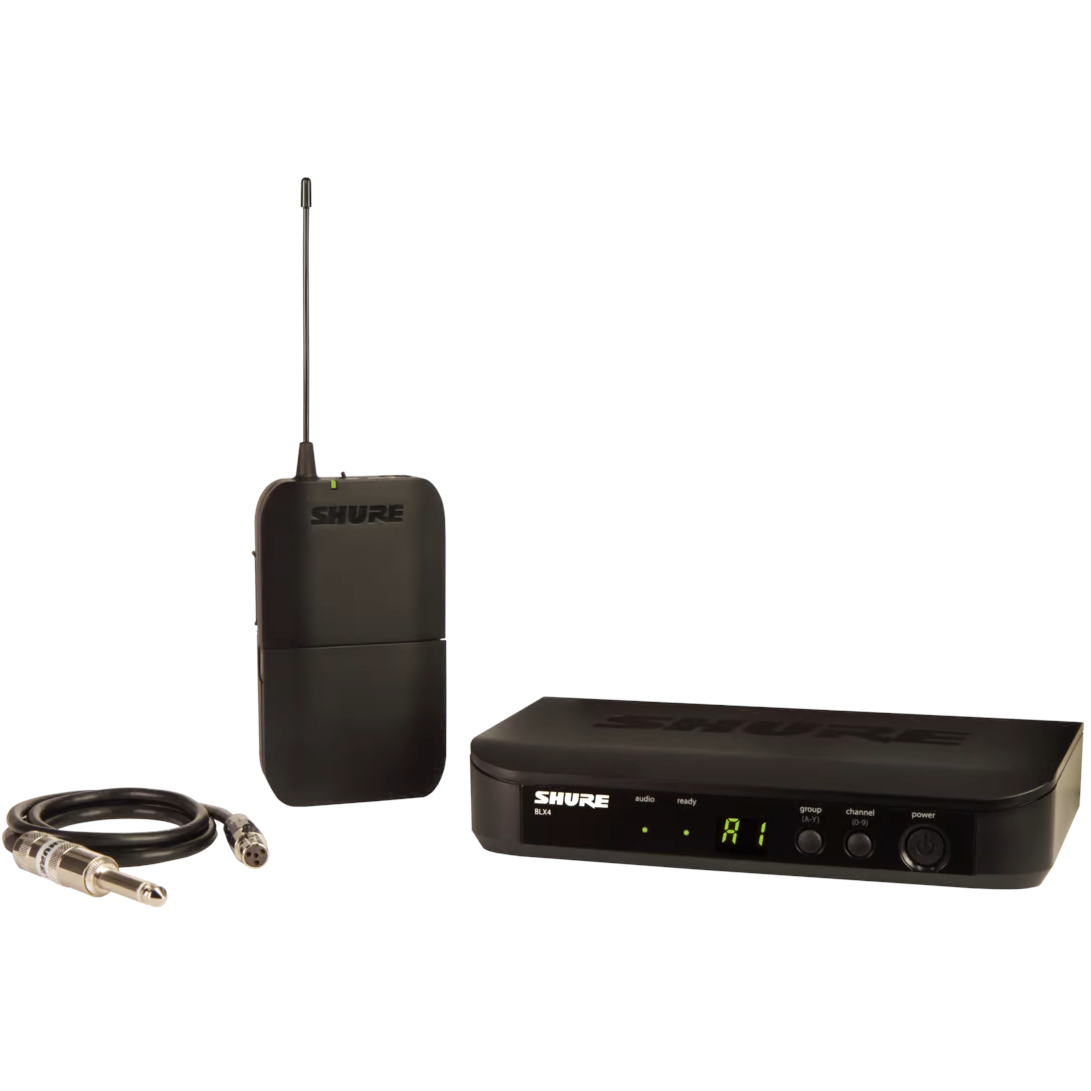

Includes BLX1 bodypack transmitter, BLX4 single-channel receiver, guitar cable, power supply, 2 AA batteries, and user guide.

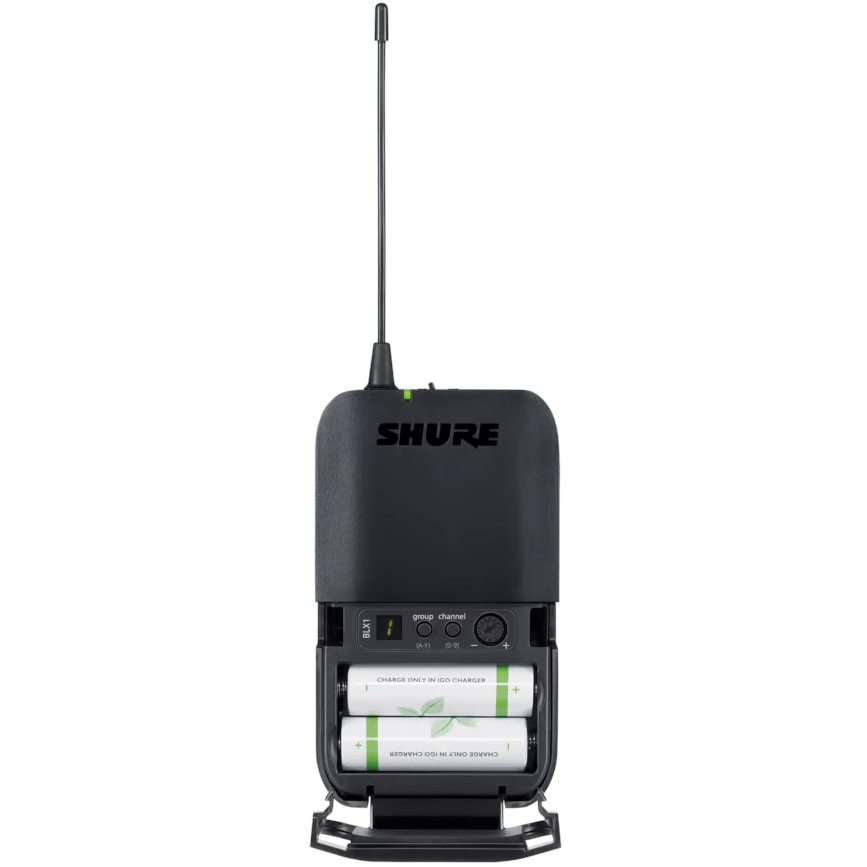

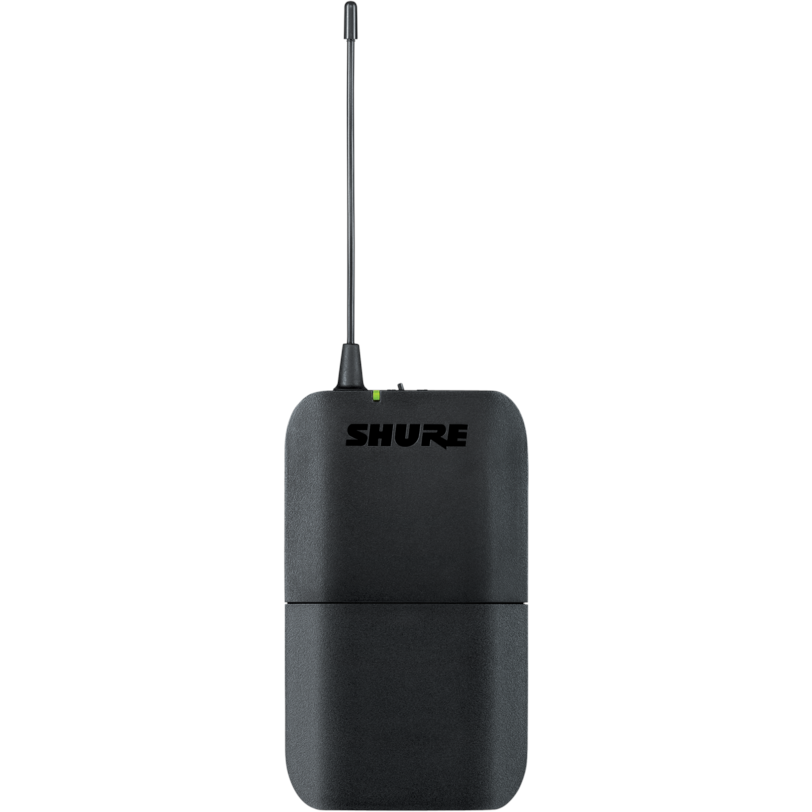

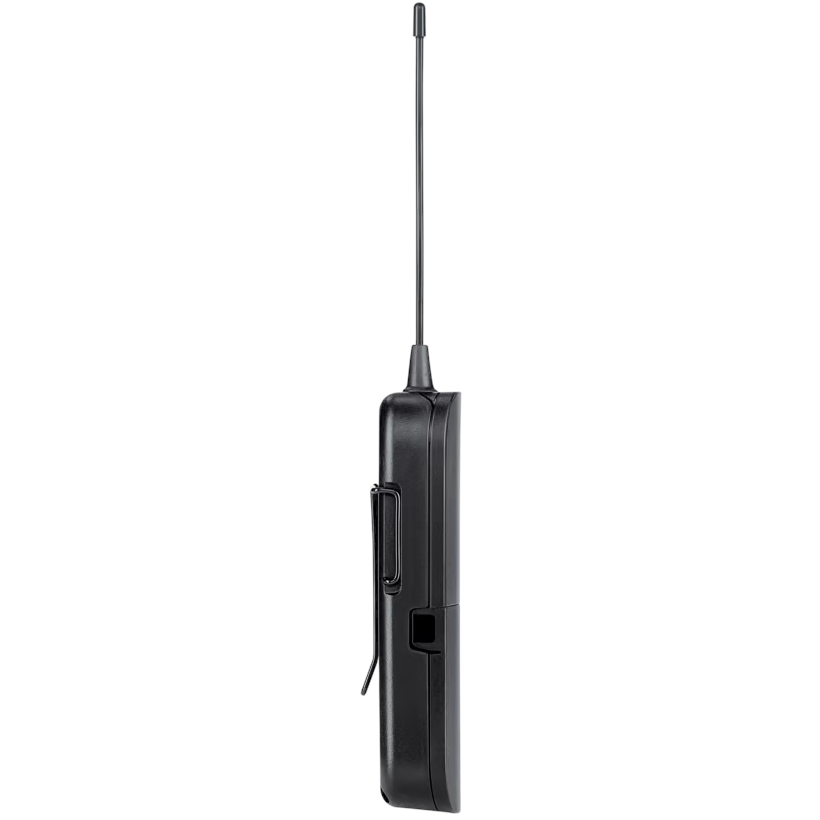

BLX1 Bodypack Transmitter
The durable BLX1 features a lightweight, ergonomic design and adjustable gain control. For use with BLX Wireless Systems. Up to 14 hours of continuous use with 2 AA batteries. 300 ft (100 m) transmission radius.
- Quick and easy receiver frequency matching

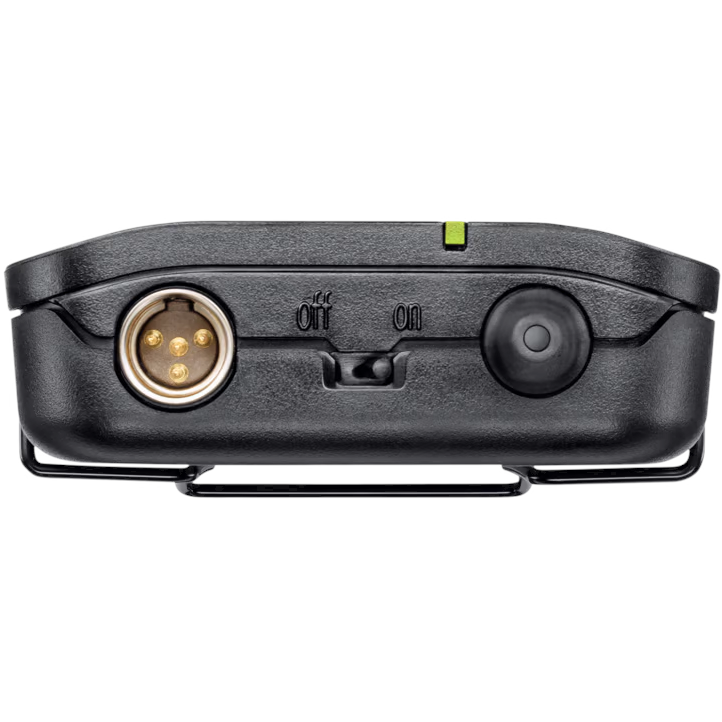

- TQG connection for use with Shure lavalier, headset, earset and instrument microphones and guitar cables
- Easily accessible On/Off switch

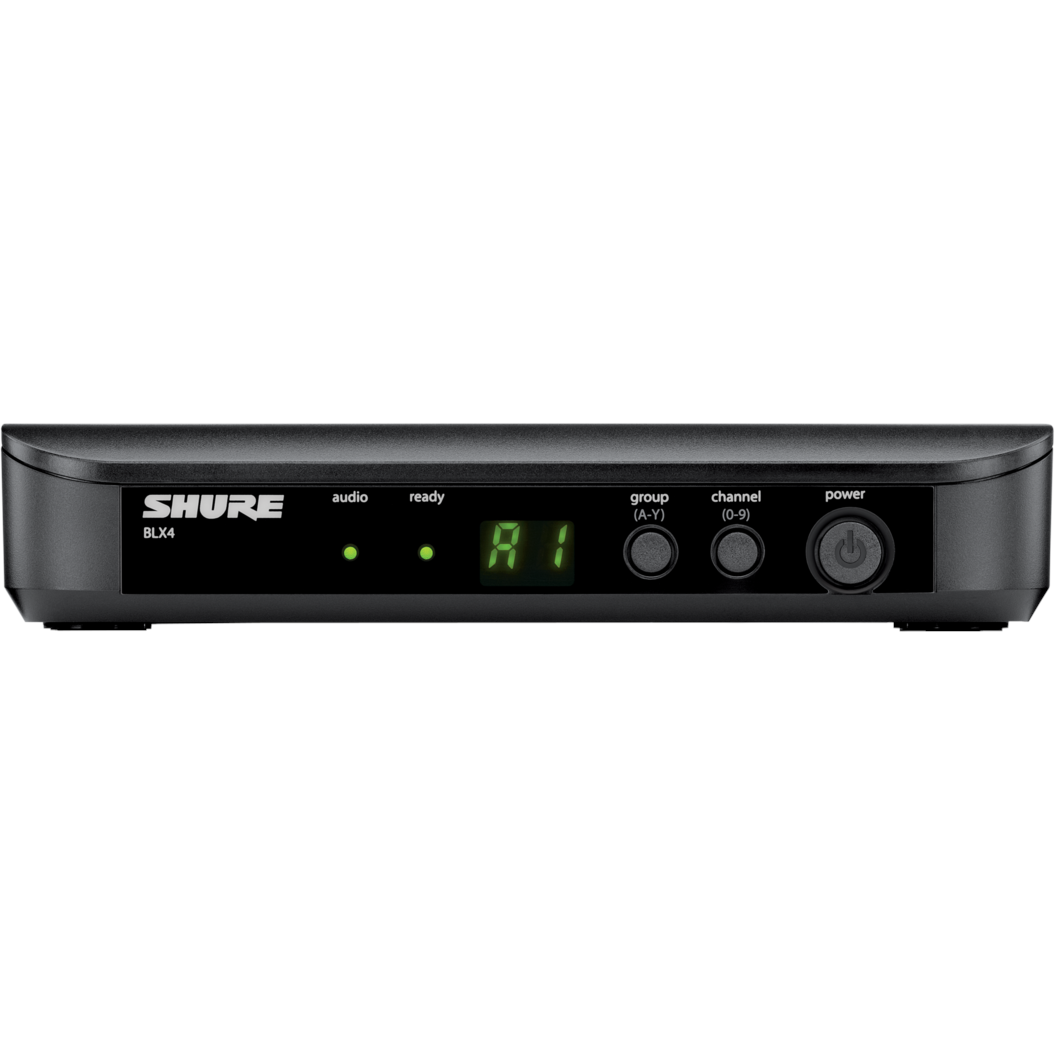

BLX4 Single Channel Receiver
The durable BLX4 features simple setup, intuitive controls, and microprocessor-controlled internal antenna diversity. One-touch QuickScan frequency selection quickly locates the best open frequency in case of interference. For use with BLX Wireless Systems.

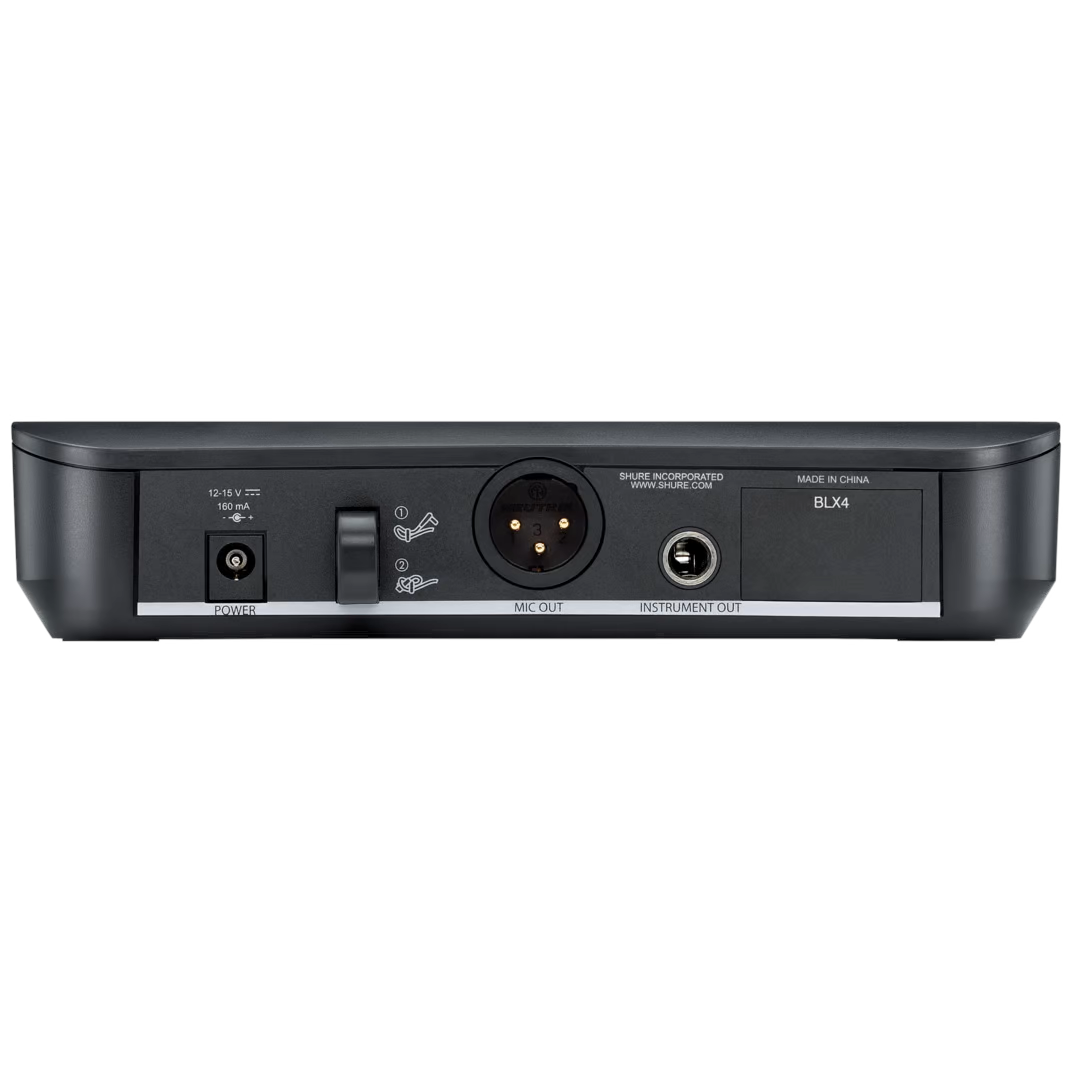

- XLR and 1/4" output connectors
- Two-color audio status indicator LED
- Green: Normal audio levels
- Red: Excessive audio levels (overload/clipping)
WA302 Instrument Cable
This instrument cable connects the T1, UT1, SC1, BLX1, PG1, PGX1, GLXD1, QLXD1, SLX1, LX1, ULX1, UC1, UR1, UR1M and U1 body-pack transmitter to a guitar or other instrument.
SPECIFICATIONS
BLX1 Bodypack Transmitter
- Audio Input Level:
- Gain Max: -16 dBV maximum
- Min (0 dB): +10 dBV maximum
- Gain Adjustment Range: 26 dB
- Input Impedance: 1 M Ohms
- RF Transmitter Output: 10 mW, typical, varies by region
- Dimensions: 110 mm x 64 mm x 21 mm (H x W x D)
- Weight: 75 g (2.6 oz.), without batteries
- Housing: Molded ABS
- Power Requirements: 2 LR6 AA batteries, 1.5 V, alkaline
- Battery Life: up to 14 hours (alkaline)
BLX4 Single Channel Receiver
- Output Impedance:
- XLR connector: 200 Ohms
- 6.35 mm (1/4") connector: 50 Ohms
- Audio Output Level (Ref. at ±33 kHz deviation with 1 kHz tone):
- XLR connector: 27 dBV (into 100 kohm load)
- 6.35 mm (1/4") connector: 13 dBV (into 100 kohm load)
- Dimensions: 40 mm x 188 mm x 103 mm (H x W x D)
- Weight: 241g (8.5 oz.)
- Housing: Molded ABS
- Power Requirements: 12-15 V DC @ 160 mA (BLX88, 320 mA), supplied by external power supply (tip positive)
WA302 Instrument Cable
- Length: 2.5 ft
- 1/4" plug
- 4 pin mini connector
Frequency Band: 512 to 542 MHz
Manufacturer: Shure
Model: BLX14-H9
Warranty: See manufacturer website for details
SKU: I387096-18-B
