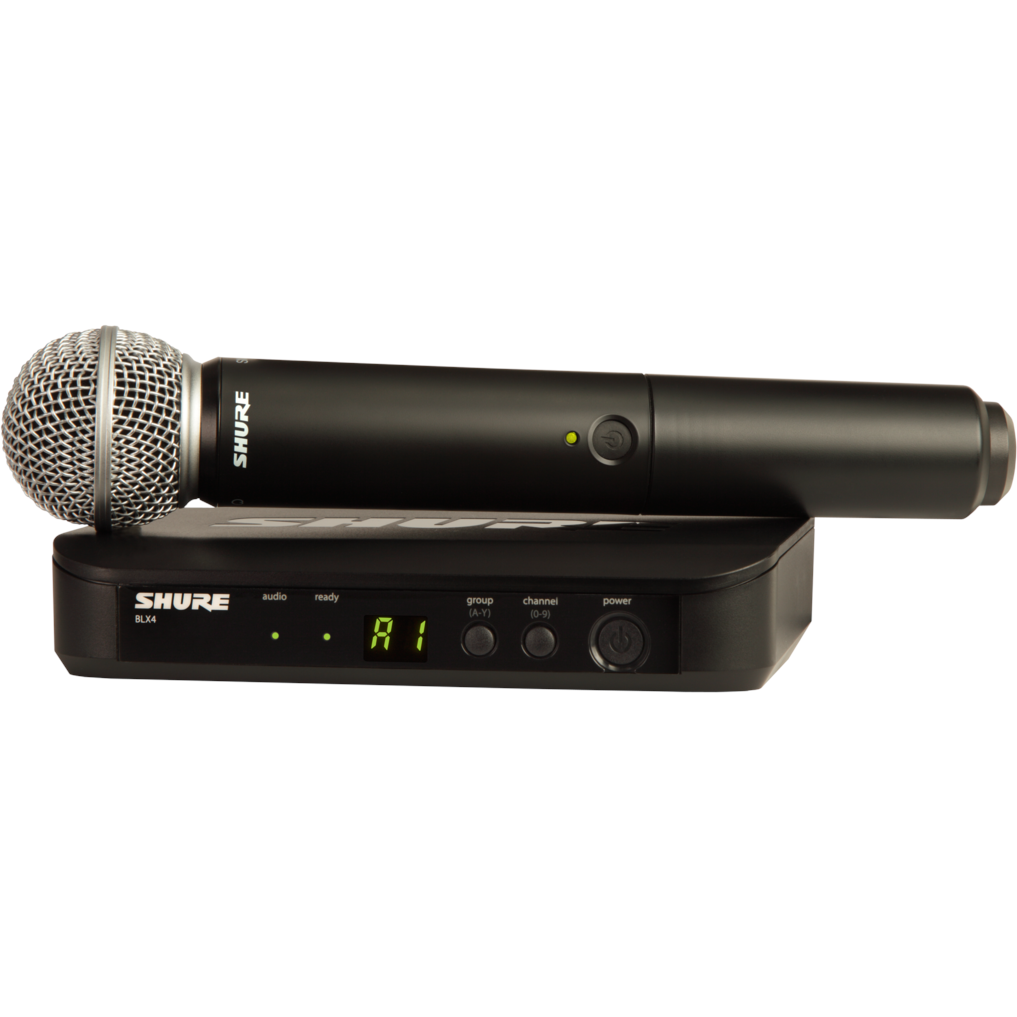

Shure BLX24/SM58-H10 Handheld Wireless System


  • Our Price
  • $349.00
  • Regular price MSRP: $436.00

*IN STOCK - READY TO SHIP





Enjoy Industry Trusted, High Quality Audio Transmission With The Shure BLX24/SM58 Handheld Wireless System

This unit operates in the H10 (542-572 MHz) frequency band

The BLX24/SM58 Handheld Wireless System is part of the BLX wireless systems family. Shure BLX Wireless Systems combine professional-quality sound with simple setup and an intuitive interface for legendary audio performance right out of the box. Precision-built and available in a variety of configurations, it’s the most accessible way to own the stage.

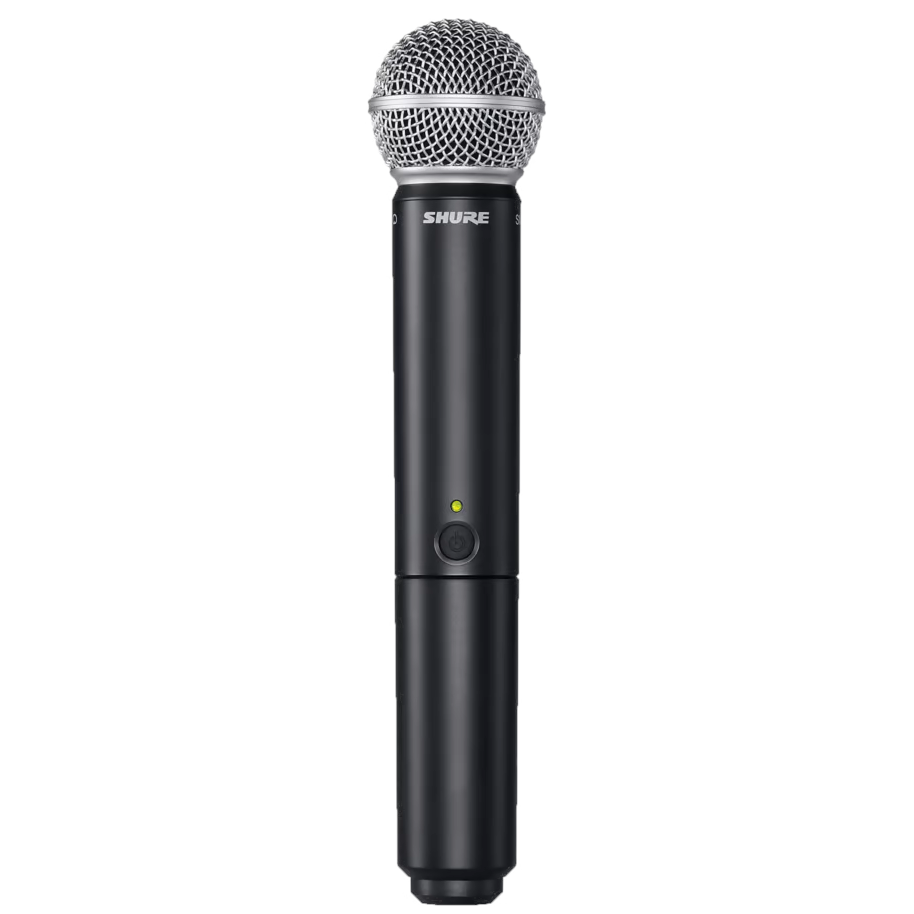

BLX2/SM58 Handheld Wireless Microphone Transmitter

  • Integrated microphone capsule design
  • Lightweight, rugged construction
  • -10 dB gain attenuation
  • Color ID caps (available separately)

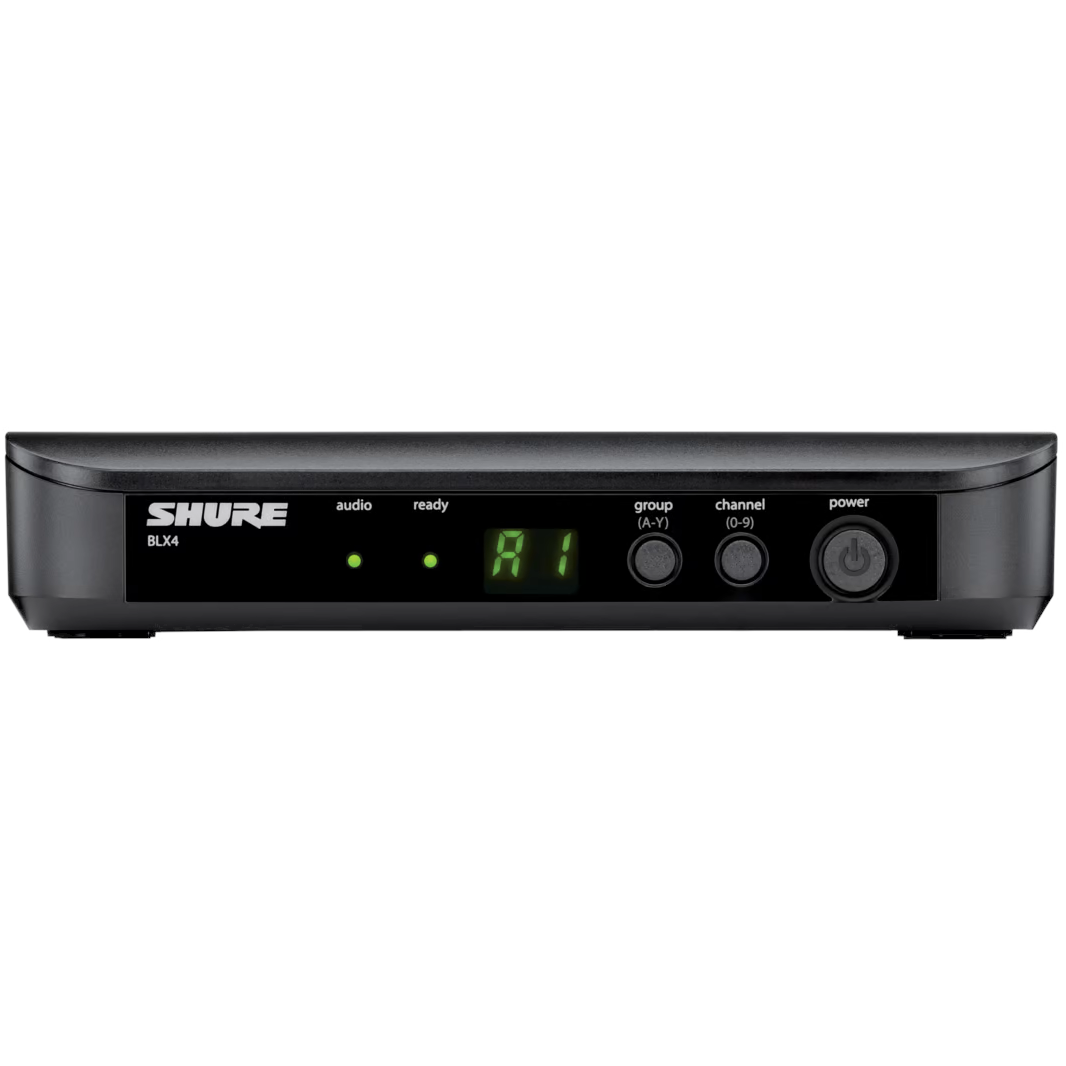

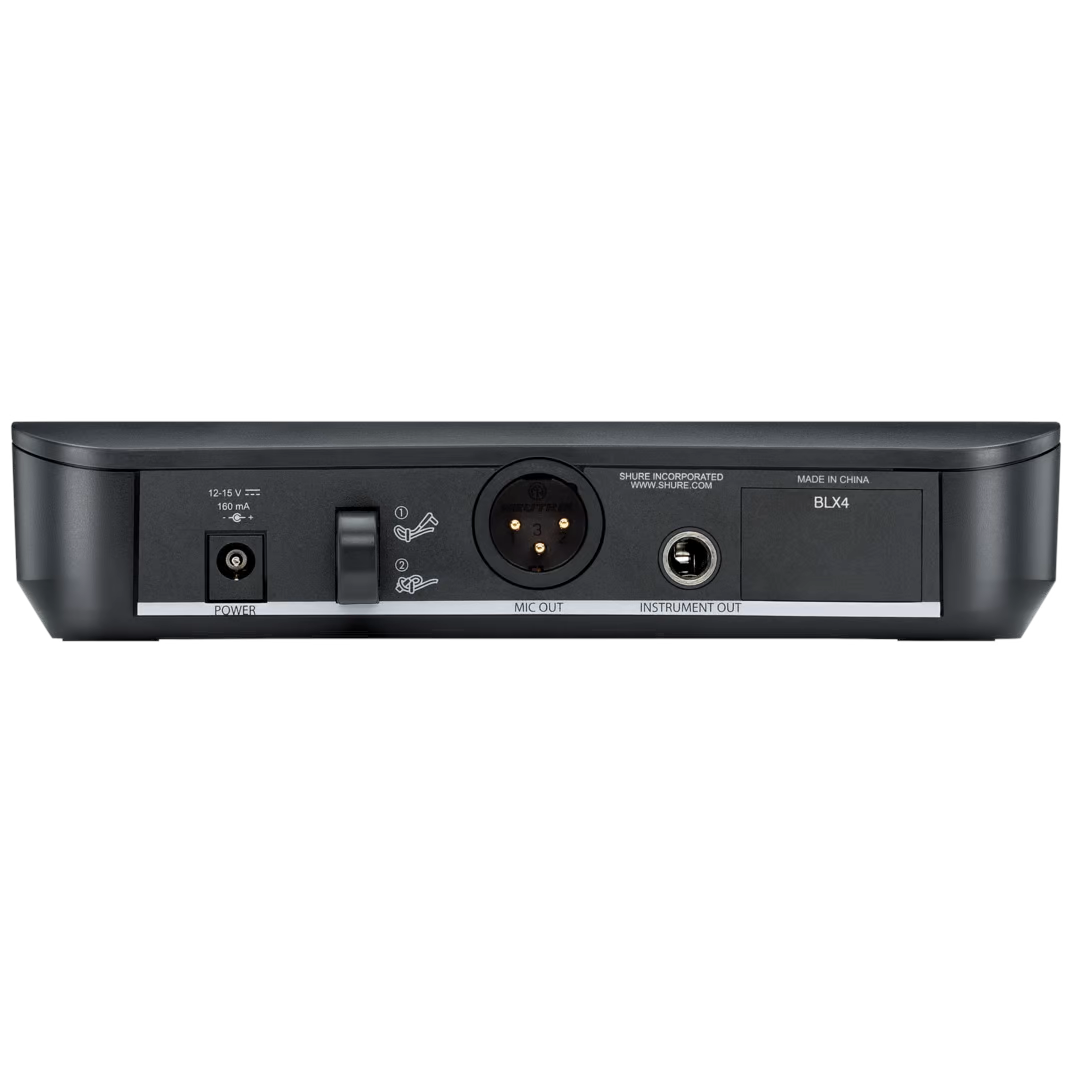

BLX4 Single Channel Receiver

  • XLR and 1/4" output connectors
  • Two-color audio status indicator LED:
    • Green: Normal audio levels
    • Red: Excessive audio levels (overload/clipping)


SPECIFICATIONS

Transmitter

  • Audio Input Level
    • Gain 0dB: -20 dBV maximum
    • Gain -10dB: -10 dBV maximum
    • Gain Adjustment Range: 10 dB
  • RF Transmitter Output: 10 mW, typical varies by region
  • Dimensions: 224 mm x 53 mm dia. (8.875 x 2.125")
  • Weight: 218 g/7.7 oz (without batteries)
  • Housing Molded: ABS
  • Power Requirements: 2 LR6 AA batteries, 1.5 V, alkaline
  • Battery Life: up to 14 hours (alkaline)

Receiver

  • Output Impedance
    • XLR connector: 200 Ω
    • 6.35 mm (1/4") connector: 50 Ω
  • Audio Output Level, Ref. ±33 kHz deviation with 1 kHz tone:
  • XLR connector: –27 dBV (into 100 kΩ load)
  • 6.35 mm (1/4") connector: –13 dBV (into 100 kΩ load)
  • RF Sensitivity: -105 dBm for 12 dB SINAD, typical
  • Image Rejection: greater than 50 dB, typical
  • Dimensions (H x W x D): 40 mm x 188 mm x 103 mm
  • Housing: Molded ABS
  • Power Requirements: 12–15 V DC @ 160 mA (BLX88, 320 mA), supplied by external power supply (tip positive)

Included in Box

  • 1 - BLX4 Single-Channel Receiver
  • BLX2/SM58 Handheld Transmitter
  • Power Supplies + 2 AA Batteries
  • 1 - WA371 Swivel Adapter
  • 1 - 31B1856 Thread Adapter
  • User Guide

Manufacturer: Shure
Model: BLX24/SM58-H10
Warranty: See manufacturer website for details
SKU: I387140-N-6-B
UPC: 042406471381
