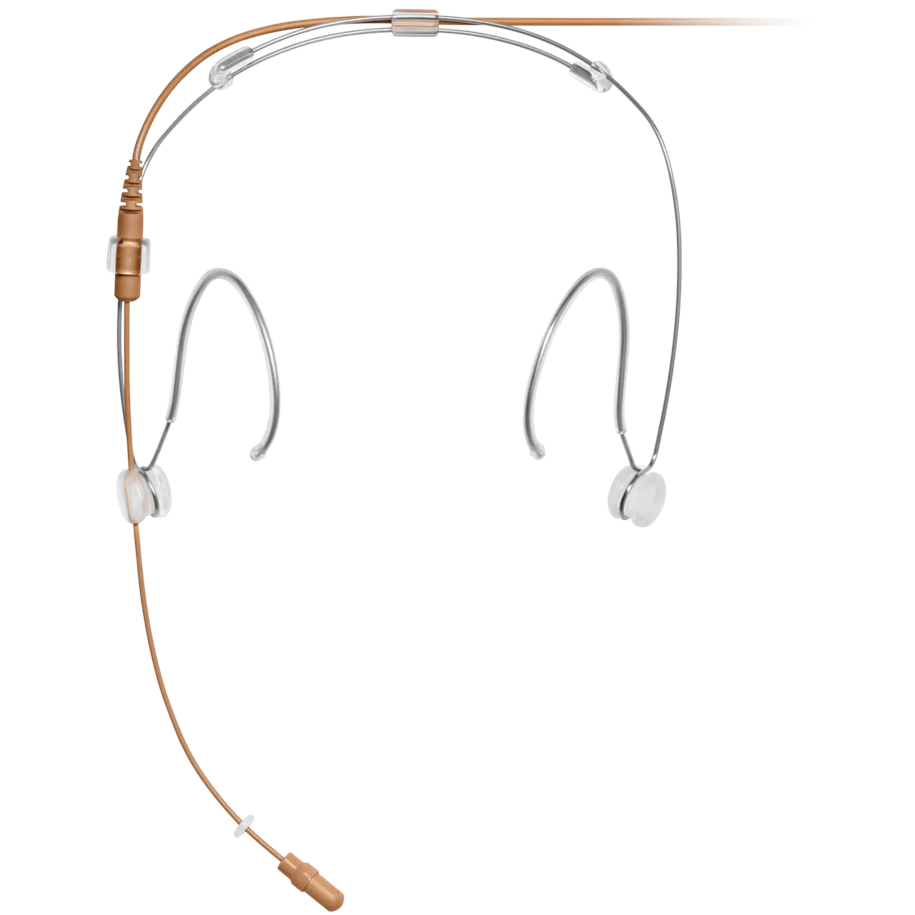

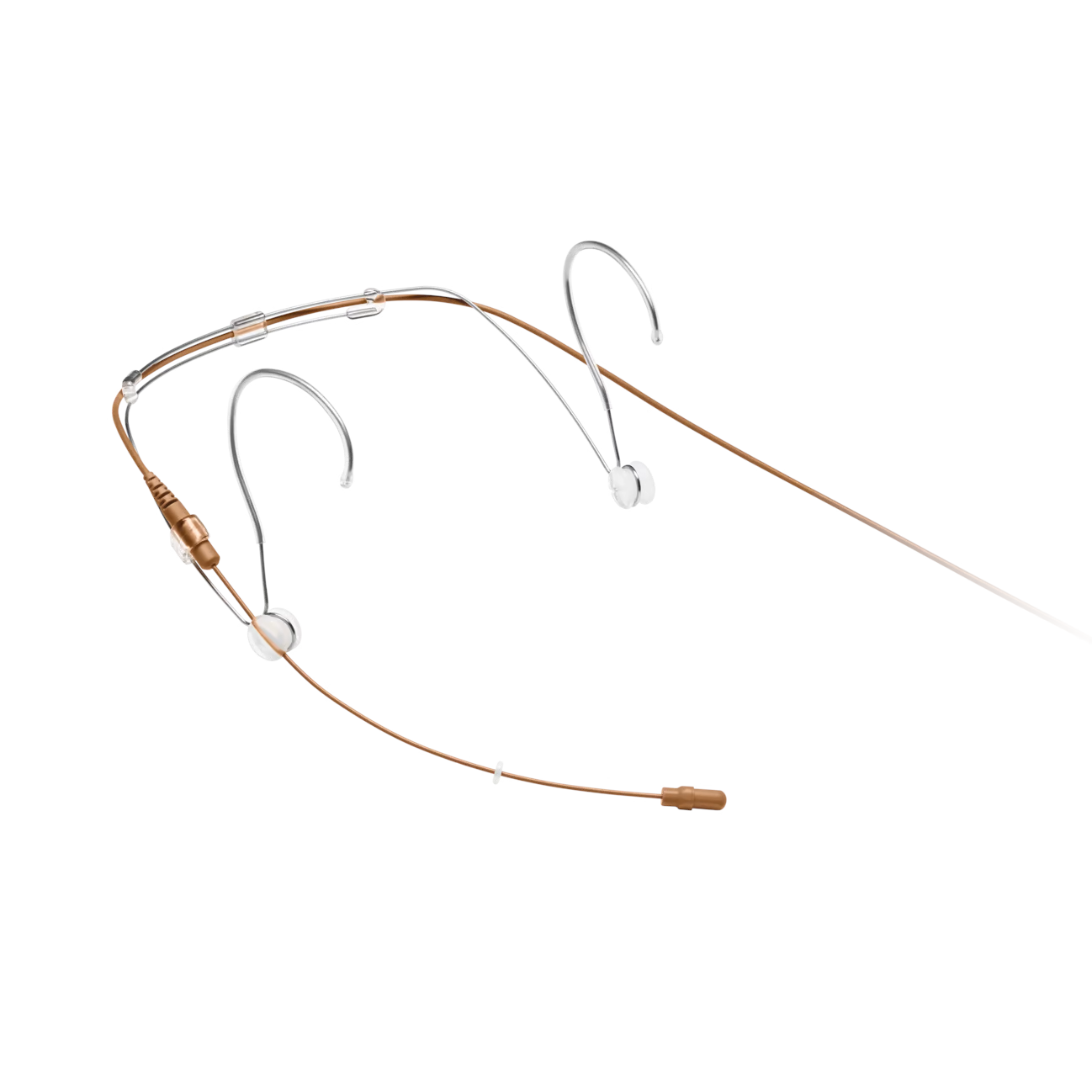

Shure DH5 DuraPlex Omnidirectional Headset Microphone - Cocoa

Cut through the Noise with the Shure DH5 DuraPlex Omnidirectional Headset Microphone - Cocoa

Lightweight and comfortable to wear, the DuraPlex DH5 headset microphone offers a neutral, full sound that will lift your performance, speech, musical, or broadcast. Rely on the DH5 headset microphone in the harshest environments, thanks to its long-lasting Shure Plex cable and a certified IP57 rating, which means you’re protected against water, sweat, moisture, dust, and dirt. Capture every moment with confidence.

• 5 mm omnidirectional subminiature design for discrete placement and improved gain-before-feedback
• IP57 dust-resistant, waterproof rated
• Neutral, full sound quality for film, broadcast, speech, theater, and performance applications
• Advanced 1.6 mm Shure Plex cable
• Presence Cap included for tailored frequency response provides additional vocal clarity and presence (3-4 dB boost near 10 kHz)
• Kit includes the following accessories: Case, Foam Windscreen, Snap-fit Windscreen, Single Tie Clip, Sticky Mount, TQG Locking Collar (mTQG/TA4F SKUs only)

SPECIFICATIONS

• Microphone Capsule: MEMS
• Polar Pattern: Omnidirectional
• Frequency Response: 20 Hz - 20 kHz
• Sensitivity: -42.5 dBV (7.5 mV) @ kHz
• Self Noise: 31 dB SPL-A
• Signal-to-Noise Ratio: 63 dB
• Maximum SPL: 132.0 dB SPL
• Dynamic Range: 101.0 dB
• Microphone Current Draw: 22 µA, maximum
• Bias Voltaage: 5 VDC
• Housing: Molded ABS
• Polarity: MRQG
• Cable Diameter: 1.6 mm
• Cable Length: 66.0 (1.67)
• Net Weight: 15 mm
• Capsule Dimensions: 14.5 mm x 5.2 mm
