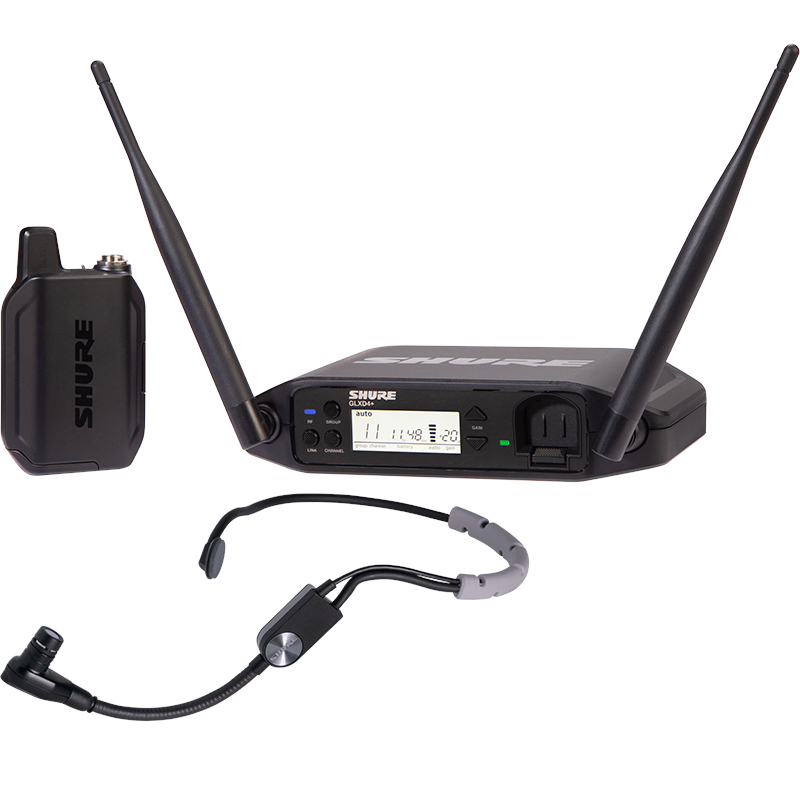

Shure GLXD14+/SM35 Digital Wireless System with SM35 Headset Microphone

Legendary Performance - The Shure GLXD14+/SM35 Digital Wireless System with SM35 Headset Microphone

Frequency Band: Z3 (2.4, 5.8 GHz)

The new GLX-D+ Dual Band Wireless Headset System features the PGA31 Headset Microphone for spoken word applications and the GLXD4+ tabletop receiver. The perfect combination of the automatic frequency management with the new Dual Band Technology provides reliable and consistent performance, while Shure proprietary Lithium-Ion rechargeable batteries provide up to 12 hours of use. Go wireless without complication.

• Exceptional digital audio clarity
• Compatible with multiple legendary microphone options
• Automatically moves away from interference without audio interruption
• Rechargeable battery delivers up to 12 hours of runtime
• Rock-solid RF performance for multiple system installations
• License-free frequency range

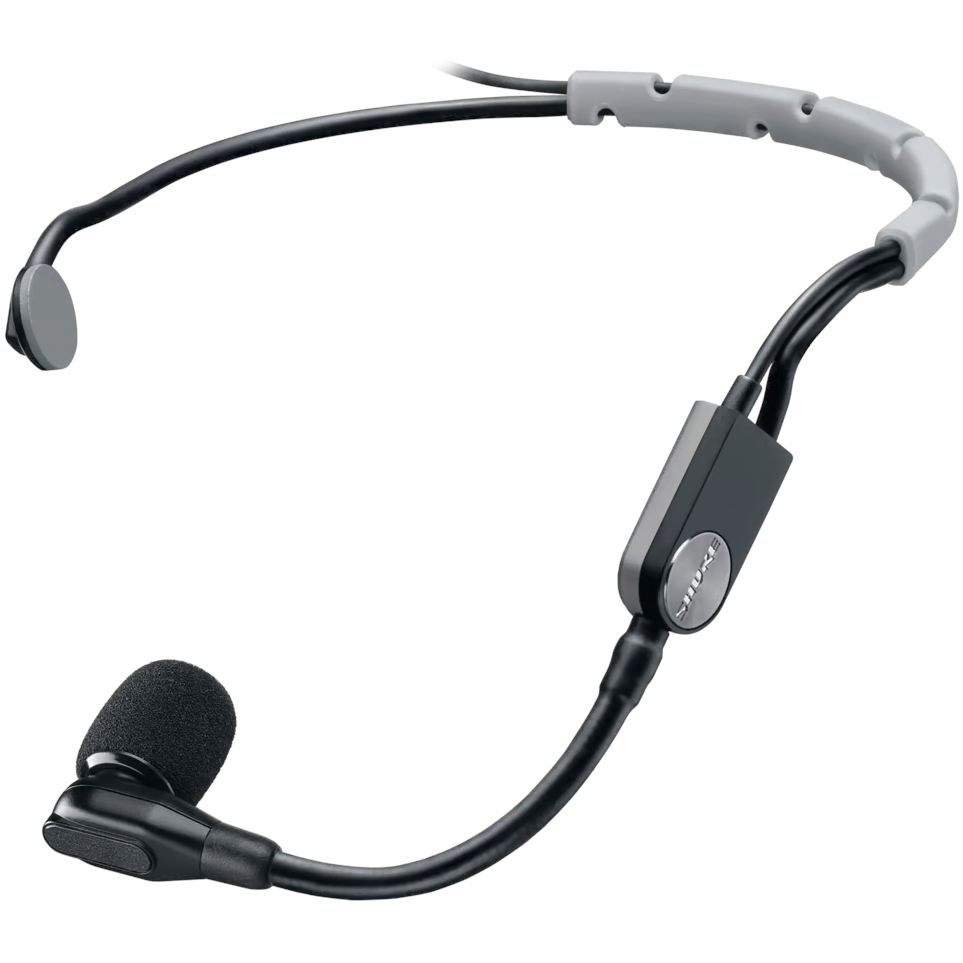

SM35 Performance Headset Condenser Microphone

The SM35 Performance Headset Condenser Microphone gives multi-instrumentalists the freedom to express themselves without sacrificing sound quality. A tight, unidirectional cardioid polar pattern provides excellent rejection of off-axis sound sources to prevent feedback and signal bleed onstage, whether in use in small clubs, large installations, or arena tours.

• Wireframe headset fits securely and comfortably for active performers and multi-instrumentalists
• Tight, unidirectional cardioid polar pattern rejects signal bleed and feedback for use on loud stages and behind floor monitors
• Flexible gooseneck design allows for optimized placement that further improves source isolation
• Lightweight and low-profile form enables comfortable, long-wearing use
• Locking snap-fit windscreens tame plosives, breath, and wind noise for clean and intelligible sound
• Tailored frequency response refined for clear, crisp vocal reproduction
• Included in BLX and GLX-D wireless systems, renowned for their ease of use and reliable performance
• Legendary Shure precision engineering for durability and performance

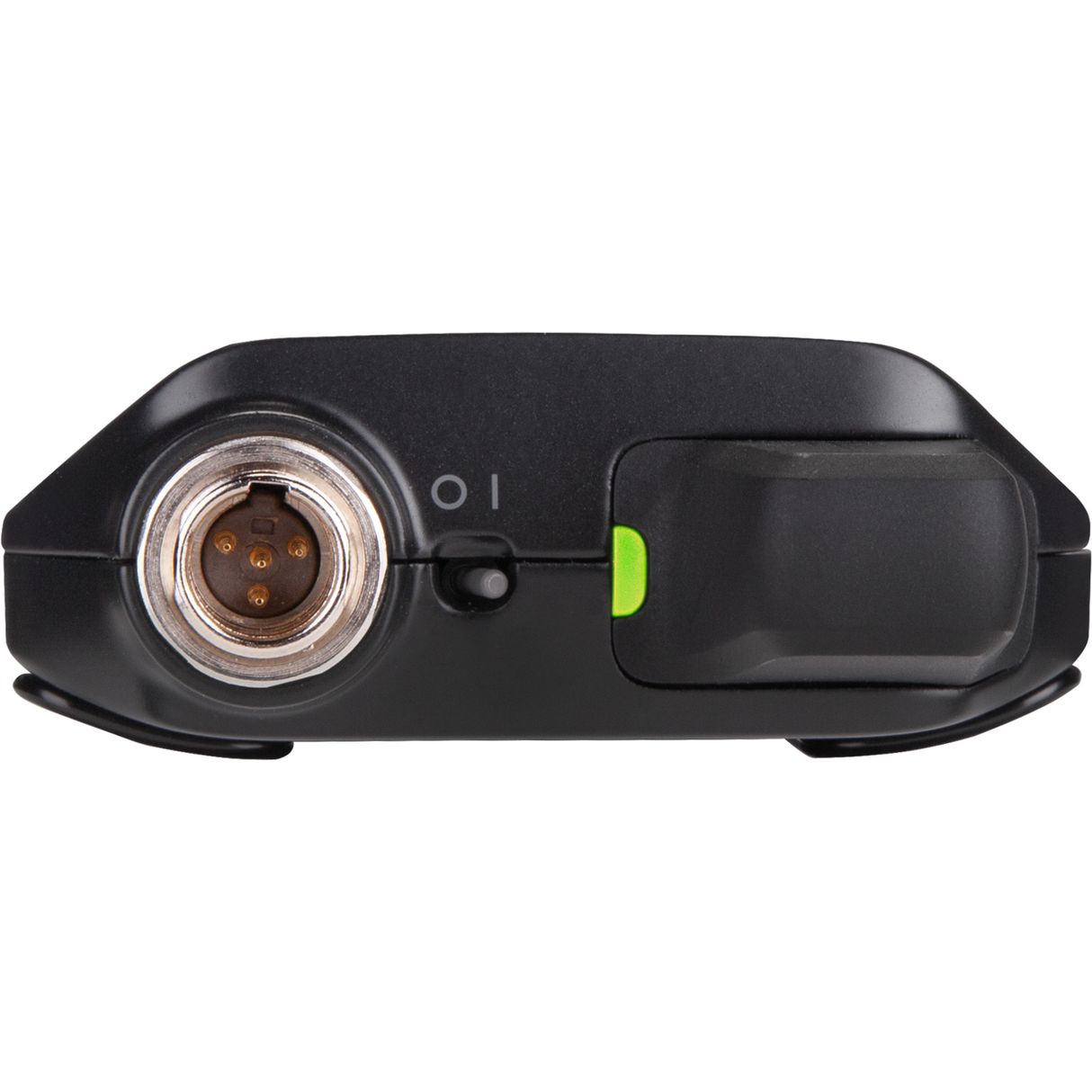

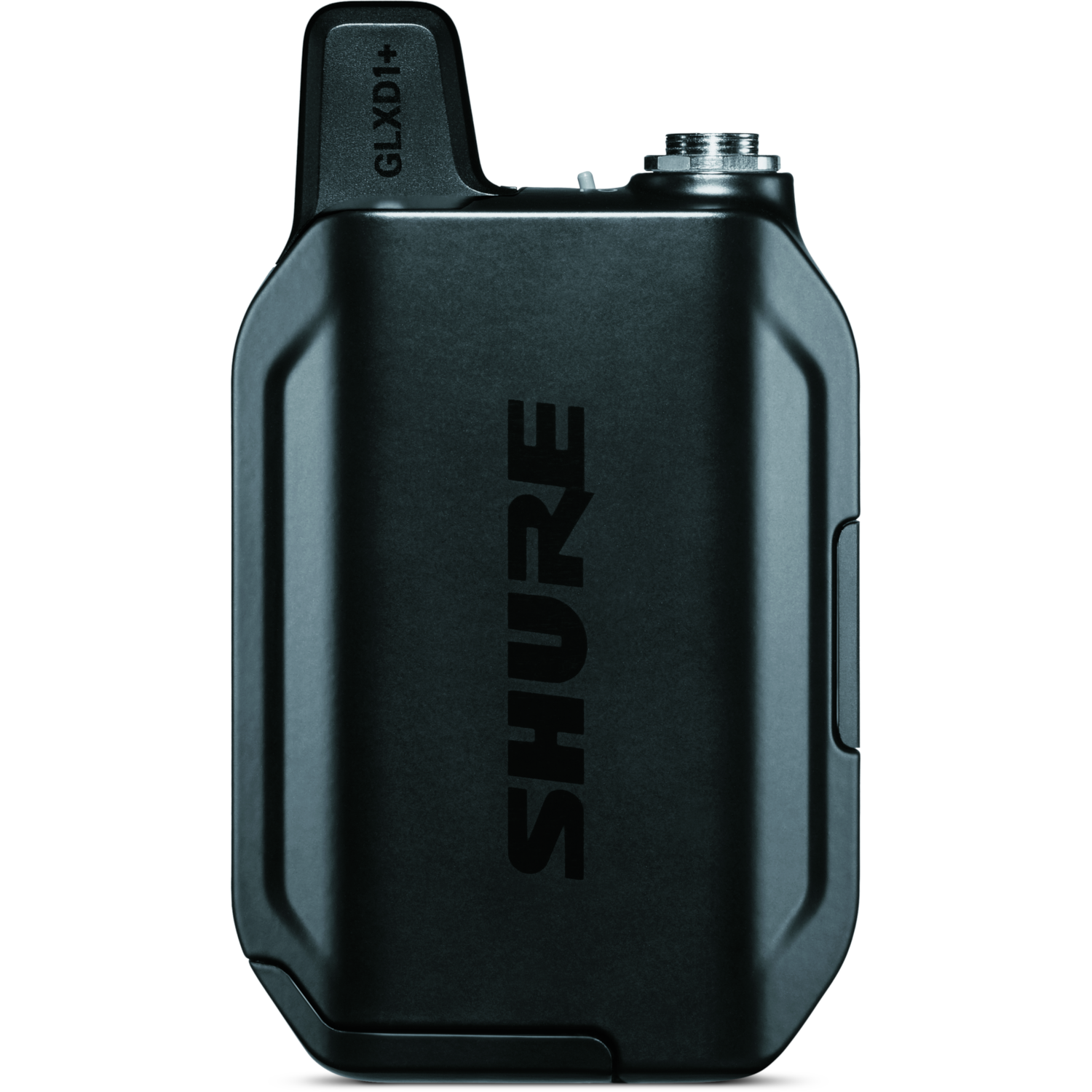

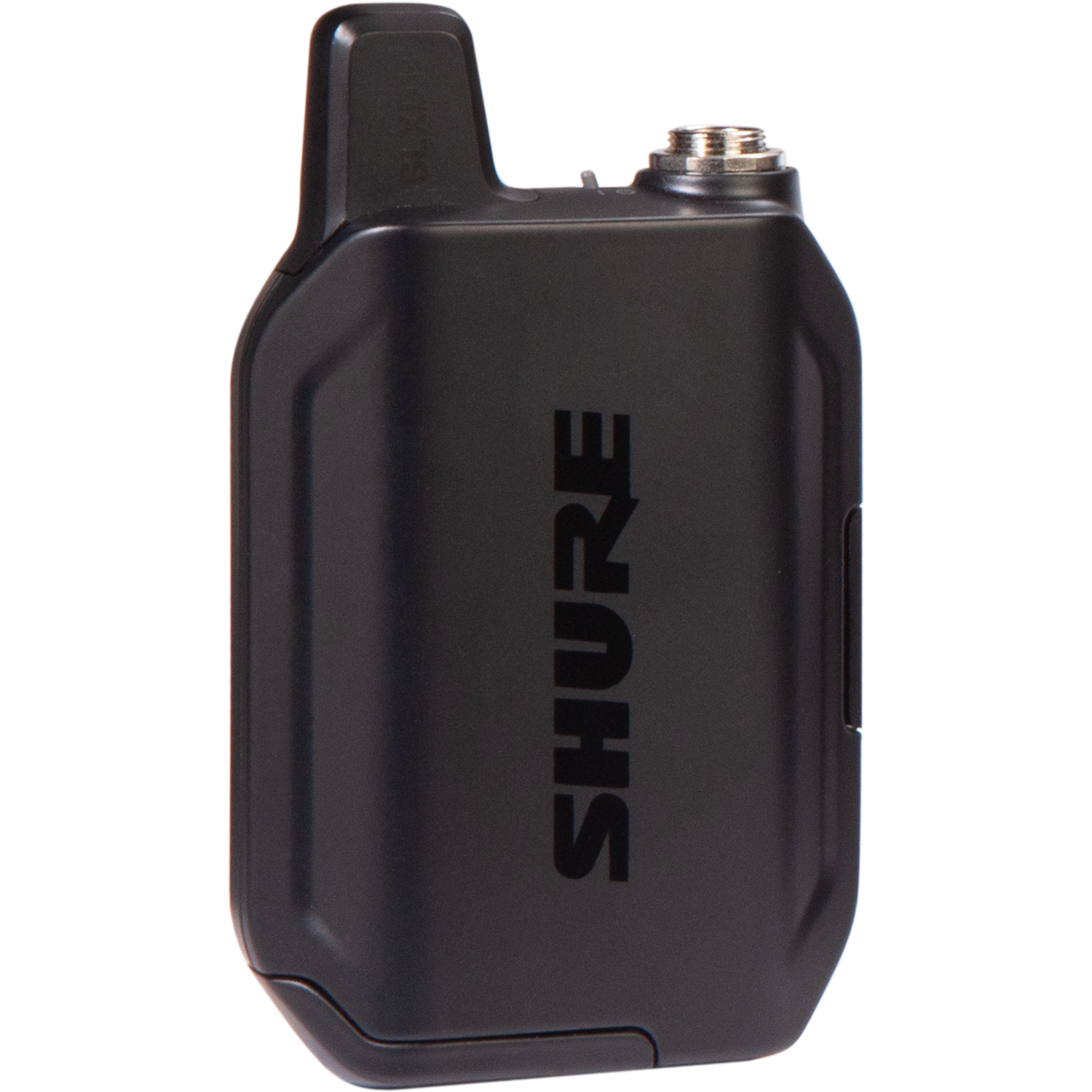

SPECIFICATIONS

• System Operating Range
• Indoors: Up to 30 m (100 feet) typical, with a maximum of 60 m (200 ft.) under ideal conditions
• Outdoors: Up to 20 m (65 feet) typical, with a maximum of 50 m (165 ft.) under ideal conditions
• Transmit Mode: Shure Proprietary Digital - Dual Band (2.4 GHz and 5.8 GHz)
• Audio Frequency Response: 20 Hz – 20 kHz Note: Dependent on microphone type
• Dynamic Range: 120 dB, A-weighted
• RF Sensitivity: -88 dBm, typical
• Total Harmonic Distortion: 0.07%, typical
• RF Output Power: 10 mW E.I.R.P. max
• Operating Temperature Range: -18°C (0°F) to 57°C (135°F) Note: Battery characteristics may limit this range
• Storage Temperature Range: -29°C (-20°F) to 74°C (165°F)
• Battery Life: Up to 12 hours
• Power Requirements: 3.7 V Rechargeable Li-Ion
• Housing Cast: Metal, Black Powdercoat
• Input Impedance: 900 kΩ
• RF Output Power: 10 mW E.I.R.P. max
• Connector: 4-Pin male mini connector (TA4M)
• Configuration: Unbalanced Maximum Input Level (1 kHz at 1% THD): +8.4 dBV (7.5 Vp-p)
• Antenna Type: Dual Band Internal Monopole
• Dimensions: 4.5 x 2.6 x 1.1 inches (115 x 66.94 x 28.51 mm), without antenna
• Weight: 5.4 oz (153.1 g), without battery

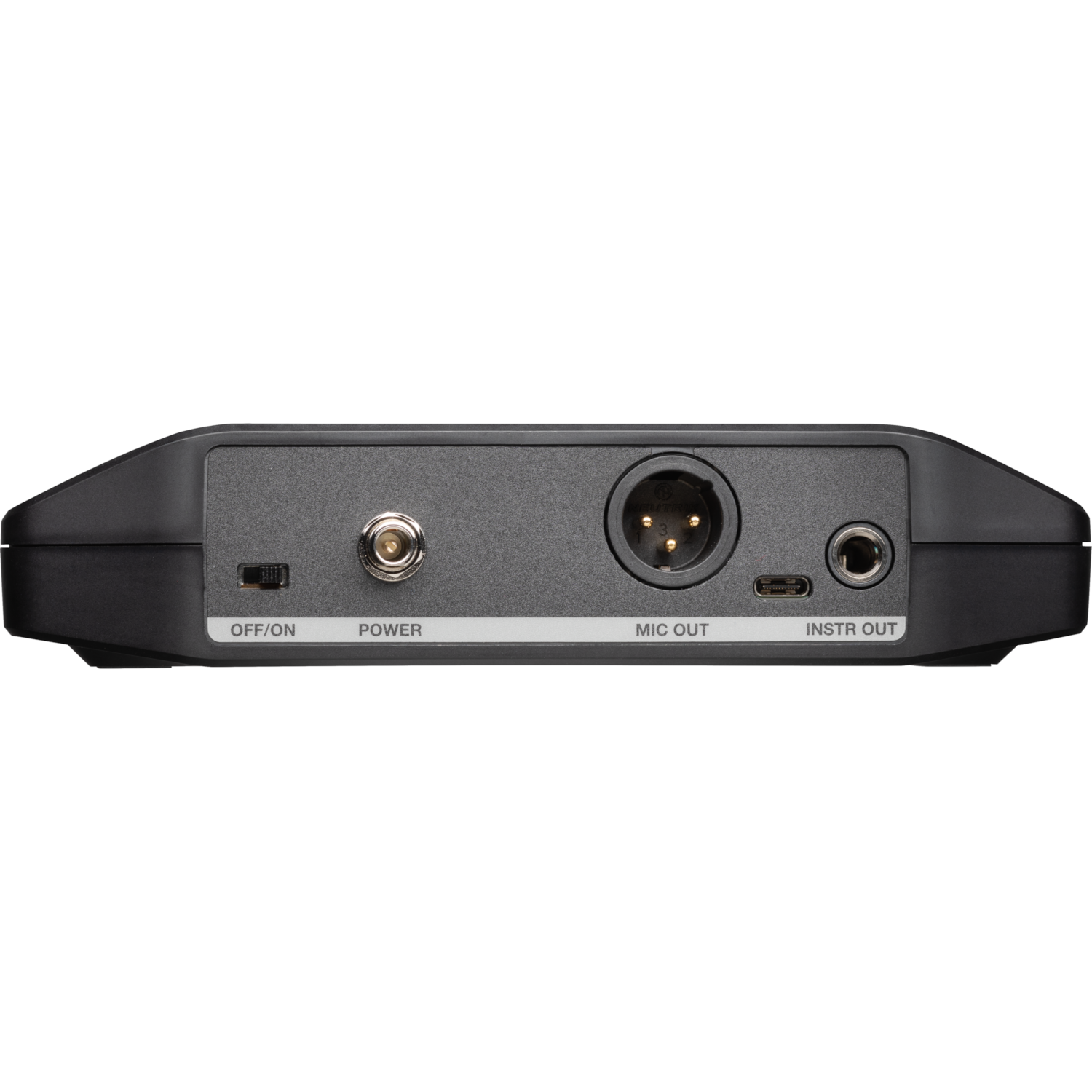

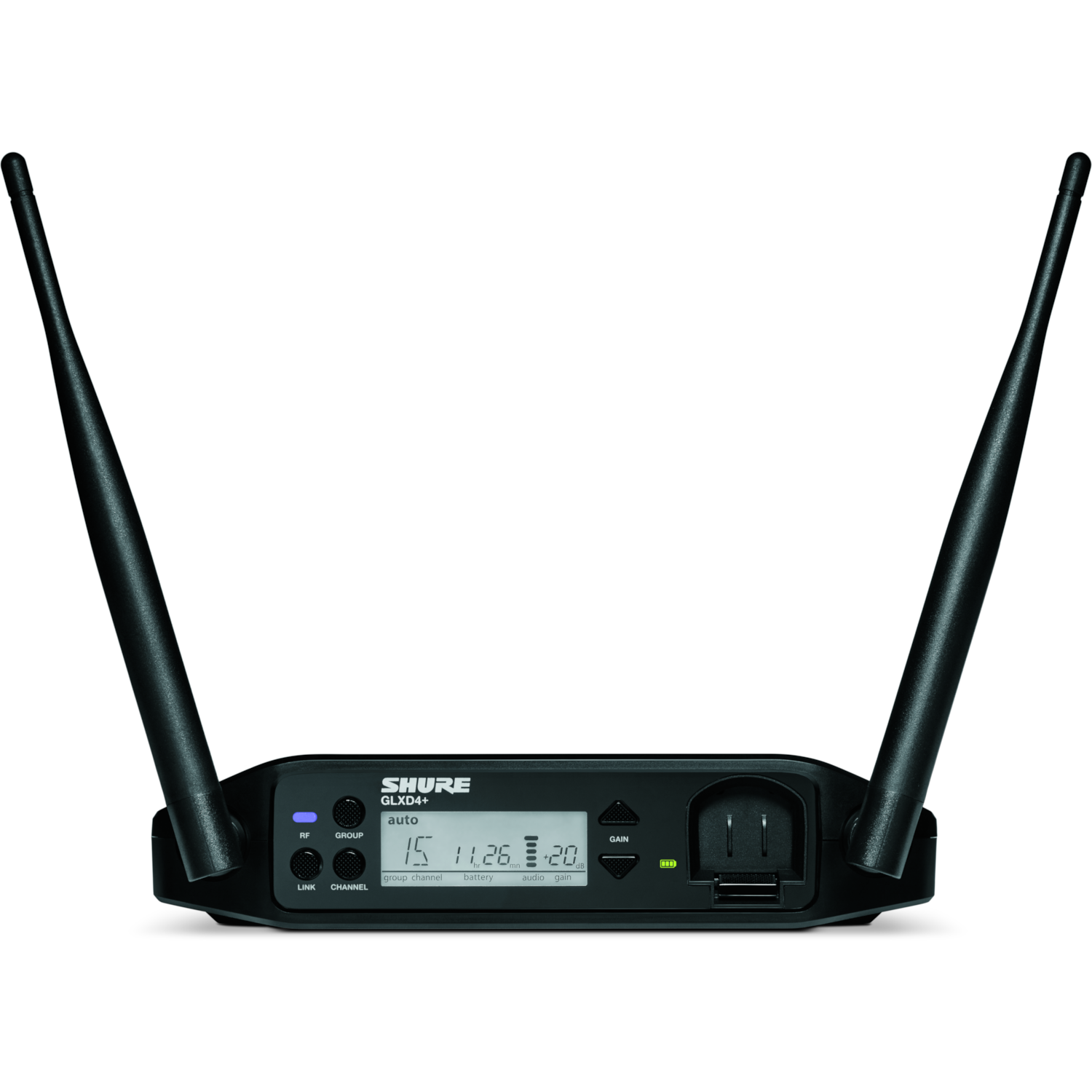

Shure GLXD4+ Dual Band Wireless Receiver

• System Operating Range
• Indoors: Up to 30 m (100 feet) typical, with a maximum of 60 m (200 ft.) under ideal conditions
• Outdoors: Up to 20 m (65 feet) typical, with a maximum of 50 m (165 ft.) under ideal conditions
• Transmit Mode: Shure Proprietary Digital - Dual Band (2.4 GHz and 5.8 GHz)
• Audio Frequency Response: 20 Hz – 20 kHz Note: Dependent on microphone type
• Dynamic Range: 120 dB, A-weighted
• RF Sensitivity: -88 dBm, typical
• Total Harmonic Distortion: 0.07%, typical
• RF Output Power: 10 mW E.I.R.P. max
• Operating Temperature Range: -18°C (0°F) to 57°C (135°F) Note: Battery characteristics may limit this range
• Storage Temperature Range: -29°C (-20°F) to 74°C (165°F)
• Battery Life: Up to 12 hours
• Housing Molded: Plastic
• Power Requirements: 14.5 V - 17 V, 600 mA
• Spurious Rejection: >35 dB, typical
• Gain Adjustment Range: -20 to 40 dB in 1 dB steps
• Phantom Power Protection: Yes
• Configuration
• XLR Output: Impedance balanced
• 6.35 mm (1/4-inch) output: Impedance balanced
• Impedance
• XLR Output: 100 Ω
• 6.35 mm (1/4-inch) output 100 Ω (50 Ω, Unbalanced)
• Maximum Audio Output Level
• XLR connector (into 600 Ω load): 1 dBV
• 6.35 mm (1/4-inch) connector (into 3 kΩ load): +8.5 dBV
• Pin Assignments
• XLR Output: 1=ground, 2=hot, 3=cold
• 6.35 mm (1/4-inch) connector: Tip=audio, Ring/Sleeve=ground
• Antenna Input
• Impedance: 50 Ω
• Antenna Type: Dual Band 1/2 Wave Sleeve Dipole, non-removable
• Maximum Input Level: −20 dBm
• Dimensions 7.2 x 4.8 x 1.6 inches (182.8 x 121.97 x 40.3 mm), antennas folded
• Weight: 10.9 ounces (310 g)

SM35 Performance Headset Condenser Microphone

• Type: Electret Condenser
• Frequency Response: 40 Hz to 20,000 Hz
• Polar Pattern: Unidirectional (Cardioid)
• Output Impedance @ 1 kHz: 2400 Ω
• Audio Output Level: -59.0 dBV/Pa
• Signal-to-Noise Ratio @ 1 kHz: 55 dB
• Maximum SPL 1000 Ω load @ 1% THD: 153.0 dB
• Dynamic Range @ 1 kHz, 1000 Ω load: 114.0 dB
• Equivalent Output Noise Typical, A-Weighted: 39 dB
• Power Requirements: +5 V DC (nominal), 10 V maximum (DC bias)
• Polarity: Positive pressure on diaphragm produces positive voltage on pin 3 with respect to pin 1 Cable 1.1 m (45 inches)
• Connector TA4F: Net Weight 72 g (2.53 oz.)
