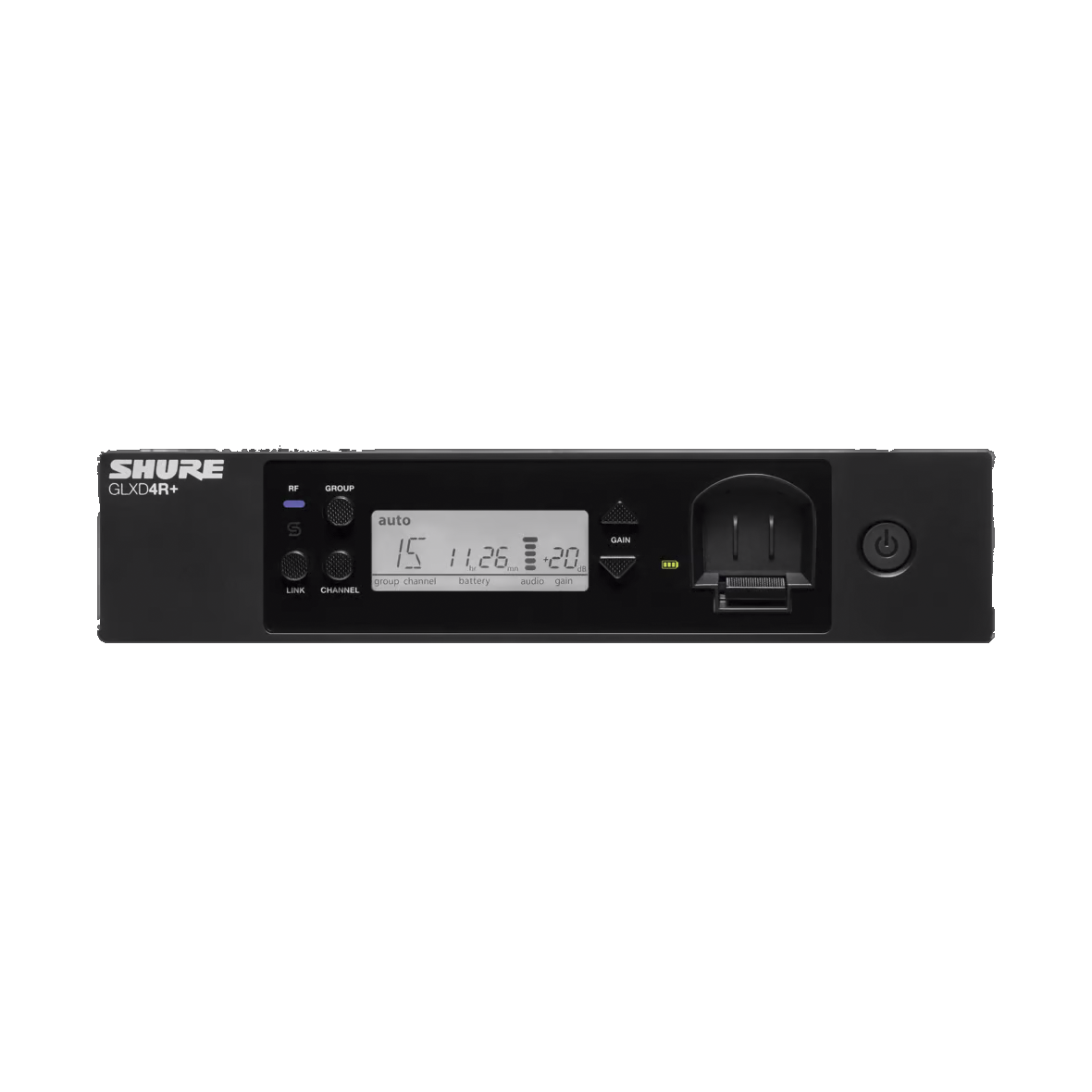

Shure GLXD4R+ Dual Band Wireless Rack Receiver

Legendary Performance - The Shure GLXD4R+ Dual Band Wireless Receiver

Frequency Band: Z3 (2.4, 5.8 GHz)

GLX-D+ Dual Band Digital Wireless is the perfect solution for musicians and presenters who want to go wireless with confidence, and without complexity. With new Dual Band Wireless Technology, GLX-D+ can operate in both 2.4 and 5.8GHz, more than doubling the available bandwidth while also intelligently avoiding interference for reliable, dropout-free audio.

• Exceptional digital audio clarity
• Compatible with multiple legendary microphone options
• Automatically moves away from interference without audio interruption
• Rechargeable battery delivers up to 12 hours of runtime
• Rock-solid RF performance for multiple system installations
• License-free frequency range

SPECIFICATIONS

• System Operating Range
• Indoors: Up to 30 m (100 feet) typical, with a maximum of 60 m (200 ft.) under ideal conditions
• Outdoors: Up to 20 m (65 feet) typical, with a maximum of 50 m (165 ft.) under ideal conditions
• Transmit Mode: Shure Proprietary Digital - Dual Band (2.4 GHz and 5.8 GHz)
• Audio Frequency Response: 20 Hz – 20 kHz Note: Dependent on microphone type
• Dynamic Range: 120 dB, A-weighted
• RF Sensitivity: -88 dBm, typical
• Total Harmonic Distortion: 0.07%, typical
• RF Output Power: 10 mW E.I.R.P. max
• Operating Temperature Range: -18°C (0°F) to 57°C (135°F) Note: Battery characteristics may limit this range
• Storage Temperature Range: -29°C (-20°F) to 74°C (165°F)
• Battery Life: Up to 12 hours
• Housing: Steel
• Power Requirements: 14.5 V - 17 V, 600 mA
• Spurious Rejection: >35 dB, typical
• Gain Adjustment Range: −18 to 42 dB in 1 dB steps
• Phantom Power Protection Yes

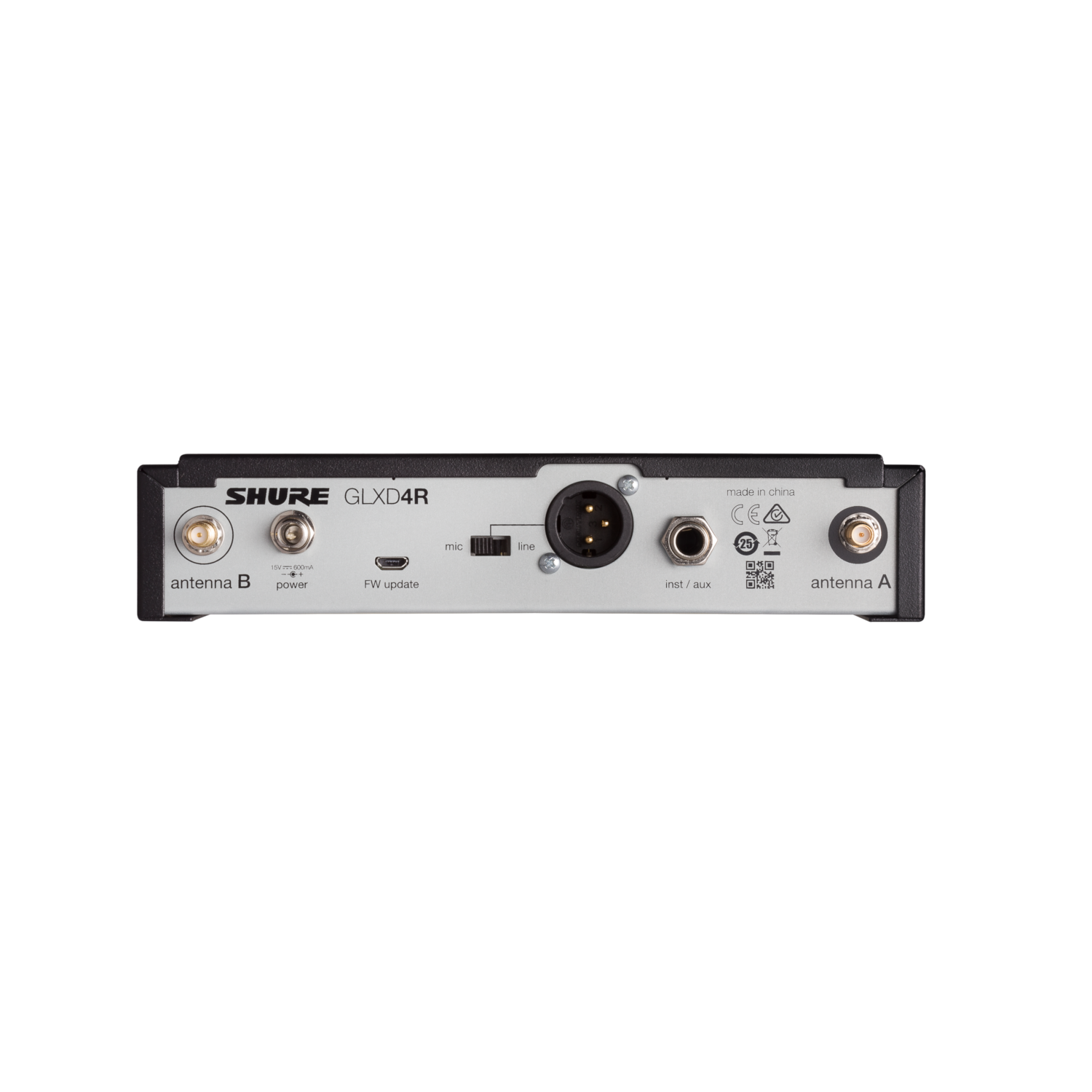

• Configuration
• XLR Output: Balanced
• 6.35 mm (1/4-inch) output: Impedance balanced
• Impedance
• XLR Output: 100 Ω
• 6.35 mm (1/4-inch) output: 100 Ω (50 Ω, Unbalanced)
• Full-Scale
• XLR: LINE setting= +18 dBV, MIC setting= −12 dBV
• 6.35 mm (1/4-inch): +12 dBV
• XLR Output 1=ground, 2=hot, 3=cold
• Pin Assignment: 6.35 mm (1/4-inch) connector: Tip=audio, Ring=no audio, Sleeve=ground
• Mic/Line Switch: 30 dB Pad
• Input
• Impedance: 50 Ω
• Antenna Type Dual: Band 1/2 WaveSleeve Dipole
• Maximum Input Level −20 dBm
• Dimensions 7.7 x 6.4 x 1.6 inches (196.8 x 162.97 x 41.8 mm), without antenna
• Weight 30.5 ounces (866 g) without batteries
