Bring More Clarity to the Conference - The Shure Microflex Advance 4-Channel Dante Mic/Line Audio Network Interface Unit - Block Inputs
High-quality sound can bring more clarity to the conference, but not without high quality conversion. ANI interfaces with Dante™ make it easy to connect analog microphones to the network. Paired with analog microphones, ANI keeps the conversation on track.
- Single Ethernet port carries Dante audio, power (PoE – class 0)

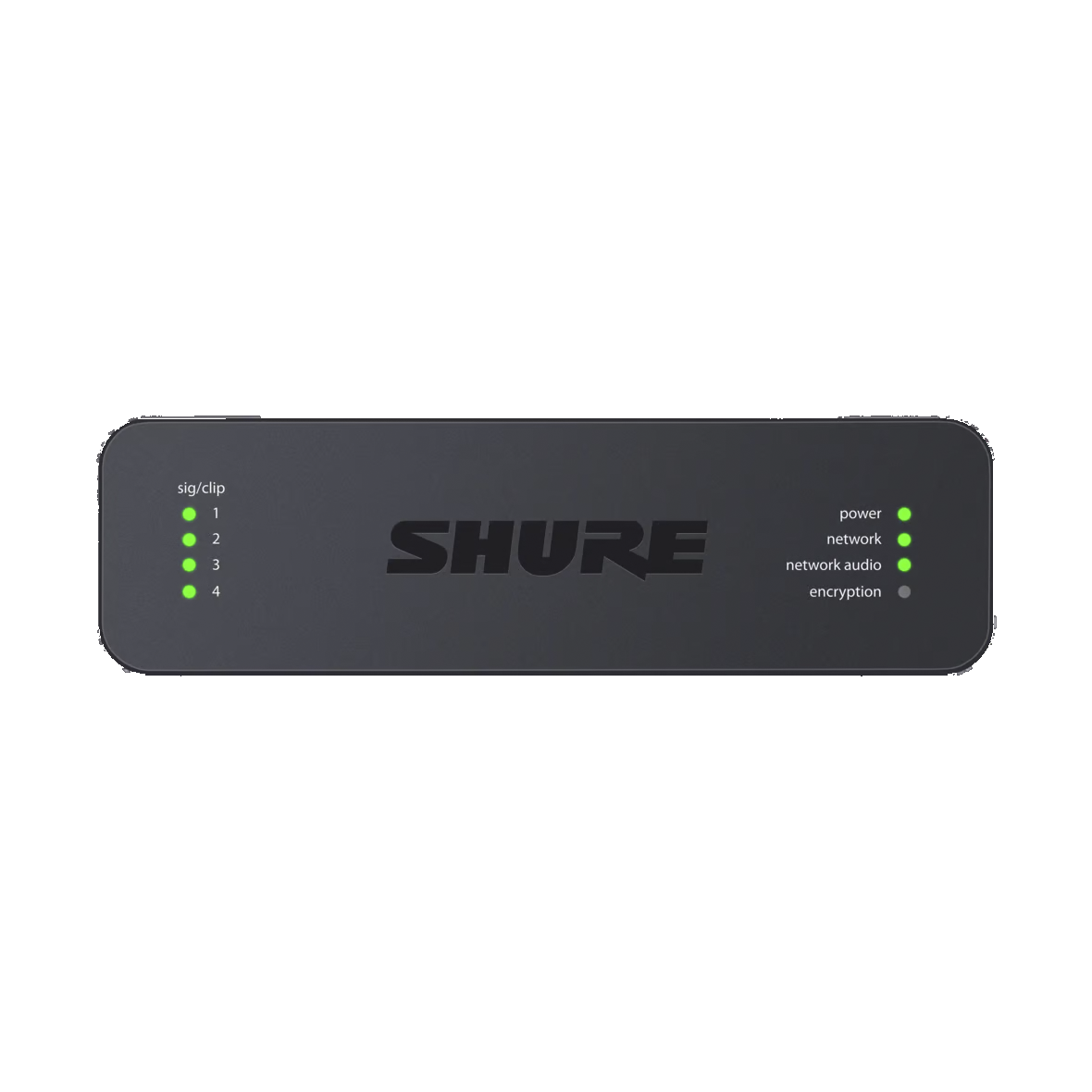

- LEDs indicate device status and audio signal
- Control strings for third-party preset controllers including Crestron® and AMX®
- 4 Band C/S PEQ on every channel
- Provides channel summing to combine input signals and send them over a single Dante™ channel
- Browser-based software control for all device parameters, per input channel:
- Preamp gain
- Mute control
- Digital gain
- Polarity control
- Phantom power
- 1/3 Rack unit wide

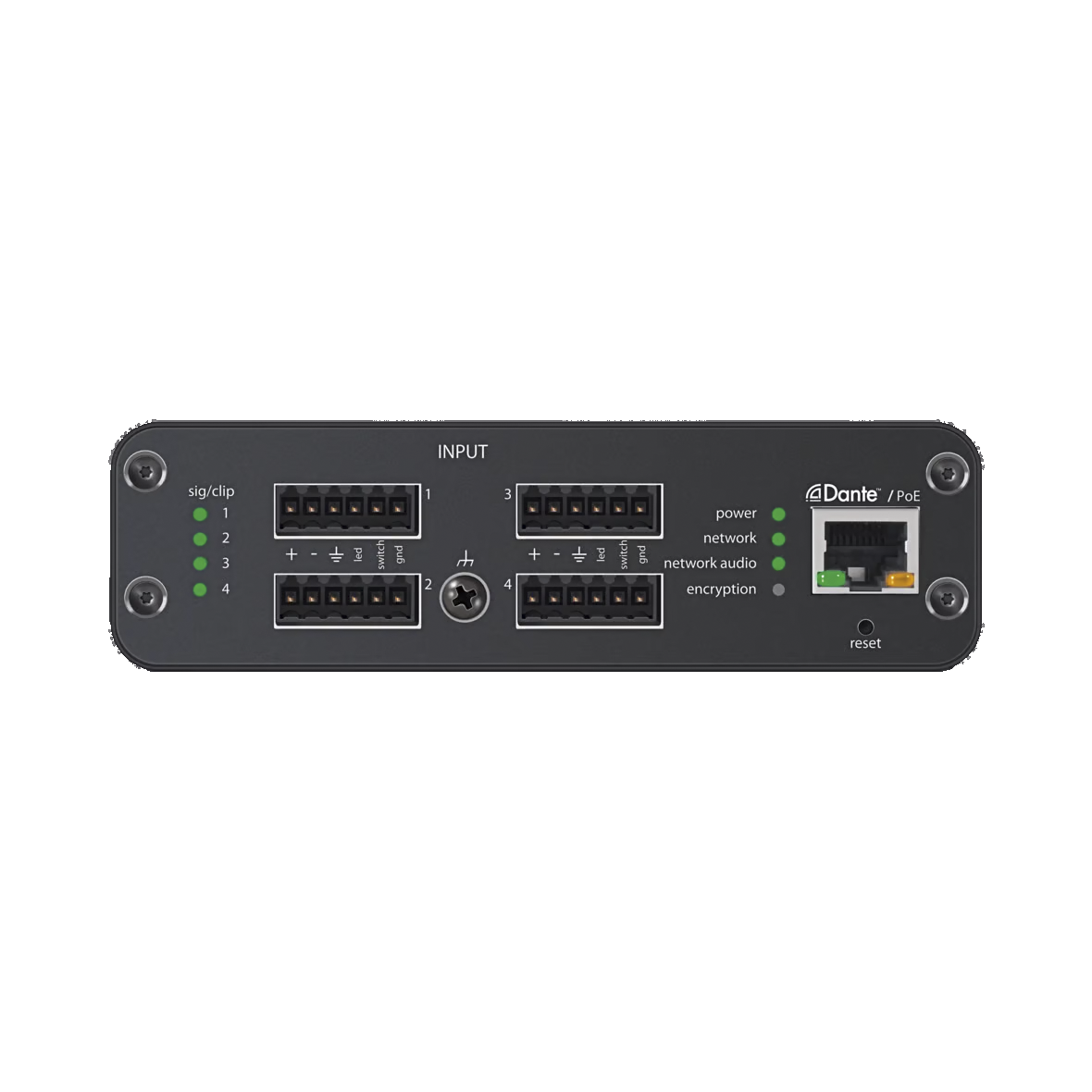

- Chassis ground screw (BLOCK version only) provides common chassis ground for multiple inputs
- Available in block connector (audio + logic) and standard XLR variations
SPECIFICATIONS
- ANI4IN-XLR: (4) XLR connector
- ANI4IN-BLOCK: (4) 6-pin block connector
- Phantom Power: selectable per channel, +48 V
- Logic Connections (Block connectors only): Sent as Ethernet command strings, LED(+5 V), Switch
- Polarity: Non-inverting, any input to any output
- Output: (1) RJ45
- Power Requirements: Power over Ethernet (PoE), Class 0
- Power Consumption: 10W, maximum
- Weight: 672 g (1.5 lbs)
- Dimensions (H x W x D): 4 x 14 x 12.8 cm (1.6 x 5.5 x 5.0 in.)
- Control Application: HTML5 Browser-based
- Operating Temperature Range: −6.7°C (20°F) to 40°C (104°F)
- Storage Temperature Range: −29°C (-20°F) to 74°C (165°F)
- Audio Frequency Response: 20 to 20,000 Hz
- Dante Digital Output:
- Channel Count: 4
- Sampling Rate: 48 kHz
- Bit Depth: 24
- Latency (does not include Dante latency): 0.35 ms
- Analog Gain Range: Adjustable in 3 dB steps, 51 dB
- Dynamic Range (Analog-to-Dante): 20 Hz to 20 kHz, A-weighted, typical, 113 dB
- Equivalent Input Noise: 20 Hz to 20 kHz, A-weighted, input terminated with 150Ω
- Analog Gain Setting= +0 dB: -93 dBV
- Analog Gain Setting= +27 dB: -119 dBV
- Analog Gain Setting= +51 dB: -130 dBV
- Total Harmonic Distortion: @ 1 kHz, 0 dBV Input, 0 dB analog gain,Greater than 0.05%
- Common Mode Rejection Ratio: 150Ω balanced source @ 1 kHz, Less than 70 dB
- Impedance: 5 kΩ
- Input Configuration: Active Balanced
- Input Clipping Level:
- Analog Gain Setting= +0 dB: +20 dBV
- Analog Gain Setting= +27 dB: -7 dBV
- Analog Gain Setting= +51 dB: -31 dBV
- Built-in Digital Signal Processing:
- Per Channel: Equalizer (4-band Parametric), Mute, Gain (140 dB range)
- System: Audio Summing
Manufacturer: Shure
Model: ANI4IN-BLOCK
SKU: I404716-N-24-WHXD
UPC: 042406475440
