Shure P3T-J13 Half-Rack Single Channel Wireless Transmitter - J13 Band

Cut Throuh the Noise with the Shure P3T Half-Rack Single Channel Wireless Transmitter

This unit operates in the J13 (566-590 MHz) frequency band

Dependable wireless transmission and 24-bit digital audio combine to deliver a superior personal monitoring mix for every performance. Send 2 channels of audio to a bodypack receiver up to 300 feet (90 m) away, with patented Audio Reference Companding to ensure transparent sound quality with no artifacts or dropouts.

• Transmitter sends a stereo or mono mix wirelessly to performers onstage
• One-touch IR sync on user-friendly front-panel controls instantly links transmitter to receiver

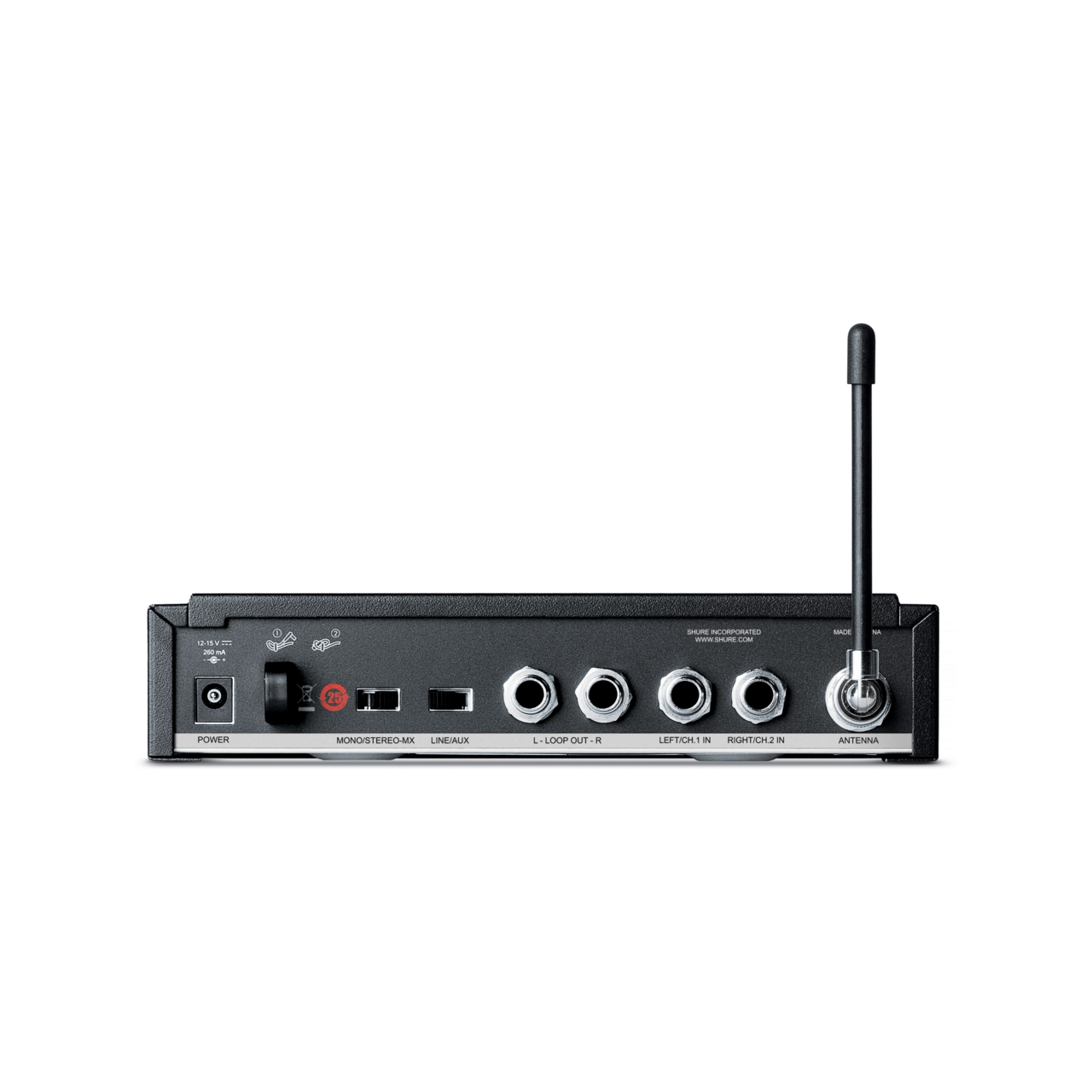

• Rear-panel 1/4" (6.3 mm) TRS balanced inputs and loop outputs provide versatile connectivity to audio sources and other P3T units
• Up to 30 mW output power (regionally dependent)

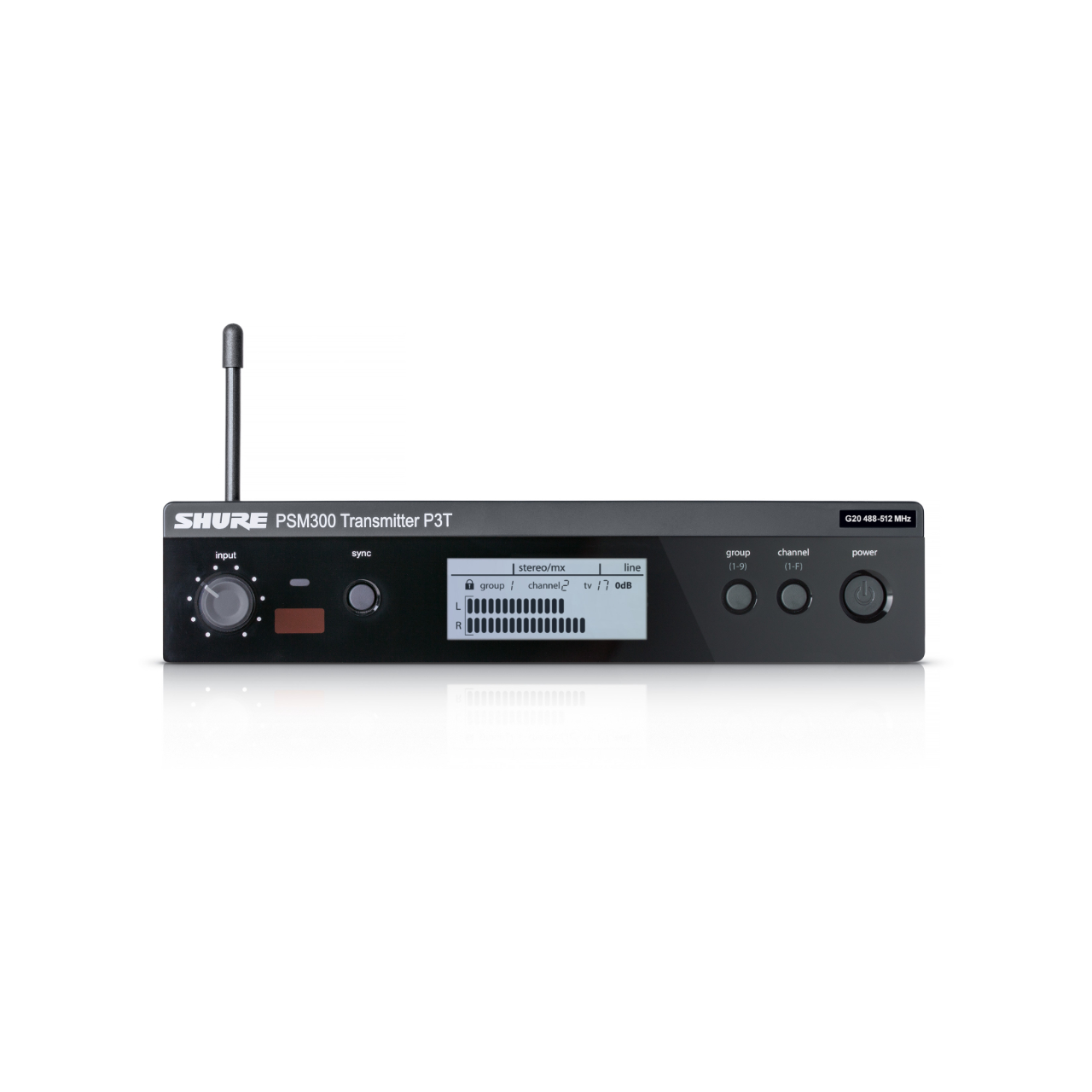

• High-contrast LCD screen with left/right audio output meters
• Selectable line/aux level

SPECIFICATIONS

General

• RF Output Power: 10, 20, 30 mW
• RF Output Impedance: 50 ohms (typical)
• Power Requirement: 12-15V DC, 260 mA Maximum

Audio Input

• Connector Type: 6.35 mm (1/4") TRS
• Polarity: Tip positive with respect to ring
• Configuration: Electronically balanced
• Impedance: 40 kOhms (actual)
• Nominal Input Level: switchable: +4 dBu, -10 dBV
• Pin Assignments: Tip=hot, Ring=cold, Sleeve=ground
• Phantom Power Protection: Up to 60 V DC

Audio Output

• Connector Type: 6.35 mm (1/4") TRS
• Configuration: Electronically balanced
• Impedance: Connected directly to inputs
