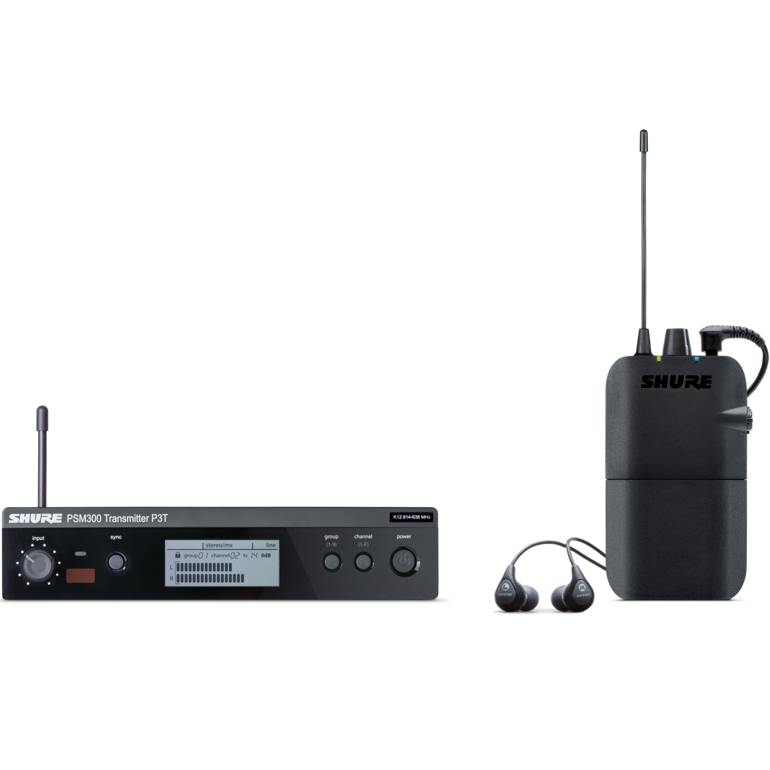

Shure P3TR112GR-G20 PSM300 Series Wireless In Ear Monitor System - G20 Band


  • Our Price
  • $699.00
  • Regular price MSRP: $874.00





Make Sure Nothing Gets Lost In Transmission With The Shure P3TR112GR-G20 PSM300 Series Wireless In Ear Monitor System - G20 Band

PSM 300 Stereo Personal Monitor Systems deliver reliable wireless freedom to every corner of the stage. Patented Audio Reference Companding ensures the clearest sound, with ultra-low noise and no artifacts.

Easy to setup and operate, PSM 300 systems offer one-touch frequency scan and sync to find and assign a clean wireless channel. Adjust the volume and use MixMode technology or stereo mode to create a personal mix from two channels of audio.



GENERAL

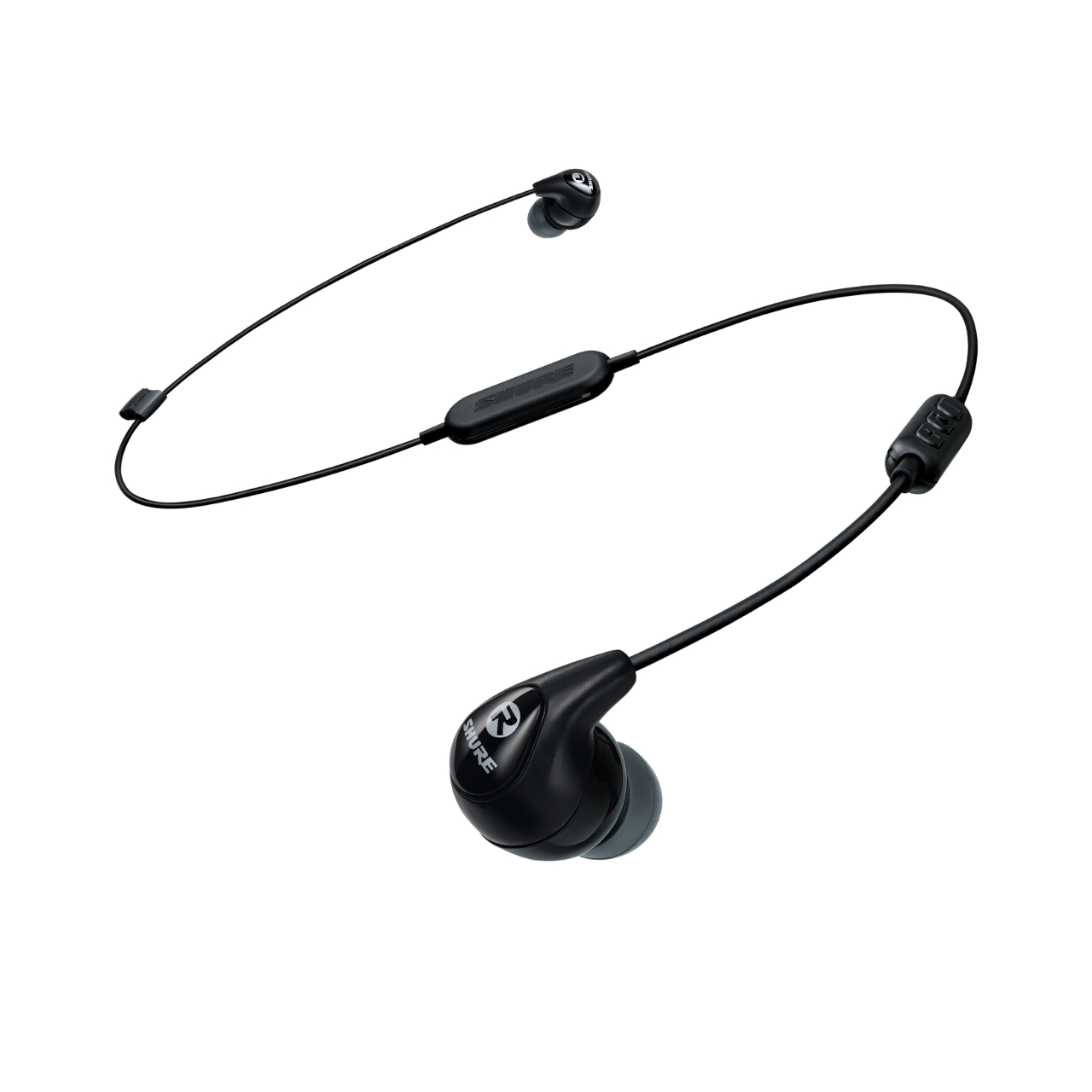

  • Featuring SE112 Sound Isolating EarphonesProvides great sound and simple setup for entry-level users
  • Includes P3R, P3T, SE112, rackmount and hardware kits, 1/4" wave antenna, BNC bulkhead adapter, BNC cable, power supply, 2 AA batteries, zipper bag, and user guide

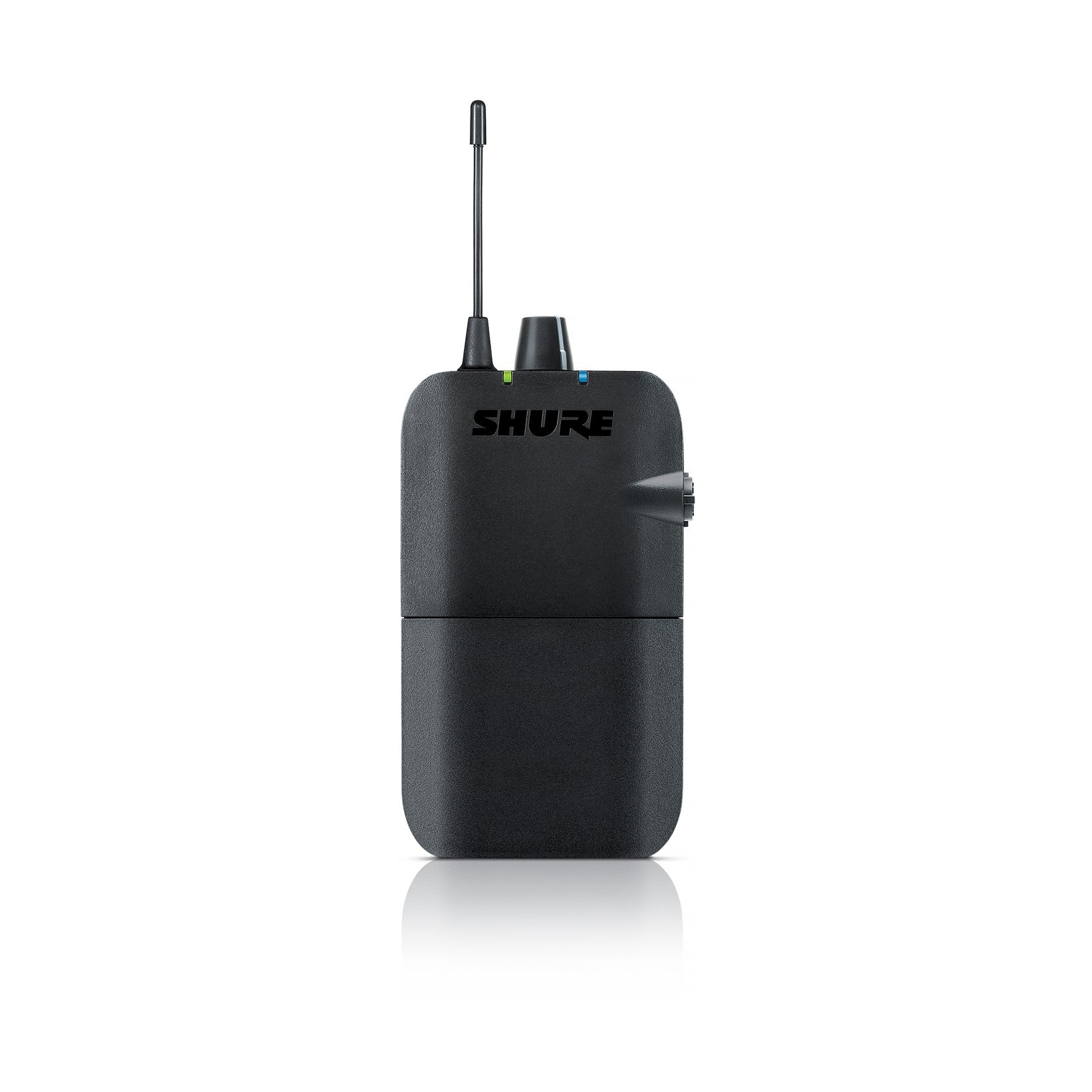

P3R WIRELESS BODYPACK RECEIVER

  • Use MixMode or stereo mode to create a personal 2 channel mix
  • Easy-to-adjust volume and mix controls
  • Scan function quickly finds an open frequency
  • Over 90 dB of dynamic range for precise, low-noise audio
  • Up to 6 hours continuous use from 2 AA batteries
  • Slim, lightweight bodypack attaches easily to a belt or guitar strap

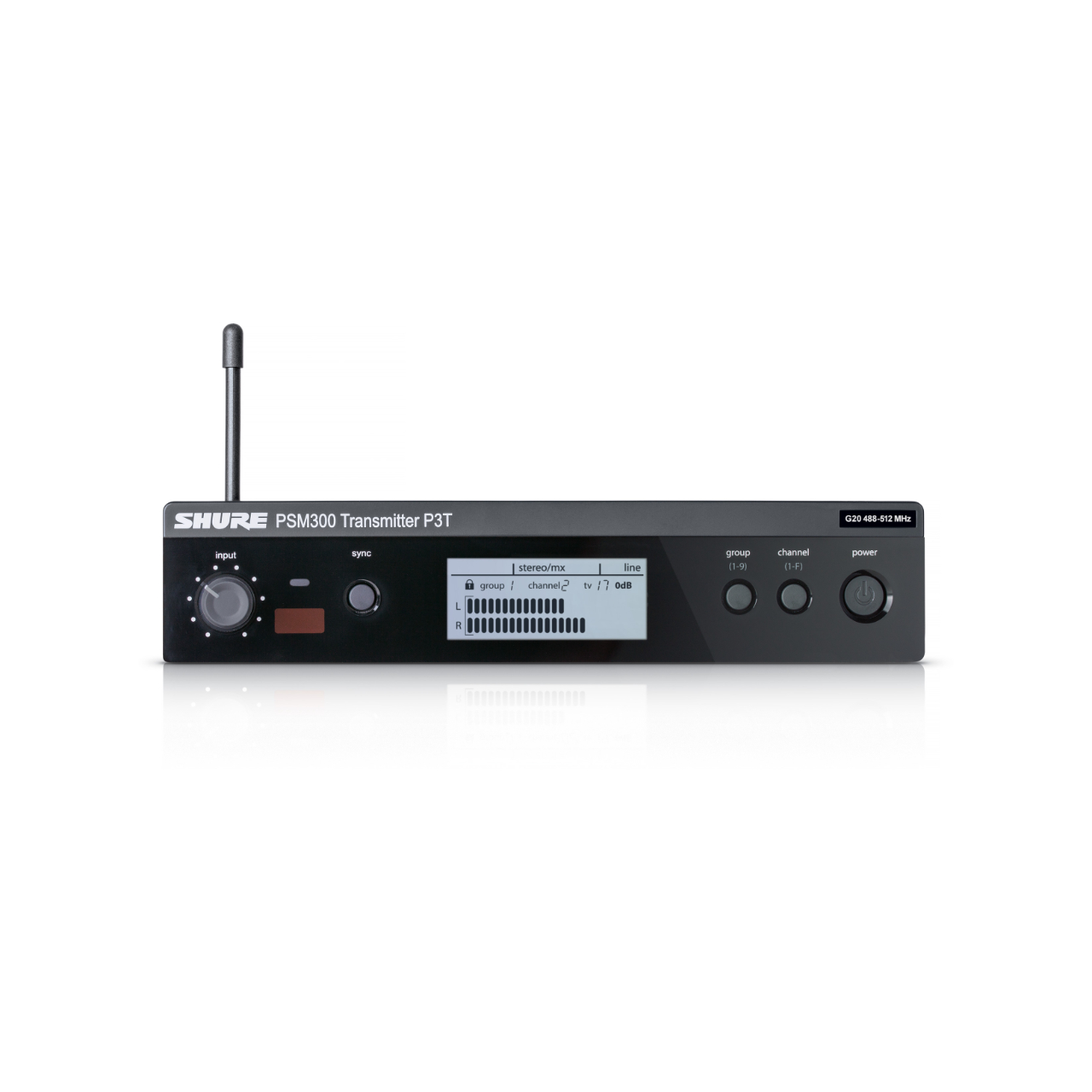

P3T WIRELESS TRANSMITTER

  • Sends a stereo or mono mix wirelessly to performers onstage
  • Detailed, 24-bit digital audio
  • Rock-solid analog wireless connection over a 300 foot (90 meter) range
  • One-touch IR sync instantly links transmitter to bodypack receiver
  • High-contrast LCD screen with audio metering
  • Selectable line/aux level
  • 1/4" (6.3 mm) TRS balanced inputs and loop outputs
  • Detachable 1/4" wave antenna
  • Rack hardware kit included


PSM 300 SYSTEM

  • RF Carrier Range: 488-937.5 MHz (Note: varies by region)
  • Compatible Freqeuncies: Per Band up to 15
  • Tuning Bandwidth: 24 MHz maximum (Note: varies by region)
  • Operating Range: 90 m (300 ft)
  • Audio Frequency Response: 38 Hz-15 kHz
  • Signal-to-Noise Ratio: 90 dB (typical)
  • Total Harmonic Distortion: <0.5% (typical) (ref. +/- 34 kHz deviation @ 1 kHz)
  • Companding: Patented Shure Audio Reference Companding
  • Spurious Rejection: >80 dB (typical)
  • Frequency Stability: +/- 2.5 ppm
  • MPX Pilot Tone: 19 kHz (+/-1 Hz)
  • Modulation: FM*, MPX Stereo (ref. +/- 34 kHz deviation @ 1 kHz)
  • Operating Temperature: -18 degrees C (0 degrees F) to +63 degrees C (145 degrees F)

P3R WIRELESS BODYPACK RECEIVER

  • Active RF Sensitivity (at 20 dB SINAD): 2.2 micro Volts
  • Image Rejection: >90 dB
  • Adjacent Channel Rejection: >60 dB
  • Intermodulation Attenuation: >50 dB
  • Blocking: >60 dB
  • Audio Output Power (1 kHz @ <1% distortion, peak power, @32 ohms): 80 mW (per output)
  • Minimum Load Impedance: 16 ohms
  • Headphone output: 3.5 mm (1.8") stereo
  • Net Weight 98 g (3.5 oz.): (without batteries)
  • Dimensions (H × W × D): 110 x 64 x 21 mm (4.3 x 2.5 x 0.8 in.)
  • Battery Life: 5–7 hours (continuous use) AA batteries

P3T TRANSMITTER

  • RF Output Power: 10, 20, 30 mW
  • RF Output Impedance: 50 ohms (typical)
  • Net Weight: 783 g (27.6oz.)
  • Dimensions (H × W × D): 43 x 198 x 172 mm (1.7 x 7.8 x 6.8 in.)
  • Power Requirements: 12-15 V DC, 260 mA maximum

Manufacturer: Shure
Model: P3TR112GR-G20
Warranty: See manufacturer website for details
SKU: I349286-N-1
UPC: #042406361279
Listing ID: NA76050
